Model Electrolux 790.95592101 Electric Range (Kenmore 79095592101) – Common Parts & Diagrams

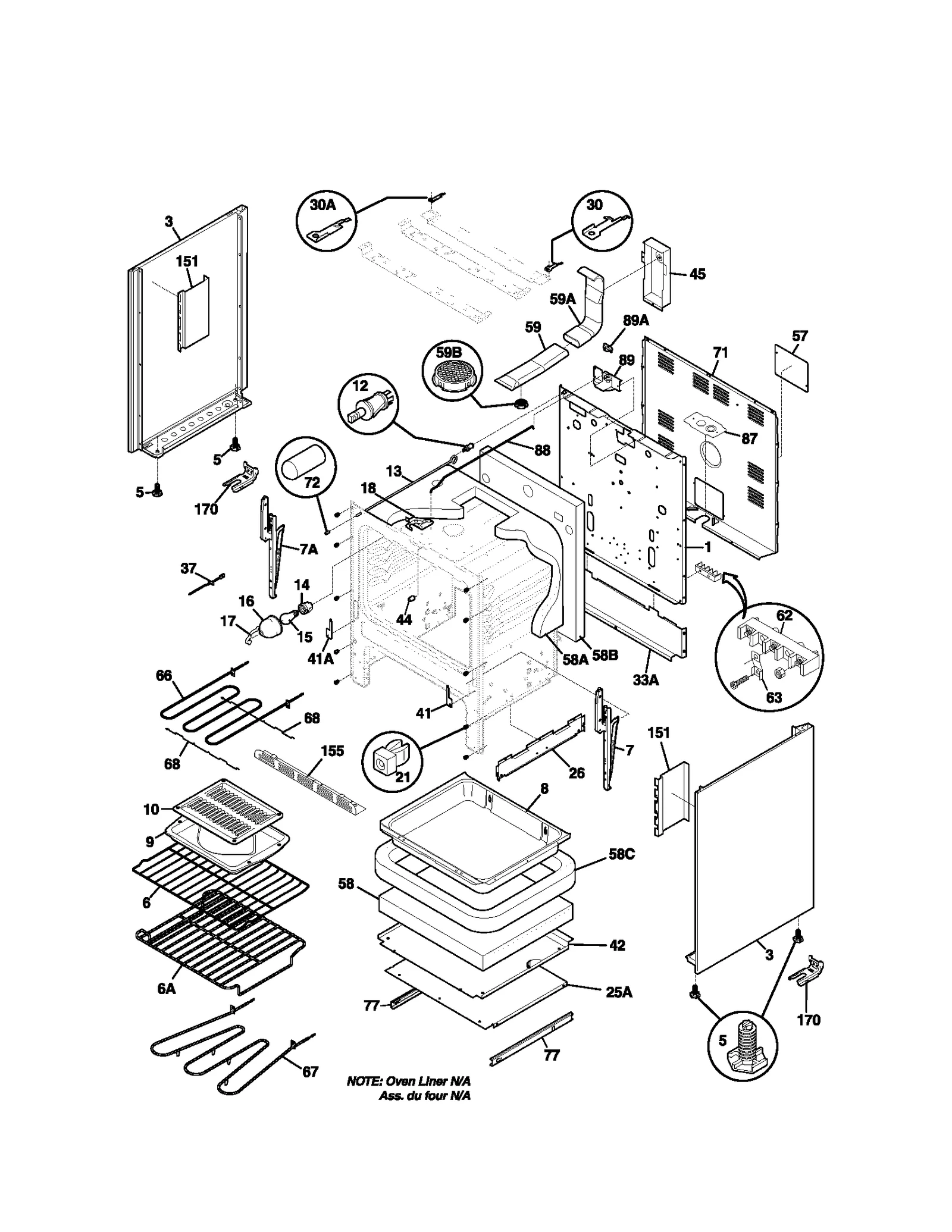

BODY

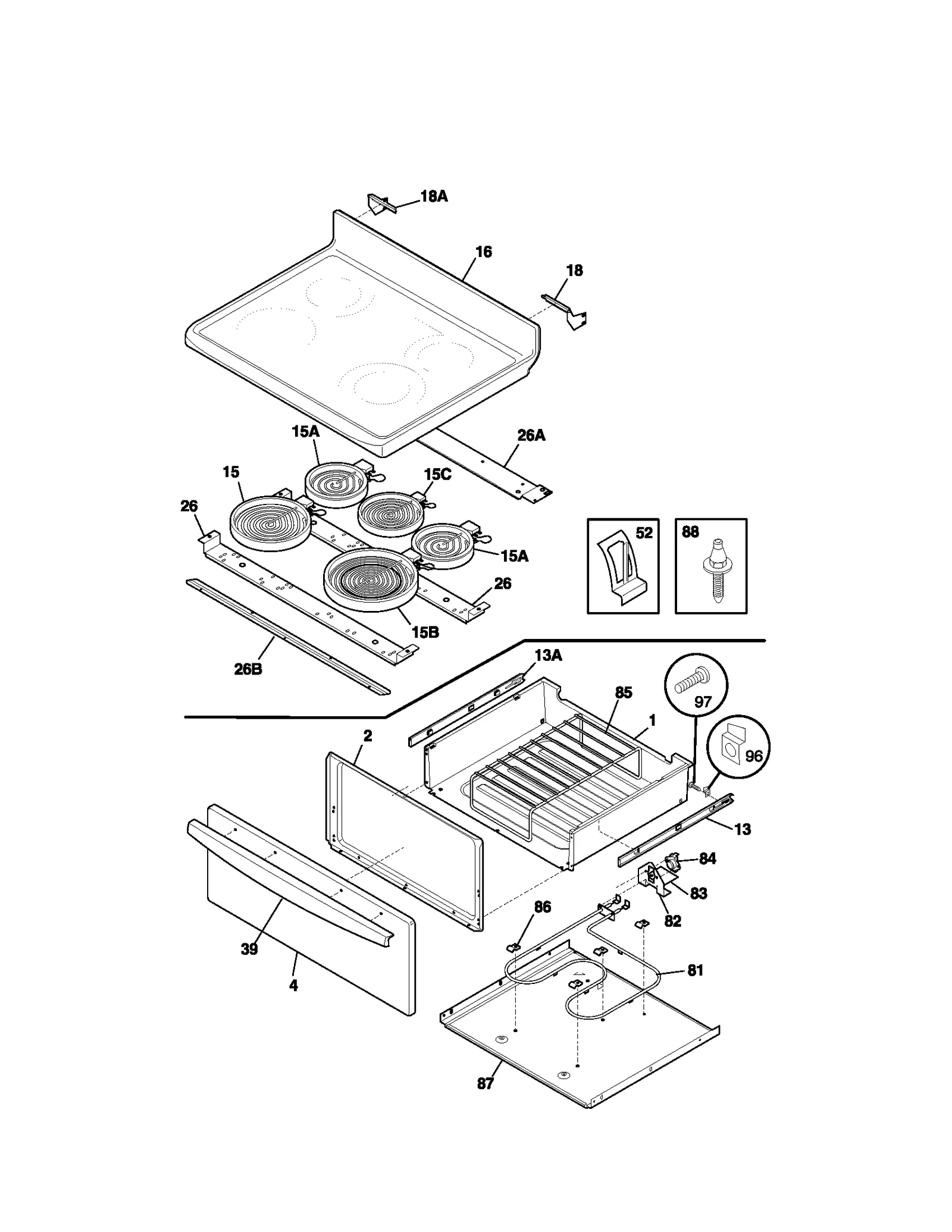

TOP DRAWER

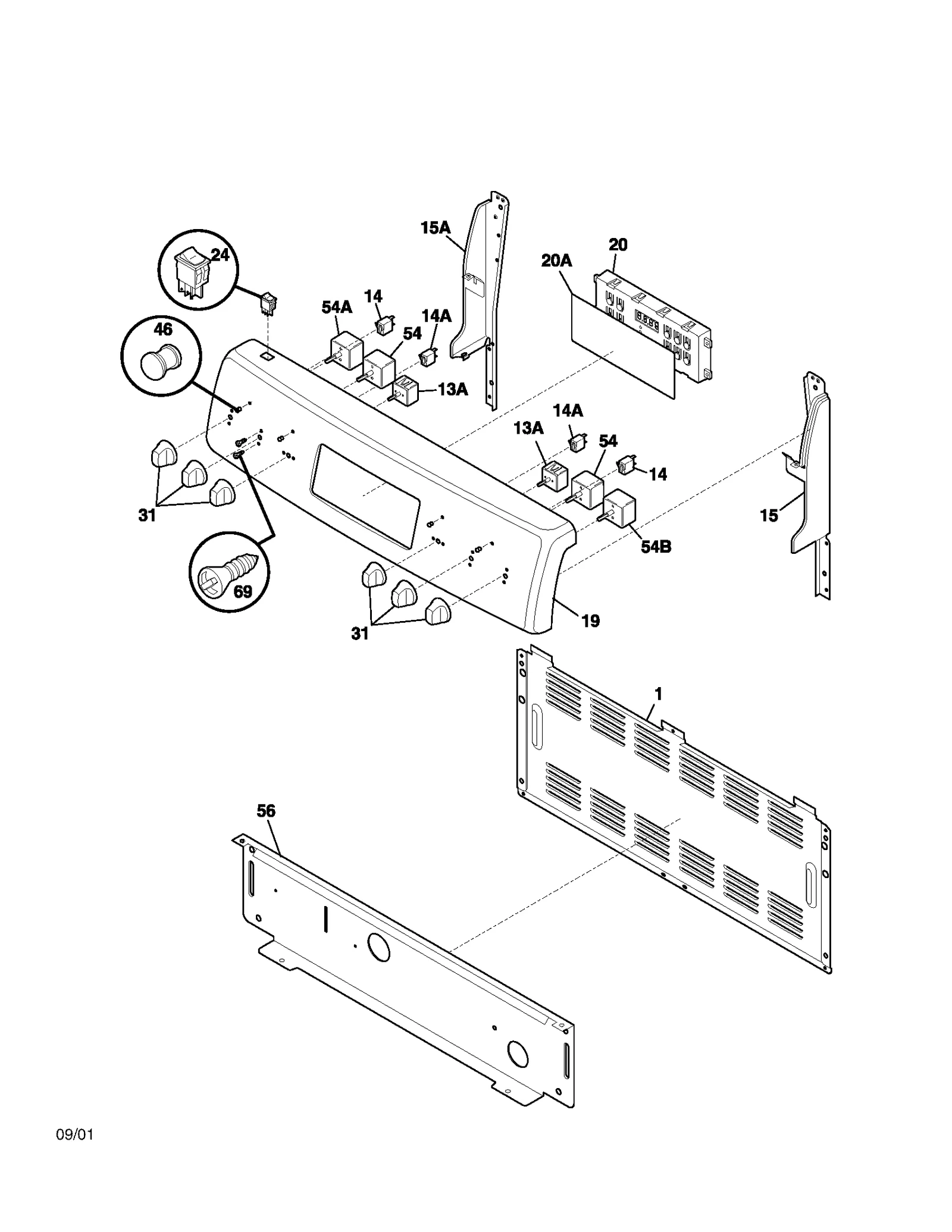

BACKGUARD

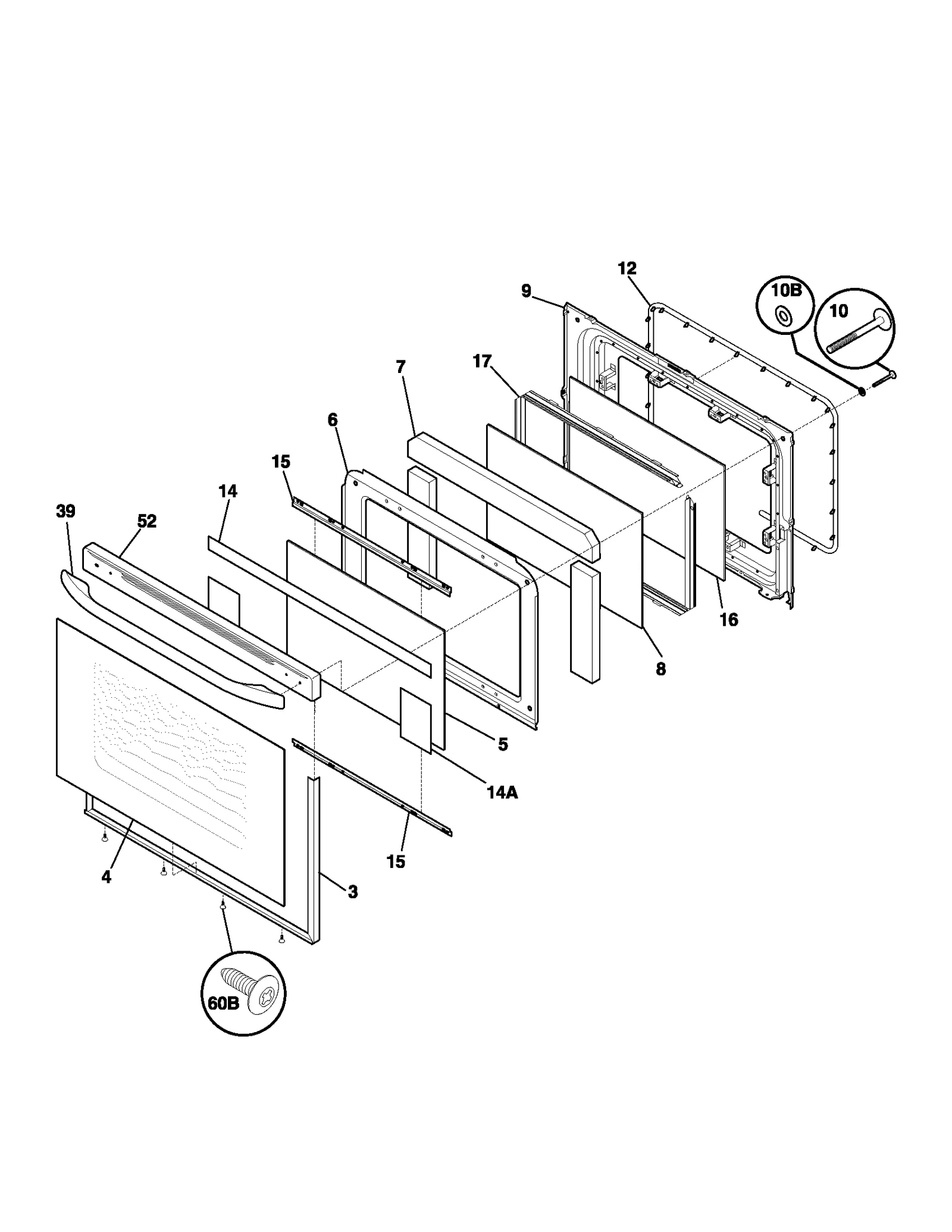

DOOR
Common parts from model Electrolux 790.95592101 Electric Range (Kenmore 79095592101)
1
Range Control Panel Back Shield WCI 316239900 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Range Oven Door Trim Kit (Bisque) WCI 5303935193 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Oven Door Glass WCI 316237000 Contact Us For Availability
6
Wool Cover Shield WCI 316222707 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230605 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
15
Support-ba WCI 316220202 Contact Us For Availability
15
Support-ba WCI 316220204 Contact Us For Availability
15
Support-ba WCI 316220208 Contact Us For Availability
15
Glass Bracket WCI 316237201 Contact Us For Availability
15A
Support-ba WCI 316220203 Contact Us For Availability
15A
Support-ba WCI 316220205 Contact Us For Availability
15A
Support-ba WCI 316220209 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
19
Panel WCI 316246230 Contact Us For Availability
19
Range Panel WCI 316246231 Contact Us For Availability
19
Panel WCI 316246232 Contact Us For Availability
20
Clock and Timer WCI 316222902 Contact Us For Availability
20A
Clock Overlay WCI 316220819 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
24
Range Oven Light Rocker Switch (Bisque) WCI 316246002 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
39
Handle-dra WCI 316235400 Contact Us For Availability
39
Handle-dra WCI 316235401 Contact Us For Availability
39
Handle-dra WCI 316235403 Contact Us For Availability
39
Oven Drive Hinge WCI 316235505 Contact Us For Availability
39
Handle (White) WCI 316235506 Contact Us For Availability
39
Oven Handle WCI 316235507 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Drive Cap Trim WCI 316201010 Contact Us For Availability
52
Handle Trim WCI 316201011 Contact Us For Availability
52
Drive Cap Trim WCI 316201012 Contact Us For Availability
56
Shield-bac WCI 316234001 Contact Us For Availability
56
Shield-bac WCI 316234004 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
81
Range Warming Drawer Element WCI 316239200 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
96
Lock Clip WCI 316122000 Contact Us For Availability
97
Range Screw WCI 316003802 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Cooktop Wire Harness WCI 316253504 Contact Us For Availability
NI
Harness-ma WCI 316253600 Contact Us For Availability
NI
Wiring Diagram WCI 316255117 Contact Us For Availability
NI
Range Owner's Manual WCI 316257915 Contact Us For Availability
NI
Range Owner's Manual WCI 316259200 Contact Us For Availability
NI
Parts List WCI 5995358487 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
× ![]()
