Model Kenmore 790.95413202 RANGE – Common Parts & Diagrams

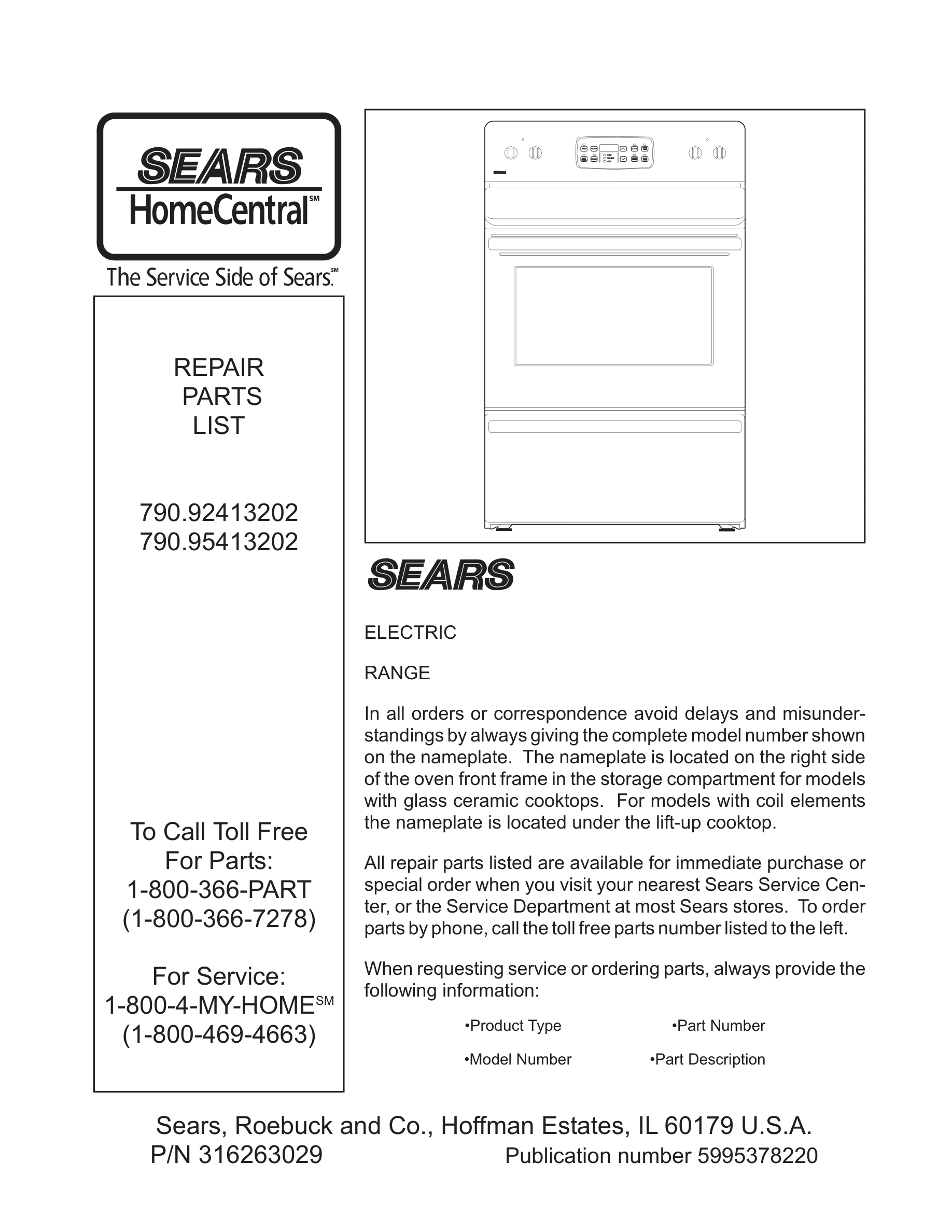

01 - COVER

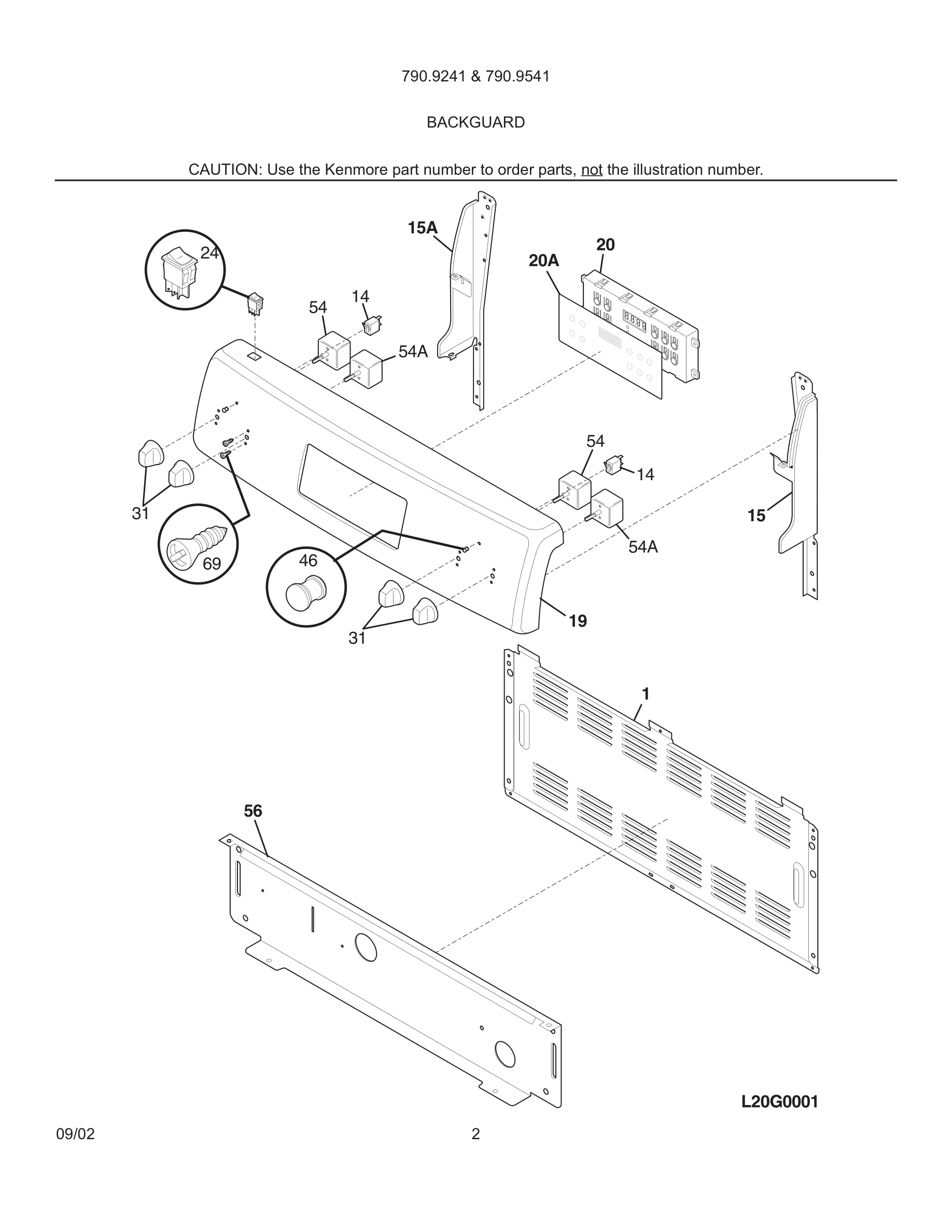

03 - BACKGUARD

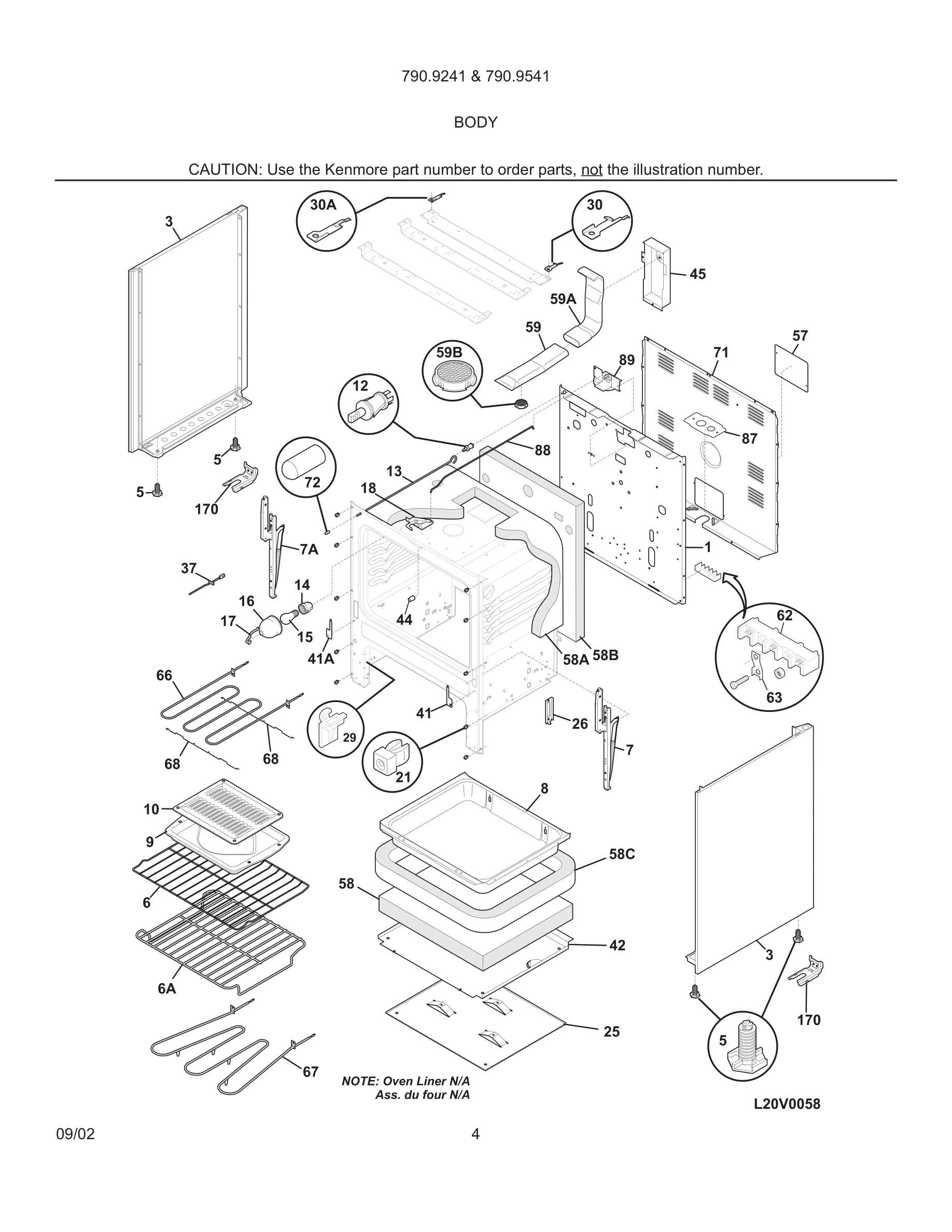

05 - BODY
07 - BODY

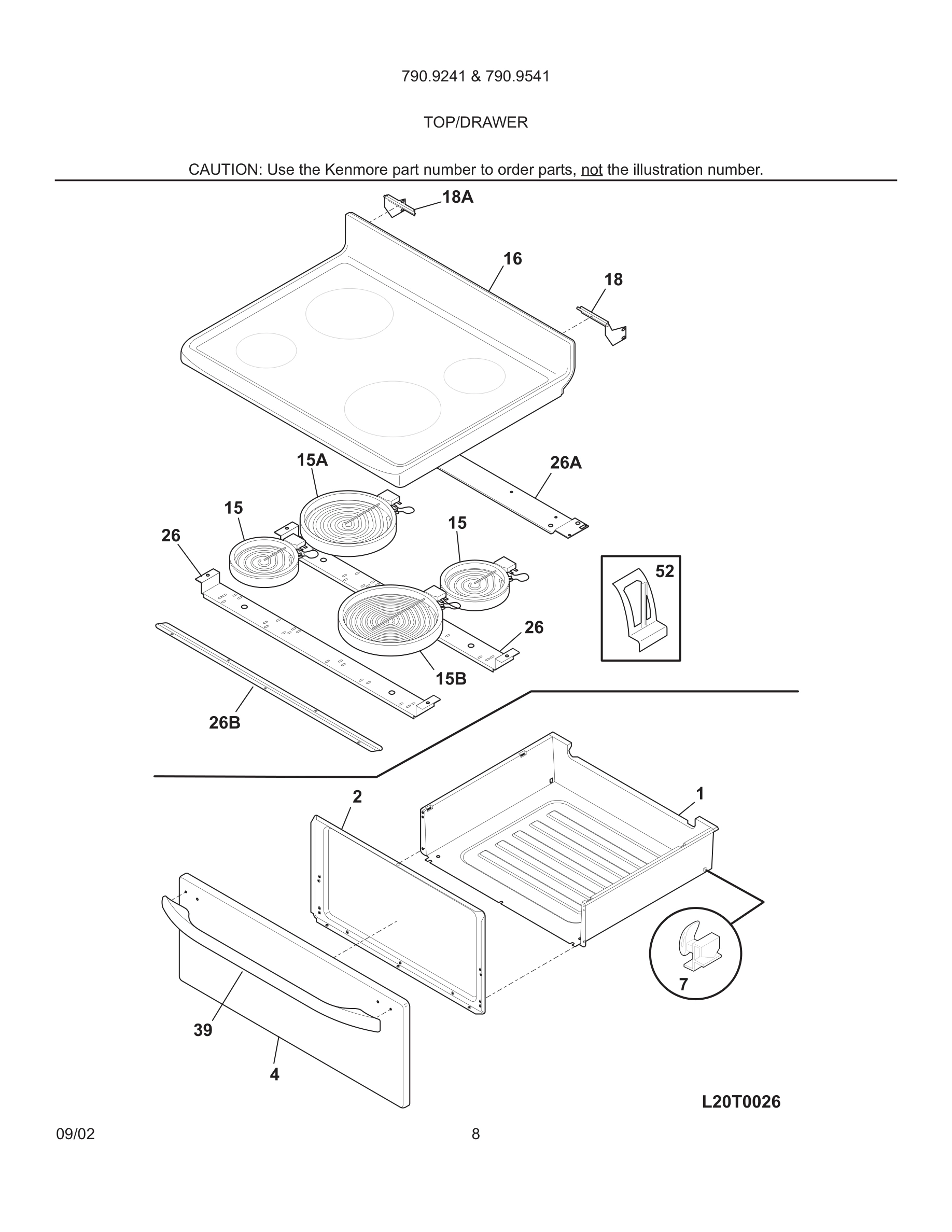

09 - TOP/DRAWER

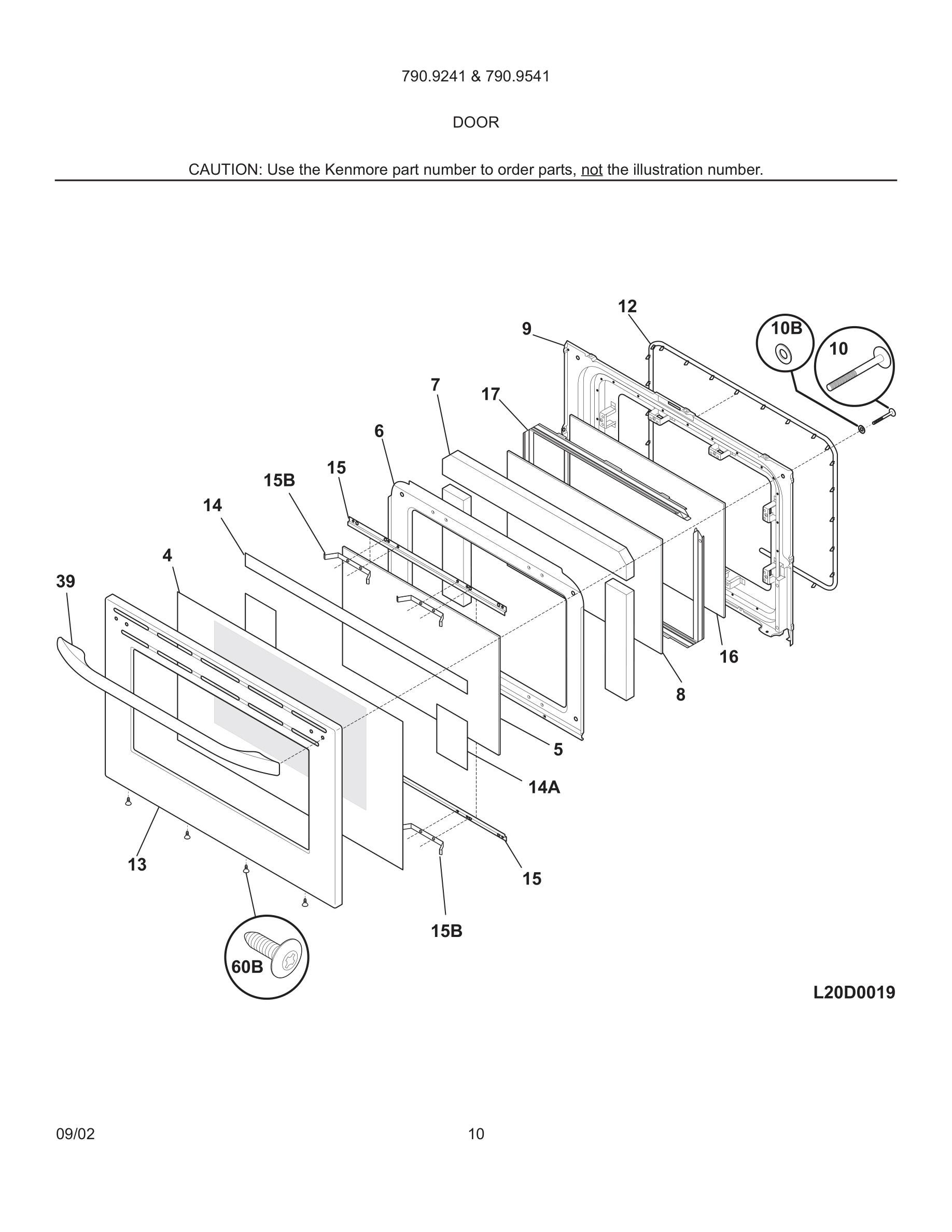

11 - DOOR

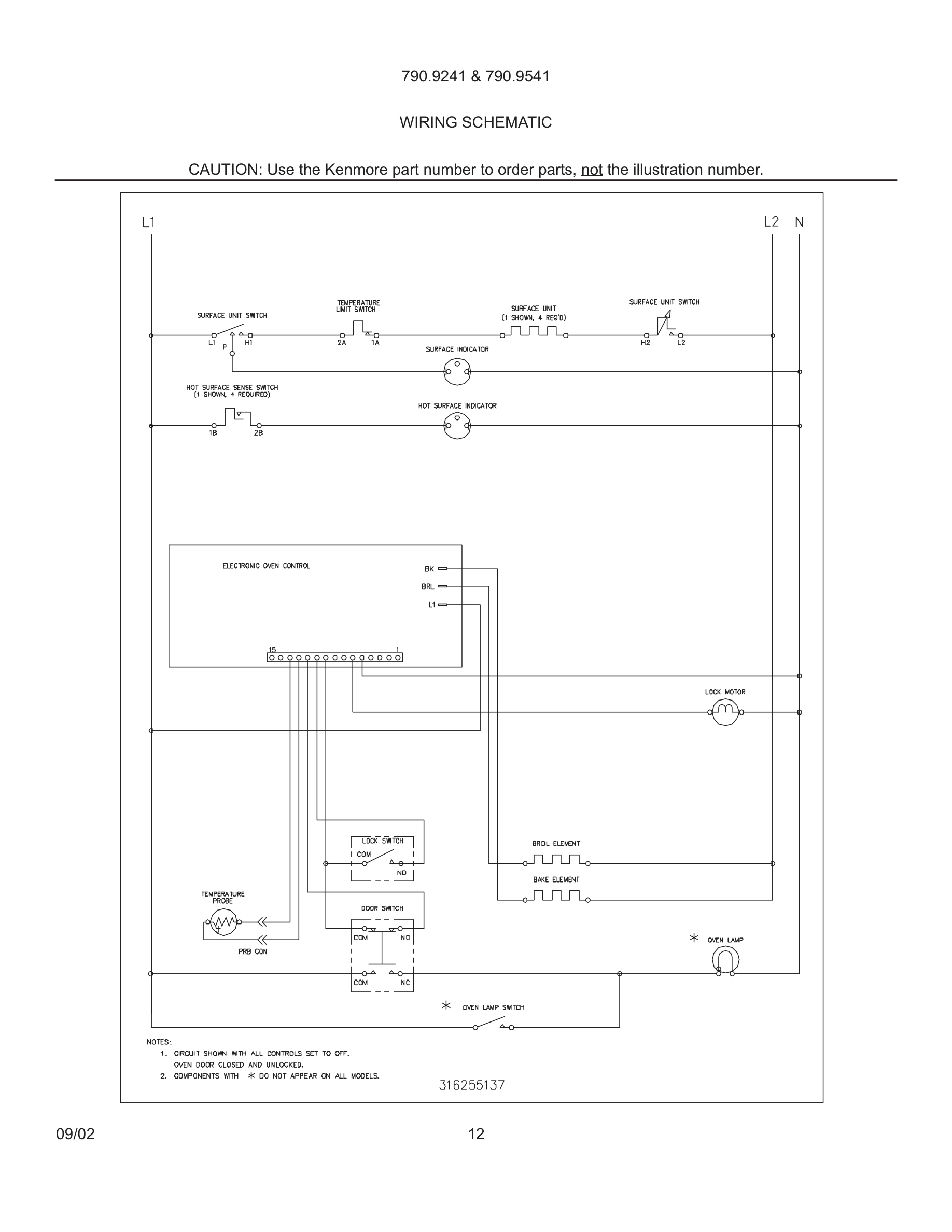

12 - WIRING SCHEMATIC

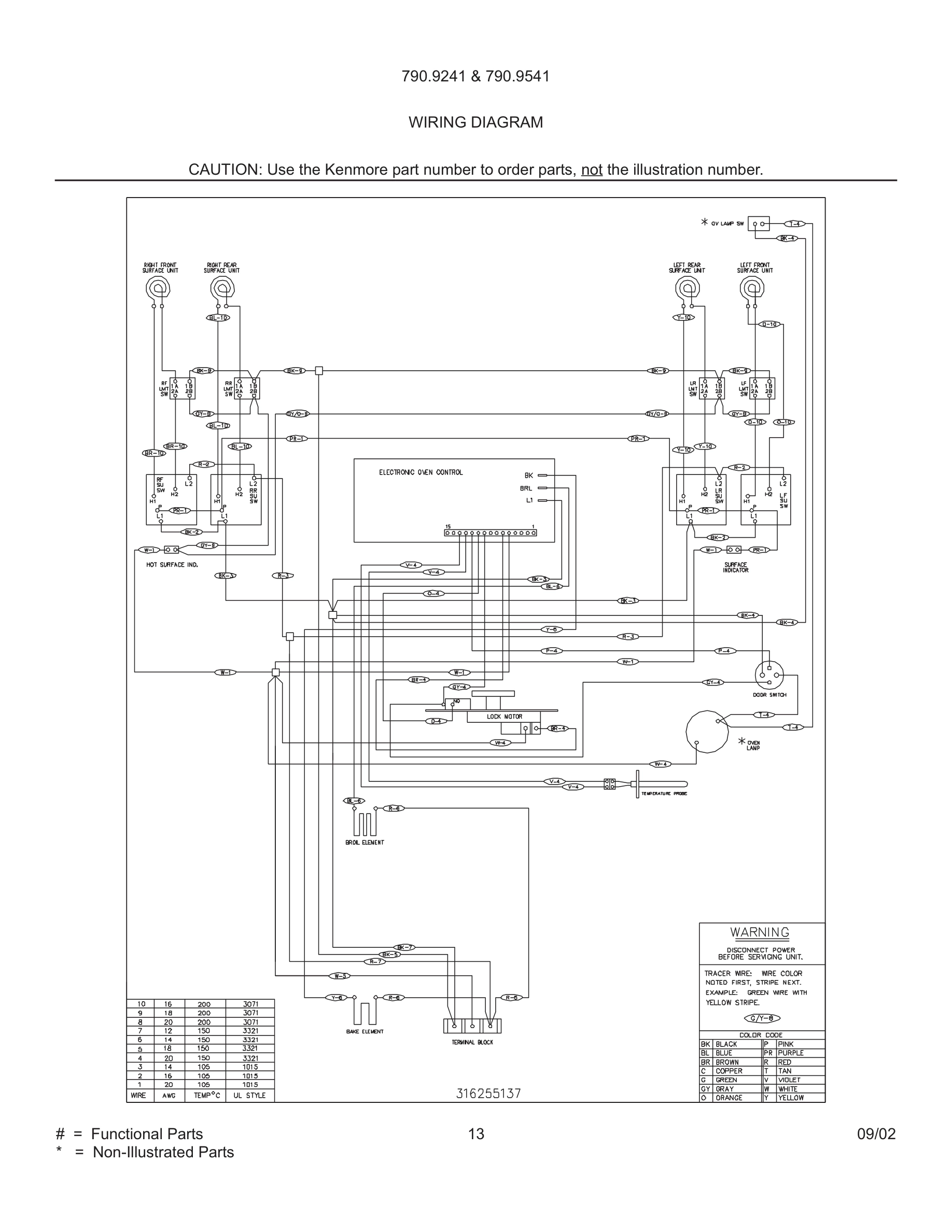

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.95413202 RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*
Plate,warning/caution WCI 316065304 Contact Us For Availability
*
Rivet,pop WCI 316209000 Contact Us For Availability
*#
Wiring Harness,surface element WCI 316253518 Contact Us For Availability
1
Drawer WCI 316011503 Contact Us For Availability
2
Liner,drawer WCI 316231500 Contact Us For Availability
4
Glass,oven door ,black ,outer WCI 316240000 Contact Us For Availability
4
Panel,drawer ,stainless WCI 316248801 Contact Us For Availability
5
Screw,leveling ,plastic ,with stop WCI 316129200 Contact Us For Availability
5
Glass,oven door ,heat barrier WCI 316237000 Contact Us For Availability
6
Shield,wool ,oven door WCI 316222707 Contact Us For Availability
7
Insulation,oven door WCI 316236700 Contact Us For Availability
8
Panel,sump ,oven bottom WCI 316201501 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
Liner,oven door WCI 316230605 Contact Us For Availability
10
Insert,broiler pan WCI 316082000 Contact Us For Availability
10
Screw,waf hd sq ,10-24 x 1.25 ,(2) ,handle mt WCI 316001015 Contact Us For Availability
13
Panel,oven door ,stainless ,outer WCI 316209401 Contact Us For Availability
15
Bracket,glass support ,(2) WCI 316237201 Contact Us For Availability
15B
Bracket,glass support WCI 316085501 Contact Us For Availability
16
Main Top Assy,glass/steel ,black WCI 316251935 Contact Us For Availability
17
Spacer,door glass ,(2) WCI 316117701 Contact Us For Availability
18
Hinge,main top ,RH WCI 316235900 Contact Us For Availability
18#
Latch,oven door WCI 316213900 Contact Us For Availability
18A
Hinge,main top ,LH WCI 316235901 Contact Us For Availability
21
Spacer,bodyside WCI 3014099 Contact Us For Availability
26A
Bracket,chassis support ,rear WCI 316099200 Contact Us For Availability
26B
Bracket,chassis support ,front WCI 316214200 Contact Us For Availability
30
Bracket,hinge ,RH ,main top WCI 316217700 Contact Us For Availability
39
Handle,door ,black WCI 316235500 Contact Us For Availability
41
Cover,hinge cutout ,RH WCI 316233400 Contact Us For Availability
44
Spacer,oven door WCI 316246500 Contact Us For Availability
52
Clip,element mtg WCI 316099400 Contact Us For Availability
58A
Insulation,2" ,oven wrapper WCI 316047708 Contact Us For Availability
× ![]()
