Model Electrolux 790.95329301 Electric Range (Kenmore 79095329301) – Common Parts & Diagrams
BODY
DOOR
BACKGUARD

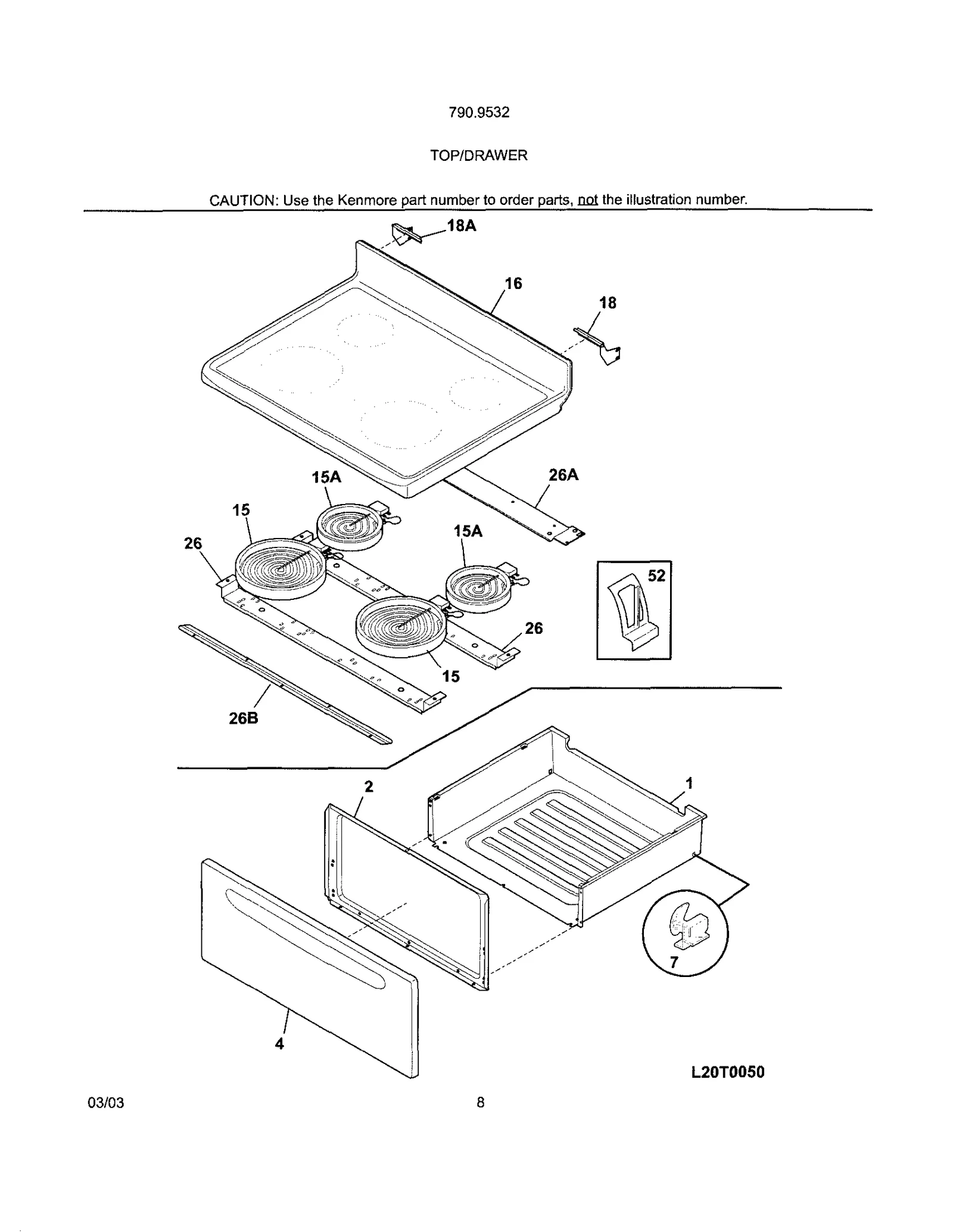

TOP/DRAWER
Common parts from model Electrolux 790.95329301 Electric Range (Kenmore 79095329301)
1
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
2
Range Storage Drawer Front Panel Liner WCI 316231500 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4
Range Storage Drawer Front Panel (Black) WCI 316231306 Contact Us For Availability
4
Range Storage Drawer Front Panel WCI 316231305 Contact Us For Availability
4
Drawer Panel WCI 316231309 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Switch WCI 316209901 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Range Main Top WCI 316251962 Contact Us For Availability
16
Range Main Top (Black) WCI 316251963 Contact Us For Availability
16
Range Main Top Assembly WCI 316251964 Contact Us For Availability
16
Range Main Top WCI 316251969 Contact Us For Availability
16
Range Glass Main Top (Black and Bisque) WCI 316251972 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Hinge Main WCI 316235900 Contact Us For Availability
18A
Hinge Main WCI 316235901 Contact Us For Availability
20
Frigidaire Range Oven Control Board WCI 316207511 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
23
Bracket WCI 316233200 Contact Us For Availability
24
Oven Switch WCI 316118104 Contact Us For Availability
26A
Bracket WCI 316099202 Contact Us For Availability
26B
Bracket Support WCI 316214200 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208100 Contact Us For Availability
31
Range Surface Burner Knob WCI 316208102 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
56
Shield-bac WCI 316234001 Contact Us For Availability
56
Shield-bac WCI 316234004 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Wire Harness WCI 316269502 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Technical Data Sheet WCI 316218513 Contact Us For Availability
NI
Wiring Diagram WCI 316255311 Contact Us For Availability
NI
Range Owner's Manual WCI 316259200 Contact Us For Availability
NI
Parts List WCI 5995392874 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Main Top Wire Harness WCI 316253526 Contact Us For Availability
× ![]()
