Model Kenmore 790.92859302 RANGE – Common Parts & Diagrams

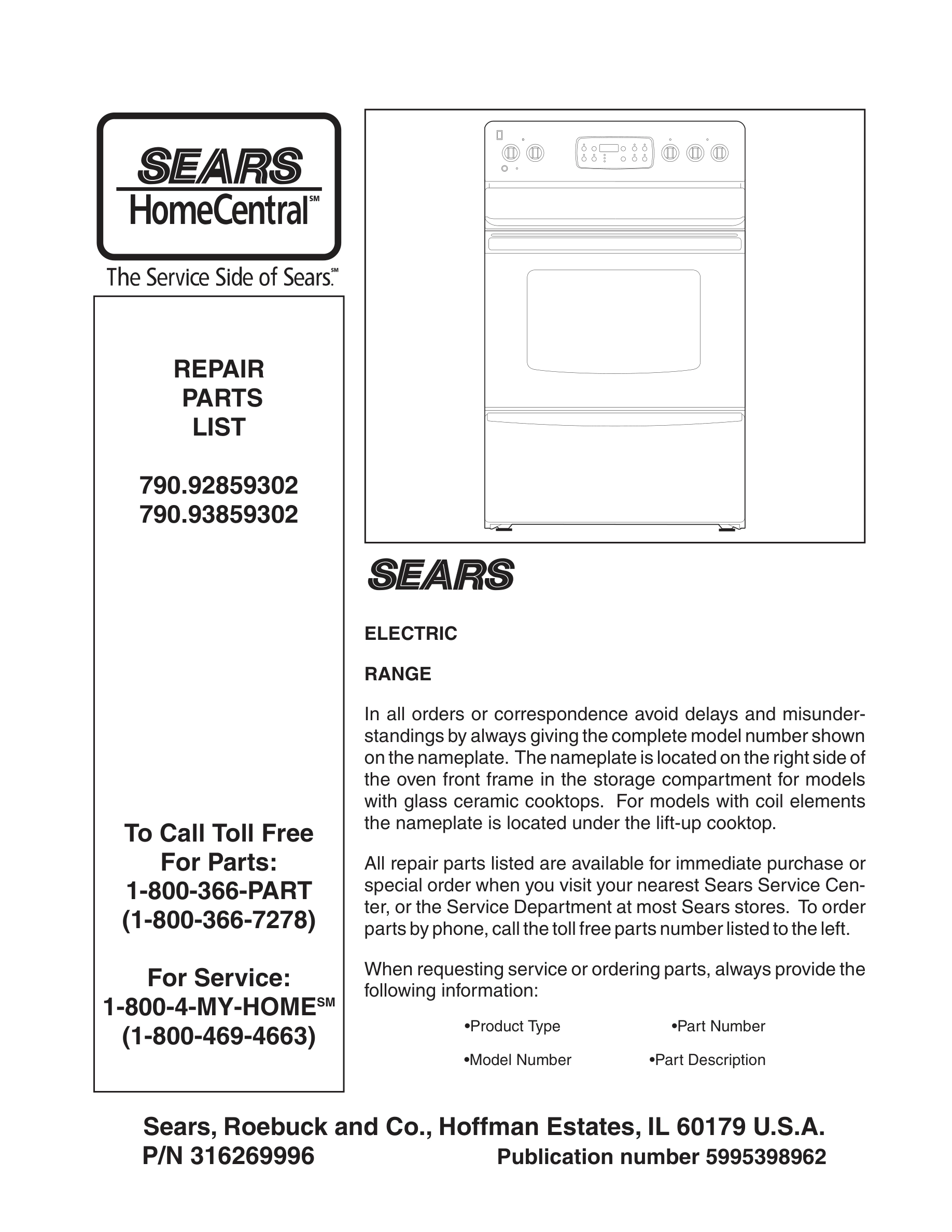

01 - COVER

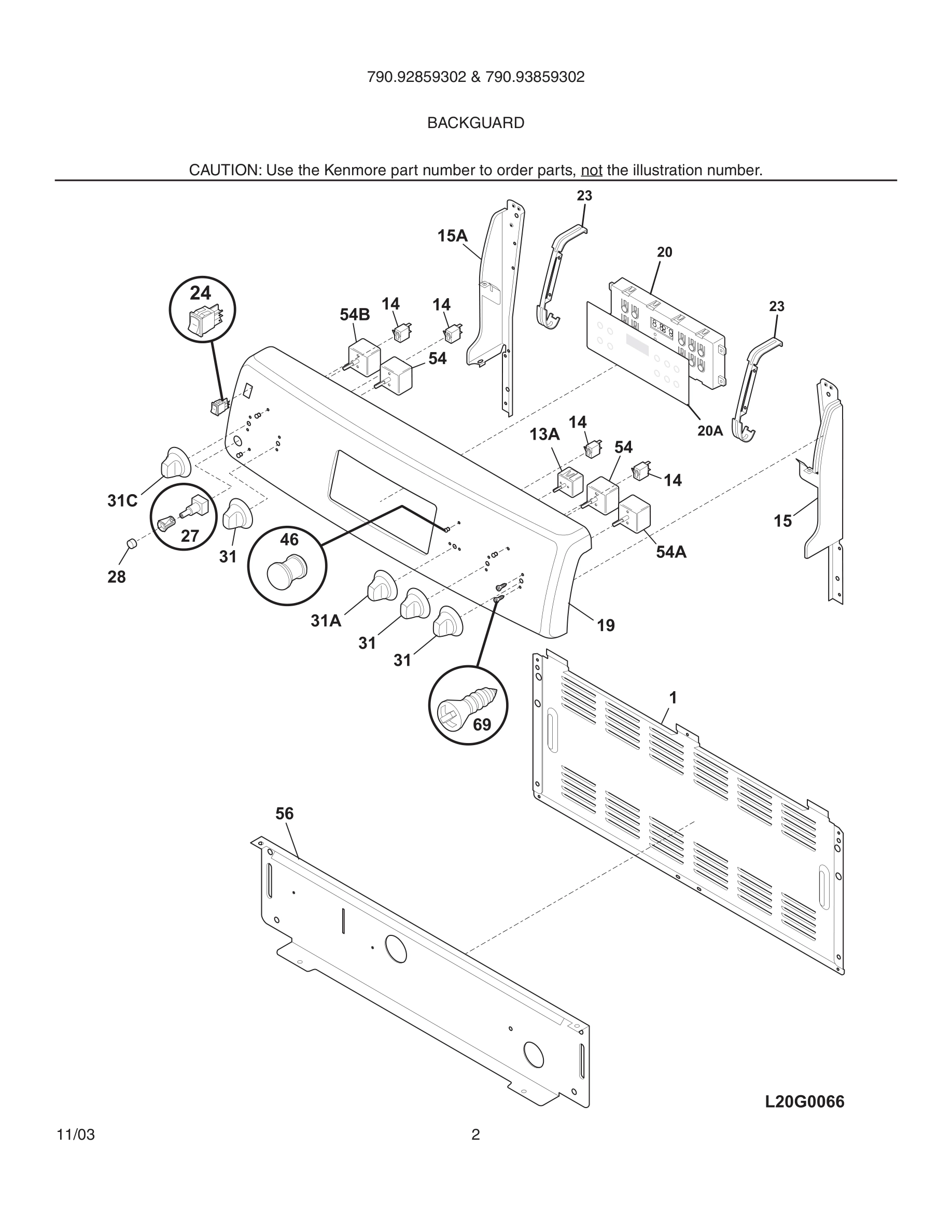

03 - BACKGUARD

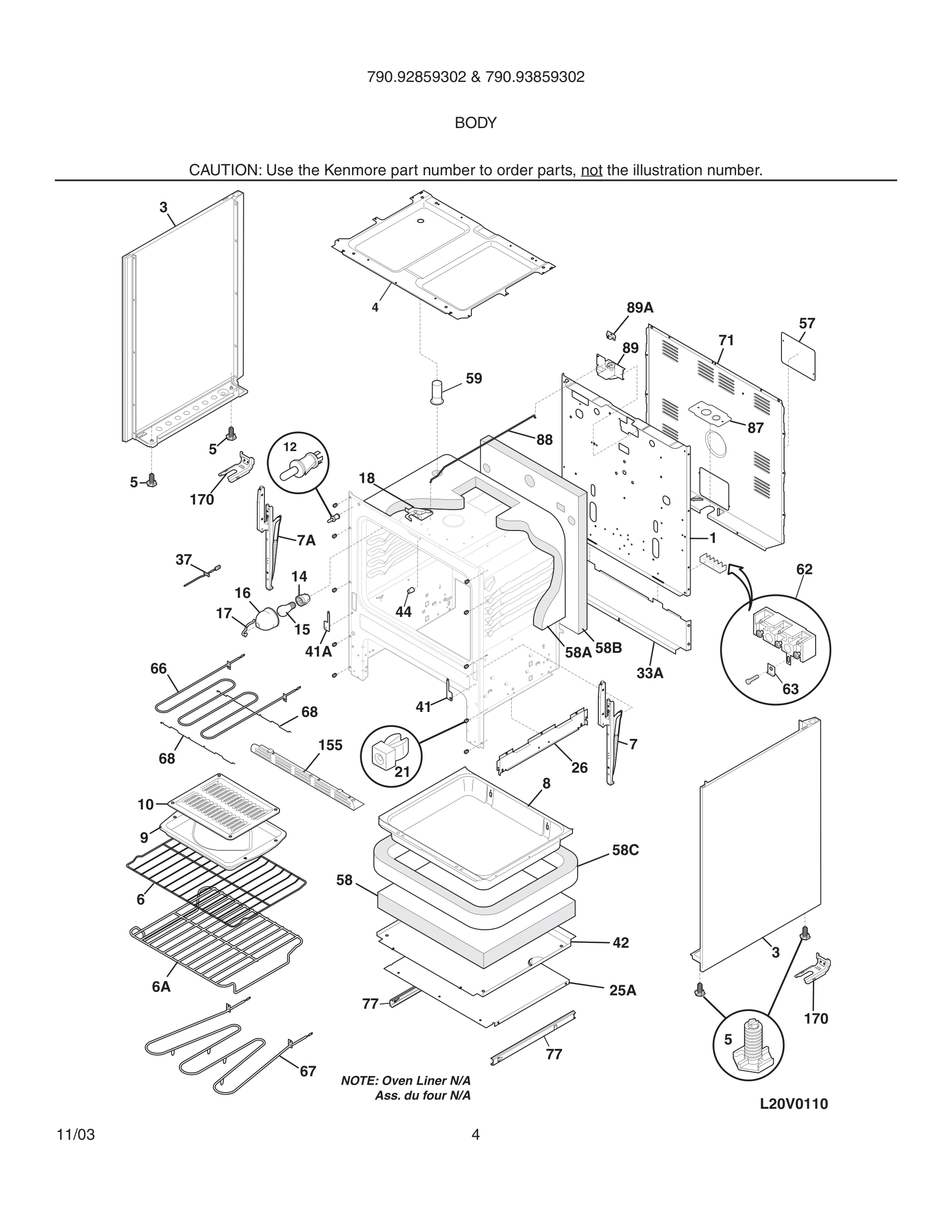

05 - BODY
07 - BODY

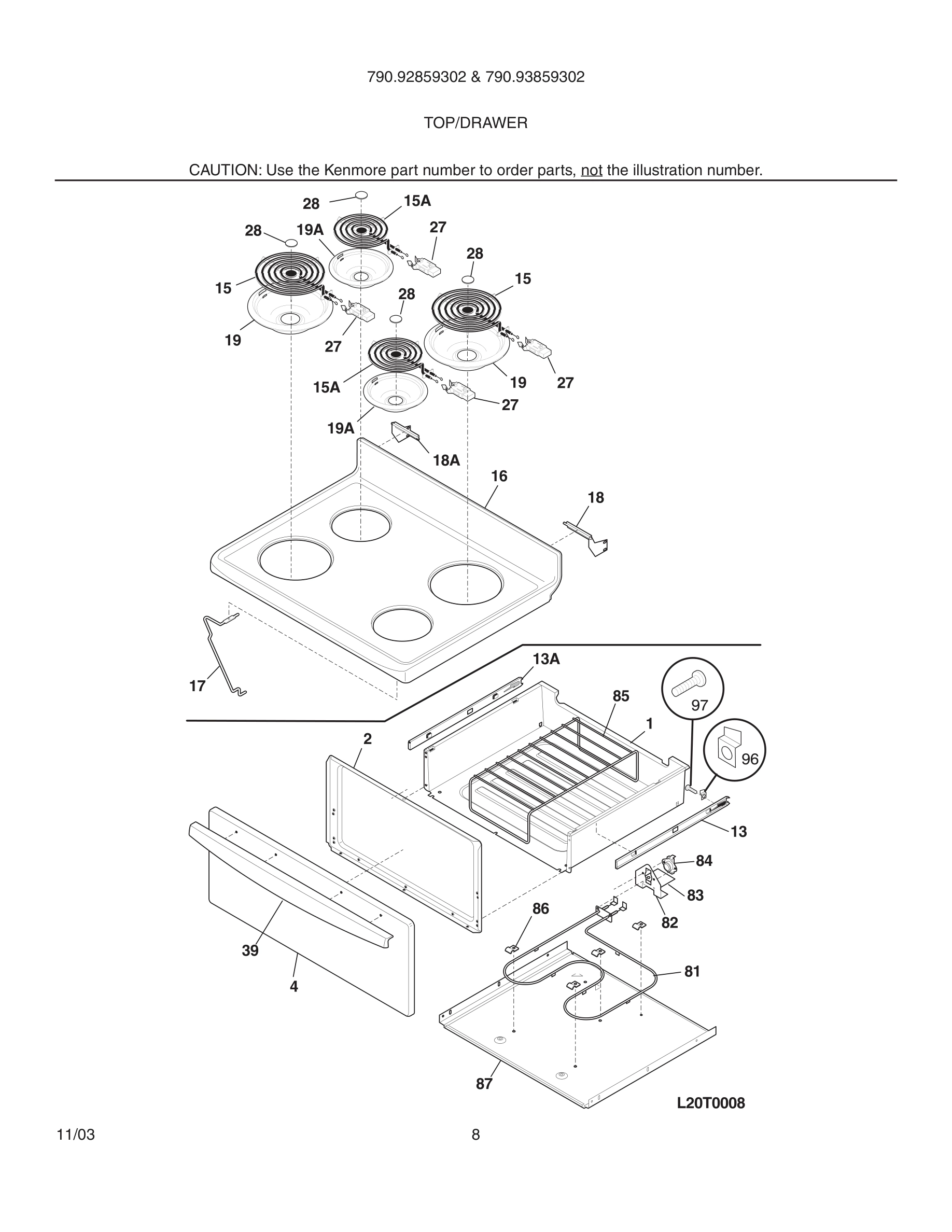

09 - TOP/DRAWER

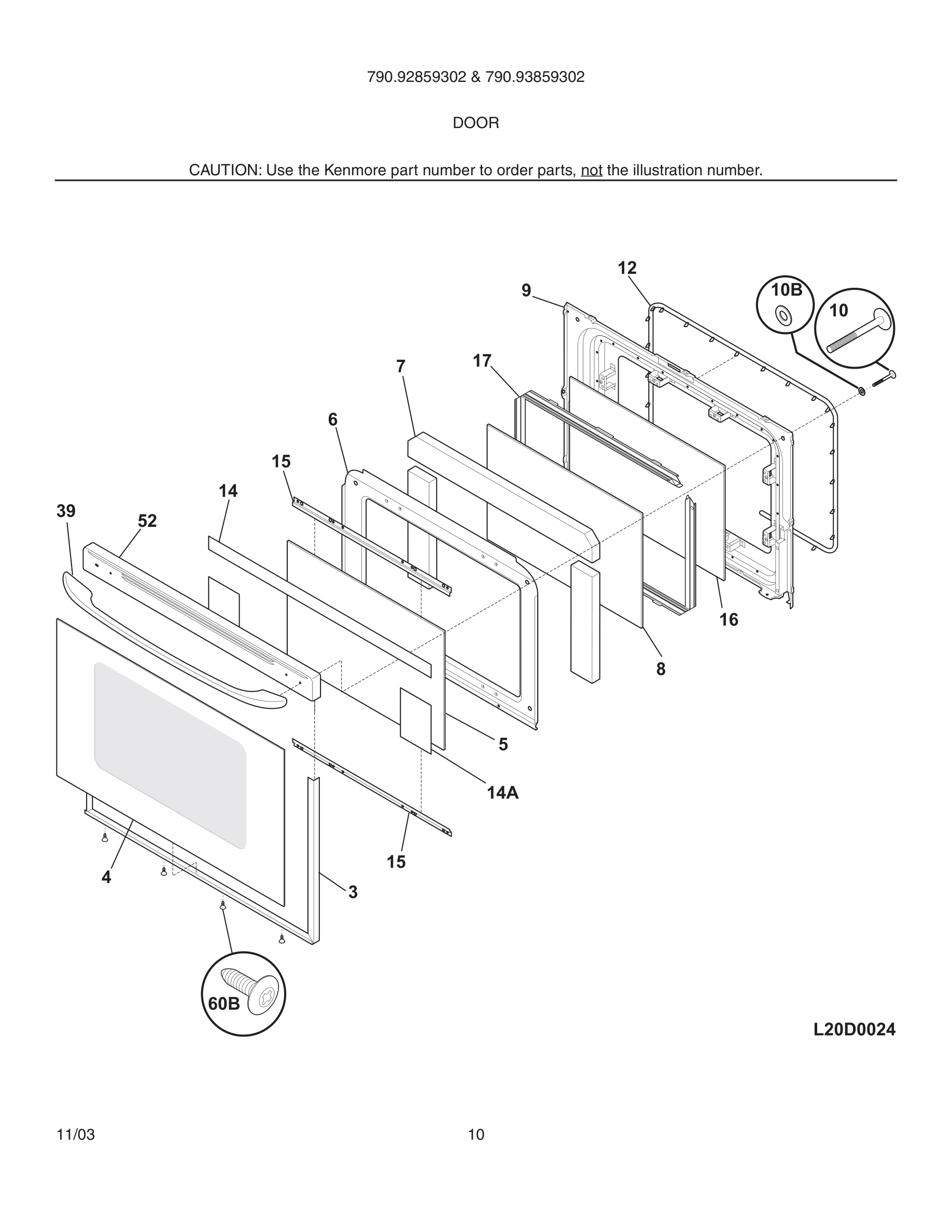

11 - DOOR

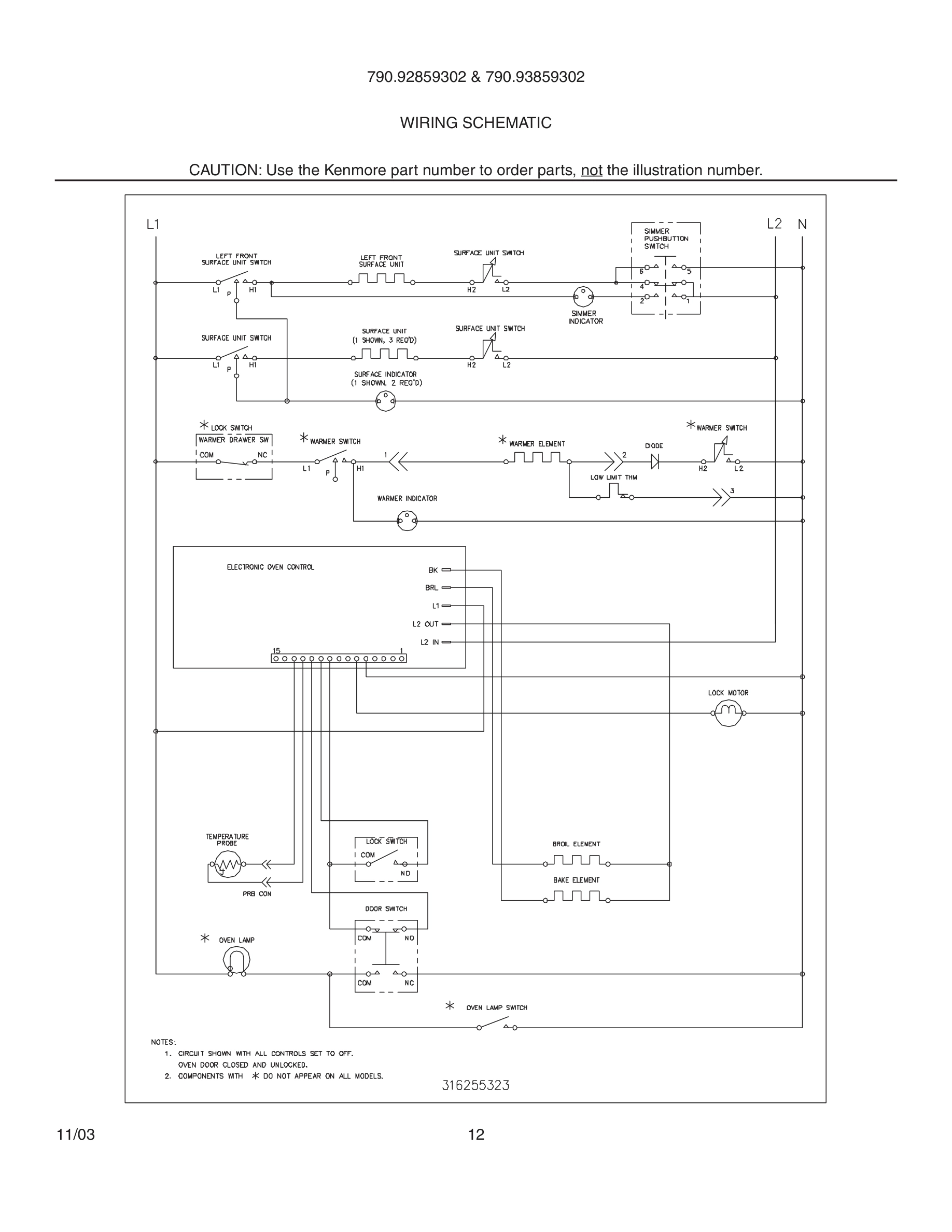

12 - WIRING SCHEMATIC

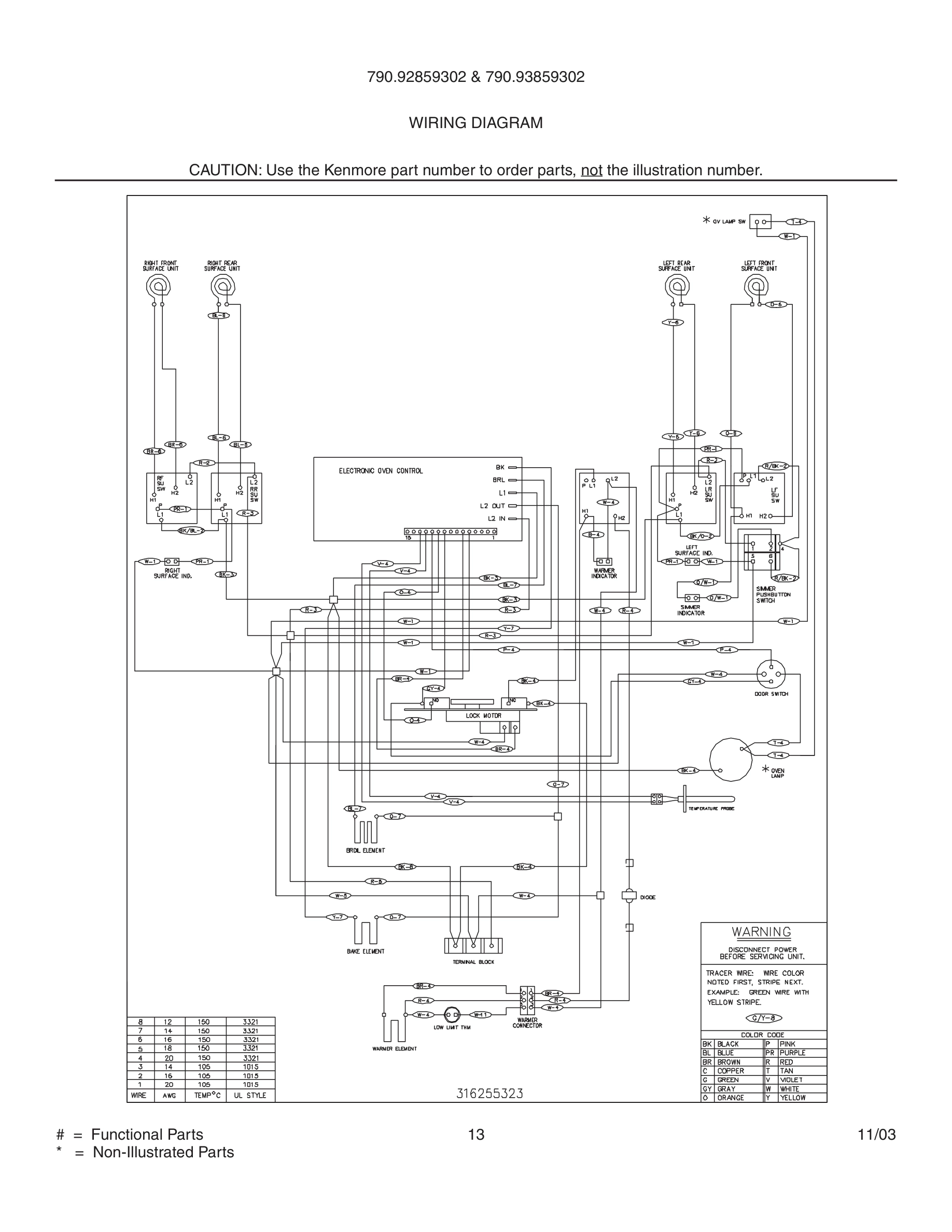

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.92859302 RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*
Label,anti-tip WCI 316221000 Contact Us For Availability
3
Trim kit-door,3 sided ,black ,w/tape and foil WCI 5303935191 Contact Us For Availability
4
Glass,door kit ,black ,outer ,w/foil tape WCI 5303935216 Contact Us For Availability
5
Screw,leveling ,plastic ,with stop WCI 316129200 Contact Us For Availability
5
Glass,oven door ,air wash WCI 316237000 Contact Us For Availability
6
Shield,wool ,oven door WCI 316222707 Contact Us For Availability
7
Insulation,oven door WCI 316236700 Contact Us For Availability
7A
Hinge,oven door ,LH WCI 316216501 Contact Us For Availability
8
Panel,sump ,oven bottom WCI 316201501 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
Liner,oven door WCI 316230617 Contact Us For Availability
10
Insert,broiler pan WCI 316082000 Contact Us For Availability
12#
Switch,oven light/door WCI 316209901 Contact Us For Availability
13
Glide,drawer ,RH inner WCI 316231700 Contact Us For Availability
13A
Glide,drawer ,LH inner WCI 316231701 Contact Us For Availability
15
Bracket,glass support ,(2) WCI 316237201 Contact Us For Availability
16
Glass,oven door ,inner WCI 316117501 Contact Us For Availability
17
Spacer,door glass ,(2) WCI 316117701 Contact Us For Availability
18#
Latch,oven door WCI 316213900 Contact Us For Availability
20#
Clock/Timer,electronic ,ES300 WCI 316207511 Contact Us For Availability
21
Spacer,bodyside WCI 3014099 Contact Us For Availability
27#
Switch,simmer select ,push button ,w/black be WCI 5303935218 Contact Us For Availability
28
Button,simmer select ,black WCI 316219301 Contact Us For Availability
31A
Knob,warmer ,black WCI 316208104 Contact Us For Availability
31C
Knob,simmer select ,black WCI 316208107 Contact Us For Availability
39
Handle,door ,black WCI 316209701 Contact Us For Availability
41
Cover,hinge cutout ,RH WCI 316233400 Contact Us For Availability
44
Spacer,oven door WCI 316246500 Contact Us For Availability
52
Cap,door trim ,black WCI 316201005 Contact Us For Availability
58A
Insulation,2" ,oven wrapper WCI 316047708 Contact Us For Availability
59
Tube,oven vent WCI 316073604 Contact Us For Availability
84
Thermo disc,warmer drawer WCI 316093501 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Base,warmer drawer WCI 316091900 Contact Us For Availability
96
Clip,lock ,warmer drawer WCI 316122000 Contact Us For Availability
97
Screw,Hex HD 3/16" ,6 x 3/8 WCI 316003802 Contact Us For Availability
× ![]()
