Model Electrolux 790.92419100 Electric Range (Kenmore 79092419100) – Common Parts & Diagrams

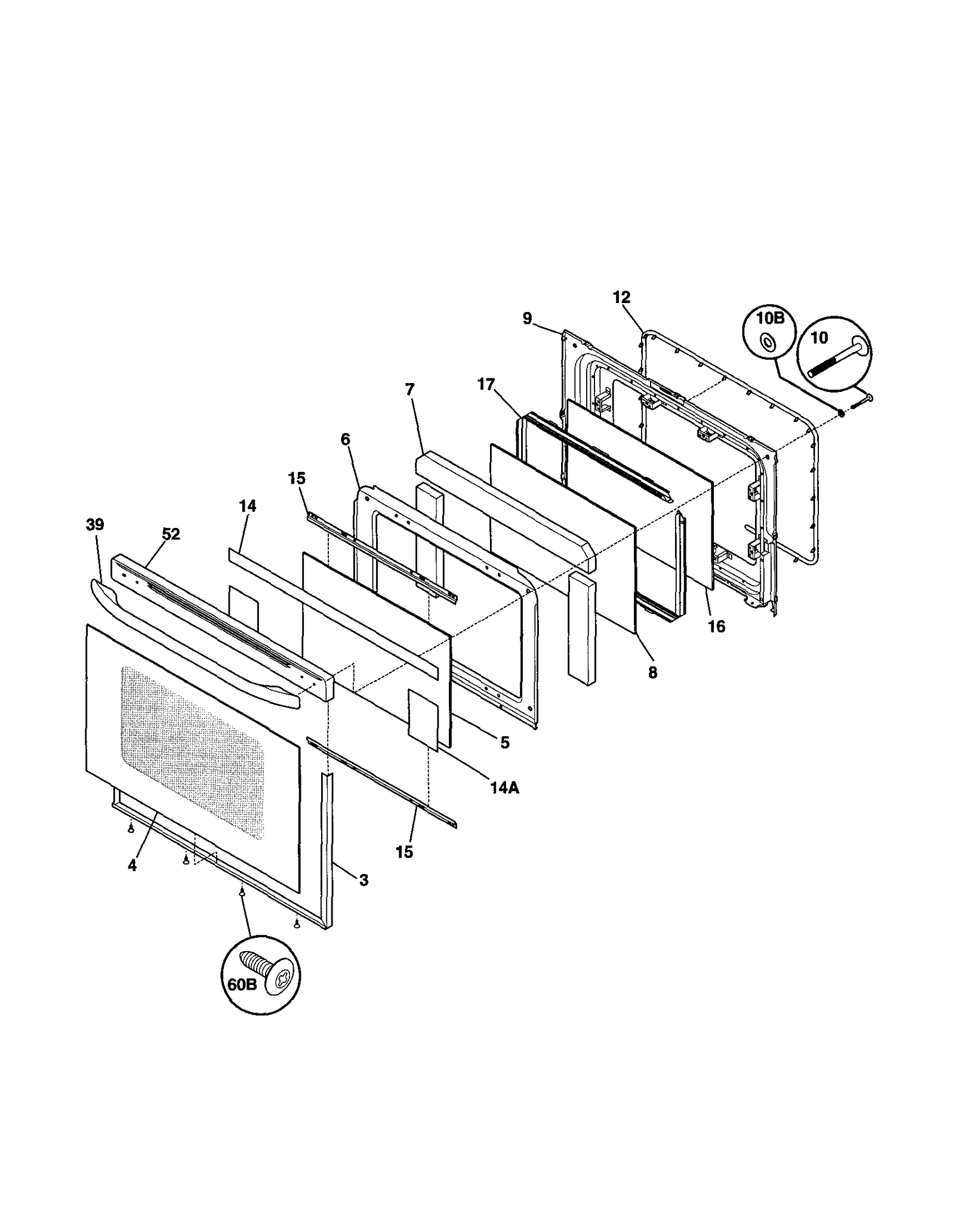

DOOR
All Parts
BODY
TOP/DRAWER
BACKGUARD
Common parts from model Electrolux 790.92419100 Electric Range (Kenmore 79092419100)
1
Range Storage Drawer Assembly WCI 316011503 Contact Us For Availability
1
Range Control Panel Back Shield WCI 316239900 Contact Us For Availability
2
Range Storage Drawer Front Panel Liner WCI 316231500 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3A
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4
Range Storage Drawer Front Panel (Black) WCI 316231306 Contact Us For Availability
4A
Range Storage Drawer Front Panel WCI 316231305 Contact Us For Availability
4A
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4B
Oven Door Glass WCI 5303935202 Contact Us For Availability
4B
Drawer Panel WCI 316231309 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
8
Range Oven Bottom Panel WCI 316201501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
15
Support-ba WCI 316220204 Contact Us For Availability
15A
Support-ba WCI 316220205 Contact Us For Availability
15AA
Support-ba WCI 316220203 Contact Us For Availability
15AB
Support-ba WCI 316220209 Contact Us For Availability
15B
Support-ba WCI 316220202 Contact Us For Availability
15C
Support-ba WCI 316220208 Contact Us For Availability
16
Range Main Top WCI 316251924 Contact Us For Availability
16A
Range Main Top WCI 316251923 Contact Us For Availability
16B
Range Main Top WCI 316251925 Contact Us For Availability
16C
Range Main Top WCI 316251926 Contact Us For Availability
16D
Range Main Top WCI 316251946 Contact Us For Availability
16E
Range Main Top WCI 316251935 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Hinge Main WCI 316235900 Contact Us For Availability
18A
Hinge Main WCI 316235901 Contact Us For Availability
19
Panel WCI 316246261 Contact Us For Availability
19A
Panel WCI 316246260 Contact Us For Availability
19B
Range Panel WCI 316246262 Contact Us For Availability
20
Clock and Timer WCI 316222902 Contact Us For Availability
20AB
Clock Overlay WCI 316220819 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
24B
Range Oven Light Rocker Switch (Bisque) WCI 316246002 Contact Us For Availability
26A
BRACKET, CHASSIS SUPPORT, REAR WCI 316099200 Contact Us For Availability
26B
Bracket Support WCI 316214200 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31A
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
56A
Shield-bac WCI 316234001 Contact Us For Availability
56B
Shield-bac WCI 316234004 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
89
Latch Motor WCI 316135202 Contact Us For Availability
89A
Latch Bracket WCI 316245800 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
