Model Electrolux 790.91107000 Electric Range (Kenmore 79091107000) – Common Parts & Diagrams
BODY
DOOR
BACKGUARD

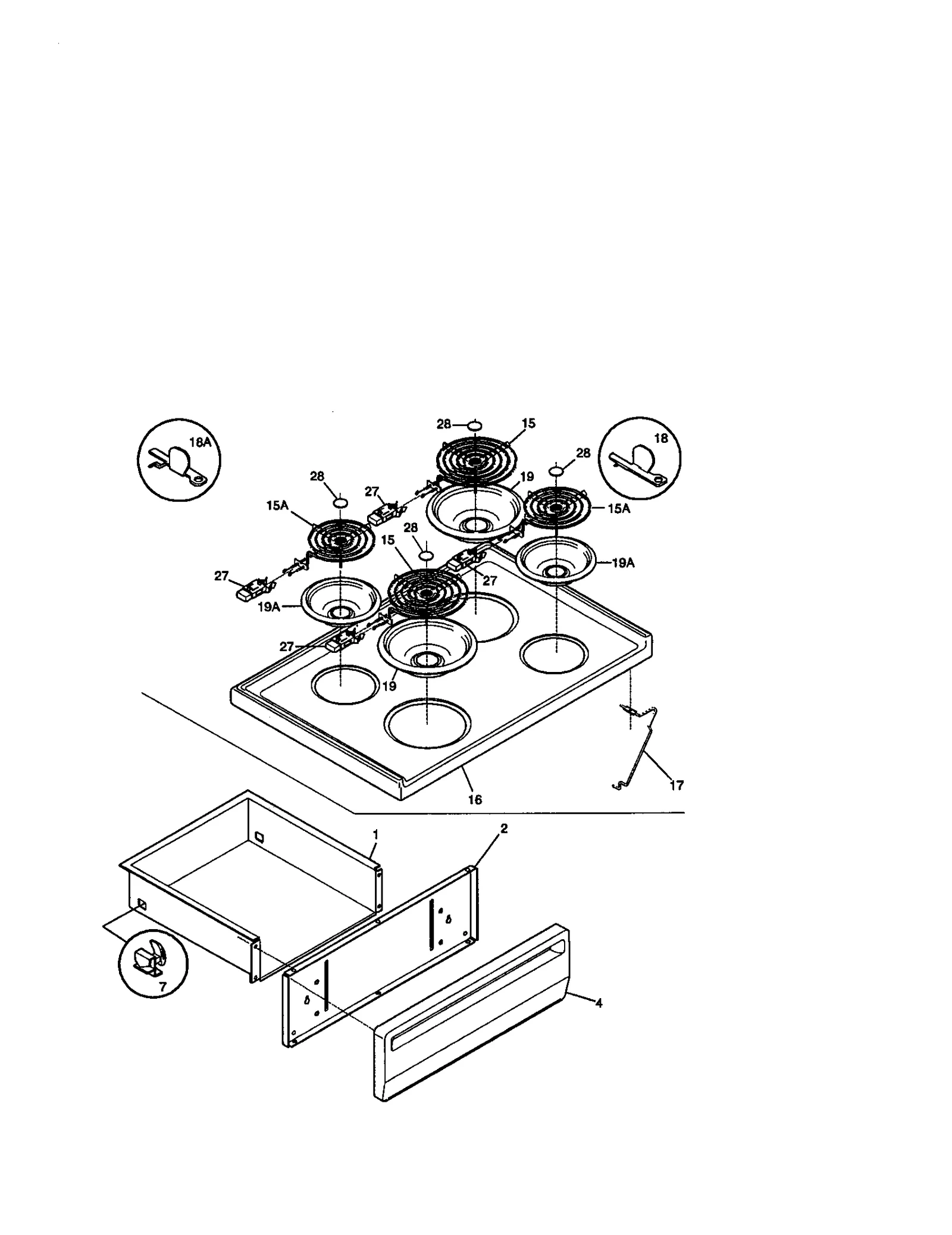

TOP/DRAWER
All Parts
Common parts from model Electrolux 790.91107000 Electric Range (Kenmore 79091107000)
1
Shield WCI 3131123 Contact Us For Availability
1
Util Drawer WCI 316011501 Contact Us For Availability
2
Shield Panel WCI 3131975 Contact Us For Availability
4
Drawer Panel WCI 316084405 Contact Us For Availability
4A
Drawer Panel WCI 316084406 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Trim Splasher WCI 316043601 Contact Us For Availability
9A
Trim Splasher WCI 316043602 Contact Us For Availability
10
Range Oven Door Handle Screw, #10-24 WCI 5303281378 Contact Us For Availability
11
Wrapper Trim WCI 316083716 Contact Us For Availability
11A
Control Panel WCI 316083717 Contact Us For Availability
12
Range Oven Control Thermostat WCI 5303212745 Contact Us For Availability
14
Lamp WCI 3201726 Contact Us For Availability
15
Support WCI 5303131237 Contact Us For Availability
16
Plate WCI 316042602 Contact Us For Availability
16
Panel WCI 5303013511 Contact Us For Availability
16A
Main WCI 3013512 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
18
Bracket WCI 08067747 Contact Us For Availability
18A
Range Main Top Hinge WCI 08067746 Contact Us For Availability
19
Cncl White WCI 316034150 Contact Us For Availability
19A
Control Panel WCI 316034151 Contact Us For Availability
20
Clock WCI 316116200 Contact Us For Availability
20A
Clock Overlay WCI 316115303 Contact Us For Availability
20AA
OVERLAY-CLOCK, ALMOND WCI 316115304 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303272476 Contact Us For Availability
23
Bracket Clock WCI 316131400 Contact Us For Availability
24A
Rocker Switch WCI 316005608 Contact Us For Availability
30A
Wing Nut WCI 316064300 Contact Us For Availability
32
Oven Knob WCI 316108915 Contact Us For Availability
32A
Thermostat Knob WCI 316108916 Contact Us For Availability
36
Range Surface Element Knob (White) WCI 316108917 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316108918 Contact Us For Availability
40
Manifold Panel WCI 316064030 Contact Us For Availability
40A
Manifold Panel WCI 316064015 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
44
Bracket WCI 3131468 Contact Us For Availability
45A
Bolt WCI 316056903 Contact Us For Availability
45AA
Bolt Fastner WCI 316056904 Contact Us For Availability
46
Lens-light/l WCI 316065801 Contact Us For Availability
69
SCREW-SWITCH MTG, 8-32 X 5/32 WCI 53033292005 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Wire Clip WCI 3051367 Contact Us For Availability
NI
Owner's Manual WCI 316000963 Contact Us For Availability
NI
Main Harness WCI 316001556 Contact Us For Availability
NI
Owner's Manual WCI 316002675 Contact Us For Availability
NI
Label Anti-t WCI 316071606 Contact Us For Availability
NI
Clip Backguard WCI 5303272555 Contact Us For Availability
NI
Parts Catalog WCI 5995328795 Contact Us For Availability
× ![]()
