Model Electrolux 790.90154304 Electric Range (Kenmore 79090154304) – Common Parts & Diagrams
BACKGUARD
BODY

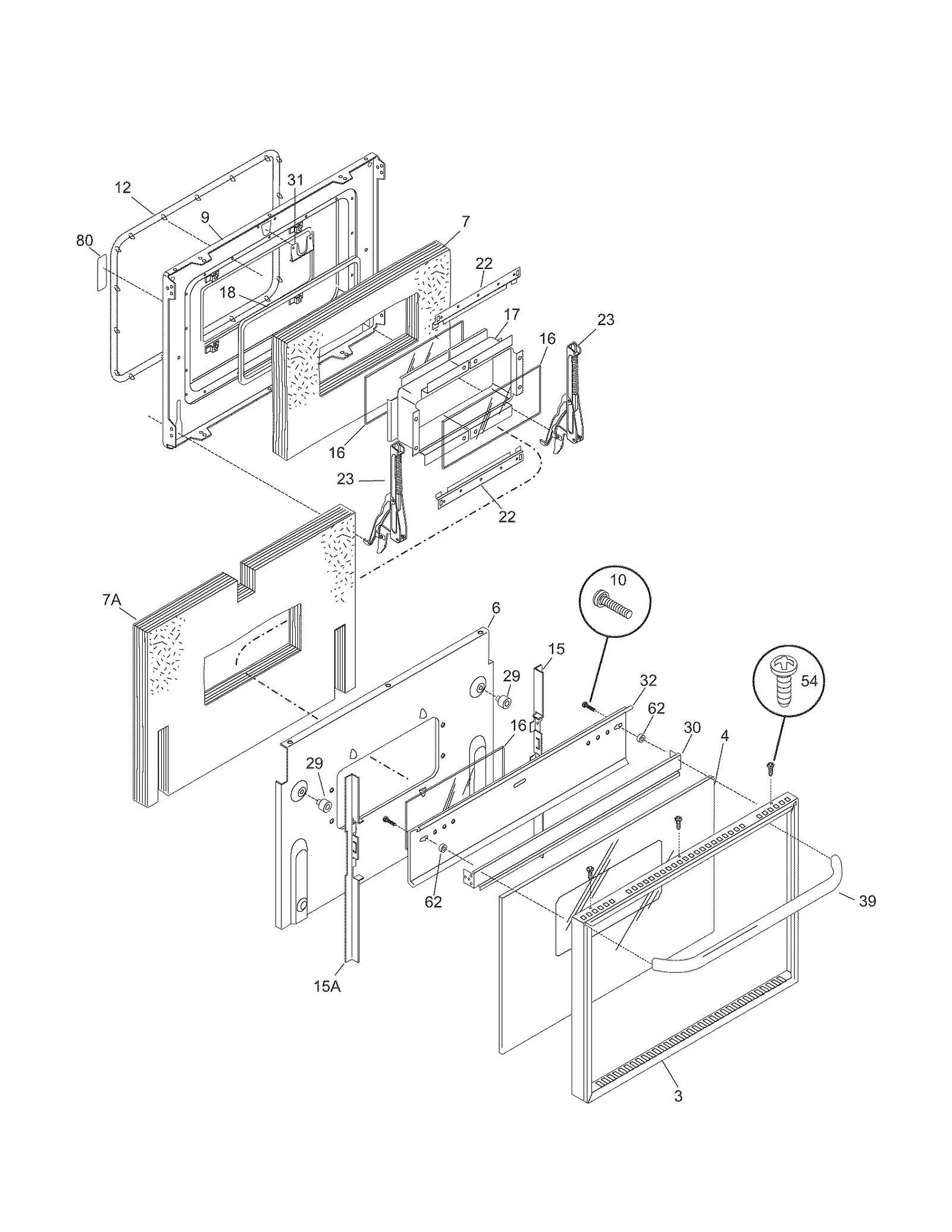

DOOR

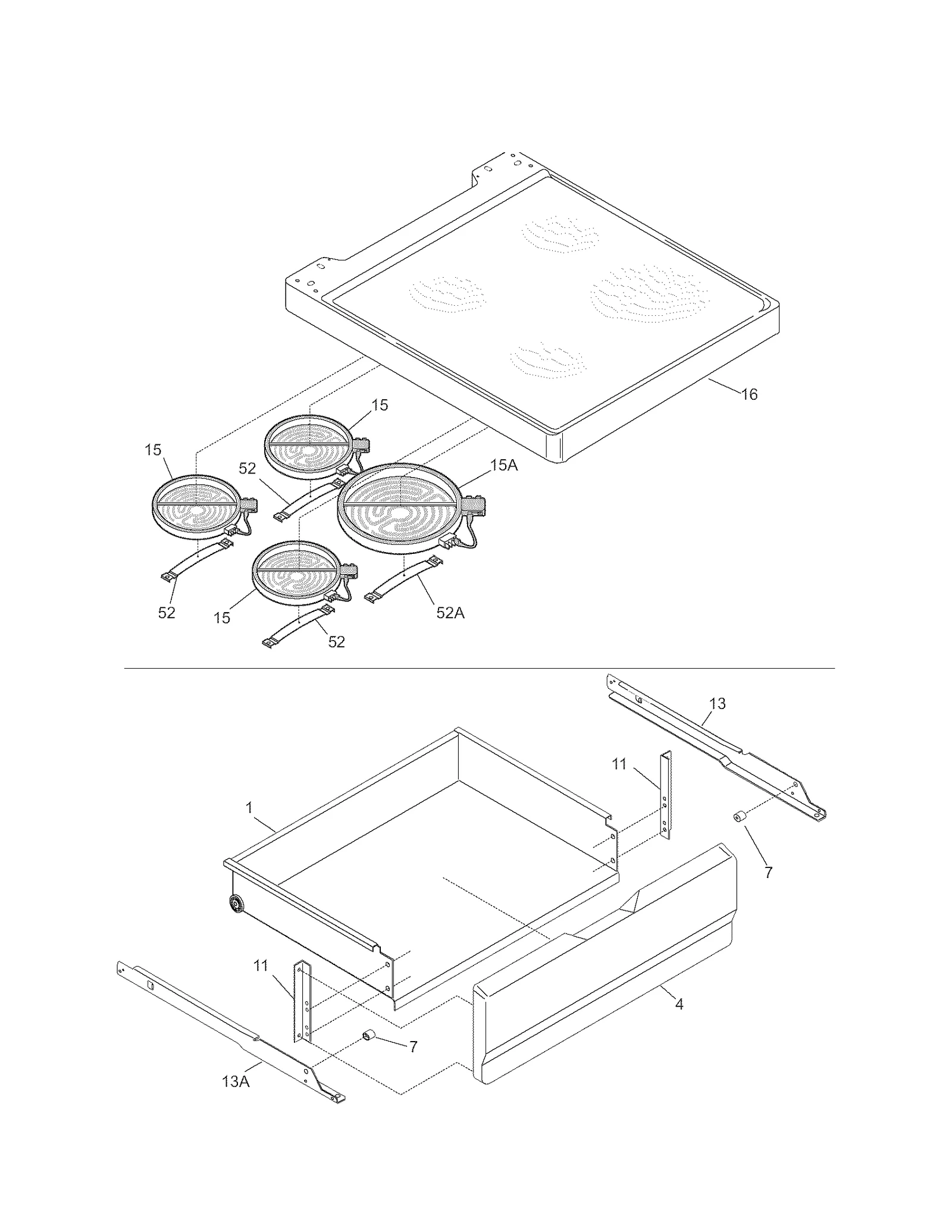

TOP/DRAWER
Common parts from model Electrolux 790.90154304 Electric Range (Kenmore 79090154304)
1
Drawer-utili WCI 5303325610 Contact Us For Availability
3
Trim WCI 318176700 Contact Us For Availability
3
Trim-oven Do WCI 5303325088 Contact Us For Availability
4
Range Oven Door Outer Panel (White) WCI 5303325035 Contact Us For Availability
4
Oven Glass WCI 318051802 Contact Us For Availability
4
Panel WCI 318044221 Contact Us For Availability
4
**front Dr WCI 318044224 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Range Oven Rack WCI 318345201 Contact Us For Availability
6
Oven Shield WCI 5303325079 Contact Us For Availability
7
Range Spacer WCI 318014800 Contact Us For Availability
7
Insulation WCI 318285023 Contact Us For Availability
7A
Insulation WCI 318285024 Contact Us For Availability
9
Oven Liner WCI 318156406 Contact Us For Availability
11
Bracket WCI 5303324427 Contact Us For Availability
12
Oven Door Seal WCI 5303325040 Contact Us For Availability
13
Range Broil Drawer Slide Rail, Right WCI 318018100 Contact Us For Availability
13A
Range Storage Drawer Support Track, Left WCI 318018101 Contact Us For Availability
15
Glass Bracket WCI 5303311153 Contact Us For Availability
15A
Glass Bracket WCI 5303311154 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Range Main Top (Black and White) WCI 318228700 Contact Us For Availability
16
Range Main Top Assembly WCI 318228701 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Glass Spacer WCI 318139000 Contact Us For Availability
18
Gasket WCI 318293500 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 318185832 Contact Us For Availability
20
Range Oven Control Board and Overlay (Bisque) WCI 318185833 Contact Us For Availability
21
Range Control Panel Trim, Upper (White) WCI 318350801 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303310511 Contact Us For Availability
23
Hinge WCI 318024721 Contact Us For Availability
29
Oven Bumper WCI 318147412 Contact Us For Availability
30
Trim WCI 318014012 Contact Us For Availability
30
Trim WCI 318014015 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
32
Deflector WCI 318057203 Contact Us For Availability
36
Range Surface Element Knob (White) WCI 316109106 Contact Us For Availability
39
Handle-ay/sp WCI 318362800 Contact Us For Availability
39
Handle WCI 318362801 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
52A
Spring WCI 318122007 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
62
Range Oven Door Handle Spacer WCI 5303310504 Contact Us For Availability
80
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
86
Range Oven Door Hinge Receiver WCI 318342400 Contact Us For Availability
89
Oven Motor WCI 318095939 Contact Us For Availability
165
Plate WCI 318003101 Contact Us For Availability
170
Bracket WCI 5304413730 Contact Us For Availability
177
Gasket WCI 318053810 Contact Us For Availability
254
Support WCI 318175601 Contact Us For Availability
301
Plate WCI 318161700 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Range Screw, #8-18 x 0.5-in WCI 5303323133 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Harness WCI 318199902 Contact Us For Availability
NI
Range Wire Harness WCI 318231846 Contact Us For Availability
× ![]()
