Model Electrolux 790.90153401 Electric Range (Kenmore 79090153401) – Common Parts & Diagrams

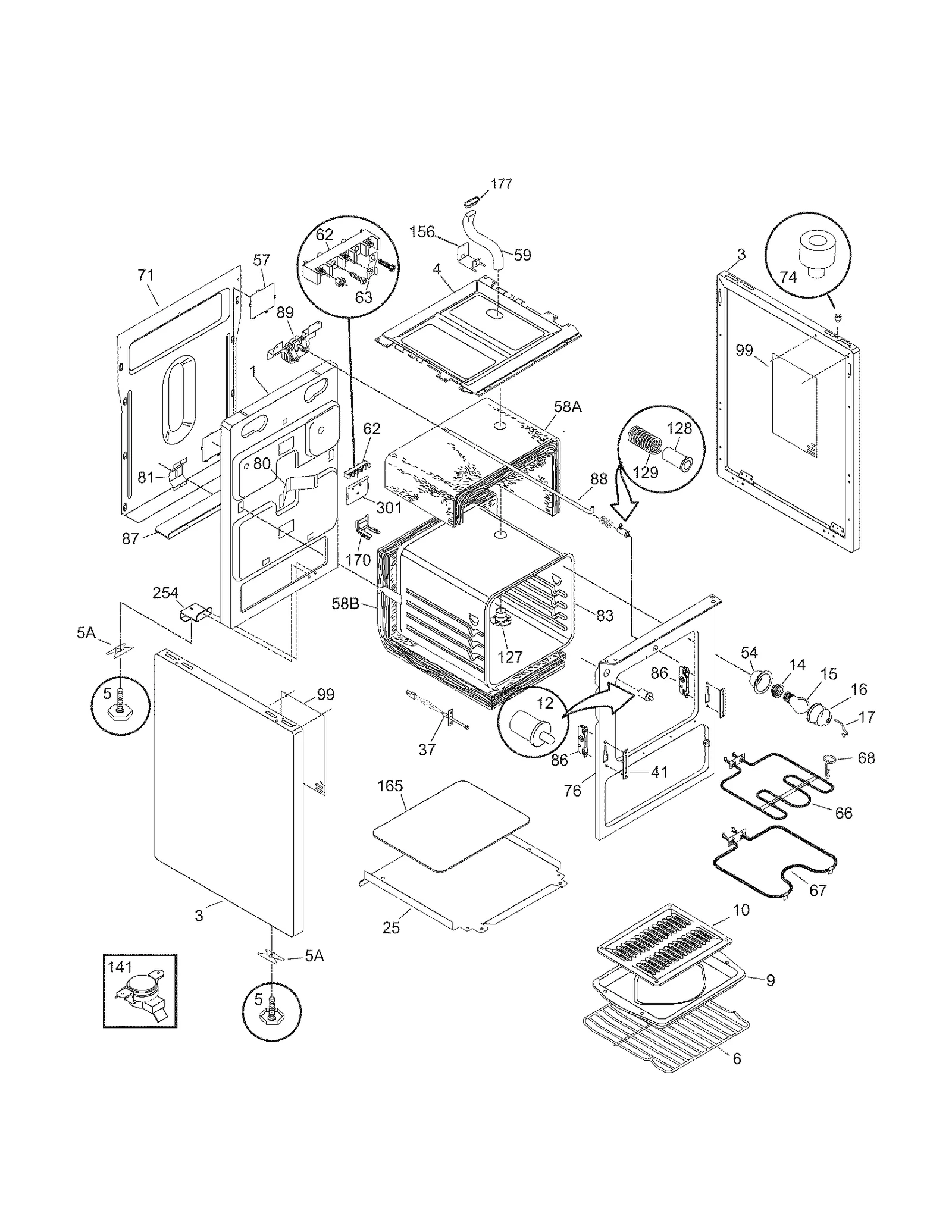

BODY

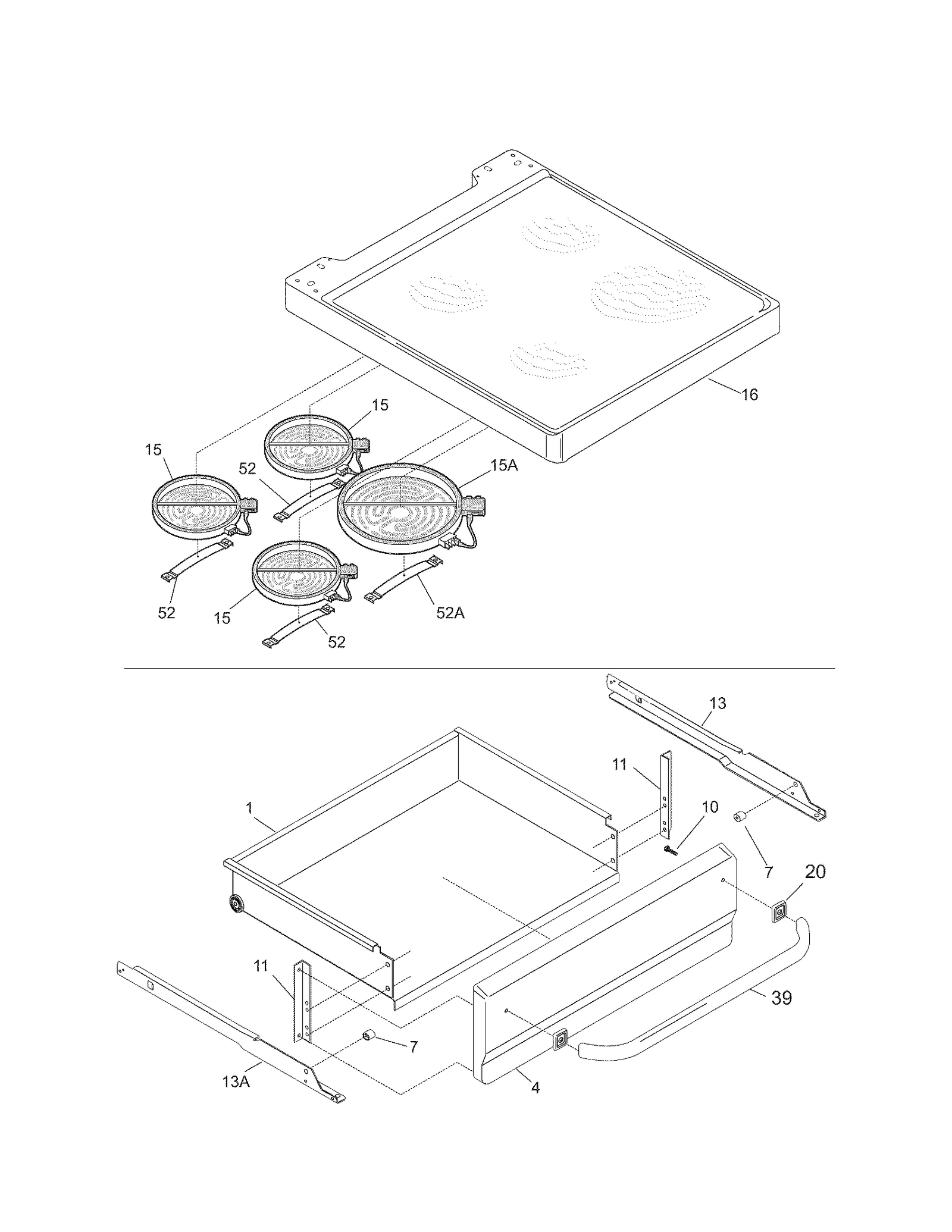

TOP/DRAWER

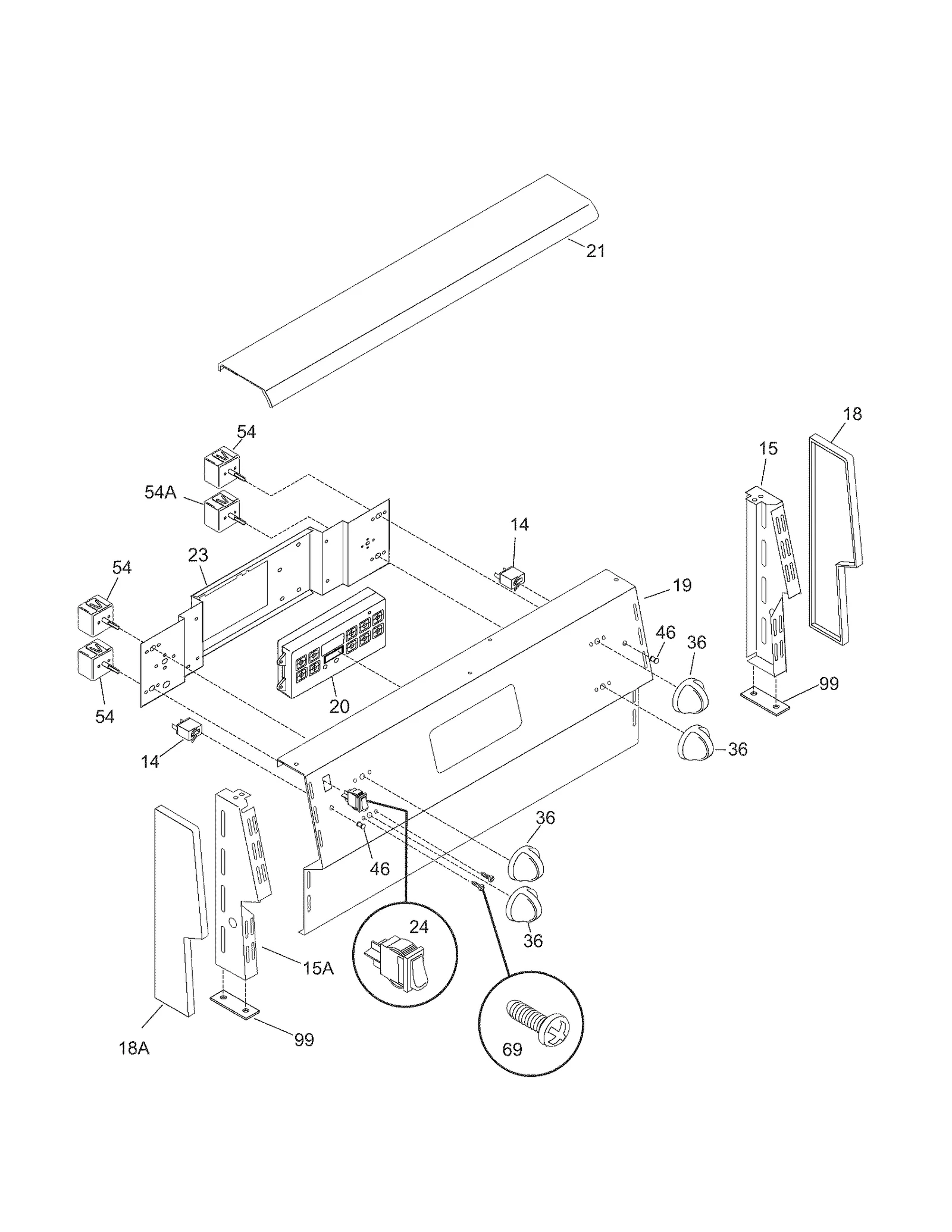

BACKGUARD

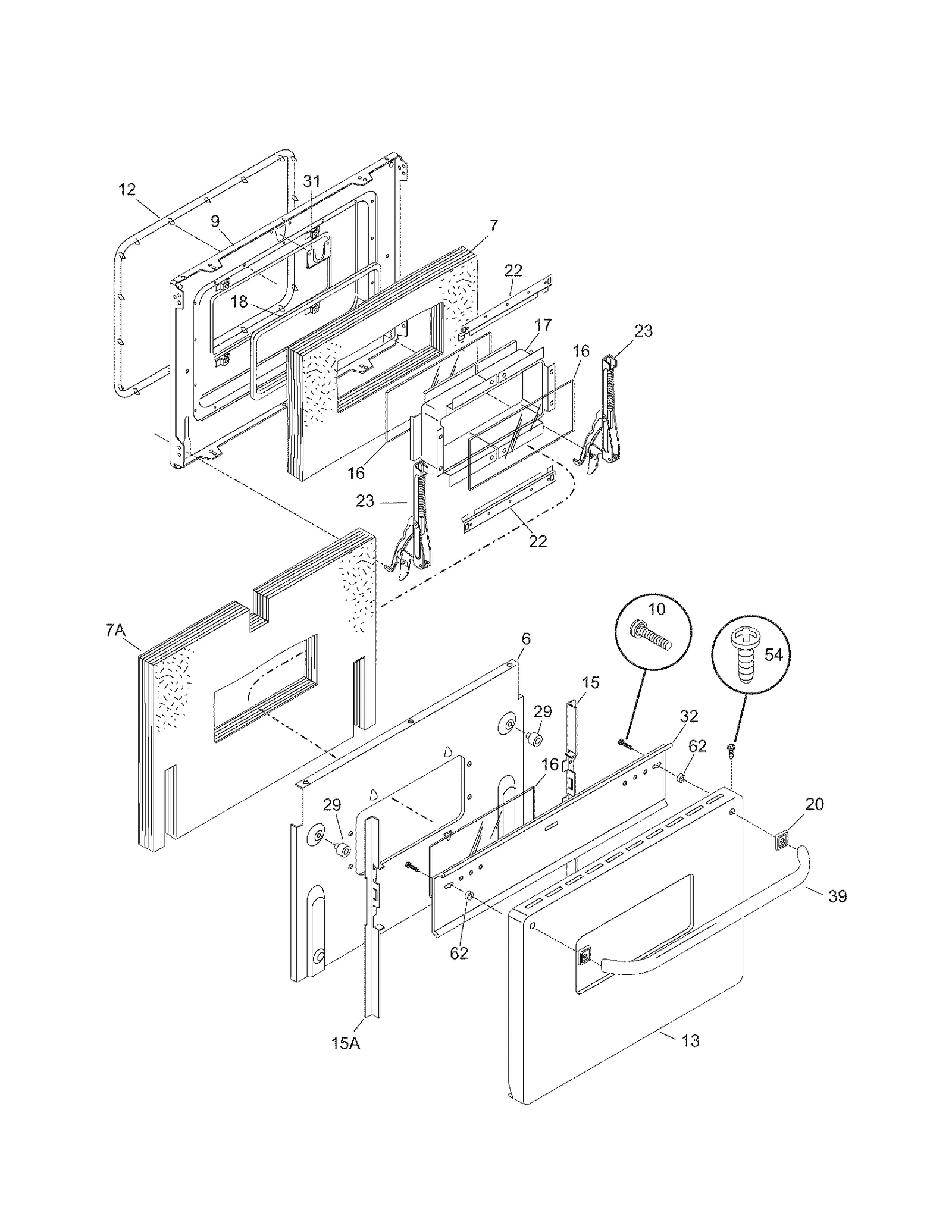

DOOR
Common parts from model Electrolux 790.90153401 Electric Range (Kenmore 79090153401)
1
Drawer-utili WCI 5303325610 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Oven Shield WCI 5303325079 Contact Us For Availability
7
Range Spacer WCI 318014800 Contact Us For Availability
7
Insulation WCI 318133708 Contact Us For Availability
7A
Insulation WCI 318133709 Contact Us For Availability
9
Oven Liner WCI 318156406 Contact Us For Availability
10
Screw WCI 5303324305 Contact Us For Availability
12
Oven Door Seal WCI 5303325040 Contact Us For Availability
13
Range Broil Drawer Slide Rail, Right WCI 318018100 Contact Us For Availability
13
Panel WCI 318187964 Contact Us For Availability
13A
Range Storage Drawer Support Track, Left WCI 318018101 Contact Us For Availability
14
Light Lamp WCI 5303323991 Contact Us For Availability
15
Glass Bracket WCI 5303311153 Contact Us For Availability
15
Bracket WCI 5303304000 Contact Us For Availability
15A
Glass Bracket WCI 5303311154 Contact Us For Availability
15A
Bracket WCI 5303304001 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Glass Spacer WCI 318139000 Contact Us For Availability
18
Gasket WCI 318293500 Contact Us For Availability
18
End Cap WCI 318254500 Contact Us For Availability
18A
End Cap WCI 318254501 Contact Us For Availability
19
Range Manifold Panel (Black) WCI 318005494 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 318185847 Contact Us For Availability
20
Range Handle Spacer (Black) WCI 318014300 Contact Us For Availability
21
Trim WCI 318051201 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303310511 Contact Us For Availability
23
Bracket WCI 318015011 Contact Us For Availability
23
Hinge WCI 318024721 Contact Us For Availability
24
Light Switch WCI 318037515 Contact Us For Availability
29
Bumper Base WCI 318147410 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
32
Deflector WCI 318057203 Contact Us For Availability
36
Range Surface Burner Knob WCI 316109108 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
62
Range Oven Door Handle Spacer WCI 5303310504 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
89
Oven Motor WCI 318095939 Contact Us For Availability
99
Range Control Panel End Cap Spacer WCI 5303304544 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Overlay WCI 318013319 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Installation WCI 318154301 Contact Us For Availability
NI
Wiring Diagram WCI 318198604 Contact Us For Availability
NI
Range Owner's Manual WCI 318200509 Contact Us For Availability
NI
Repair Parts List WCI 5995436366 Contact Us For Availability
NI
Electrolux Appliance Stainless Steel Cleaner, WCI 316136900 Contact Us For Availability
× ![]()
