Model Electrolux 790.90102203 Electric Range (Kenmore 79090102203) – Common Parts & Diagrams

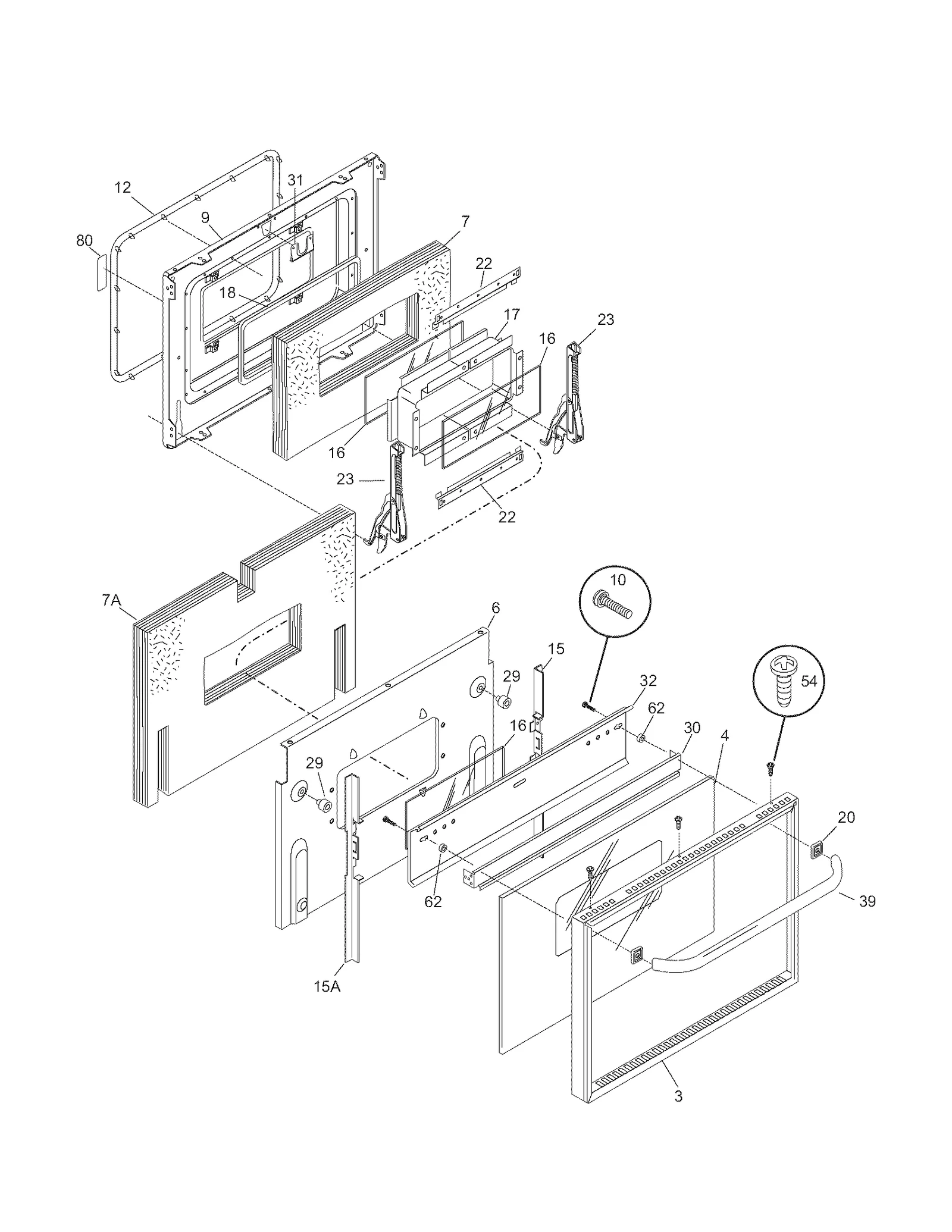

DOOR

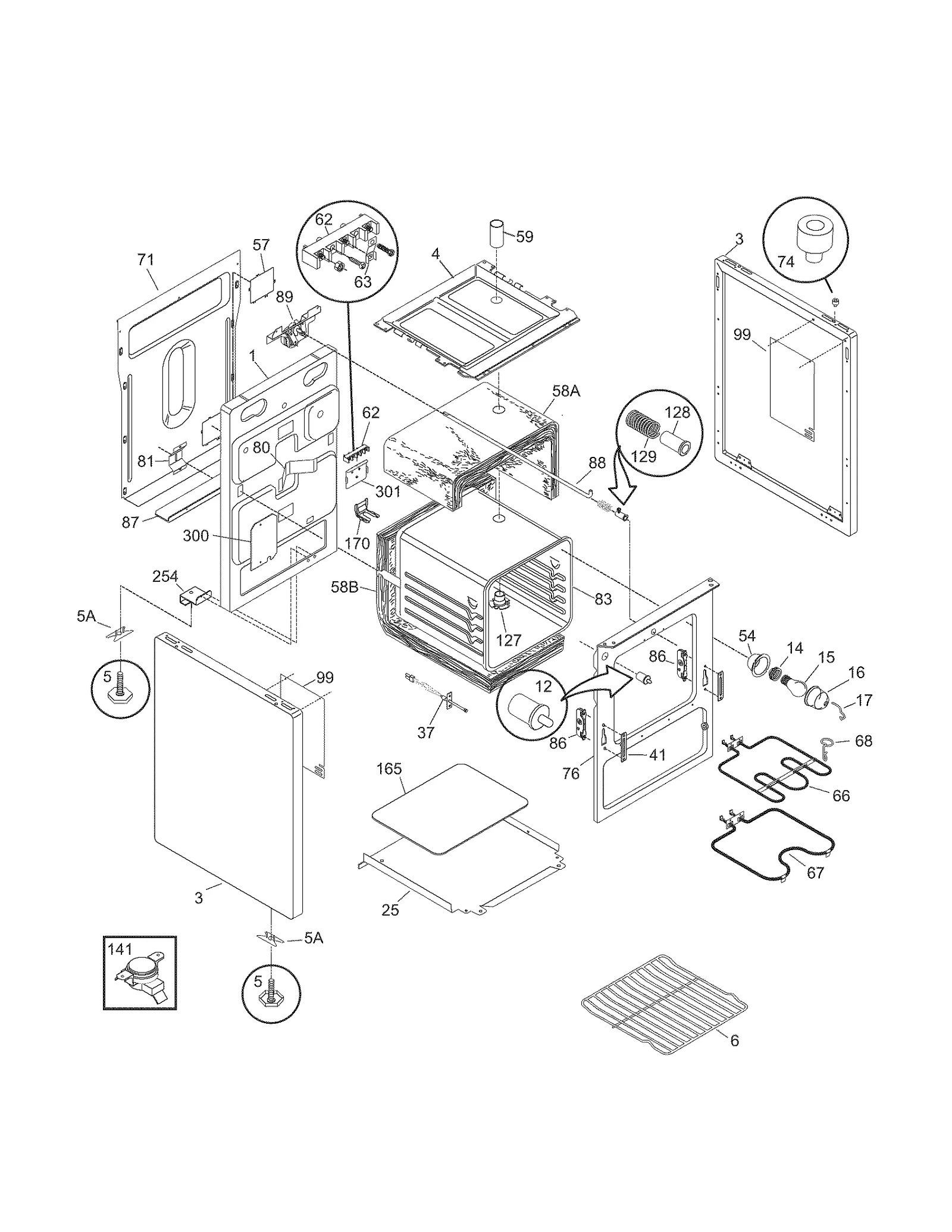

BODY

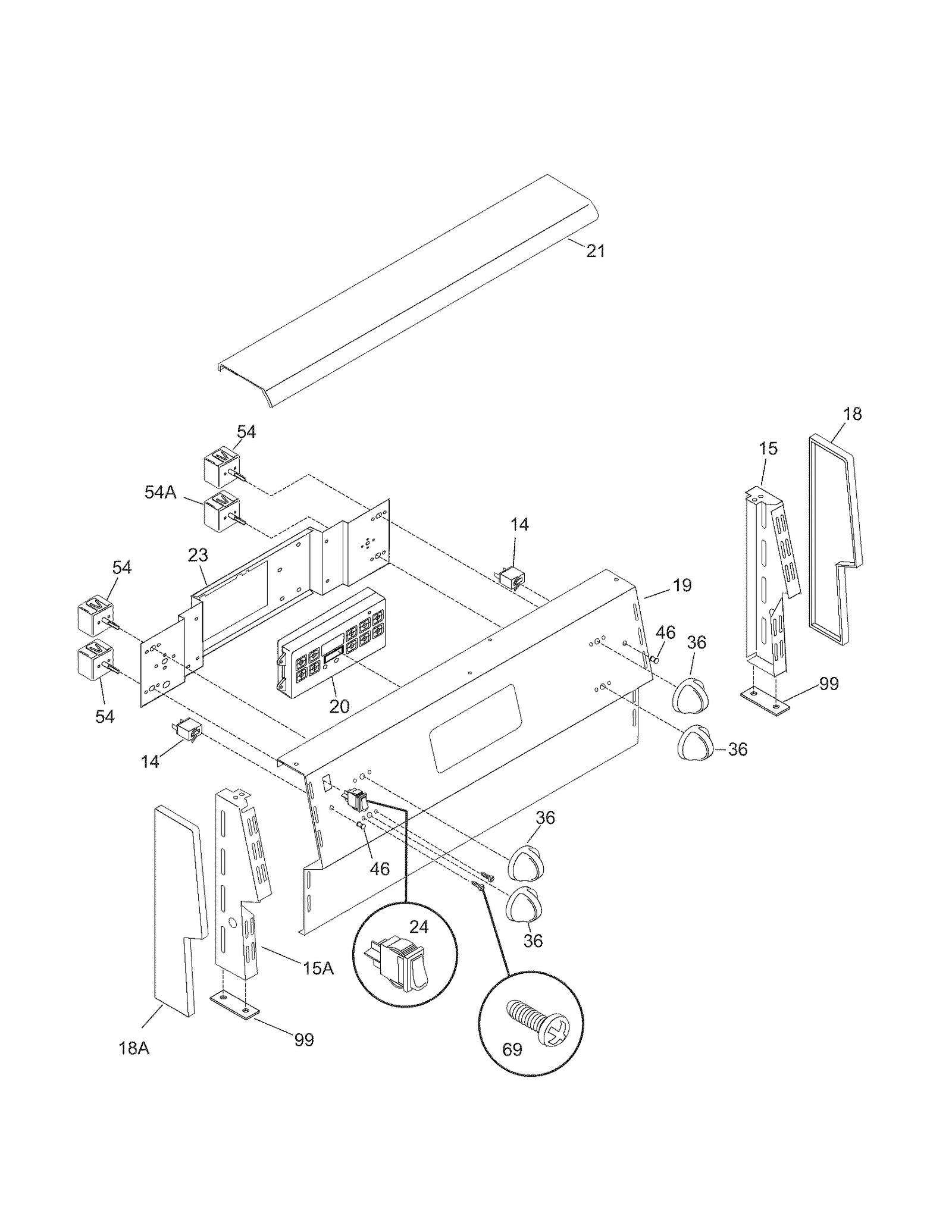

BACKGUARD

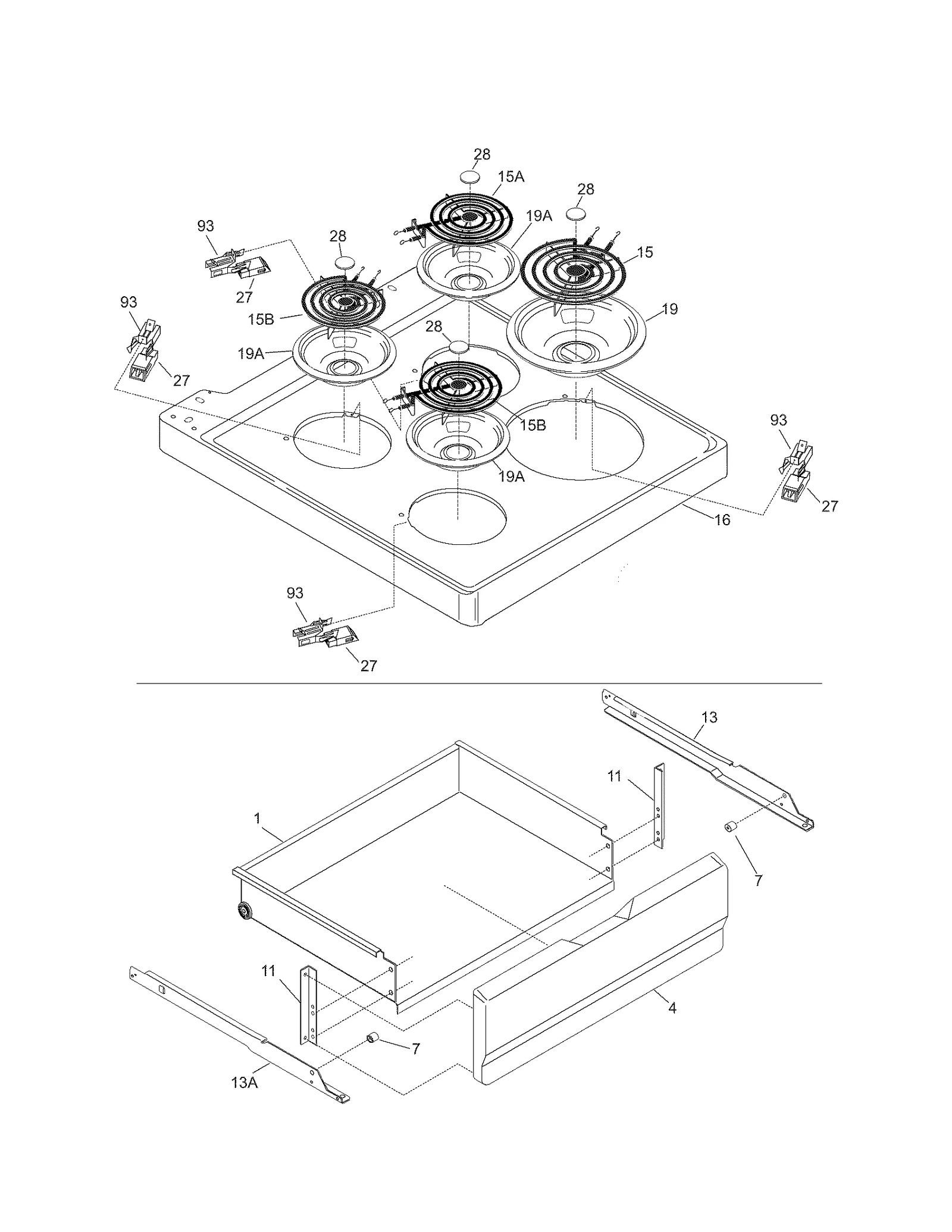

TOP/DRAWER
Common parts from model Electrolux 790.90102203 Electric Range (Kenmore 79090102203)
1
Drawer-utili WCI 5303325610 Contact Us For Availability
4
Range Oven Door Outer Panel (White) WCI 5303325035 Contact Us For Availability
4
Panel WCI 318044221 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Range Oven Rack WCI 318345201 Contact Us For Availability
7
Range Spacer WCI 318014800 Contact Us For Availability
11
Bracket WCI 5303324427 Contact Us For Availability
13
Range Broil Drawer Slide Rail, Right WCI 318018100 Contact Us For Availability
13A
Range Storage Drawer Support Track, Left WCI 318018101 Contact Us For Availability
14
Light Lamp WCI 5303323991 Contact Us For Availability
15
Glass Bracket WCI 5303311153 Contact Us For Availability
15
Bracket WCI 5303304000 Contact Us For Availability
15A
Glass Bracket WCI 5303311154 Contact Us For Availability
15A
Bracket WCI 5303304001 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Top WCI 318120921 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Gasket WCI 318293500 Contact Us For Availability
18
End Cap WCI 318254502 Contact Us For Availability
18A
End Cap WCI 318254503 Contact Us For Availability
19
Range Control Panel (White) WCI 318005480 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 318185832 Contact Us For Availability
21
Range Control Panel Trim, Upper (White) WCI 318350801 Contact Us For Availability
23
Bracket WCI 318015011 Contact Us For Availability
24
Light Switch WCI 318037513 Contact Us For Availability
27
Terminal Block WCI 318223400 Contact Us For Availability
27
Terminal Block WCI 318223401 Contact Us For Availability
28
Medallion WCI 3017801 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Range Surface Element Knob (White) WCI 316109106 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
74
Oven Bumper WCI 318147412 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
89
Oven Motor WCI 318095939 Contact Us For Availability
99
Range Control Panel End Cap Spacer WCI 5303304544 Contact Us For Availability
254
Support WCI 318175601 Contact Us For Availability
300
Plate WCI 318225000 Contact Us For Availability
301
Plate WCI 318161700 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #8-18 x 0.5-in WCI 5303323133 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Overlay WCI 318013317 Contact Us For Availability
NI
Range Installation WCI 318154301 Contact Us For Availability
NI
Wiring Diagram WCI 318198604 Contact Us For Availability
NI
Range Owner's Manual WCI 318200509 Contact Us For Availability
NI
Repair Parts List WCI 5995473807 Contact Us For Availability
× ![]()
