Model Electrolux 790.79119202 Gas Range (Kenmore 79079119202) – Common Parts & Diagrams

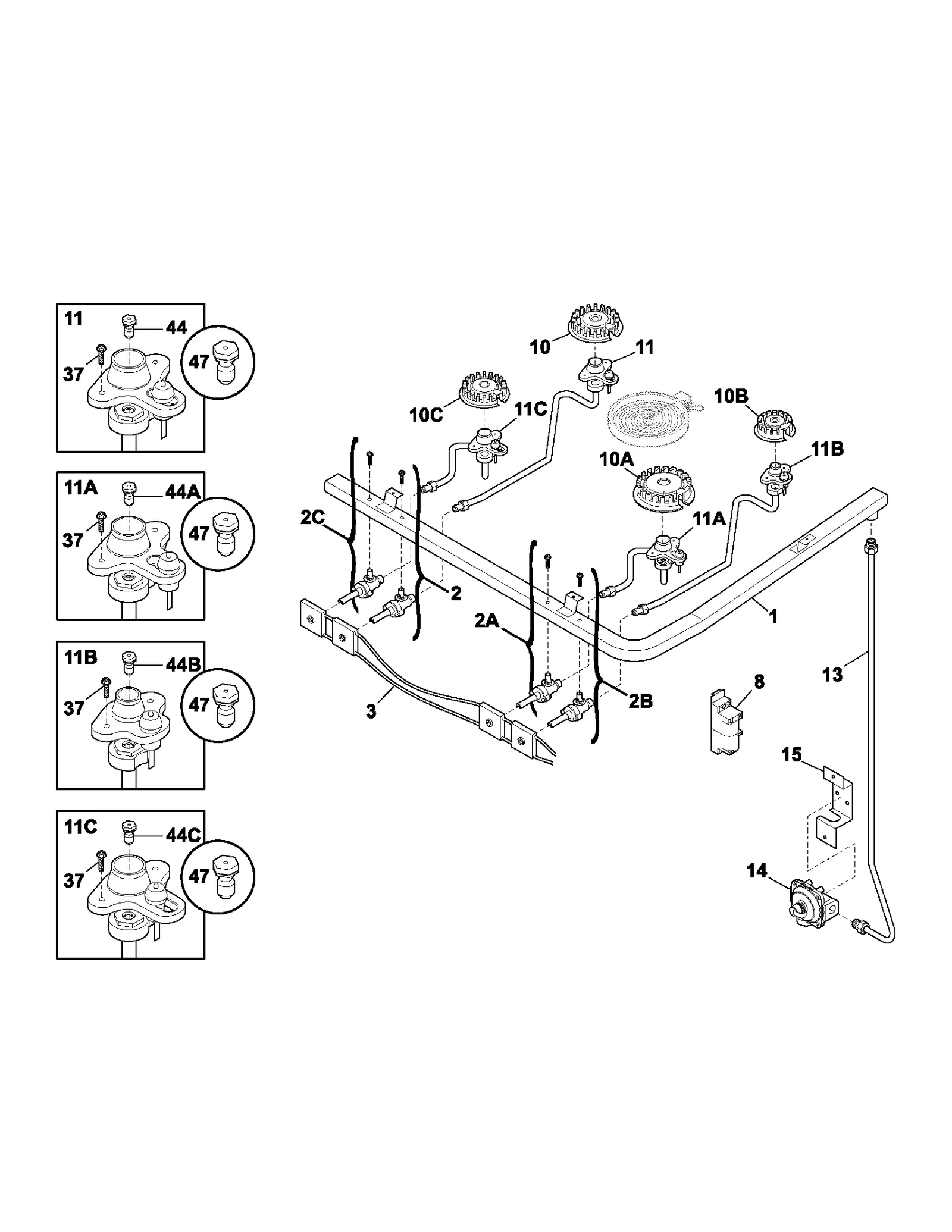

BURNER

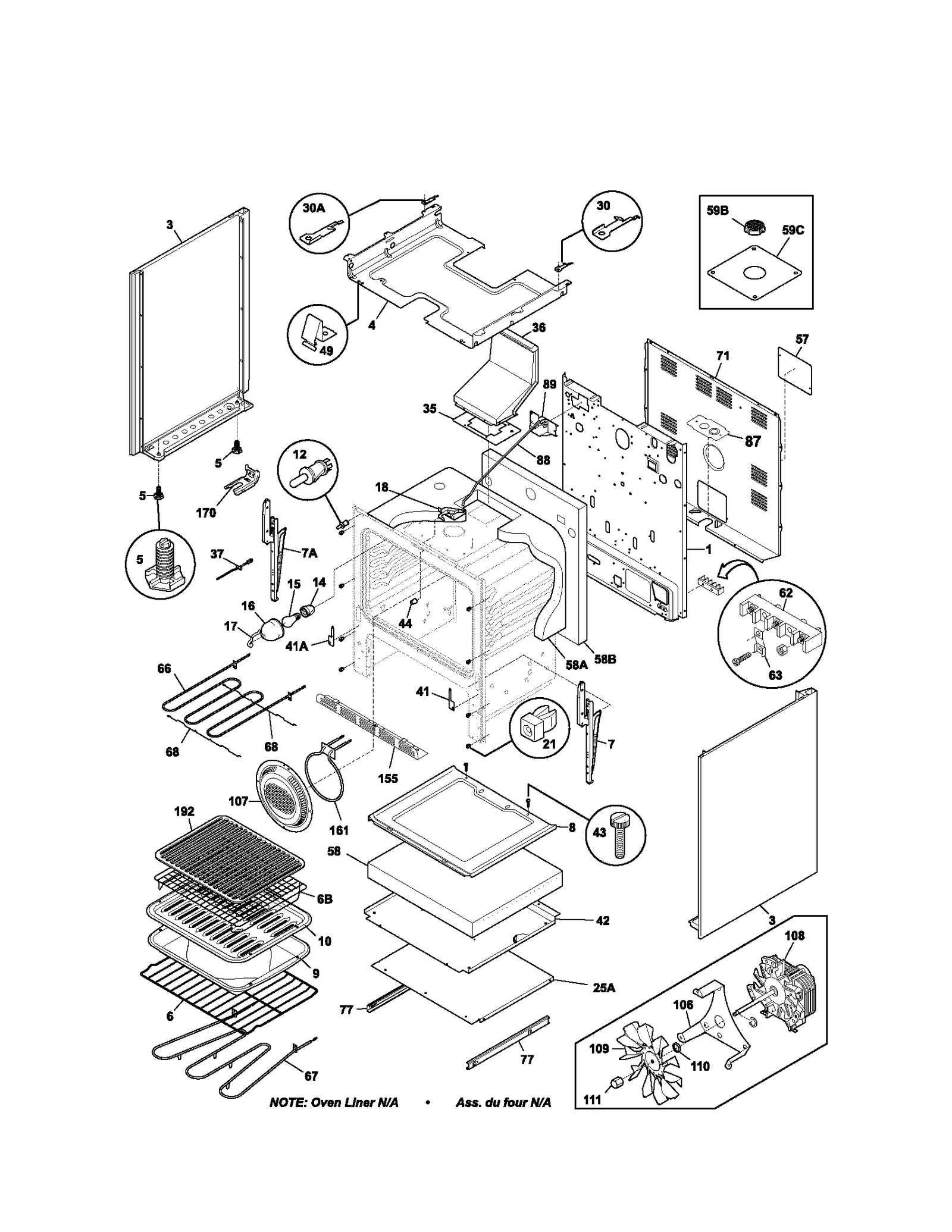

BODY
TOP/DRAWER
DOOR
BACKGUARD
Common parts from model Electrolux 790.79119202 Gas Range (Kenmore 79079119202)
1
Panel Shield WCI 316239901 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316219005 Contact Us For Availability
3
Range Oven Door Trim Kit (Bisque) WCI 5303935193 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Oven Door Glass WCI 316237000 Contact Us For Availability
6
Wool Cover Shield WCI 316222707 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230605 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 316230300 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
15
Glass Bracket WCI 316237201 Contact Us For Availability
15
Channel-bg S WCI 316049110 Contact Us For Availability
15A
Channel-bg S WCI 316049111 Contact Us For Availability
15B
Support Backguard WCI 316121504 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
End Cap WCI 316249800 Contact Us For Availability
18
End Cap WCI 316249802 Contact Us For Availability
18
End Cap WCI 316249806 Contact Us For Availability
18A
End Cap WCI 316249801 Contact Us For Availability
18A
End Cap WCI 316249803 Contact Us For Availability
18A
End Cap WCI 316249807 Contact Us For Availability
19
Panel WCI 316118218 Contact Us For Availability
19
Panel WCI 316118219 Contact Us For Availability
19
Panel WCI 316118220 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 316207608 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316246900 Contact Us For Availability
20A
Overlay WCI 316246901 Contact Us For Availability
20A
Overlay WCI 316246902 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
21A
Cooktop Burner Skirt WCI 316241601 Contact Us For Availability
21A
Cooktop Burner Skirt WCI 316241600 Contact Us For Availability
21B
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
21C
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22A
Cooktop Burner Cap (Black) WCI 316242700 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206501 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316242901 Contact Us For Availability
23
Bracket WCI 316243500 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Surface Burner Knob WCI 316121600 Contact Us For Availability
31
Range Surface Burner Knob (Biscuit) WCI 316121603 Contact Us For Availability
31
Knob Black WCI 316121602 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121800 Contact Us For Availability
36
Knob (Black) WCI 316121801 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121815 Contact Us For Availability
39
Range Oven Door Handle (Black) WCI 316241105 Contact Us For Availability
39
Handle WCI 316241106 Contact Us For Availability
39
Oven Handle WCI 316241108 Contact Us For Availability
40
Manifold Panel WCI 316204944 Contact Us For Availability
40
Manifold Panel WCI 316204945 Contact Us For Availability
40
Manifold Panel WCI 316204946 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
47
Range LP Conversion Kit WCI 316243709 Contact Us For Availability
51
Cooktop Nameplate WCI 316249400 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
52
Cap-door T WCI 316201003 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52
Cap-door T WCI 316201009 Contact Us For Availability
53
Extrusion Trim WCI 316220400 Contact Us For Availability
53
Btm Chrom Ex WCI 316220401 Contact Us For Availability
55
Trim Cap WCI 316118500 Contact Us For Availability
55
Cap WCI 316118501 Contact Us For Availability
55
Cap WCI 316118503 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
99
Clip-l WCI 316121300 Contact Us For Availability
108
Range Convection Fan Motor WCI 316136300 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Harness WCI 316253604 Contact Us For Availability
NI
Harness WCI 316253610 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 316209000 Contact Us For Availability
NI
Wiring Diagram WCI 316255215 Contact Us For Availability
NI
Range Owner's Manual WCI 316258021 Contact Us For Availability
NI
Instructions WCI 316259311 Contact Us For Availability
NI
Parts List WCI 5995383055 Contact Us For Availability
× ![]()
