Model Electrolux 790.79013101 Gas Range (Kenmore 79079013101) – Common Parts & Diagrams
BODY
BODY

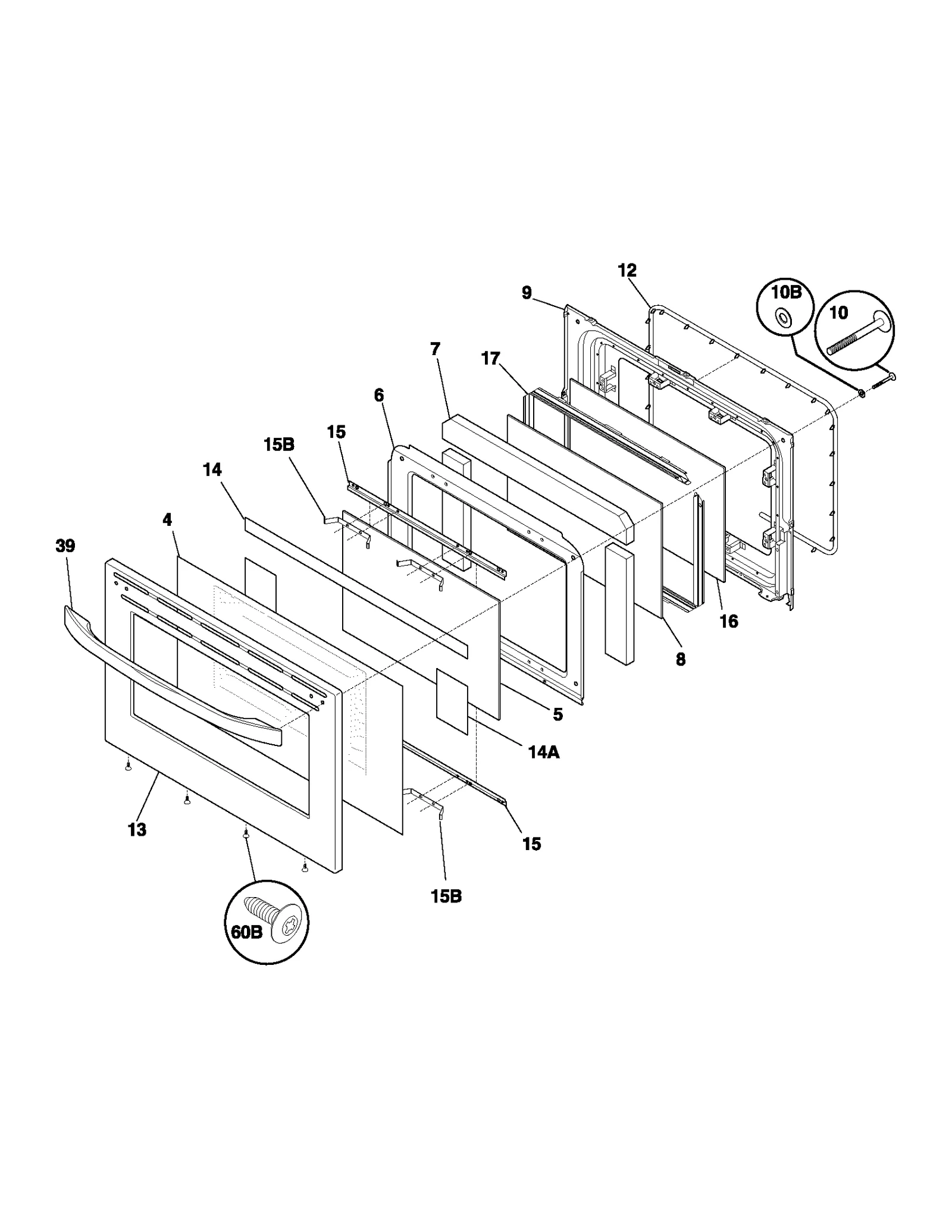

DOOR

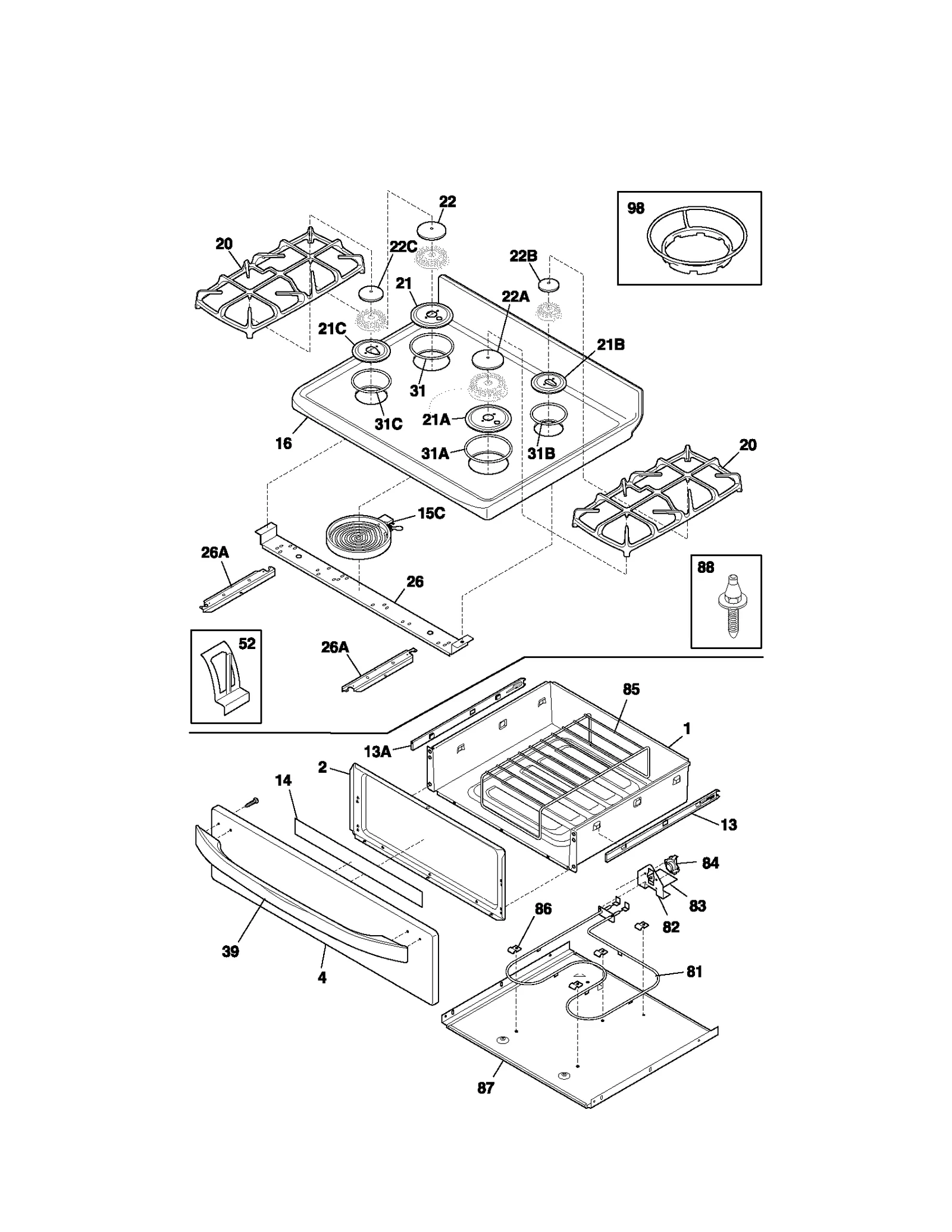

TOP/DRAWER

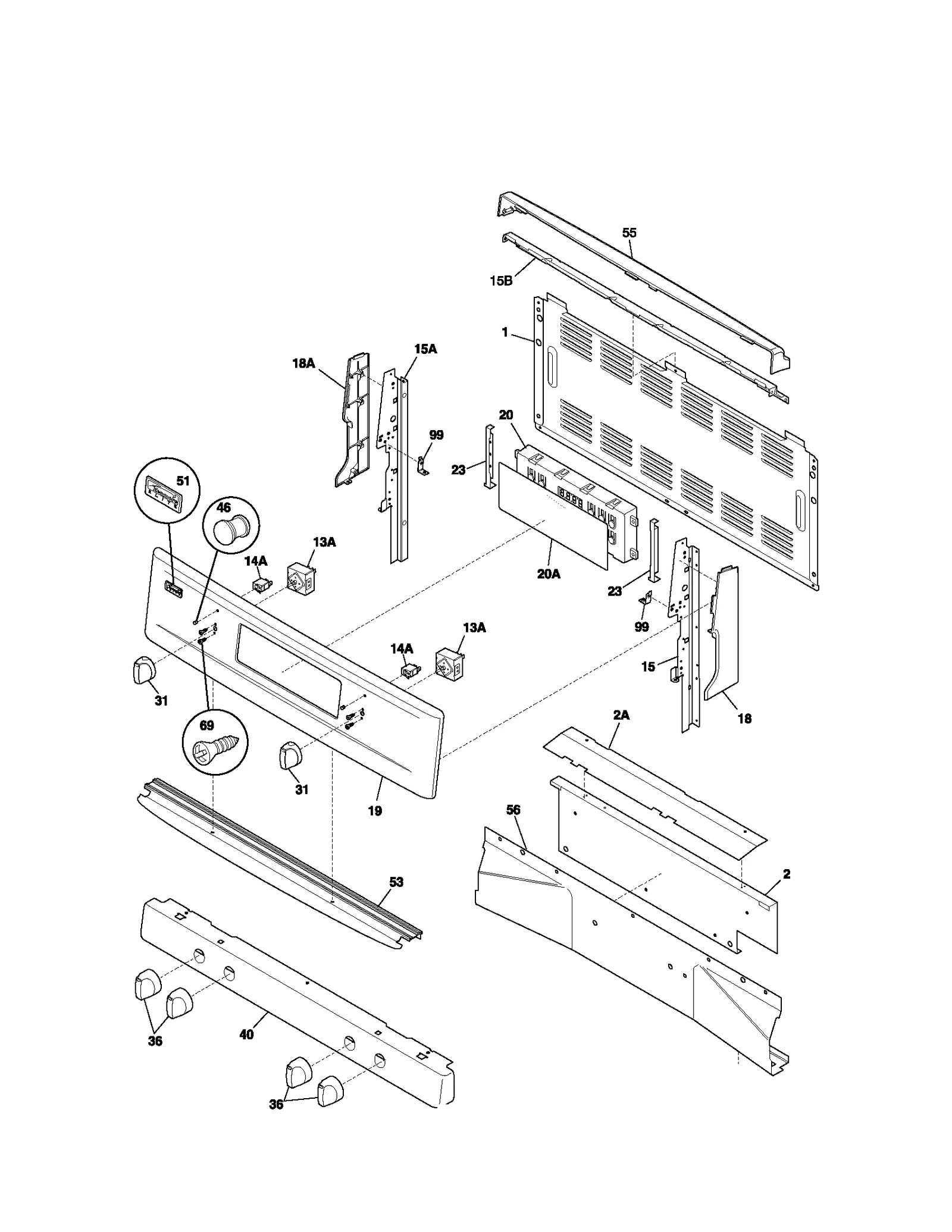

BACKGUARD

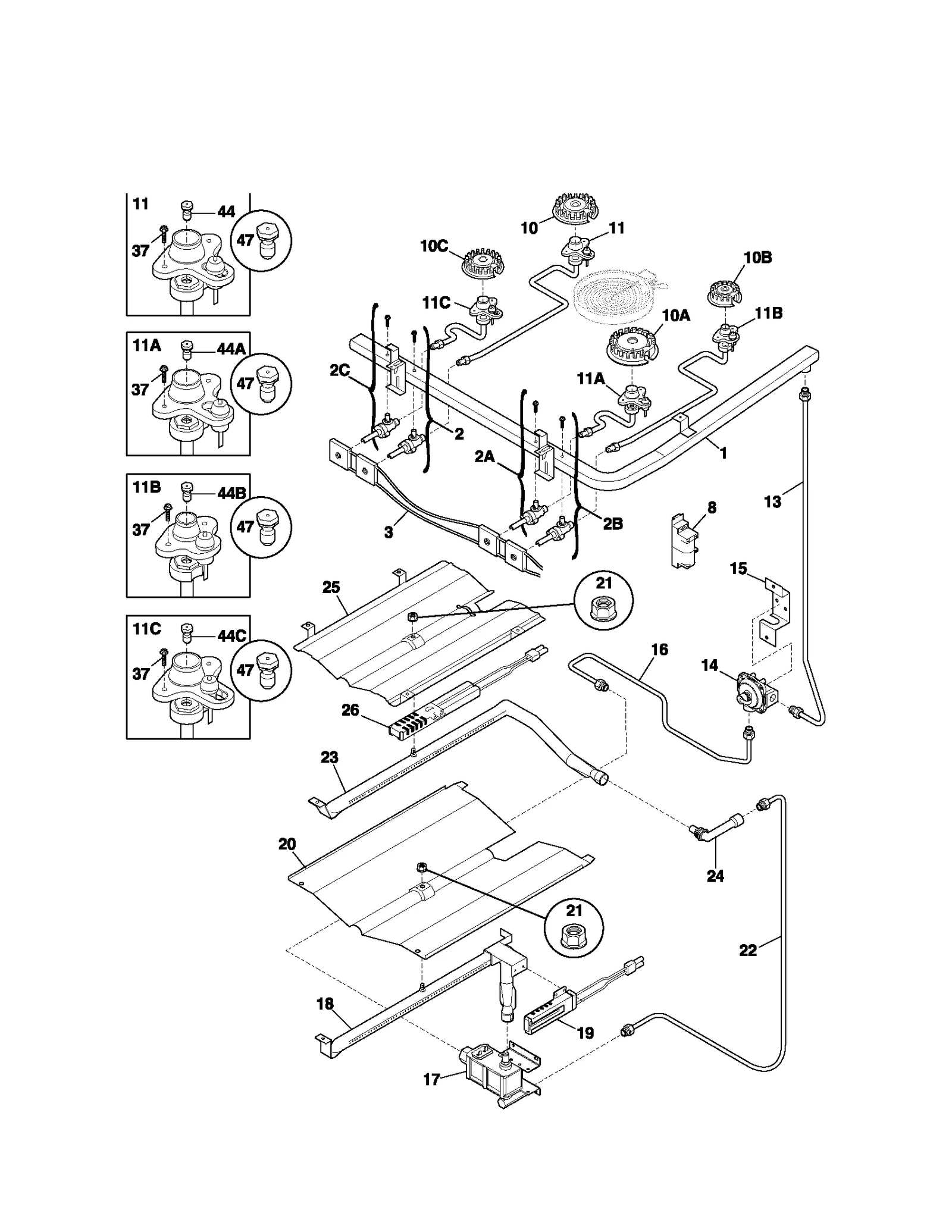

BURNER
Common parts from model Electrolux 790.79013101 Gas Range (Kenmore 79079013101)
1
Panel Shield WCI 316239901 Contact Us For Availability
1
Pipe WCI 316242600 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2
Backing Shield WCI 316051600 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2A
Shield-top I WCI 316123200 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Wiring Harness WCI 316219001 Contact Us For Availability
4
Range Oven Door Outer Panel WCI 316240000 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10B
Range Sealed Burner Assembly WCI 316206400 Contact Us For Availability
11
Range Surface Burner Igniter and Orifice Hold WCI 316230401 Contact Us For Availability
11A
Range Surface Burner Igniter and Orifice Hold WCI 316230301 Contact Us For Availability
11B
Cooktop Igniter WCI 316230400 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 316230300 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Channel-bg S WCI 316049110 Contact Us For Availability
15A
Channel-bg S WCI 316049111 Contact Us For Availability
15B
Support Backguard WCI 316121504 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
End Cap WCI 316249808 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
18A
End Cap WCI 316249809 Contact Us For Availability
19
Range Control Panel WCI 316118210 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 316207605 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
21A
Cooktop Burner Skirt WCI 316241601 Contact Us For Availability
21B
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
21C
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22A
Cooktop Burner Cap (Black) WCI 316242700 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
23
Bracket WCI 316243500 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Warming Drawer Knob (Black) WCI 316121604 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121820 Contact Us For Availability
39
Range Oven Door and Drawer Handle (Gray) WCI 316241109 Contact Us For Availability
40
Panel WCI 316249001 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
51
Cooktop Nameplate WCI 316249400 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
53
Extrusion Trim WCI 316220400 Contact Us For Availability
55
Top Cap Trim WCI 316118504 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
98
Grate WCI 316241400 Contact Us For Availability
99
Clip-l WCI 316121300 Contact Us For Availability
108
Range Convection Fan Assembly WCI 316234601 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Aluminum Foil WCI 316102211 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Range Wire Harness WCI 316253602 Contact Us For Availability
NI
Wiring Diagram WCI 316255210 Contact Us For Availability
NI
Instructions WCI 316259306 Contact Us For Availability
NI
Repair Parts List WCI 5995378402 Contact Us For Availability
NI
Spacer Broil WCI 316113400 Contact Us For Availability
NI
Range Spark Module Wire Harness WCI 316253701 Contact Us For Availability
× ![]()
