Model Electrolux 790.79012102 Gas Range (Kenmore 79079012102) – Common Parts & Diagrams
DOOR
BACKGUARD
TOP/DRAWER
BODY

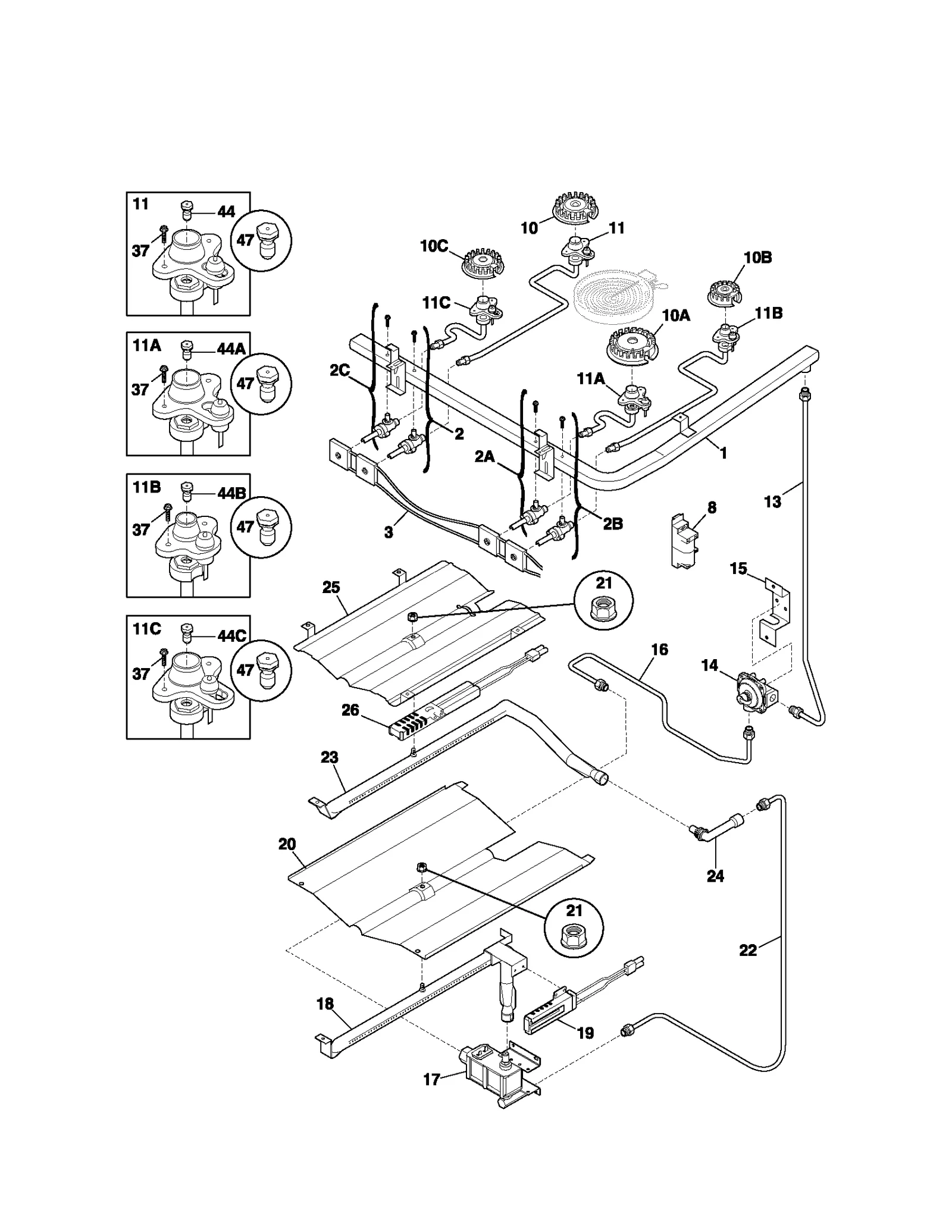

BURNER
Common parts from model Electrolux 790.79012102 Gas Range (Kenmore 79079012102)
1
Panel WCI 316029416 Contact Us For Availability
1
Pipe WCI 316242600 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2
Shield WCI 3131314 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316219005 Contact Us For Availability
3
Gibson Panel WCI 316230114 Contact Us For Availability
3
Gibson Panel WCI 316230115 Contact Us For Availability
3
Panel WCI 316230116 Contact Us For Availability
3
Panel WCI 316230117 Contact Us For Availability
3
Panel WCI 316230118 Contact Us For Availability
3
Panel WCI 316230119 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
4
Burner Box WCI 316067208 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
6A
Shelf WCI 318219500 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Hinge WCI 316212901 Contact Us For Availability
8
Ov Btm Pnl WCI 5303300701 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10B
Range Sealed Burner Assembly WCI 316206400 Contact Us For Availability
11
Range Surface Burner Igniter and Orifice Hold WCI 316230401 Contact Us For Availability
11A
Range Surface Burner Igniter and Orifice Hold WCI 316230301 Contact Us For Availability
11B
Cooktop Igniter WCI 316230400 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 316230300 Contact Us For Availability
12
Switch WCI 316209900 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 316207605 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316246900 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
21A
Cooktop Burner Skirt WCI 316241601 Contact Us For Availability
21A
Cooktop Burner Skirt WCI 316241600 Contact Us For Availability
21B
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
21C
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22A
Cooktop Burner Cap (Black) WCI 316242700 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206501 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316242901 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
25A
Warmer Shield WCI 316092300 Contact Us For Availability
28
Wire Clip WCI 316045000 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
31
Range Surface Burner Knob WCI 316121600 Contact Us For Availability
31
Range Surface Burner Knob (Biscuit) WCI 316121603 Contact Us For Availability
33
Rear Shield WCI 316232800 Contact Us For Availability
36
Fluebox-up E WCI 316133002 Contact Us For Availability
38
Shield WCI 316051700 Contact Us For Availability
40
Shield WCI 3200836 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
49
Spring Clip WCI 316234200 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
53A
Shield WCI 08067992 Contact Us For Availability
53B
Air Bracket WCI 316211100 Contact Us For Availability
55
Shield-flue WCI 316107800 Contact Us For Availability
58A
Insulation WCI 316047705 Contact Us For Availability
58B
Insulation WCI 316218303 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
98
Grate WCI 316241400 Contact Us For Availability
106
Bracket WCI 316026600 Contact Us For Availability
108
Range Convection Fan Assembly WCI 316234601 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Harness WCI 316253610 Contact Us For Availability
NI
Screw WCI 316021131 Contact Us For Availability
NI
Screw WCI 316021133 Contact Us For Availability
NI
Sleeve WCI 316244300 Contact Us For Availability
NI
Wiring Harness WCI 316253416 Contact Us For Availability
NI
Screw-heat S WCI 5303288570 Contact Us For Availability
NI
Spacer Broil WCI 316113400 Contact Us For Availability
NI
Range Spark Module Wire Harness WCI 316253701 Contact Us For Availability
× ![]()
