Model Electrolux 790.75993101 Gas Range (Kenmore 79075993101) – Common Parts & Diagrams
BODY
BURNER

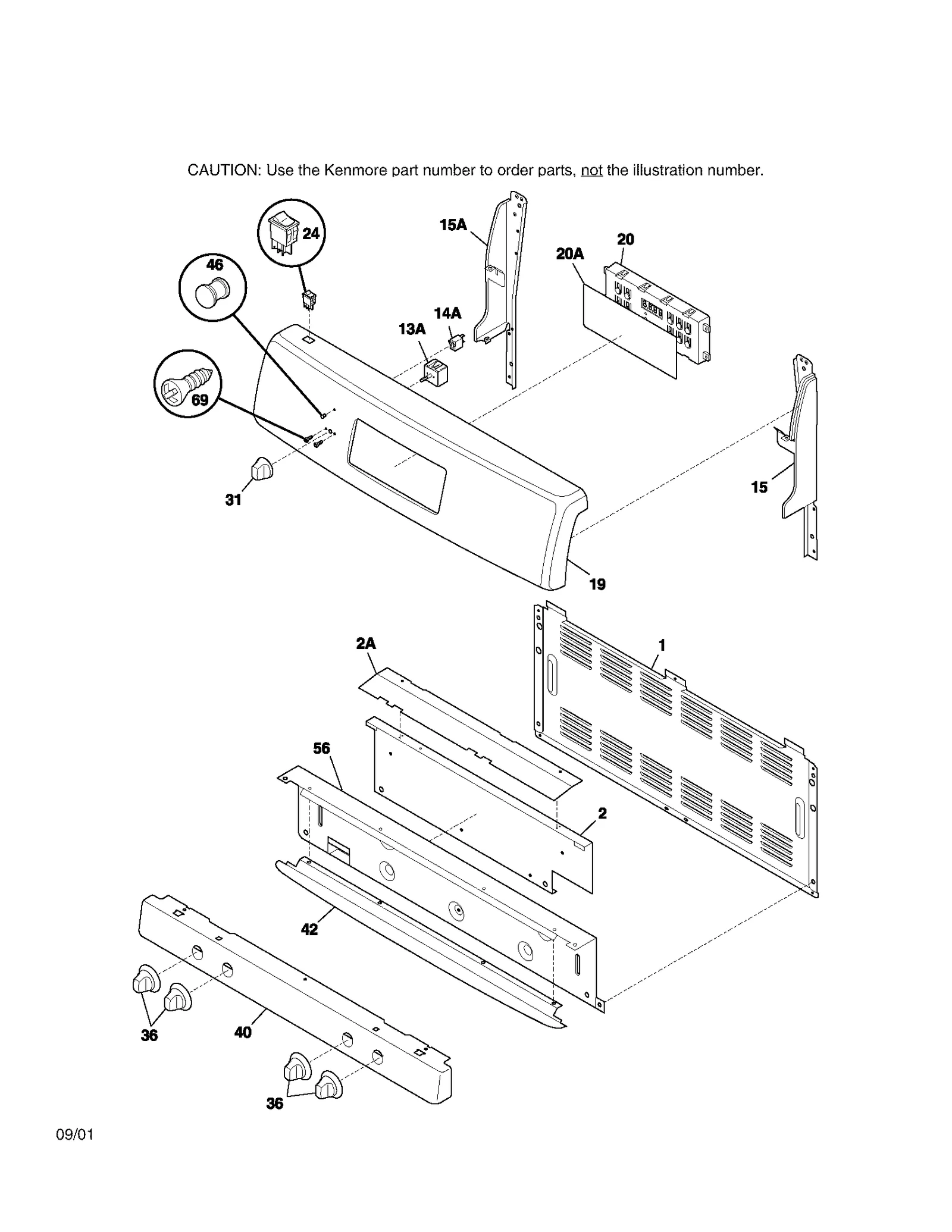

BACKGUARD

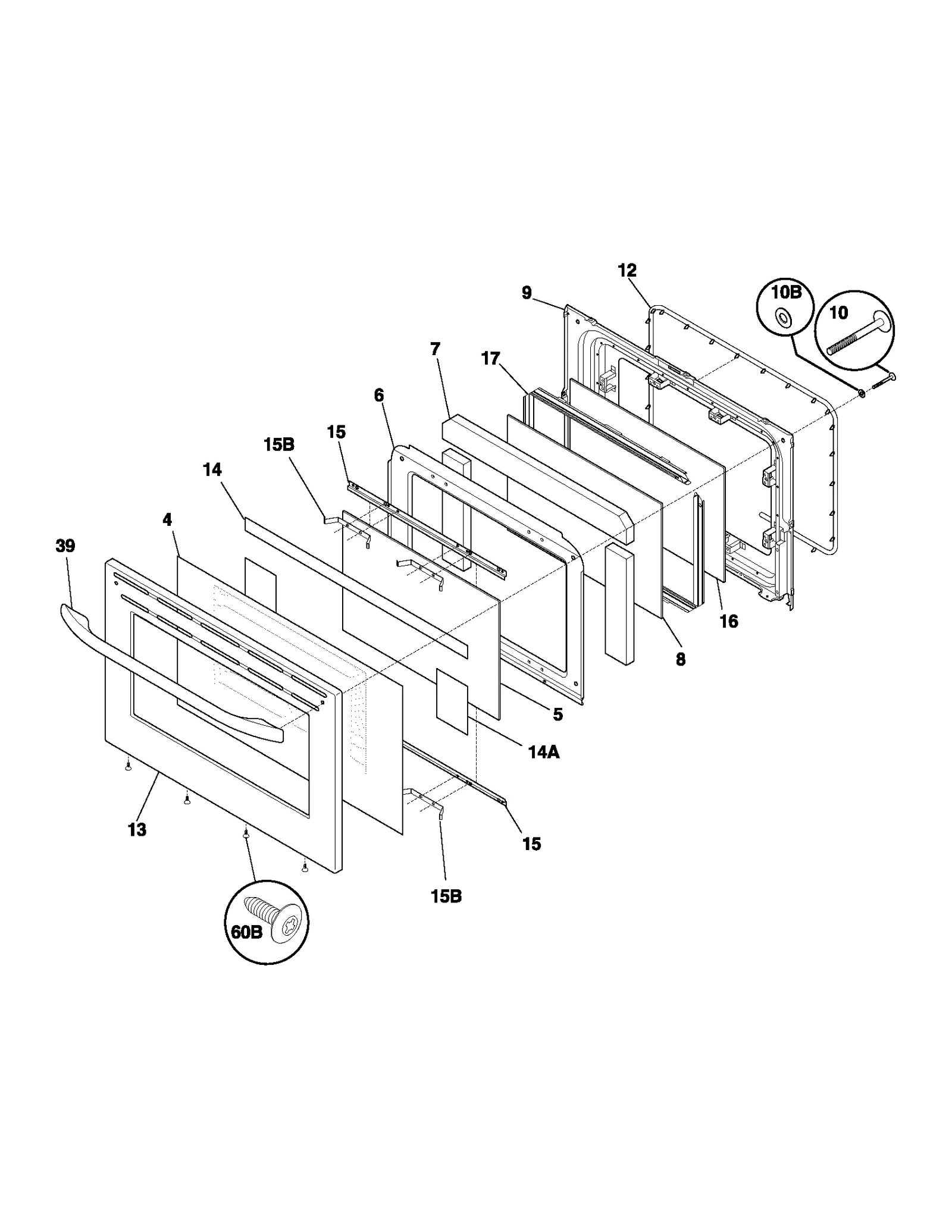

DOOR

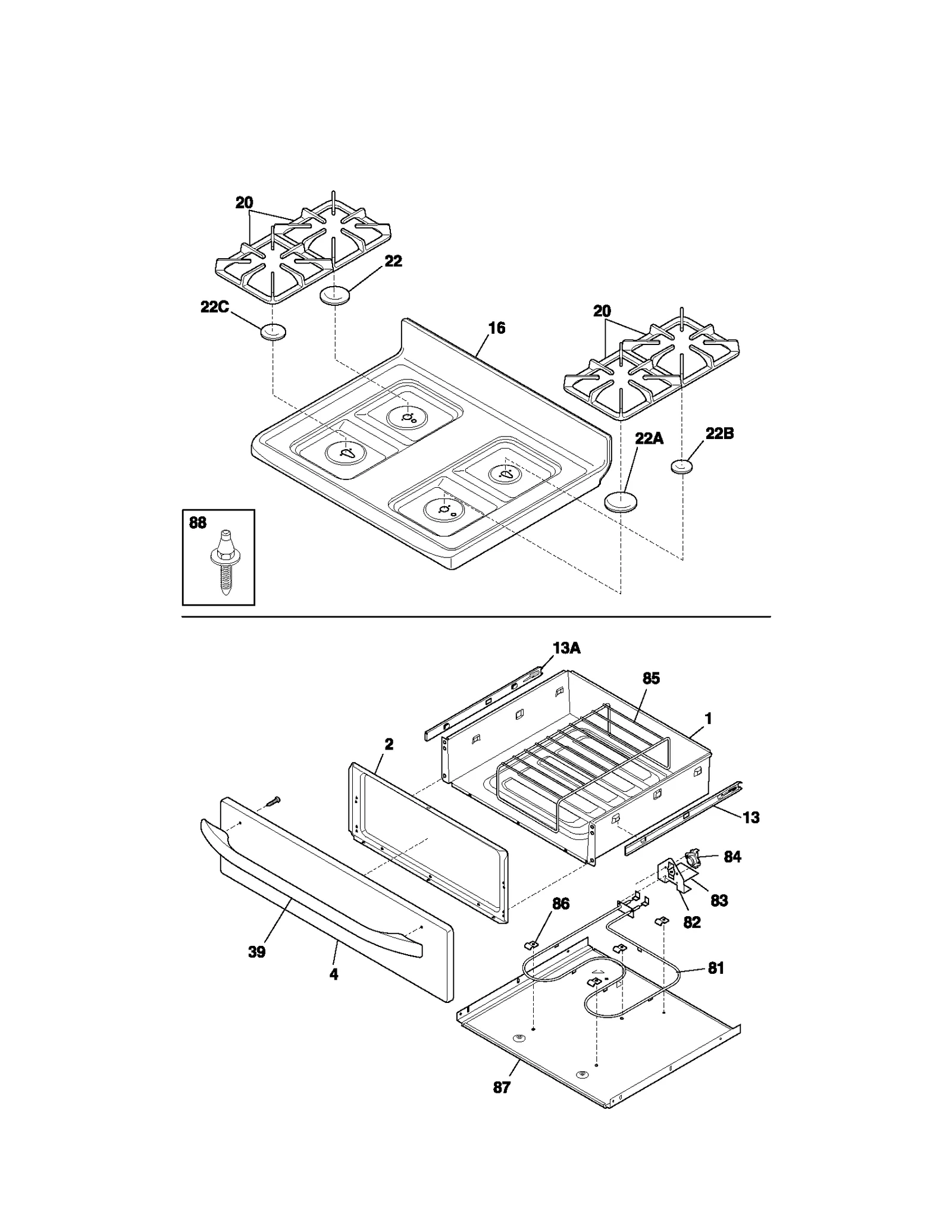

TOP/DRAWER
Common parts from model Electrolux 790.75993101 Gas Range (Kenmore 79075993101)
1
Warming Drawer WCI 316115901 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2
Liner WCI 316231403 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
4
Range Oven Door Outer Panel WCI 316240000 Contact Us For Availability
4
Drawer Panel WCI 316238901 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Oven Door Glass WCI 316237000 Contact Us For Availability
6
Wool Cover Shield WCI 316222707 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230605 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Screw WCI 316001015 Contact Us For Availability
11
Range Surface Burner Tube and Orifice WCI 316237702 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13
Oven Door Panel WCI 316209401 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Glass Bracket WCI 316237201 Contact Us For Availability
15B
Bracket Support WCI 316085501 Contact Us For Availability
16
Range Main Top (Black) WCI 316202326 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22A
Range Surface Burner Cap WCI 316213700 Contact Us For Availability
22B
Burner Cap WCI 316213400 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
36
Range Burner Control Knob WCI 316240702 Contact Us For Availability
39
Oven Drive Hinge WCI 316235505 Contact Us For Availability
39
Door Handle WCI 316235500 Contact Us For Availability
40
Manifold Panel WCI 316204942 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
42
Extrusion Trim WCI 316236600 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
81
Range Warming Drawer Element WCI 316239200 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Kenmore Elite Spacer WCI 316248900 Contact Us For Availability
NI
Wiring Diagram WCI 316255208 Contact Us For Availability
NI
Range Owner's Manual WCI 316258017 Contact Us For Availability
NI
Instructions WCI 316259304 Contact Us For Availability
NI
Parts List WCI 5995358685 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
× ![]()
