Model Electrolux 790.75929300 Gas Range (Kenmore 79075929300) – Common Parts & Diagrams
BACKGUARD
DOOR
All Parts

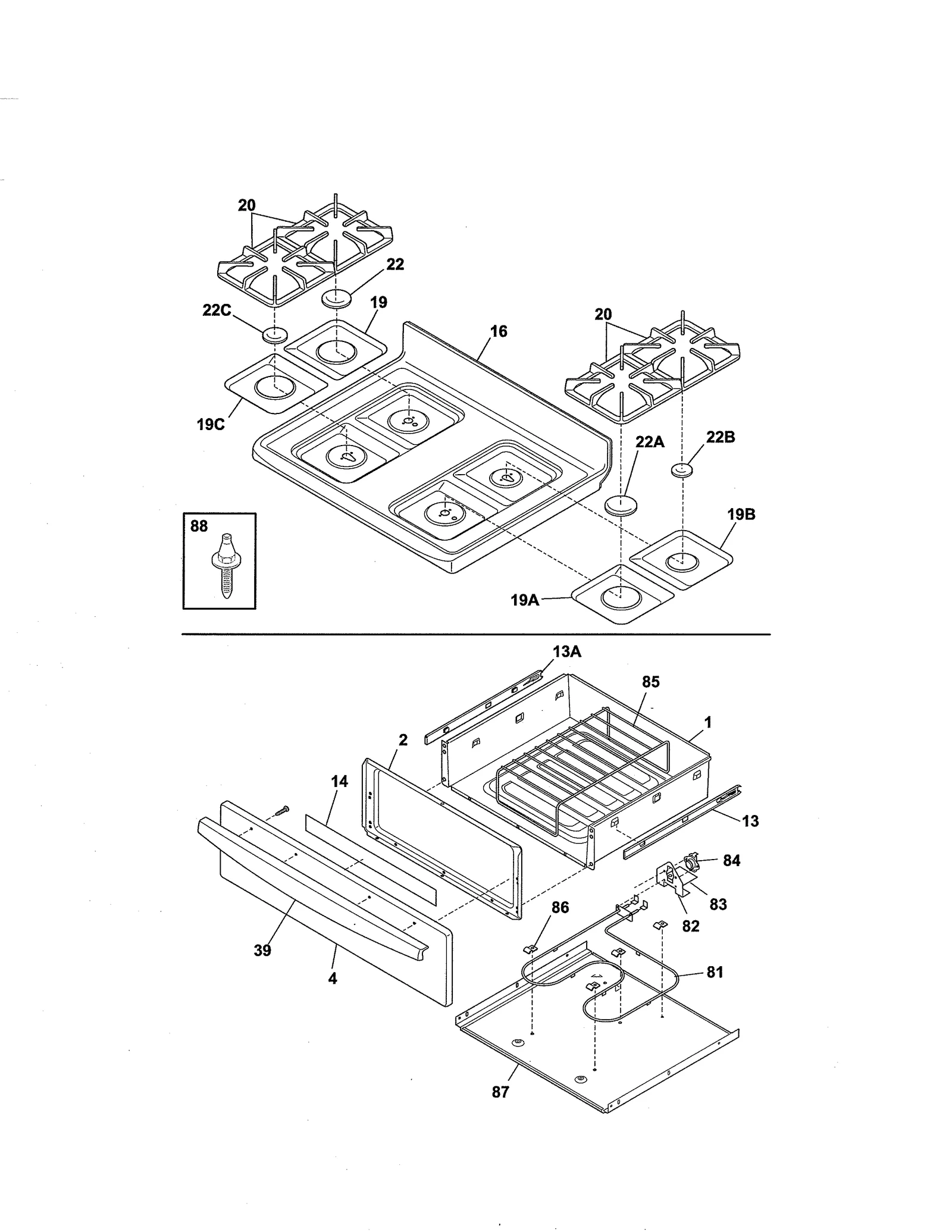

TOP/DRAWER

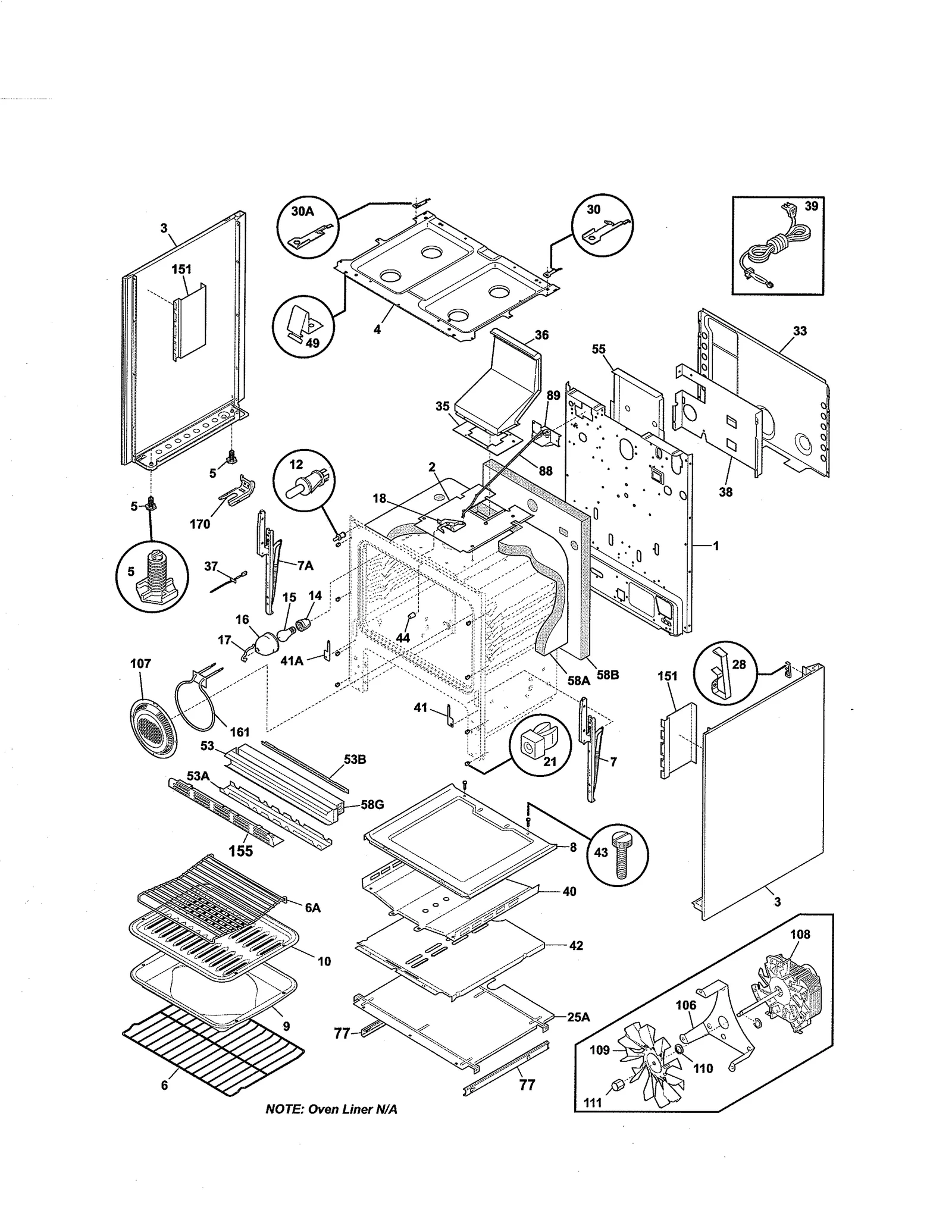

BODY

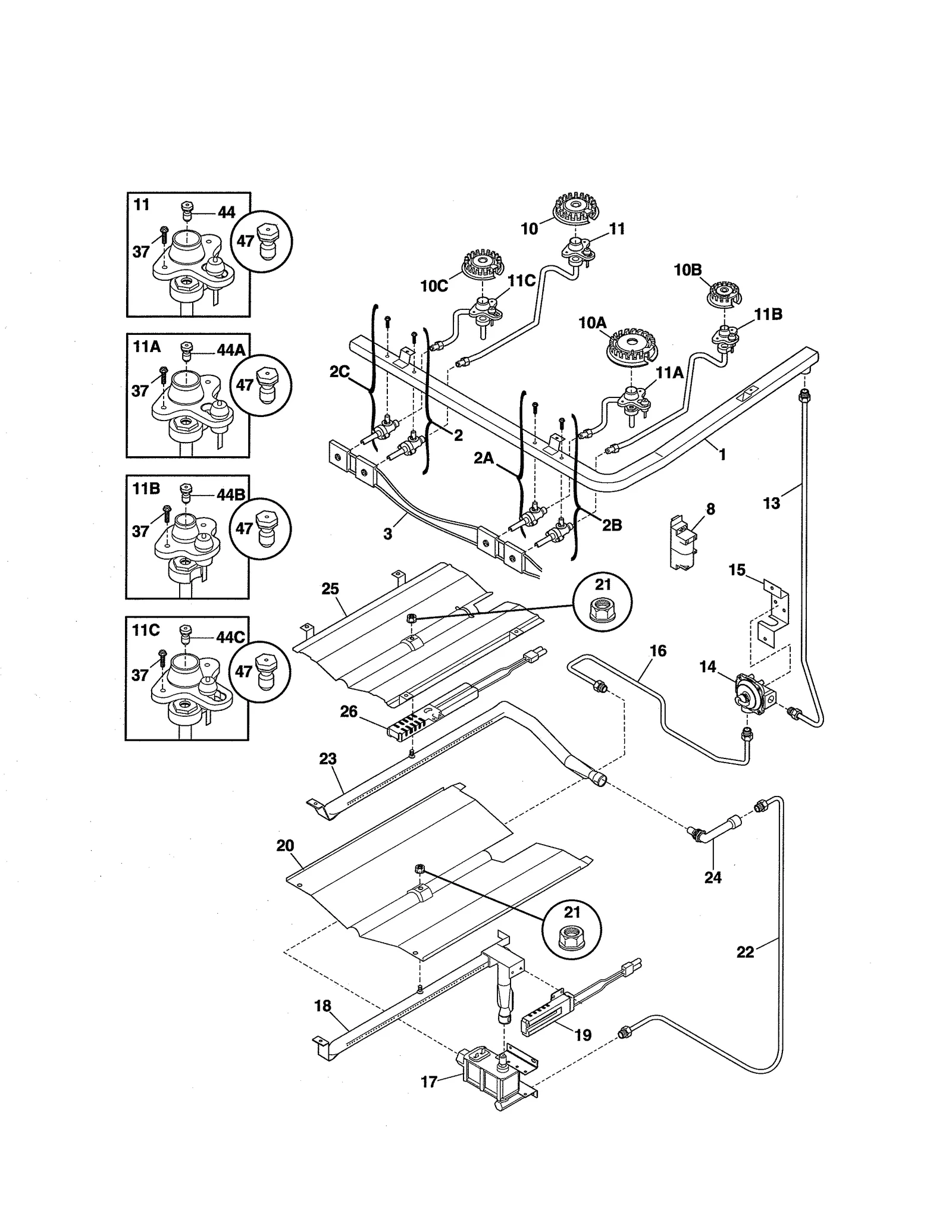

BURNER
Common parts from model Electrolux 790.75929300 Gas Range (Kenmore 79075929300)
1
Pipe WCI 316204000 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3B
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
4B
Range Oven Door Outer Panel and Foil Tape (Bl WCI 5303935216 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
7A
Range Oven Door Hinge, Left WCI 316216501 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10B
Range Sealed Burner Assembly WCI 316206400 Contact Us For Availability
11
Range Surface Burner Tube and Orifice WCI 316237702 Contact Us For Availability
11A
Igniter and Orifice Holder WCI 316237802 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
19
Range Drip Pan (Gray) WCI 316202522 Contact Us For Availability
19A
Range Drip Pan, 14,000-BTU (Gray) WCI 316202523 Contact Us For Availability
19AA
Range Drip Pan, 14,000-BTU (Brown) WCI 316202519 Contact Us For Availability
19AB
Range Drip Pan, 14,000-BTU (Black) WCI 316202513 Contact Us For Availability
19B
Range Drip Pan, 5,000-BTU (Gray) WCI 316202520 Contact Us For Availability
19BA
Range Drip Pan, 5,000-BTU (Brown) WCI 316202516 Contact Us For Availability
19BB
Range Drip Pan, 5,000-BTU (Black) WCI 316202501 Contact Us For Availability
19C
Range Drip Pan, 9,500-BTU (Gray) WCI 316202521 Contact Us For Availability
19CA
Range Drip Pan, 9,500-BTU (Brown) WCI 316202517 Contact Us For Availability
19CB
Range Drip Pan, 9,500-BTU (Black) WCI 316202505 Contact Us For Availability
19D
Range Drip Pan WCI 316202518 Contact Us For Availability
19E
Range Drip Pan WCI 316202509 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 316207603 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20A
Range Surface Burner Grate WCI 316213803 Contact Us For Availability
20AB
Range Oven Control Overlay WCI 316243317 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Gray) WCI 316213604 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22AB
Range Surface Burner Cap WCI 316213700 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206603 Contact Us For Availability
22BB
Range Surface Burner Cap WCI 316206600 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Gray) WCI 316213504 Contact Us For Availability
22CA
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
22D
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
22E
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
24A
Spacer Broil WCI 316113400 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Warming Drawer Knob WCI 316208103 Contact Us For Availability
31A
Range Warming Drawer Knob (Bisque) WCI 316208105 Contact Us For Availability
31B
Range Warming Drawer Knob WCI 316208104 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316218402 Contact Us For Availability
36B
Range Surface Burner Knob WCI 316218401 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
53A
Shield WCI 08067992 Contact Us For Availability
53B
Air Bracket WCI 316211100 Contact Us For Availability
55
Shield-flue WCI 316107800 Contact Us For Availability
58A
Insulation WCI 316047705 Contact Us For Availability
58B
Insulation WCI 316218303 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
106
Bracket WCI 316026600 Contact Us For Availability
108
Range Convection Fan Assembly WCI 316234601 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI05
Range Screw WCI 316021108 Contact Us For Availability
NI08
Range Spark Module Wire Harness WCI 316253700 Contact Us For Availability
NI12
Bisq Paint WCI 5304414035 Contact Us For Availability
NI14
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
