Model Electrolux 790.75912201 Gas Range (Kenmore 79075912201) – Common Parts & Diagrams

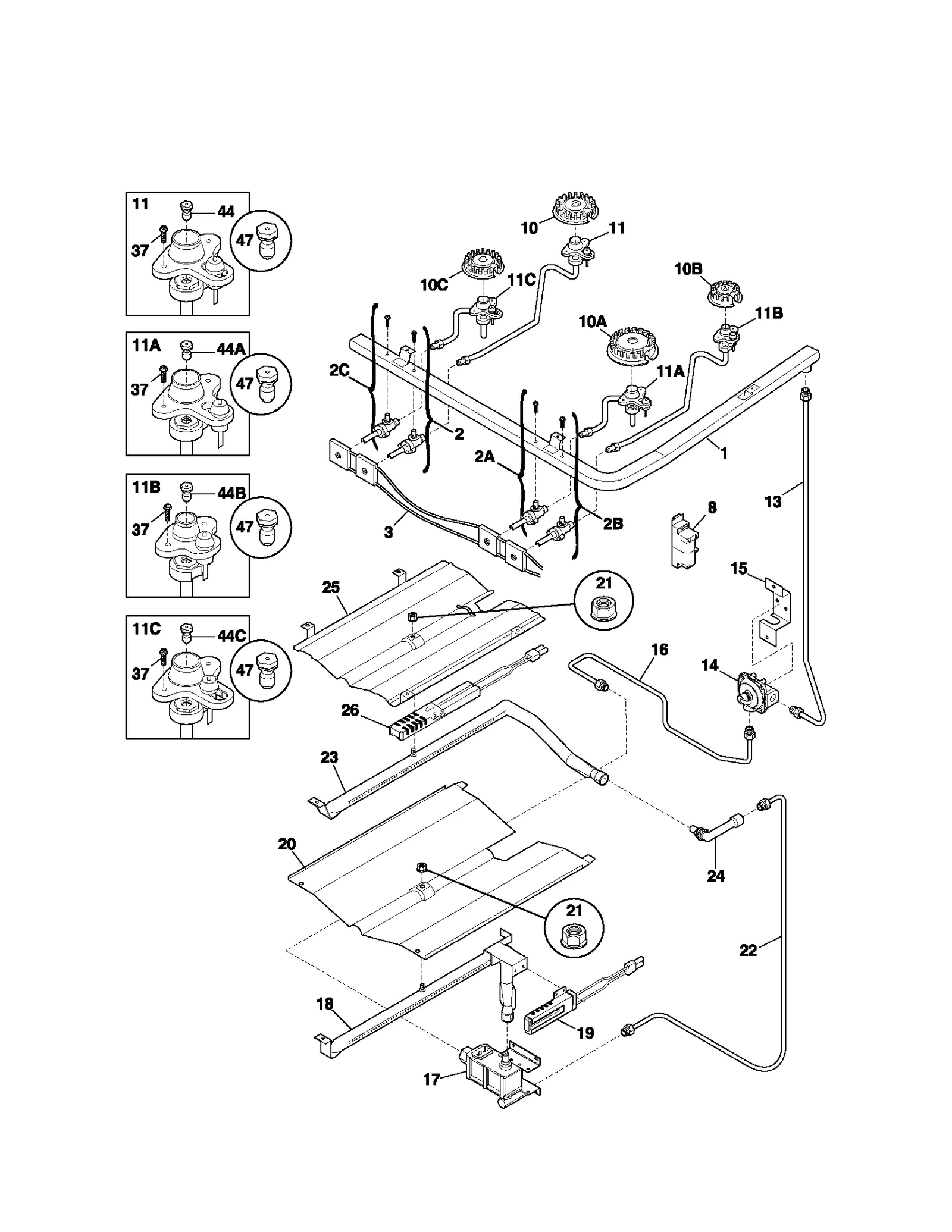

BURNER

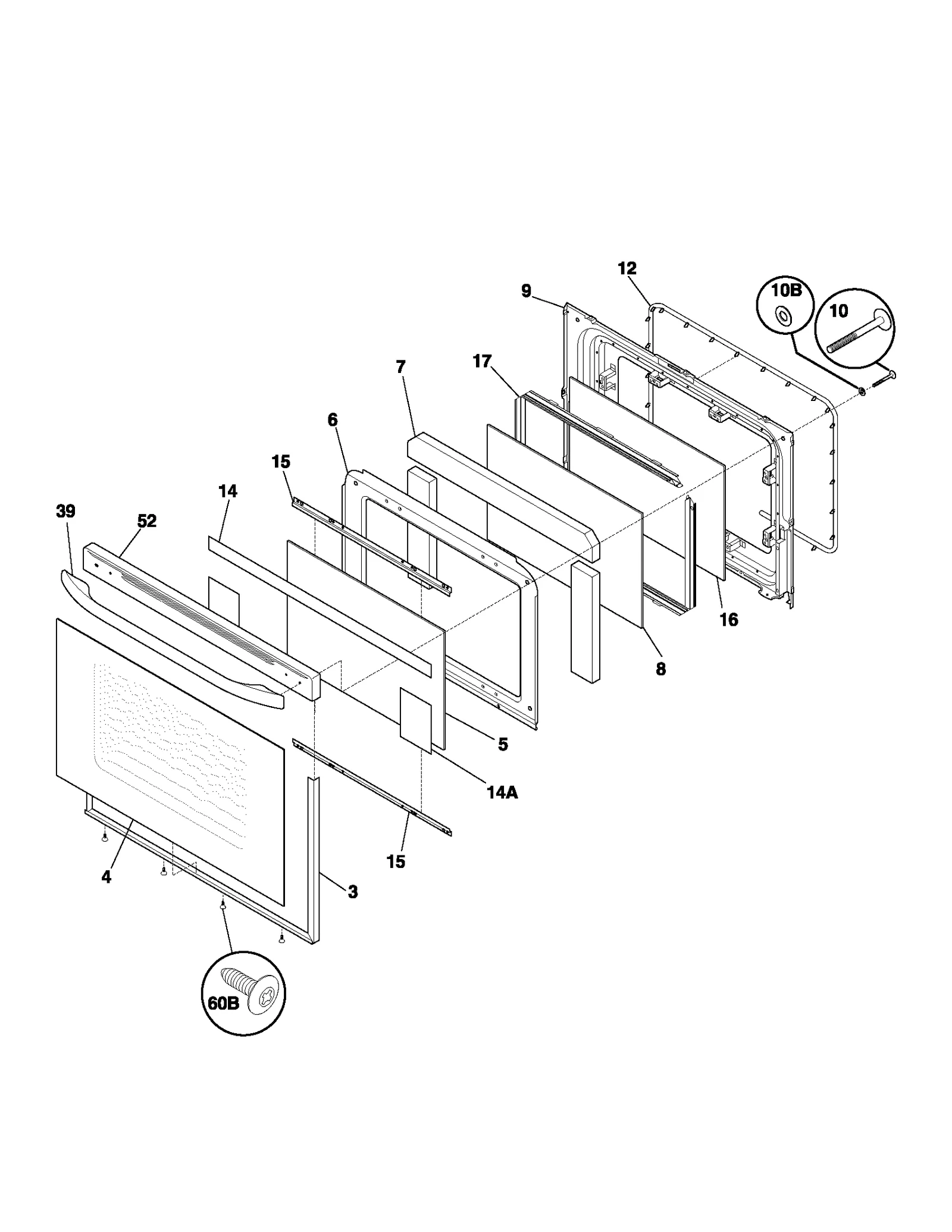

DOOR
BACKGUARD
TOP/DRAWER
BODY
Common parts from model Electrolux 790.75912201 Gas Range (Kenmore 79075912201)
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11
Range Surface Burner Tube and Orifice WCI 316237702 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
20
Range Oven Control Board and Clock WCI 316207603 Contact Us For Availability
20
Range Surface Burner Grate WCI 316213803 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316243314 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap (Gray) WCI 316213601 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
22A
Range Surface Burner Cap WCI 316213700 Contact Us For Availability
22A
Range Surface Burner Cap, 14,000-BTU (Gray) WCI 316213701 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206600 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206601 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316213501 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
25A
Warmer Shield WCI 316092300 Contact Us For Availability
28
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
33
Rear Shield WCI 316232800 Contact Us For Availability
36
Range Surface Burner Knob WCI 316240700 Contact Us For Availability
36
Range Burner Control Knob WCI 316240702 Contact Us For Availability
36
Fluebox-up E WCI 316133002 Contact Us For Availability
38
Shield WCI 316051700 Contact Us For Availability
40
Shield WCI 3200836 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
49
Spring Clip WCI 316234200 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
53A
Shield WCI 08067992 Contact Us For Availability
53B
Air Bracket WCI 316211100 Contact Us For Availability
55
Shield-flue WCI 316107800 Contact Us For Availability
58A
Insulation WCI 316047705 Contact Us For Availability
58B
Insulation WCI 316218303 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
106
Bracket WCI 316026600 Contact Us For Availability
108
Range Convection Fan Assembly WCI 316234601 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Spark Module Wire Harness WCI 316253700 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Screw WCI 316021131 Contact Us For Availability
NI
Screw WCI 316021133 Contact Us For Availability
NI
Range Wire Harness WCI 316253417 Contact Us For Availability
NI
Screw-heat S WCI 5303288570 Contact Us For Availability
× ![]()
