Model Kenmore 790.75862302 RANGE – Common Parts & Diagrams

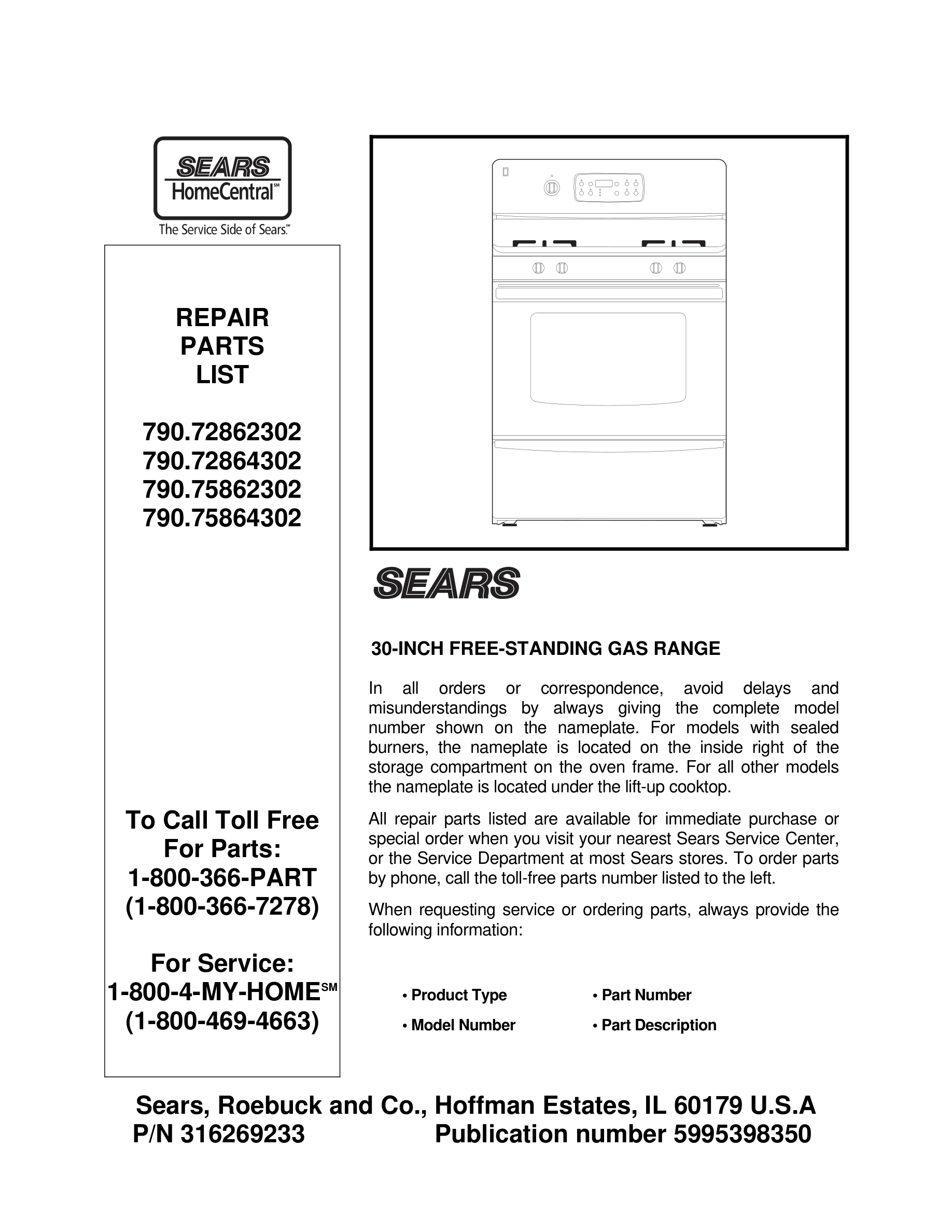

01 - COVER

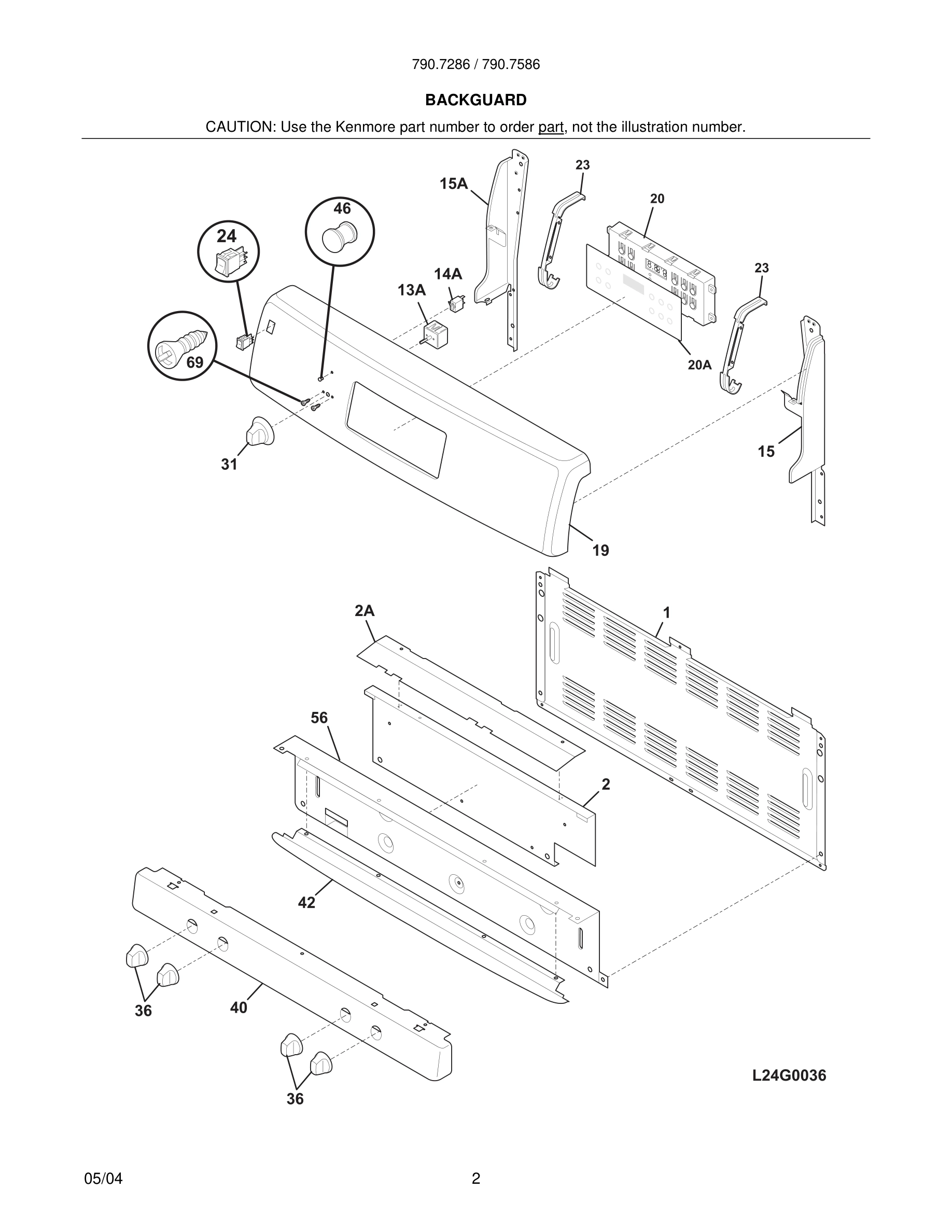

03 - BACKGUARD

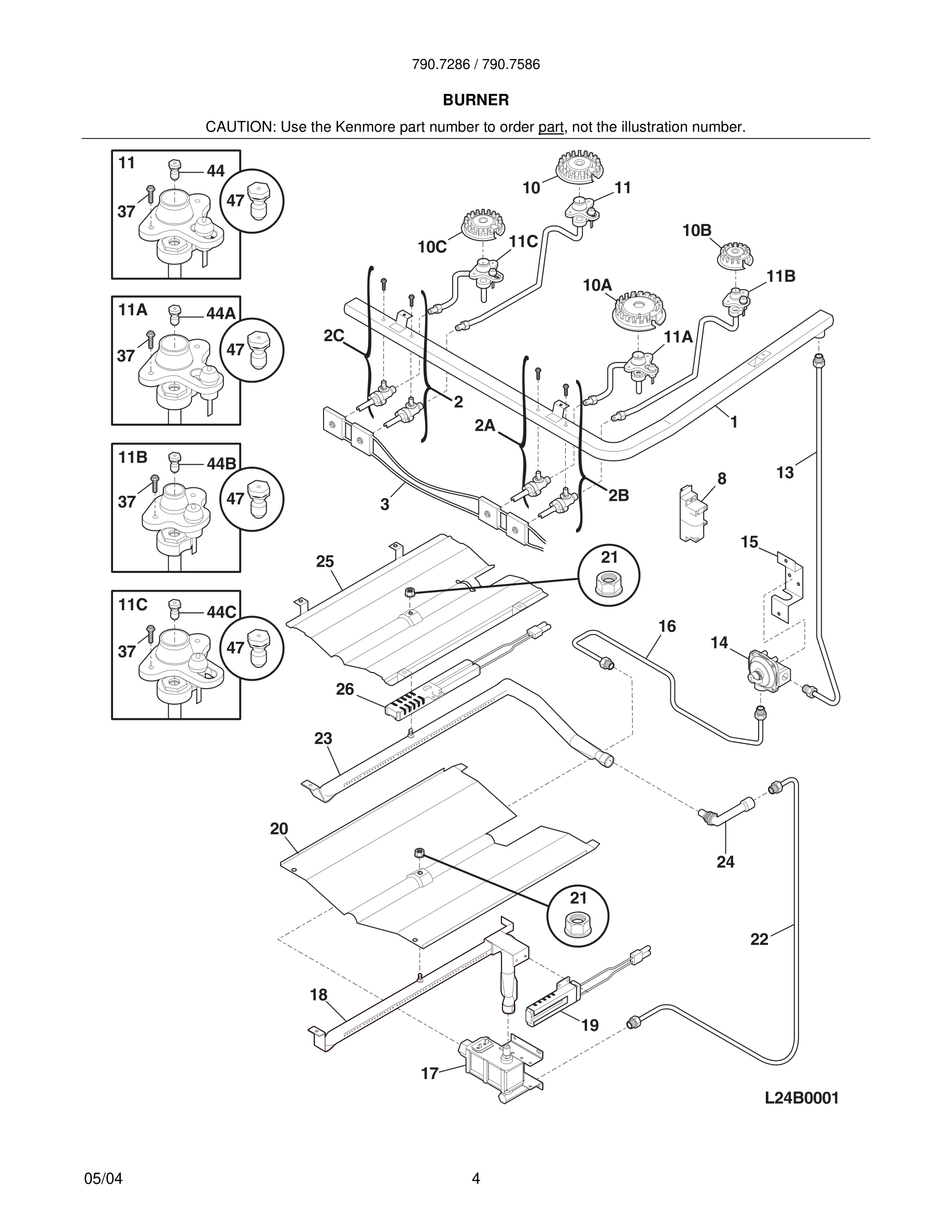

05 - BURNER

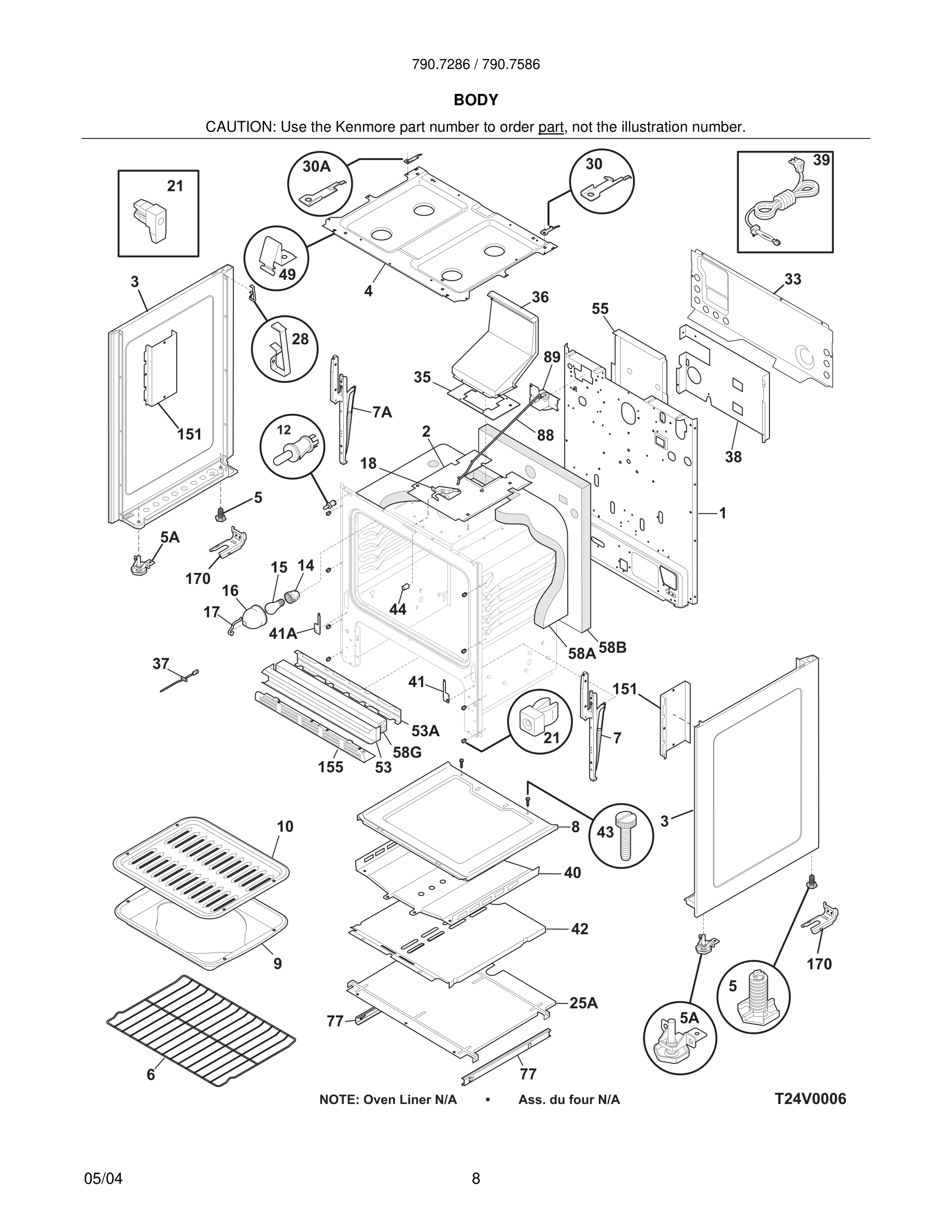

07 - BODY
09 - BODY

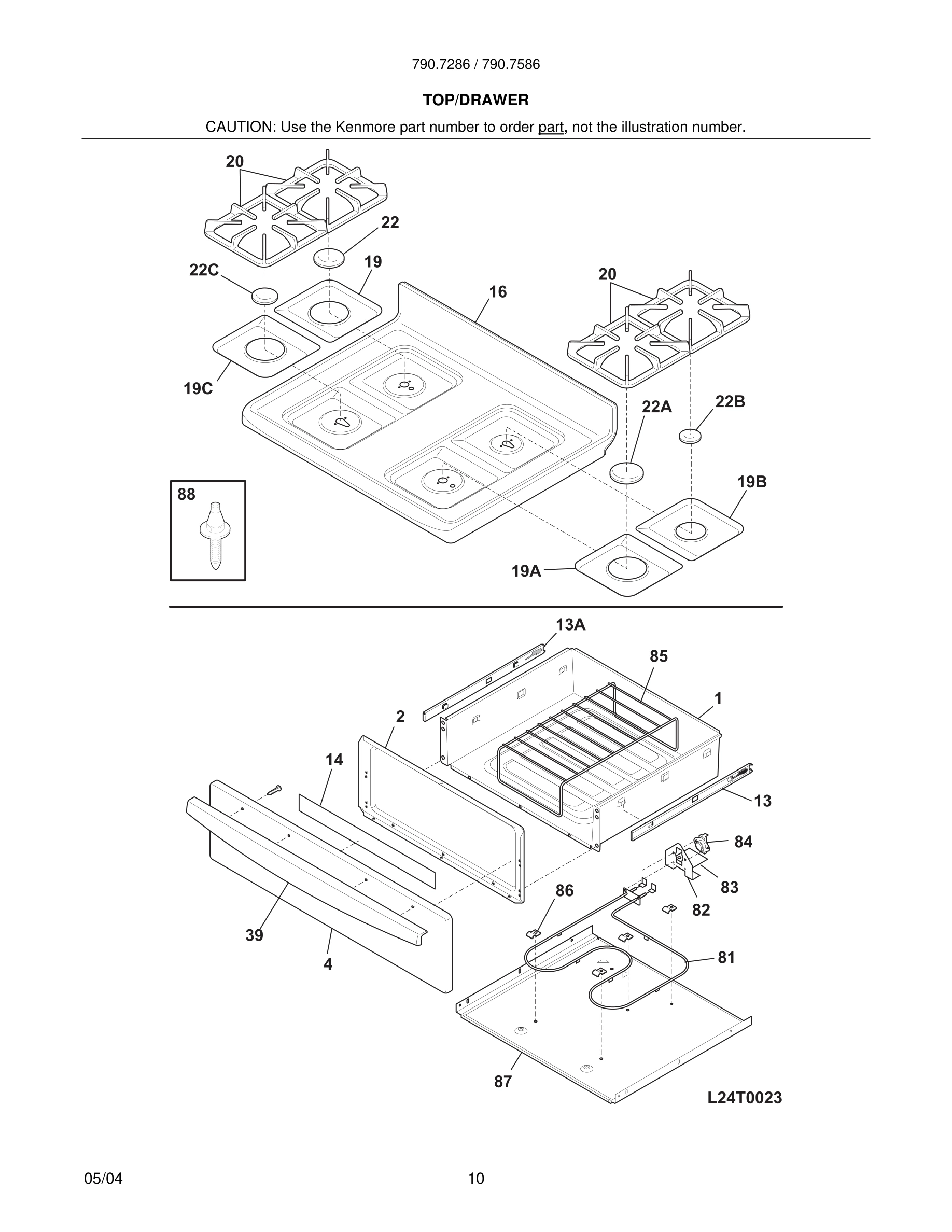

11 - TOP/DRAWER

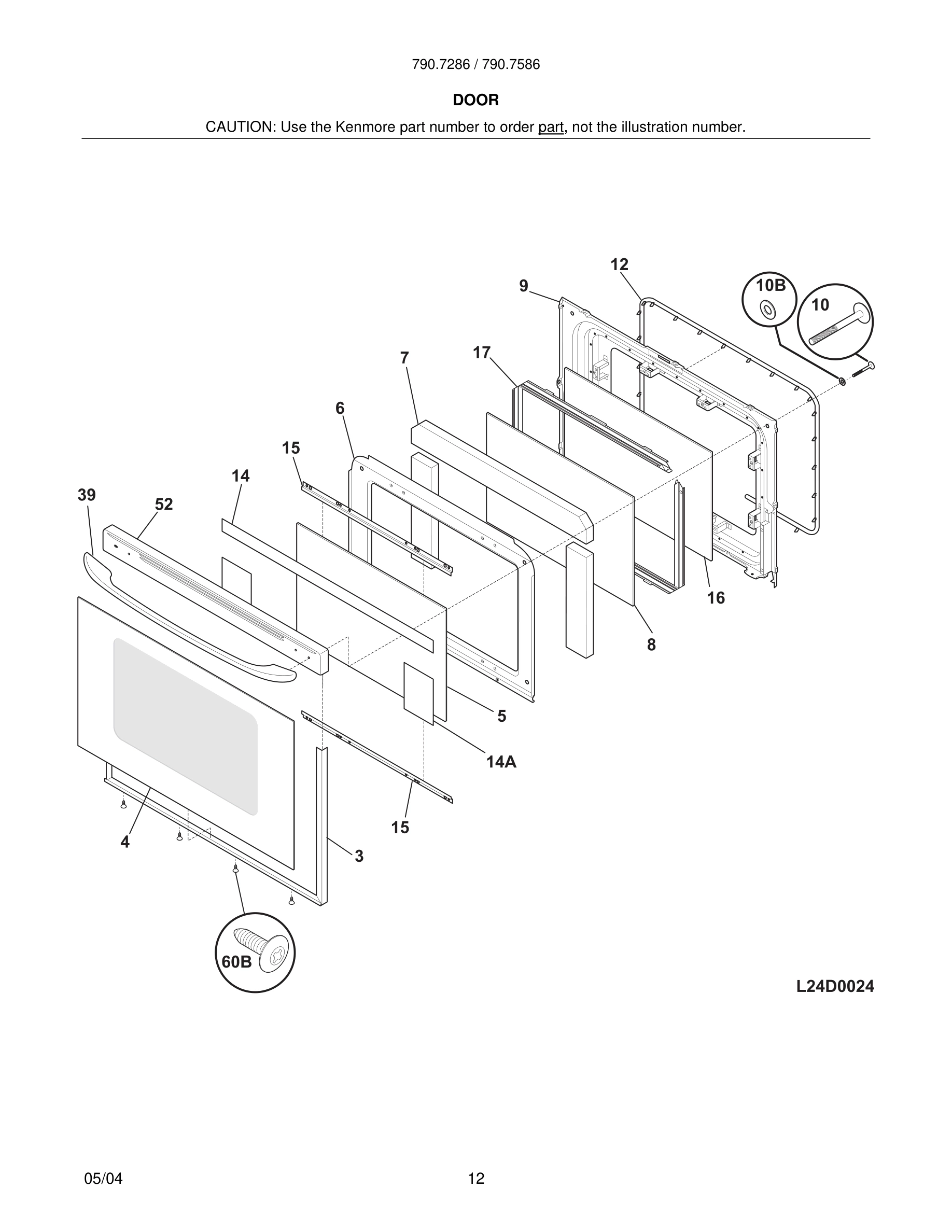

13 - DOOR

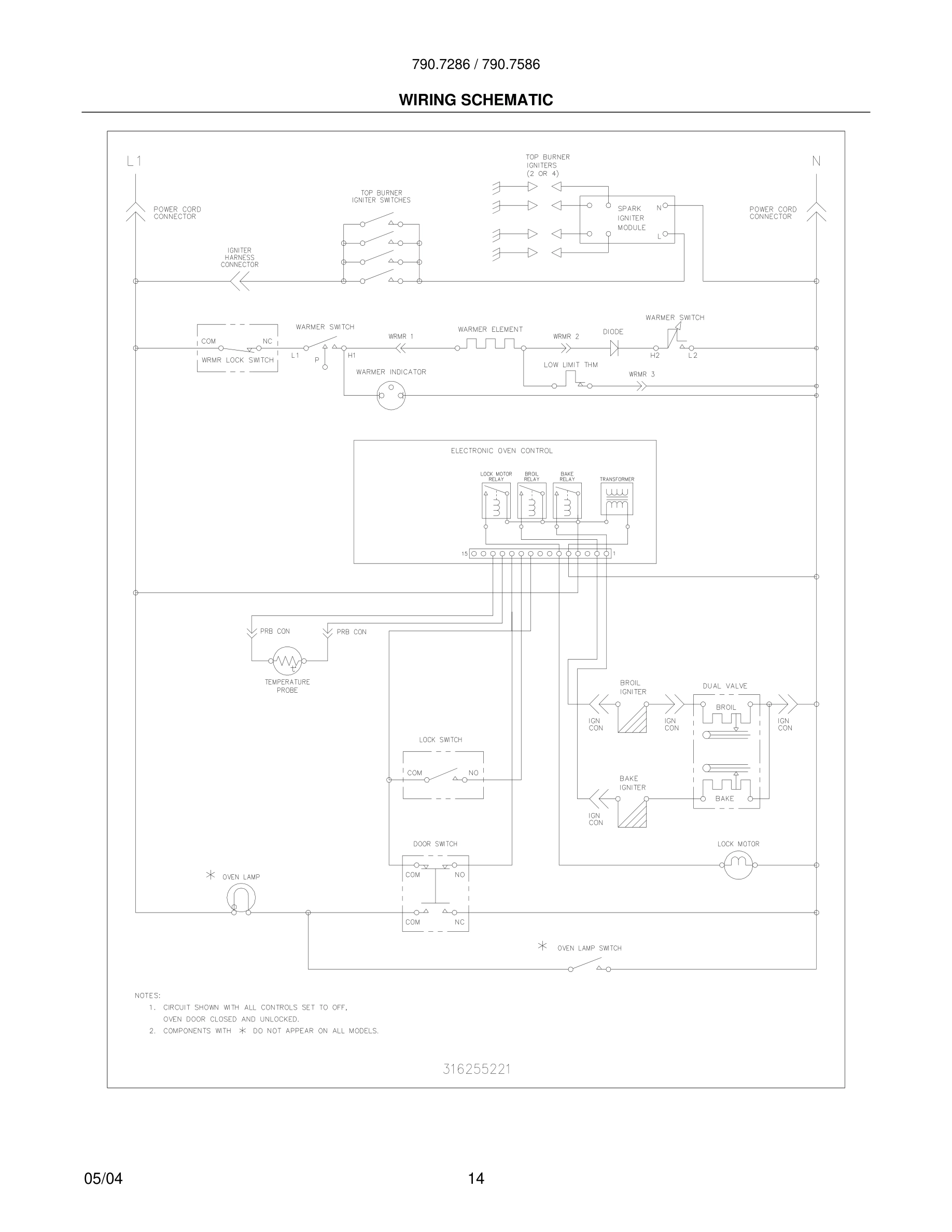

14 - WIRING SCHEMATIC

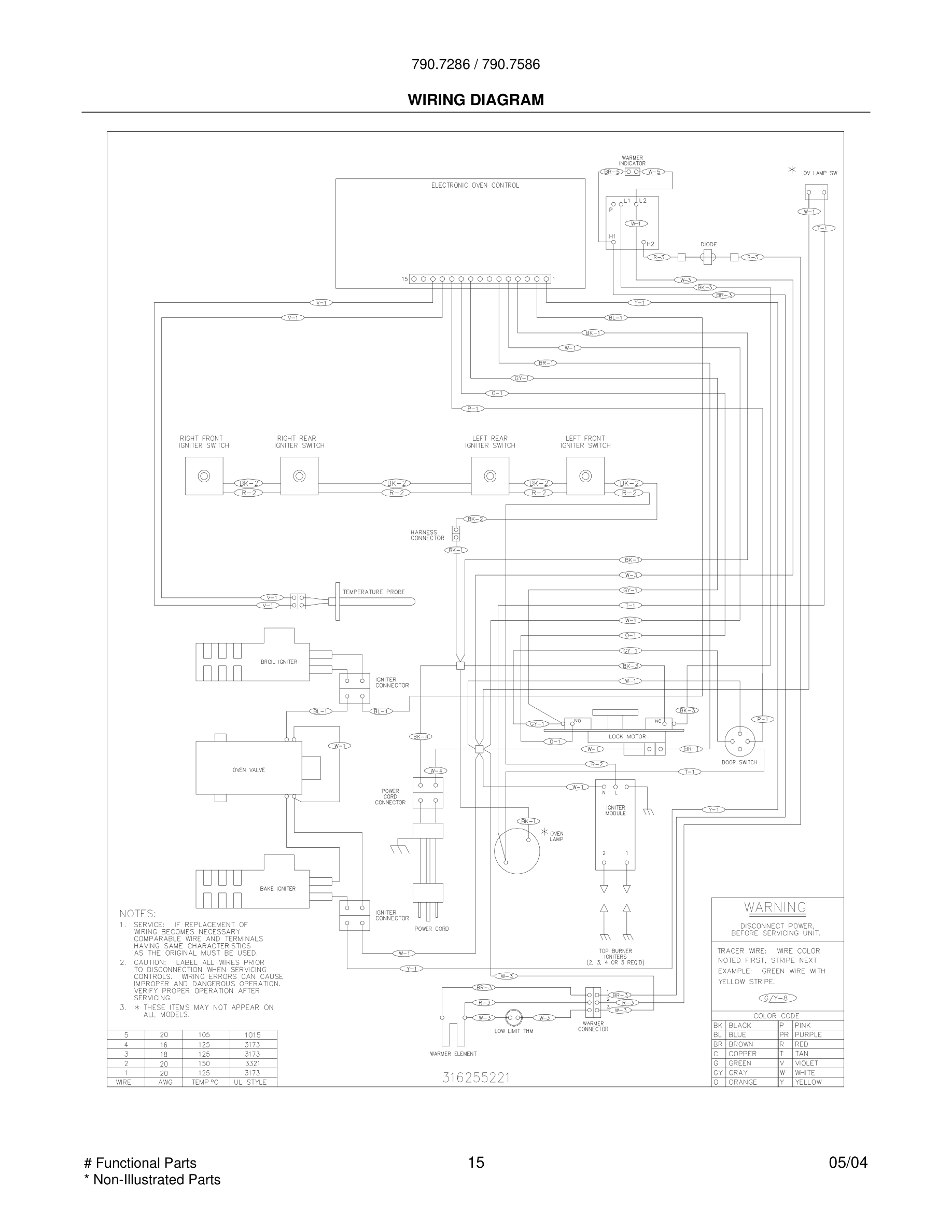

15 - WIRING DIAGRAM
Common parts from model Kenmore 790.75862302 RANGE
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
*
Screw, wafer hd sq dr, 10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*#
Wiring Harness, ignitor module WCI 316253700 Contact Us For Availability
2A#
Valve, 14K burner, w/mtg screw WCI 5303935236 Contact Us For Availability
2B#
Valve, 5K burner, w/mtg screw WCI 5303935235 Contact Us For Availability
2C#
Valve, 9.5K burner, w/mtg screw WCI 5303935234 Contact Us For Availability
3
Trim kit-door, 3 sided, white, w/tape and foi WCI 5303935192 Contact Us For Availability
7
Insulation, oven door WCI 316236700 Contact Us For Availability
7A
Hinge, oven door, LH WCI 316216501 Contact Us For Availability
9
Pan, broiler WCI 316081900 Contact Us For Availability
10
Insert, broiler pan WCI 316082000 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
10A#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
11#
Ignitor/orifice assy., top burner, rear, 12K, WCI 316237702 Contact Us For Availability
12#
Switch, oven light/door WCI 316209901 Contact Us For Availability
13
Glide, drawer, RH inner WCI 316231700 Contact Us For Availability
13#
Tube, 3/8, aluminum, rgltr to manf, with fitt WCI 316207000 Contact Us For Availability
13A
Glide, drawer, LH inner WCI 316231701 Contact Us For Availability
14A
Foil, 4" x 5.5", aluminum, clear, (2) WCI 316102202 Contact Us For Availability
15
Support, backguard, white, RH WCI 316220214 Contact Us For Availability
15
Bracket, glass support, (2) WCI 316237201 Contact Us For Availability
16
Glass, oven door, inner WCI 316117501 Contact Us For Availability
17
Spacer, door glass, (2) WCI 316117701 Contact Us For Availability
18#
Burner, oven WCI 316269000 Contact Us For Availability
18#
Latch, oven door WCI 316213900 Contact Us For Availability
19
Pan, burner, gray, 12K WCI 316202522 Contact Us For Availability
19A
Pan, burner, gray, 14K WCI 316202523 Contact Us For Availability
19B
Pan, burner, gray, 5K WCI 316202520 Contact Us For Availability
19C
Pan, burner, gray, 9.5K WCI 316202521 Contact Us For Availability
22
Cap, 12K burner, gray WCI 316213604 Contact Us For Availability
22#
Tube, valve to mixer WCI 316065002 Contact Us For Availability
22A
Cap, 14K burner, grey WCI 316219903 Contact Us For Availability
22B
Cap, 5K burner, gray WCI 316206603 Contact Us For Availability
22C
Cap, 9.5K burner, gray WCI 316213504 Contact Us For Availability
23#
Burner, broiler WCI 08067935 Contact Us For Availability
30
Bracket, hinge, RH, main top WCI 316217700 Contact Us For Availability
31
Knob, warmer, white WCI 316208103 Contact Us For Availability
41
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
42
Trim, extrusion, grey WCI 316270601 Contact Us For Availability
44
Spacer, oven door WCI 316246500 Contact Us For Availability
44A
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
52
Cap, door trim, white WCI 316201003 Contact Us For Availability
84
Thermo disc, warmer drawer WCI 316093501 Contact Us For Availability
× ![]()
