Model Electrolux 790.75852300 Gas Range (Kenmore 79075852300) – Common Parts & Diagrams
BURNER
DOOR

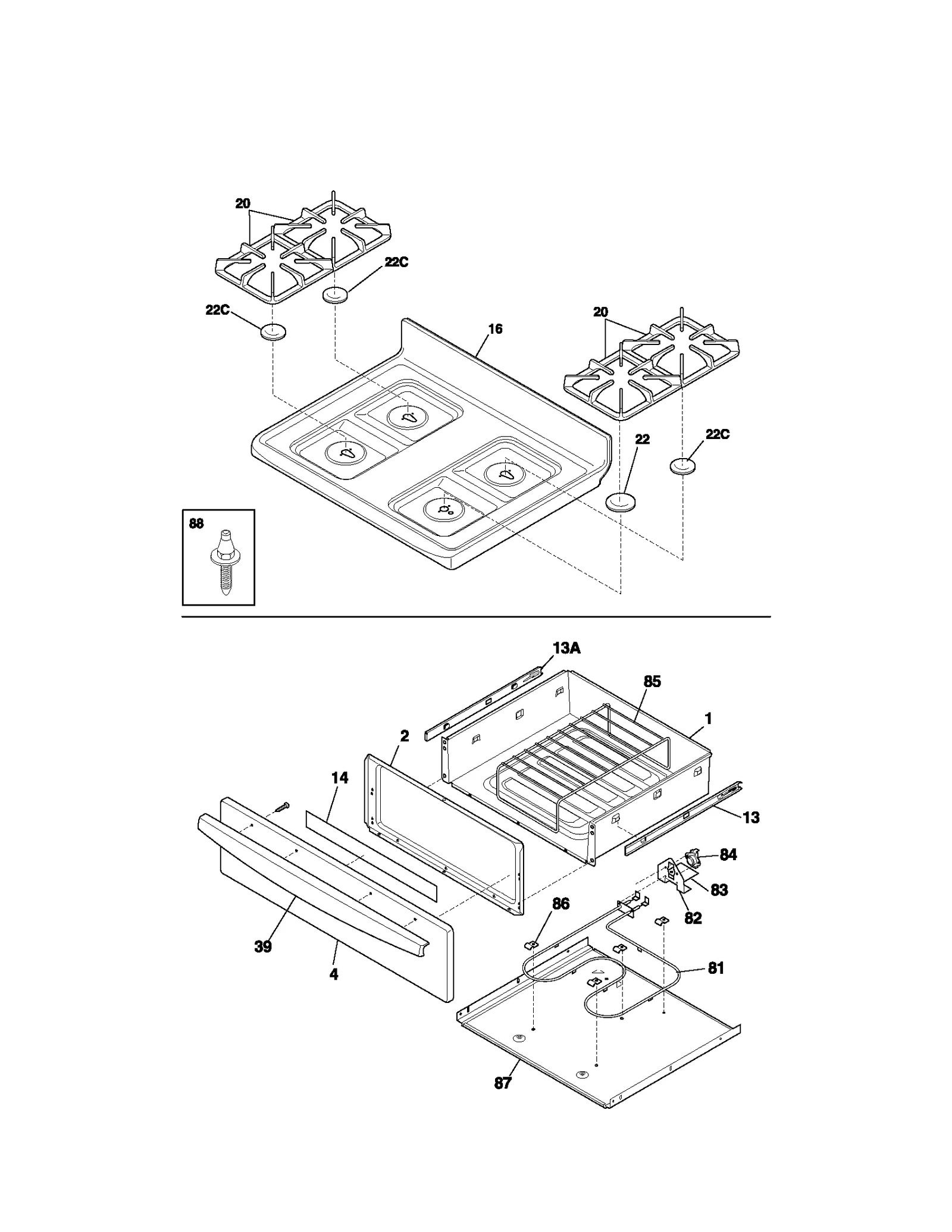

TOP/DRAWER

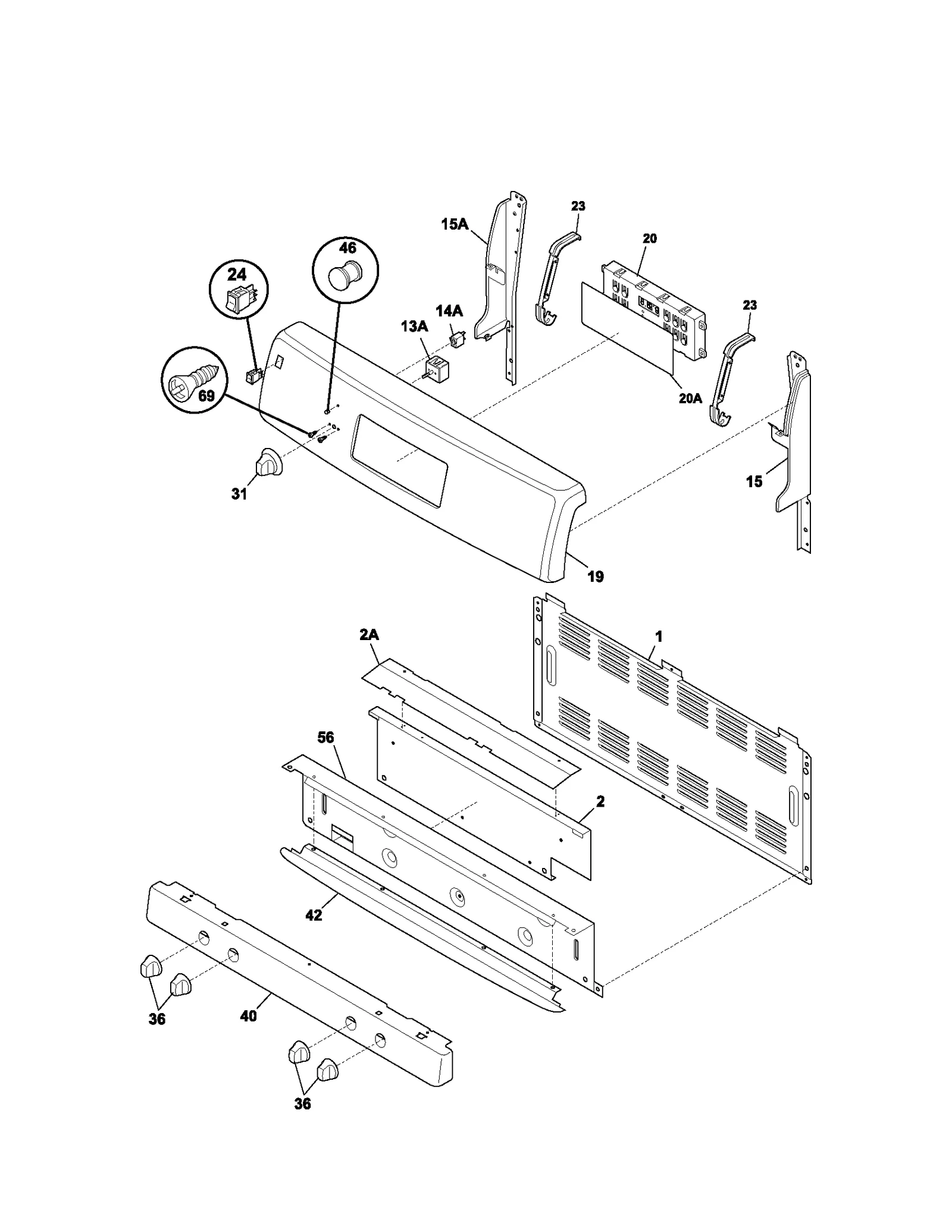

BACKGUARD

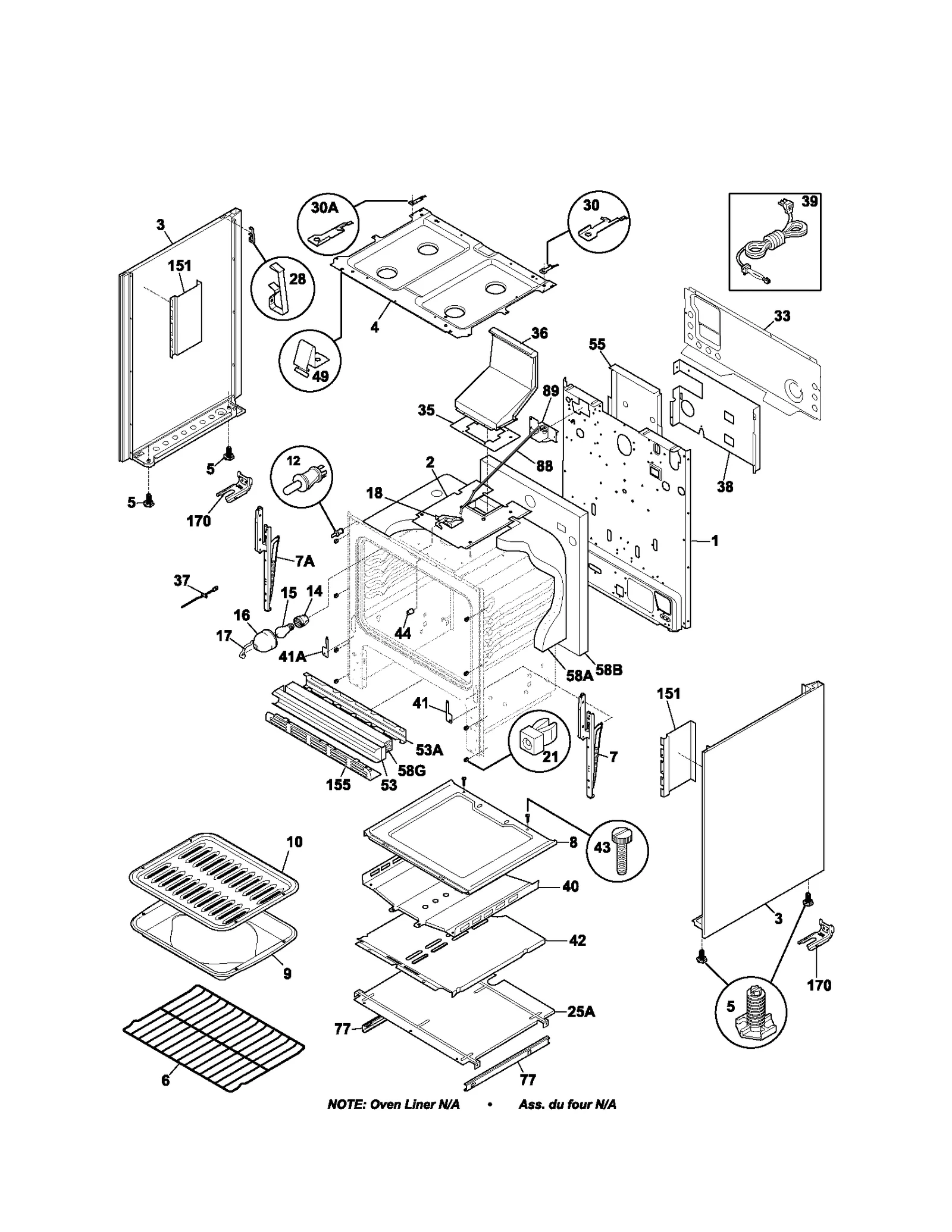

BODY
Common parts from model Electrolux 790.75852300 Gas Range (Kenmore 79075852300)
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Left Side Panel WCI 316216403 Contact Us For Availability
3
Body Panel WCI 316216406 Contact Us For Availability
3
Body Panel WCI 316216407 Contact Us For Availability
4
Burner Box WCI 316201402 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Ov Btm Pnl WCI 5303300701 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11
Range Surface Burner Igniter and Orifice Hold WCI 316237801 Contact Us For Availability
12
Range Oven Door Switch WCI 316209901 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
20
Range Surface Burner Grate WCI 316213803 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Gray) WCI 316213604 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Gray) WCI 316213504 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
25A
Warmer Shield WCI 316092300 Contact Us For Availability
28
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
30A
Range High Bracket WCI 316217701 Contact Us For Availability
31
Range Warming Drawer Knob WCI 316208104 Contact Us For Availability
31
Range Warming Drawer Knob WCI 316208103 Contact Us For Availability
31
Range Warming Drawer Knob (Bisque) WCI 316208105 Contact Us For Availability
33
Shield WCI 316121001 Contact Us For Availability
36
Range Surface Burner Knob WCI 316218401 Contact Us For Availability
36
Range Surface Burner Knob WCI 316218402 Contact Us For Availability
36
Fluebox-up E WCI 316133002 Contact Us For Availability
38
Shield WCI 316051700 Contact Us For Availability
40
Shield WCI 3200836 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
41A
Range Oven Door Hinge Cover, Left WCI 316233500 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
49
Spring Clip WCI 316234200 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
53A
Shield WCI 08067992 Contact Us For Availability
55
Shield-flue WCI 316107800 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316218303 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Spark Module Wire Harness WCI 316253700 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Screw WCI 316021131 Contact Us For Availability
NI
Screw WCI 316021133 Contact Us For Availability
NI
Wiring Harness WCI 316253414 Contact Us For Availability
NI
Screw-heat S WCI 5303288570 Contact Us For Availability
× ![]()
