Model Electrolux 790.75754103 Gas Range (Kenmore 79075754103) – Common Parts & Diagrams
BODY
TOP/DRAWER

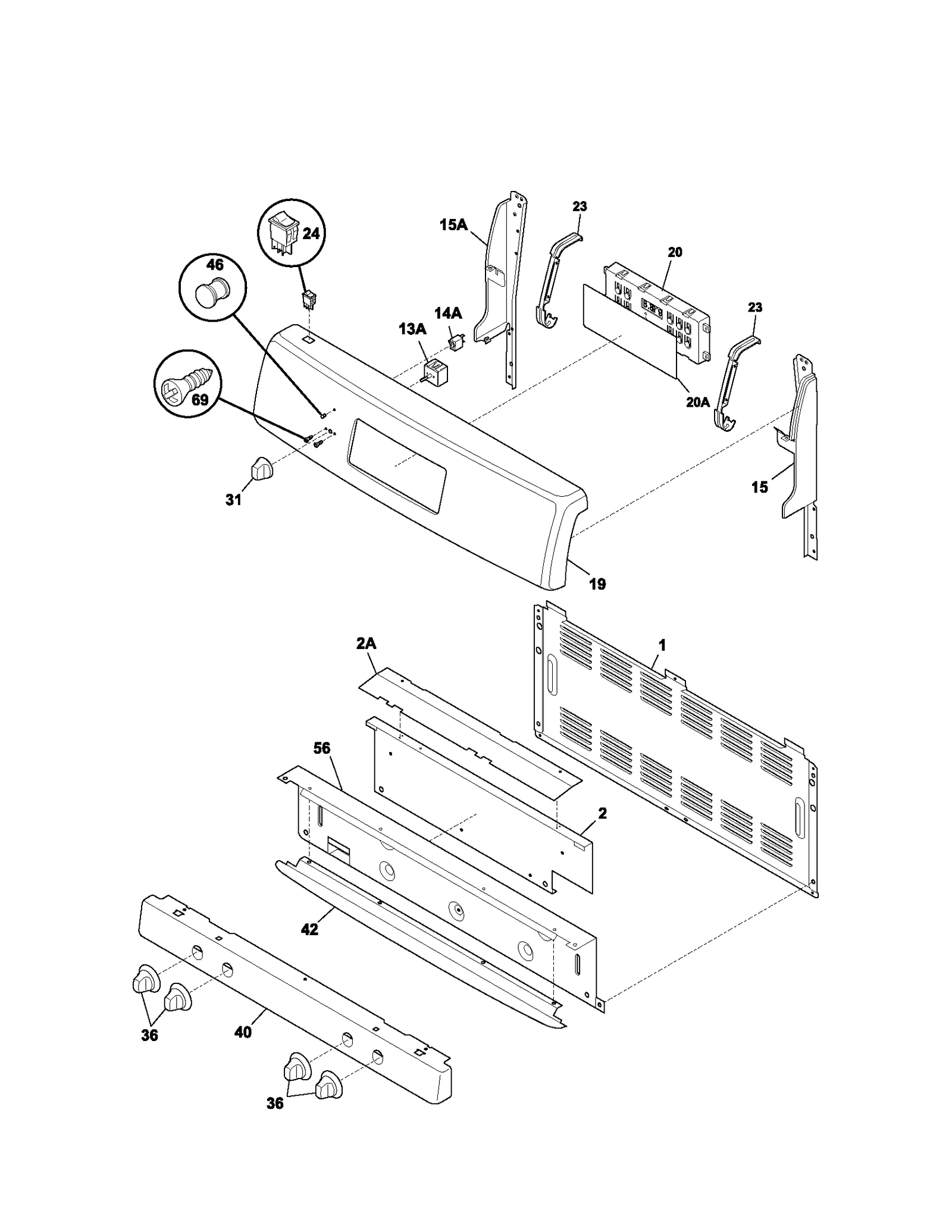

BACKGUARD

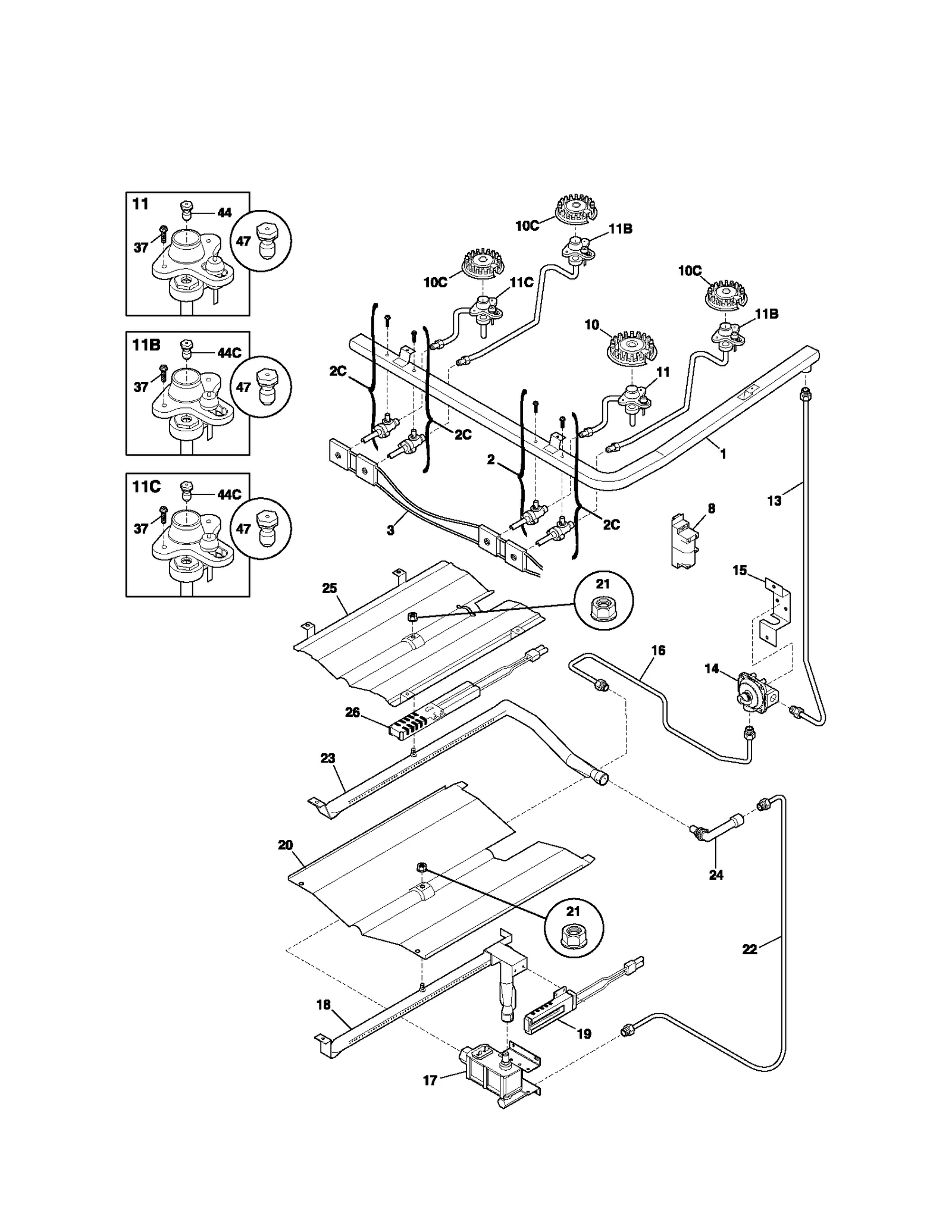

BURNER

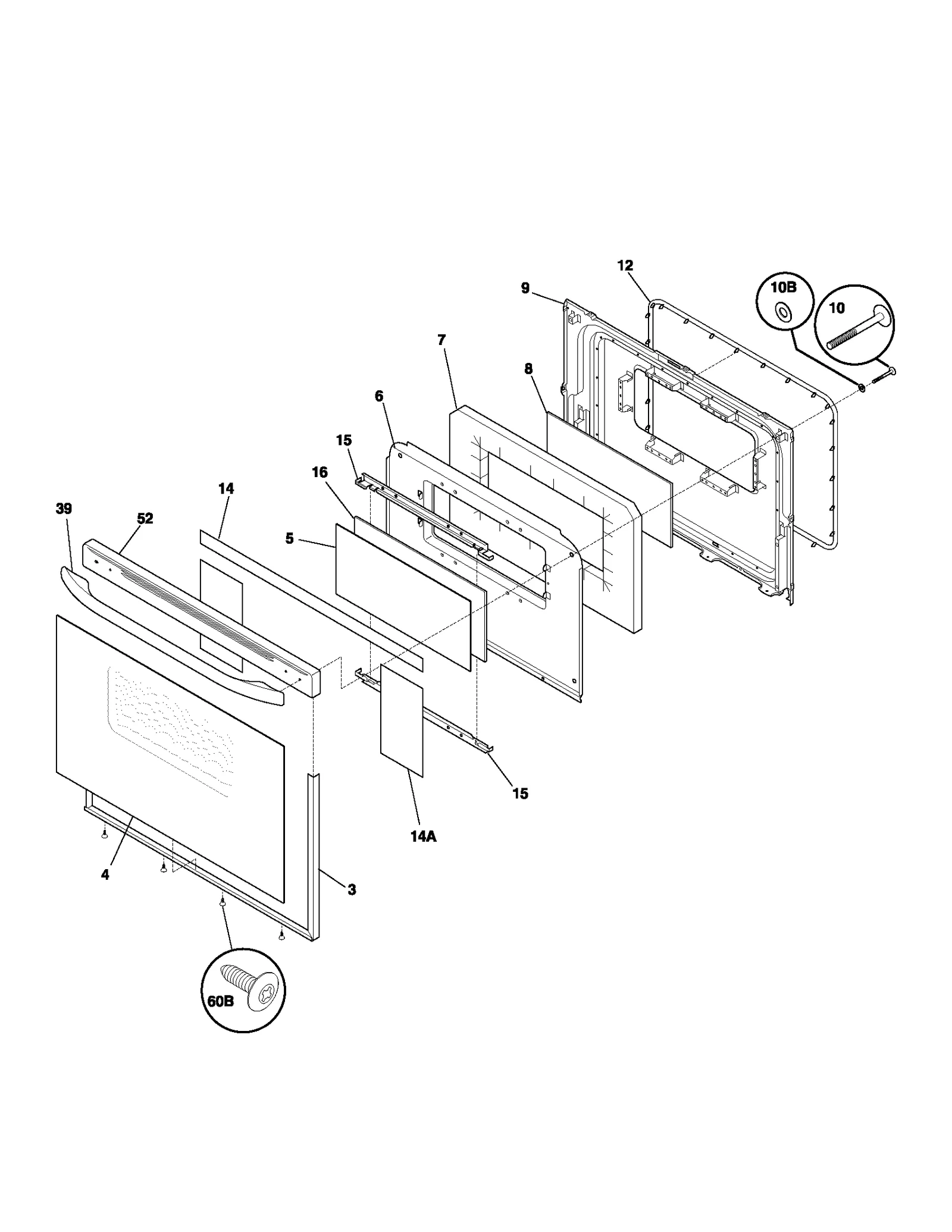

DOOR
Common parts from model Electrolux 790.75754103 Gas Range (Kenmore 79075754103)
1
Pipe WCI 316204000 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Range Oven Door Trim Kit (Bisque) WCI 5303935193 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Bi WCI 5303935205 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
6
Wool Cover Shield WCI 316222706 Contact Us For Availability
7
Insulation WCI 316236800 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230604 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11
Range Surface Burner Igniter and Orifice Hold WCI 316237801 Contact Us For Availability
12
Range Oven Door Switch WCI 316209901 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
20
Range Surface Burner Grate WCI 316213803 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap (Gray) WCI 316213601 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316213501 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
36
Range Surface Burner Knob WCI 316240700 Contact Us For Availability
36
Range Burner Control Knob WCI 316240702 Contact Us For Availability
39
Door Handle WCI 316235500 Contact Us For Availability
39
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
40
Manifold Panel WCI 316204935 Contact Us For Availability
40
Manifold Panel WCI 316204936 Contact Us For Availability
40
Manifold Panel WCI 316204937 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
42
Extrusion Trim WCI 316236600 Contact Us For Availability
42
Extrusion Trim WCI 316236601 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
52
Cap-door T WCI 316201003 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52
Cap-door T WCI 316201009 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Spark Module Wire Harness WCI 316253700 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Service Data Sheet WCI 316218504 Contact Us For Availability
NI
Wiring Diagram WCI 316255208 Contact Us For Availability
NI
Range Owner's Manual WCI 316258024 Contact Us For Availability
NI
Instruction Manual WCI 316259313 Contact Us For Availability
NI
Parts List WCI 5995382958 Contact Us For Availability
NI
Spacer Broil WCI 316113400 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 316209000 Contact Us For Availability
× ![]()
