Model Kenmore 790.75754102 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

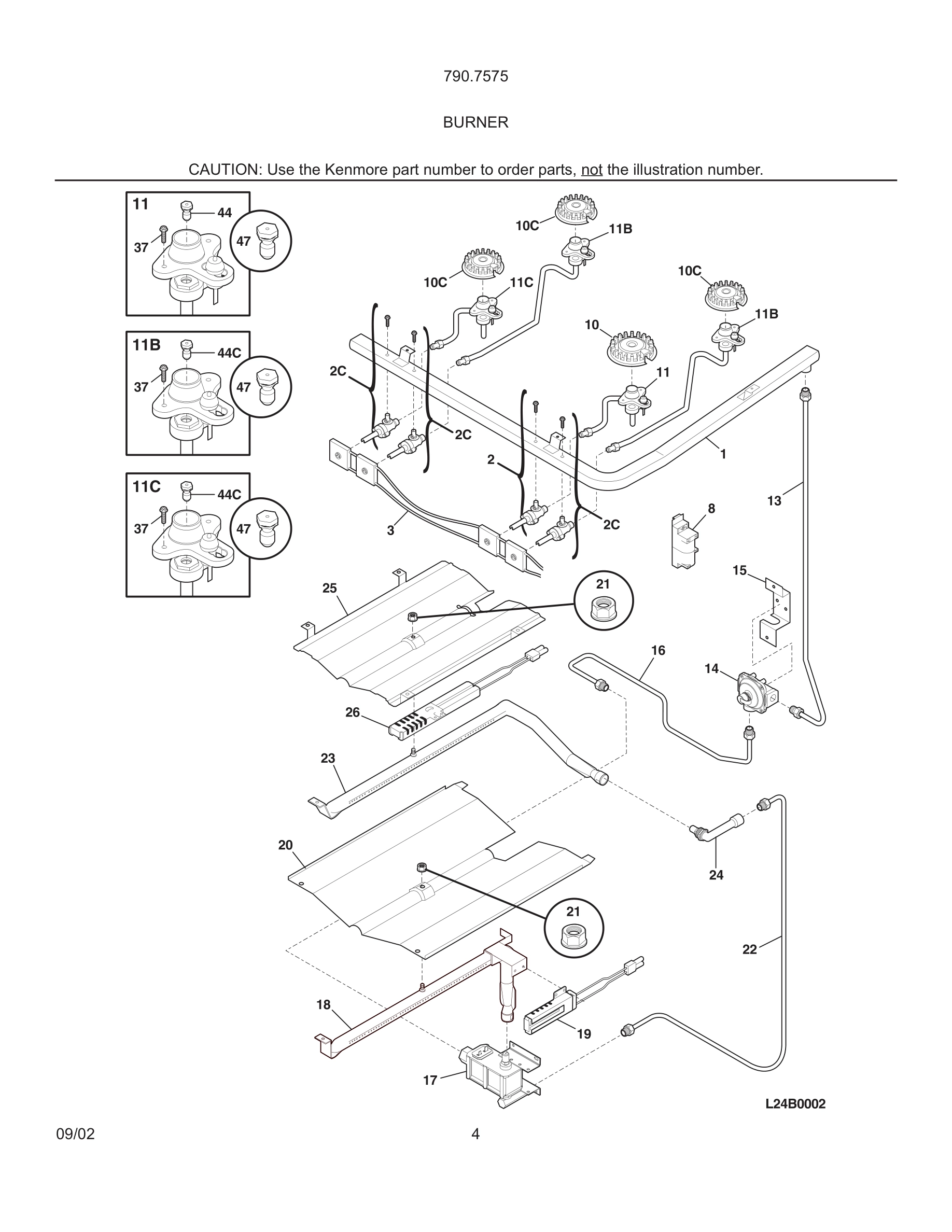

05 - BURNER

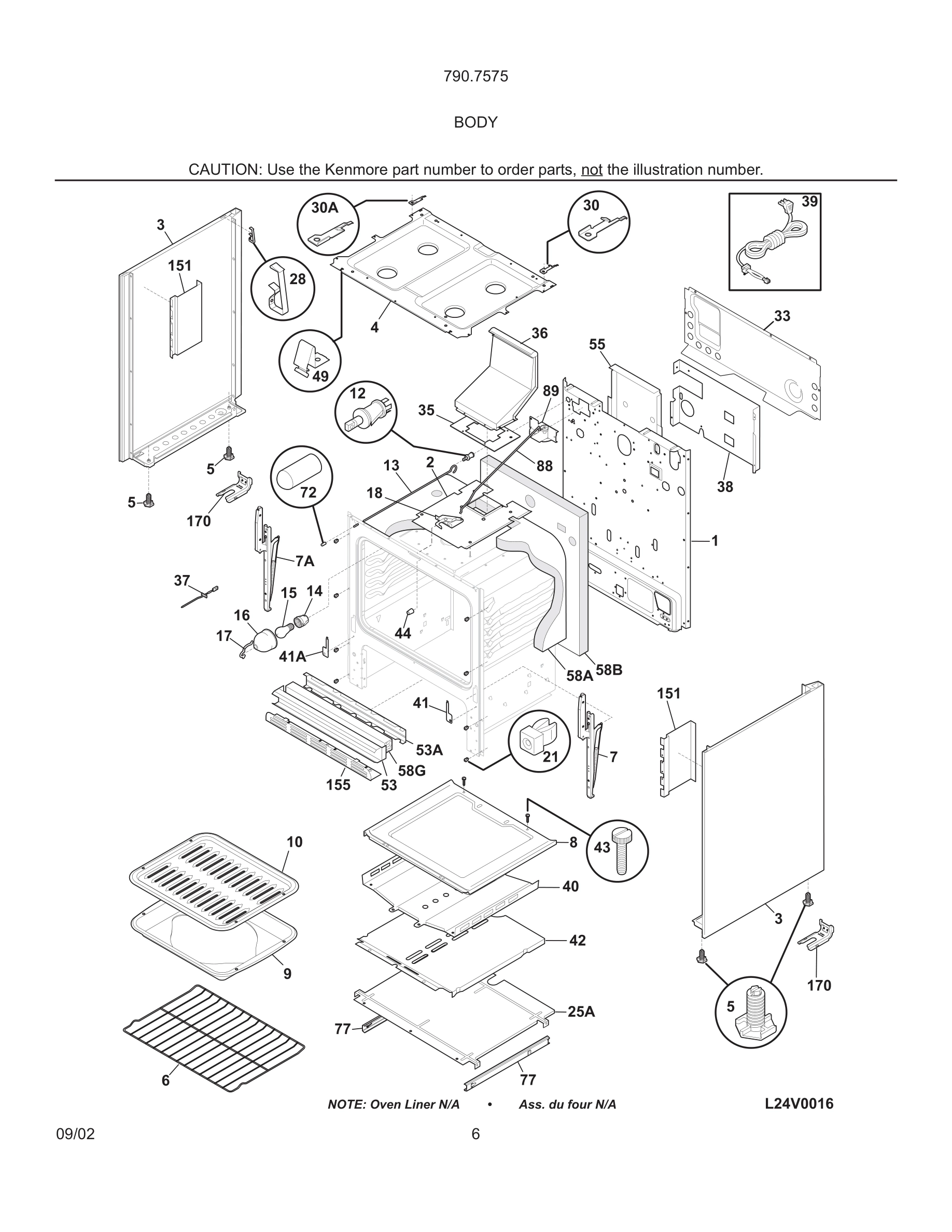

07 - BODY
09 - BODY

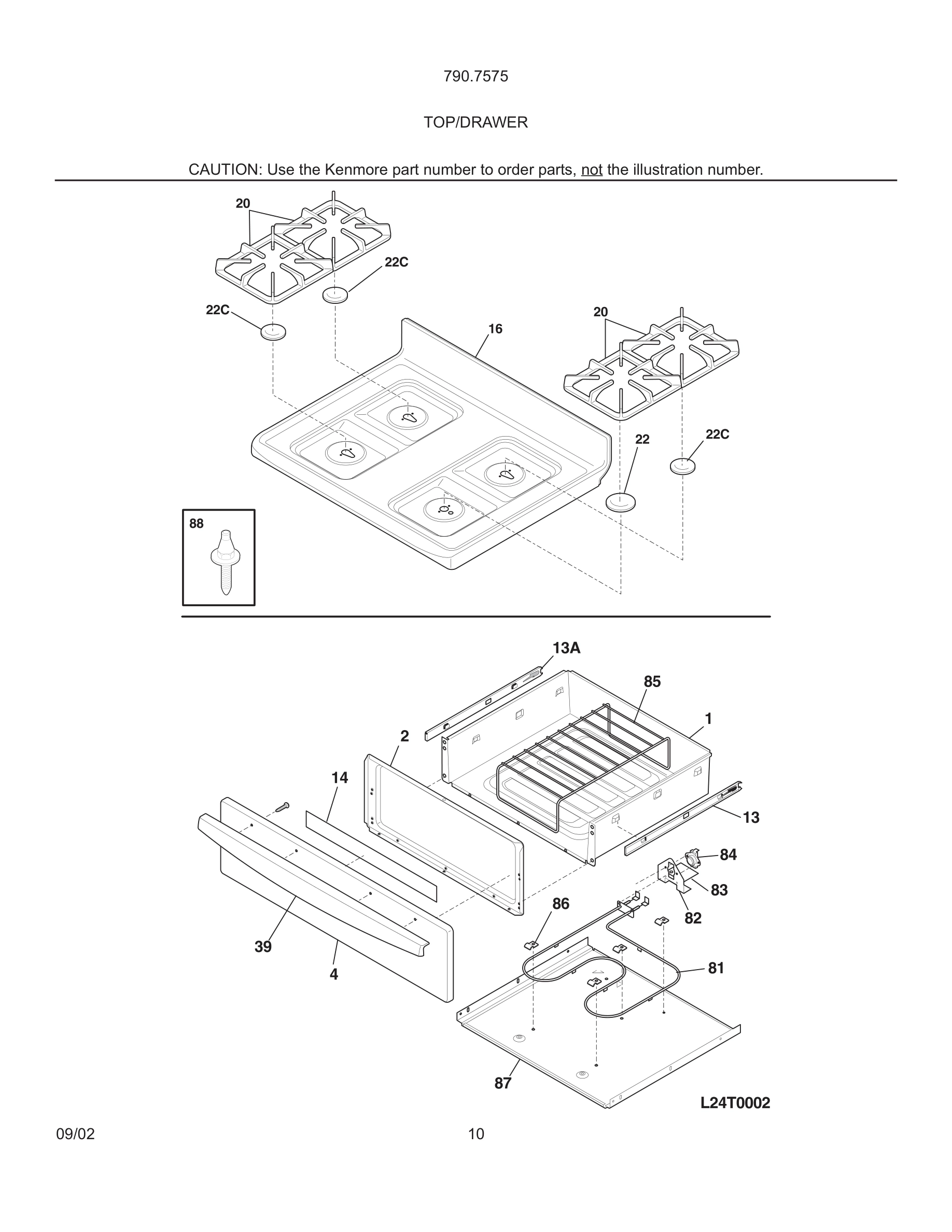

11 - TOP/DRAWER

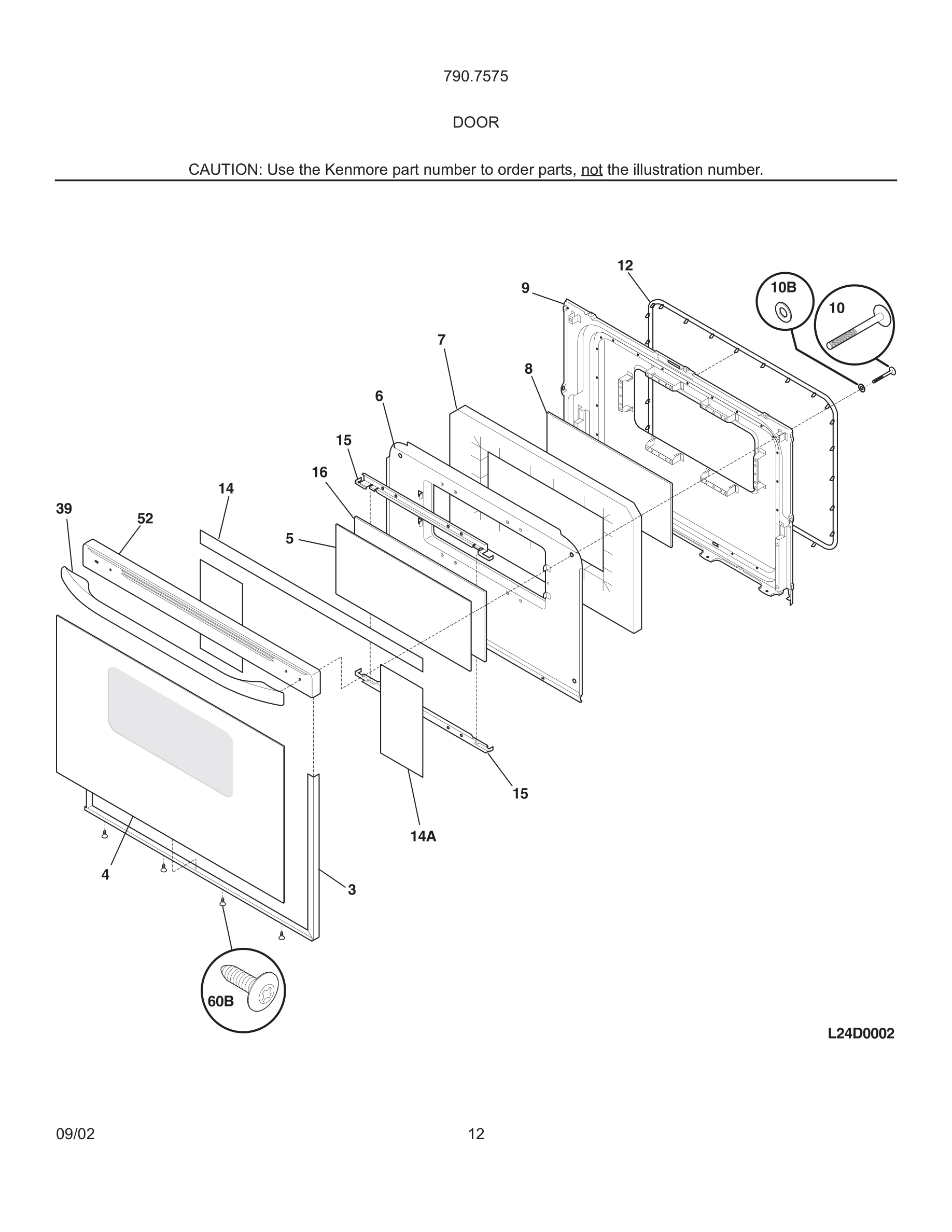

13 - DOOR

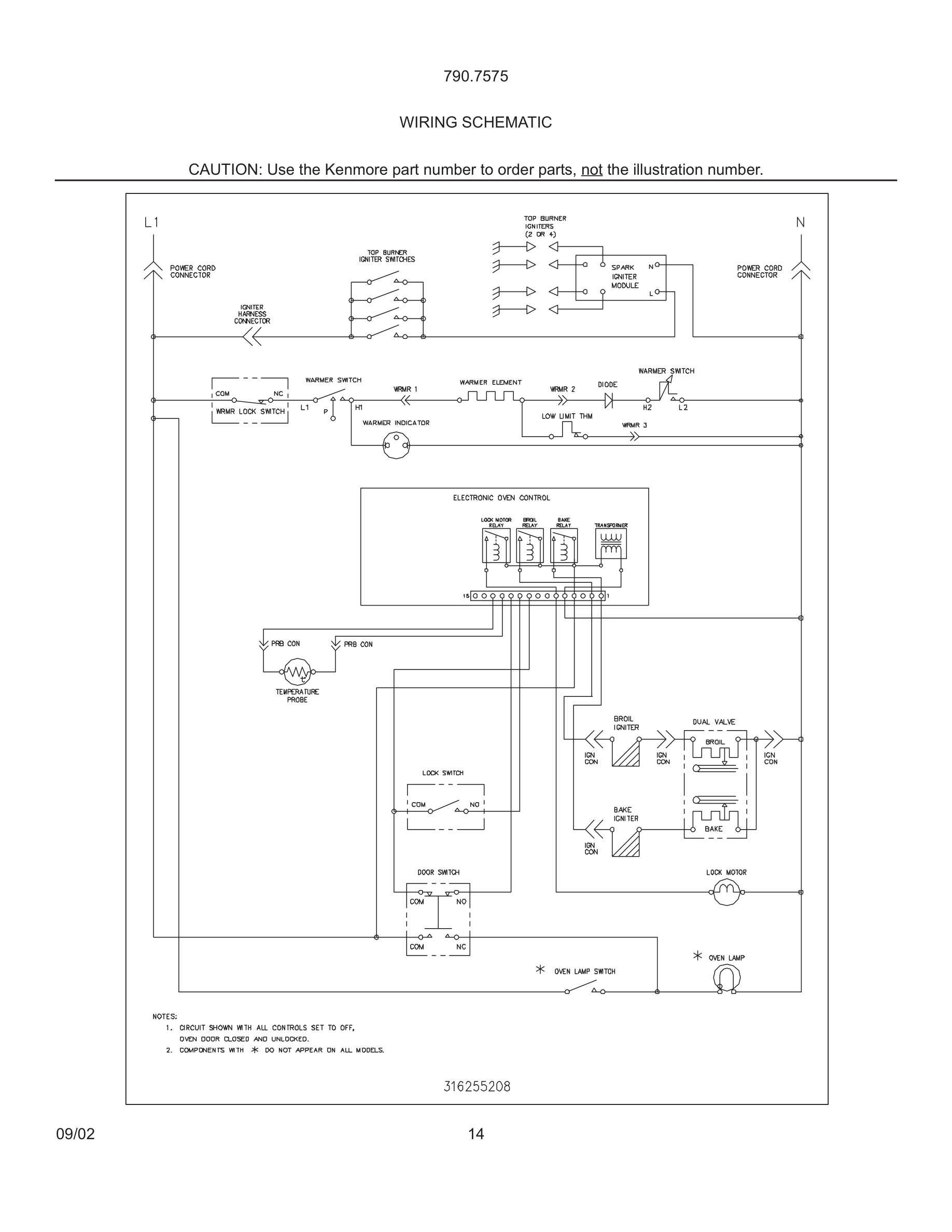

14 - WIRING SCHEMATIC

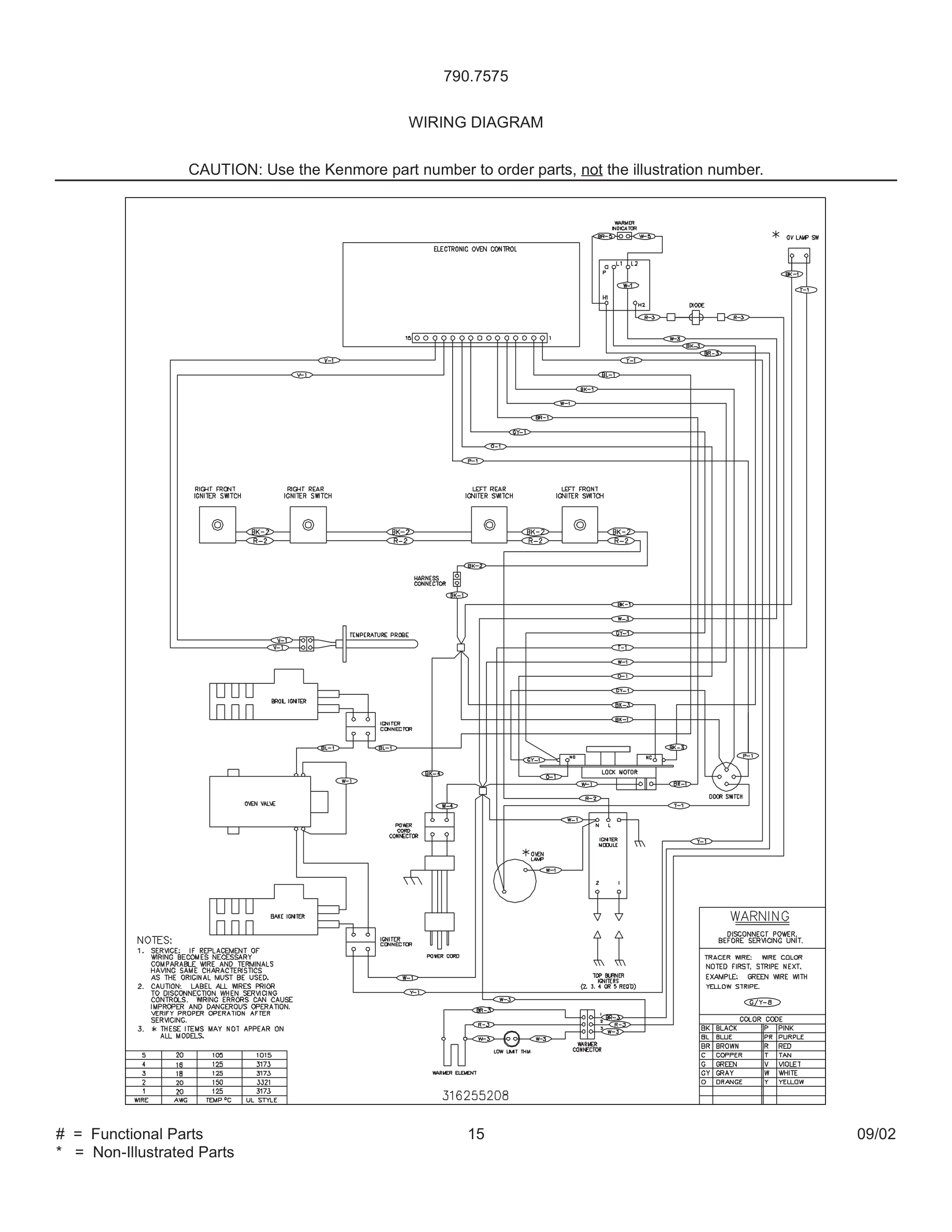

15 - WIRING DIAGRAM
Common parts from model Kenmore 790.75754102 RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*
Cleaner,grate WCI 316119700 Contact Us For Availability
*
Harness,warmer drawer WCI 316001917 Contact Us For Availability
*
Plate,warning/caution WCI 316065304 Contact Us For Availability
*
Rivet,pop WCI 316209000 Contact Us For Availability
*#
Wiring Harness,ignitor module WCI 316253700 Contact Us For Availability
*#
Wiring Harness,main WCI 316253405 Contact Us For Availability
1
Drawer,warmer WCI 316115901 Contact Us For Availability
2
Liner,drawer WCI 316231403 Contact Us For Availability
2#
Valve,12K top burner ,w/mtg screw WCI 5303935210 Contact Us For Availability
2C#
Valve,9.5K top burner ,w/mtg screw WCI 5303935213 Contact Us For Availability
3
Trim kit-door,3 sided ,bisque ,w/tape and foi WCI 5303935193 Contact Us For Availability
4
Panel,drawer ,bisque WCI 316231208 Contact Us For Availability
4
Glass,door kit ,bisque ,outer ,w/foil tape WCI 5303935205 Contact Us For Availability
5
Screw,leveling ,plastic ,with stop WCI 316129200 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
6
Shield,wool ,oven door WCI 316222706 Contact Us For Availability
7
Insulation,oven door WCI 316236800 Contact Us For Availability
8
Glass,oven door ,inner WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
Liner,oven door WCI 316230604 Contact Us For Availability
10
Insert,broiler pan WCI 316082000 Contact Us For Availability
10#
Burner,sealed ,12K WCI 316212300 Contact Us For Availability
13
Glide,drawer ,RH inner WCI 316231700 Contact Us For Availability
13#
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316207000 Contact Us For Availability
13A
Glide,drawer ,LH inner WCI 316231701 Contact Us For Availability
14
Foil,2" x 19" ,aluminum ,clear WCI 316102211 Contact Us For Availability
15
Bracket,glass mtg WCI 316081403 Contact Us For Availability
16
Glass,oven door ,heat barrier WCI 316085701 Contact Us For Availability
16
Main Top,bisque WCI 316202334 Contact Us For Availability
18#
Latch,oven door WCI 316213900 Contact Us For Availability
20
Grate,brown WCI 316213803 Contact Us For Availability
21
Spacer,bodyside WCI 3014099 Contact Us For Availability
22
Cap,12K burner ,brown WCI 316213603 Contact Us For Availability
22#
Tube,valve to mixer WCI 316065002 Contact Us For Availability
22C
Cap,9.5K burner ,brown WCI 316213503 Contact Us For Availability
23#
Burner,broiler WCI 08067935 Contact Us For Availability
30
Bracket,hinge ,RH ,main top WCI 316217700 Contact Us For Availability
31
Knob,control ,bisque WCI 316240803 Contact Us For Availability
39
Handle,drawer ,bisque WCI 316235403 Contact Us For Availability
39
Handle,door ,bisque WCI 316235503 Contact Us For Availability
41
Cover,hinge cutout ,RH WCI 316233400 Contact Us For Availability
44
Spacer,oven door WCI 316246500 Contact Us For Availability
52
Cap,door trim ,bisque WCI 316201009 Contact Us For Availability
58A
Insulation,2" ,oven wrapper WCI 316047708 Contact Us For Availability
58B
Insulation,oven back WCI 316218303 Contact Us For Availability
72
Cover,rod end ,light switch WCI 316234500 Contact Us For Availability
82
Bracket,element mtg WCI 316093200 Contact Us For Availability
83
Shield,terminal ,warmer drawer WCI 316093300 Contact Us For Availability
84
Thermo disc,warmer drawer WCI 316093501 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Base,warmer drawer WCI 316091900 Contact Us For Availability
151
Shield,bodyside WCI 316239300 Contact Us For Availability
155
Shield,warmer drawer ,front WCI 316095201 Contact Us For Availability
× ![]()
