Model Electrolux 790.75664104 Gas Range (Kenmore 79075664104) – Common Parts & Diagrams
BURNER
BODY

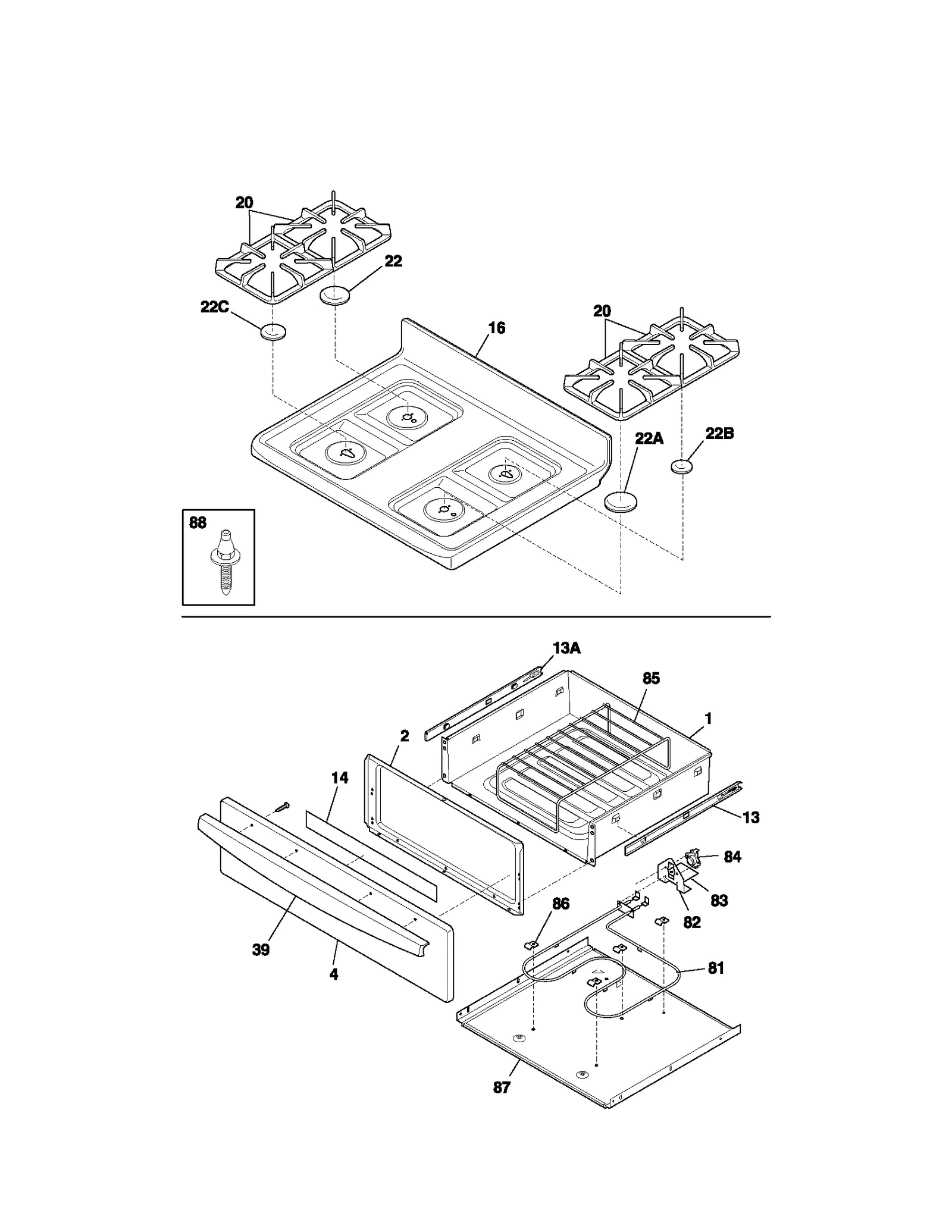

TOP/DRAWER

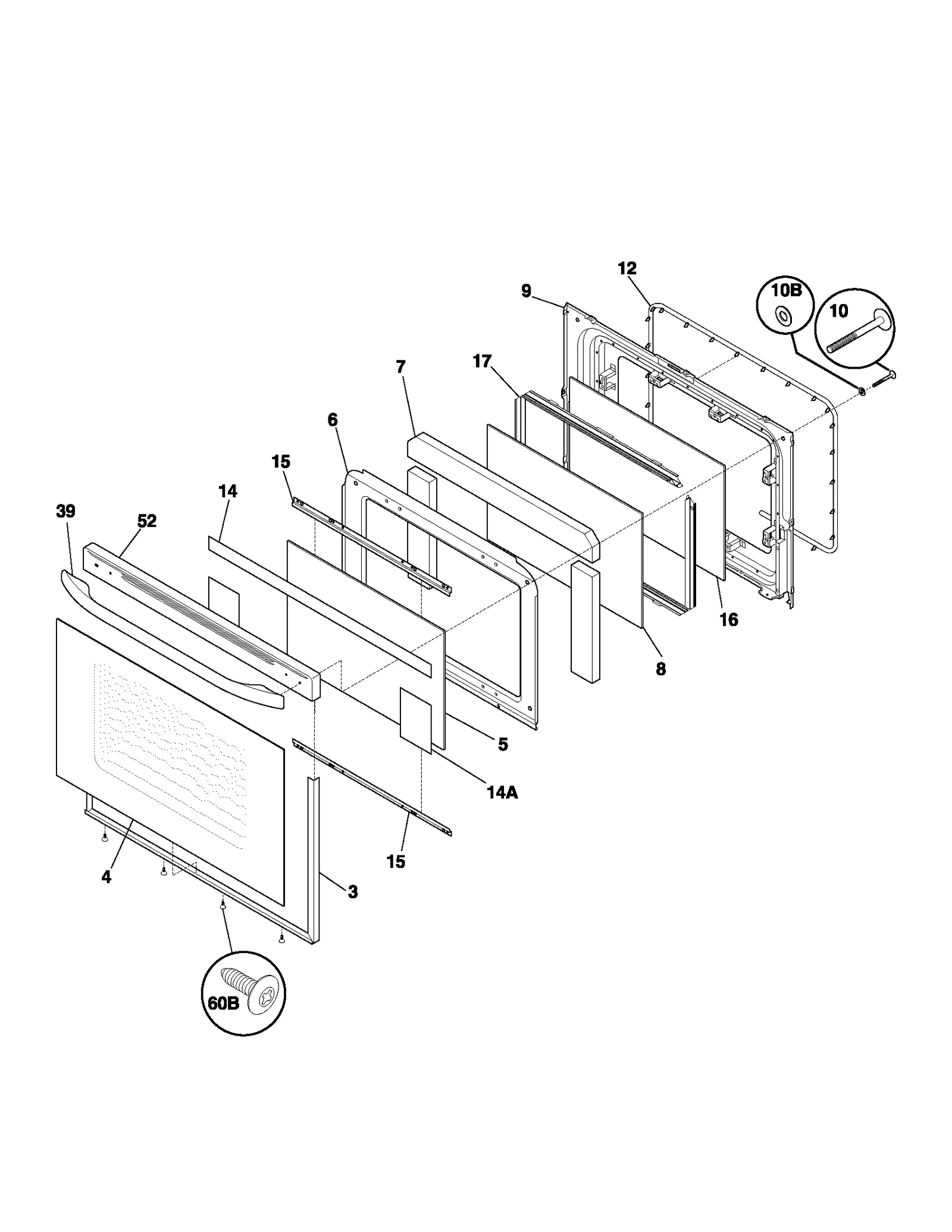

DOOR

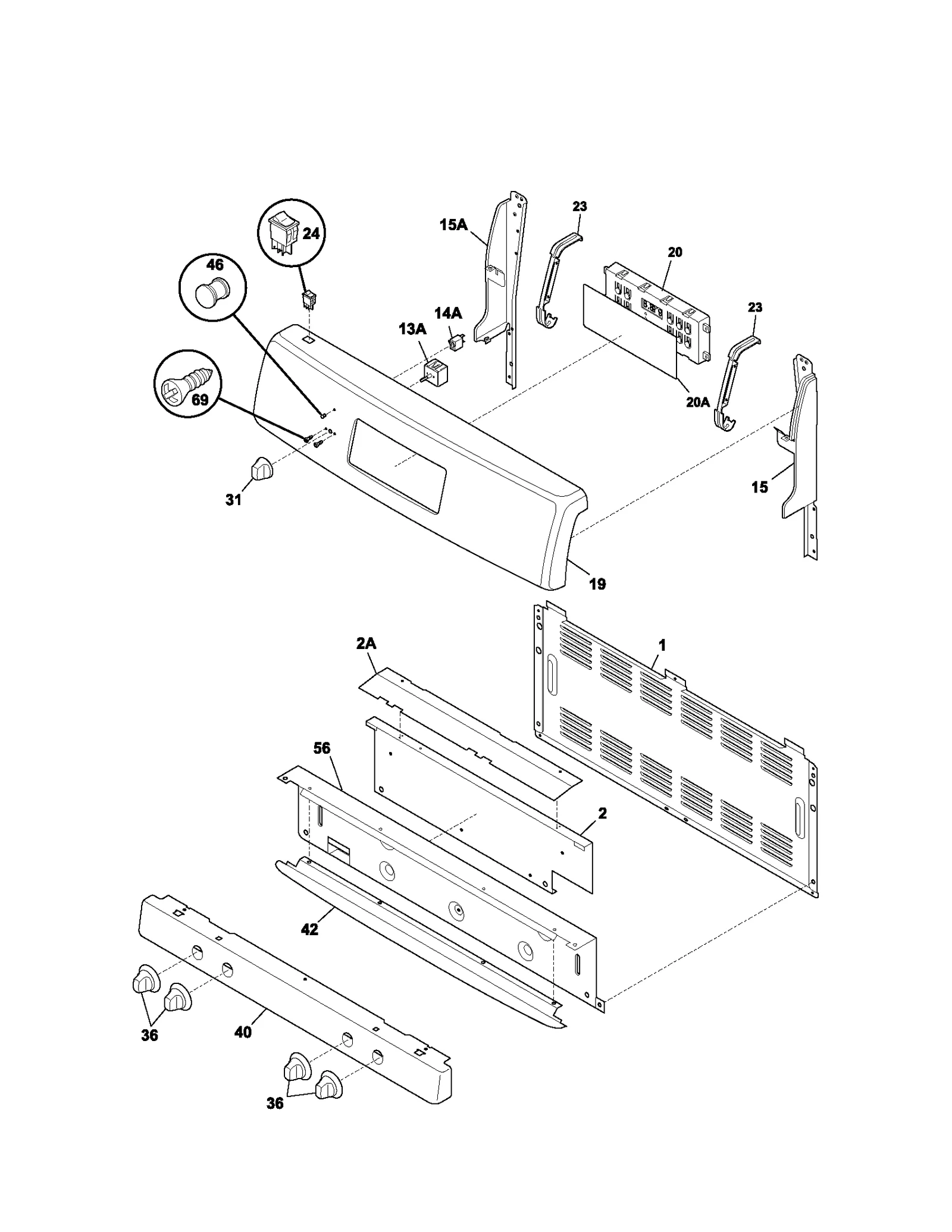

BACKGUARD
Common parts from model Electrolux 790.75664104 Gas Range (Kenmore 79075664104)
1
Range Control Panel Back Shield WCI 316239900 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2
Backing Shield WCI 316051600 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2A
Shield WCI 316235100 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11
Range Surface Burner Tube and Orifice WCI 316237702 Contact Us For Availability
12
Range Oven Door Switch WCI 316209901 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support WCI 316220214 Contact Us For Availability
15
Range Backguard Support Bracket, Right WCI 316220216 Contact Us For Availability
15
Support WCI 316220218 Contact Us For Availability
15A
Range Backguard Support Bracket, Left (White) WCI 316220215 Contact Us For Availability
15A
Range Control Panel Support, Left WCI 316220217 Contact Us For Availability
15A
Support WCI 316220219 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 316117501 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
19
Panel WCI 316246205 Contact Us For Availability
19
Panel WCI 316246206 Contact Us For Availability
19
Panel WCI 316246207 Contact Us For Availability
20
Range Surface Burner Grate WCI 316213803 Contact Us For Availability
20
Range Oven Control Board WCI 316207500 Contact Us For Availability
20A
Clock Overlay WCI 316220819 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap (Gray) WCI 316213601 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
22A
Range Surface Burner Cap WCI 316213700 Contact Us For Availability
22A
Range Surface Burner Cap, 14,000-BTU (Gray) WCI 316213701 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206600 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206601 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316213501 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
23
Bracket WCI 316233200 Contact Us For Availability
24
Range Oven Light Rocker Switch (Bisque) WCI 316246002 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
36
Range Surface Burner Knob WCI 316240700 Contact Us For Availability
36
Range Burner Control Knob WCI 316240702 Contact Us For Availability
36
Range Surface Burner Knob WCI 316240703 Contact Us For Availability
40
Manifold Panel WCI 316204941 Contact Us For Availability
40
Manifold Panel WCI 316204942 Contact Us For Availability
40
Manifold Panel WCI 316204943 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
42
Extrusion Trim WCI 316236600 Contact Us For Availability
42
Extrusion Trim WCI 316236601 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
52
Cap-door T WCI 316201005 Contact Us For Availability
52
Cap-door T WCI 316201009 Contact Us For Availability
84
Range Warming Drawer Safety Thermostat WCI 316093501 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Spark Module Wire Harness WCI 316253700 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 316209000 Contact Us For Availability
NI
Service Data Sheet WCI 316218504 Contact Us For Availability
NI
Wiring Diagram WCI 316255208 Contact Us For Availability
NI
Range Owner's Manual WCI 316258024 Contact Us For Availability
NI
Instruction Manual WCI 316259313 Contact Us For Availability
NI
Parts List WCI 5995382933 Contact Us For Availability
× ![]()
