Model Electrolux 790.75662101 Gas Range (Kenmore 79075662101) – Common Parts & Diagrams
BACKGUARD
BURNER

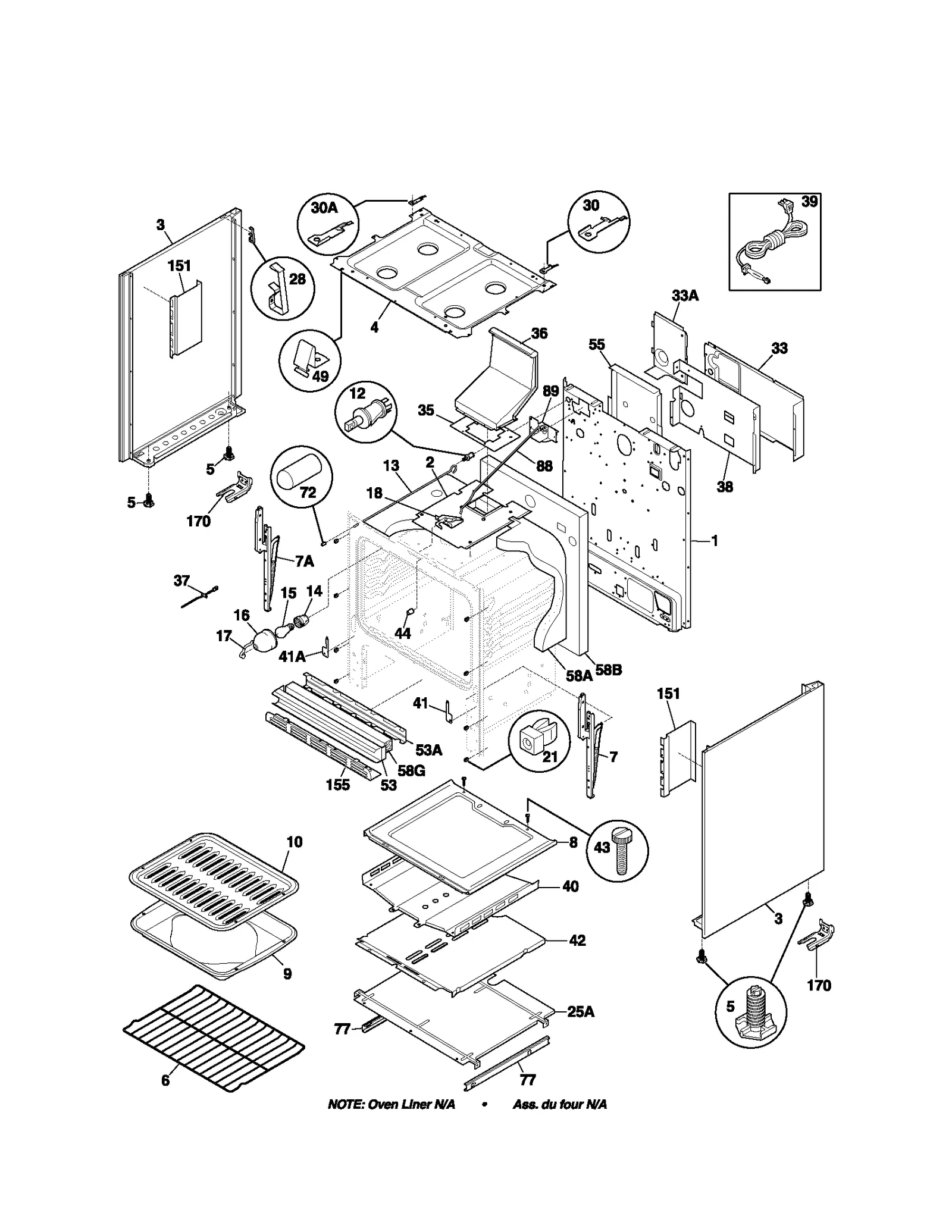

BODY

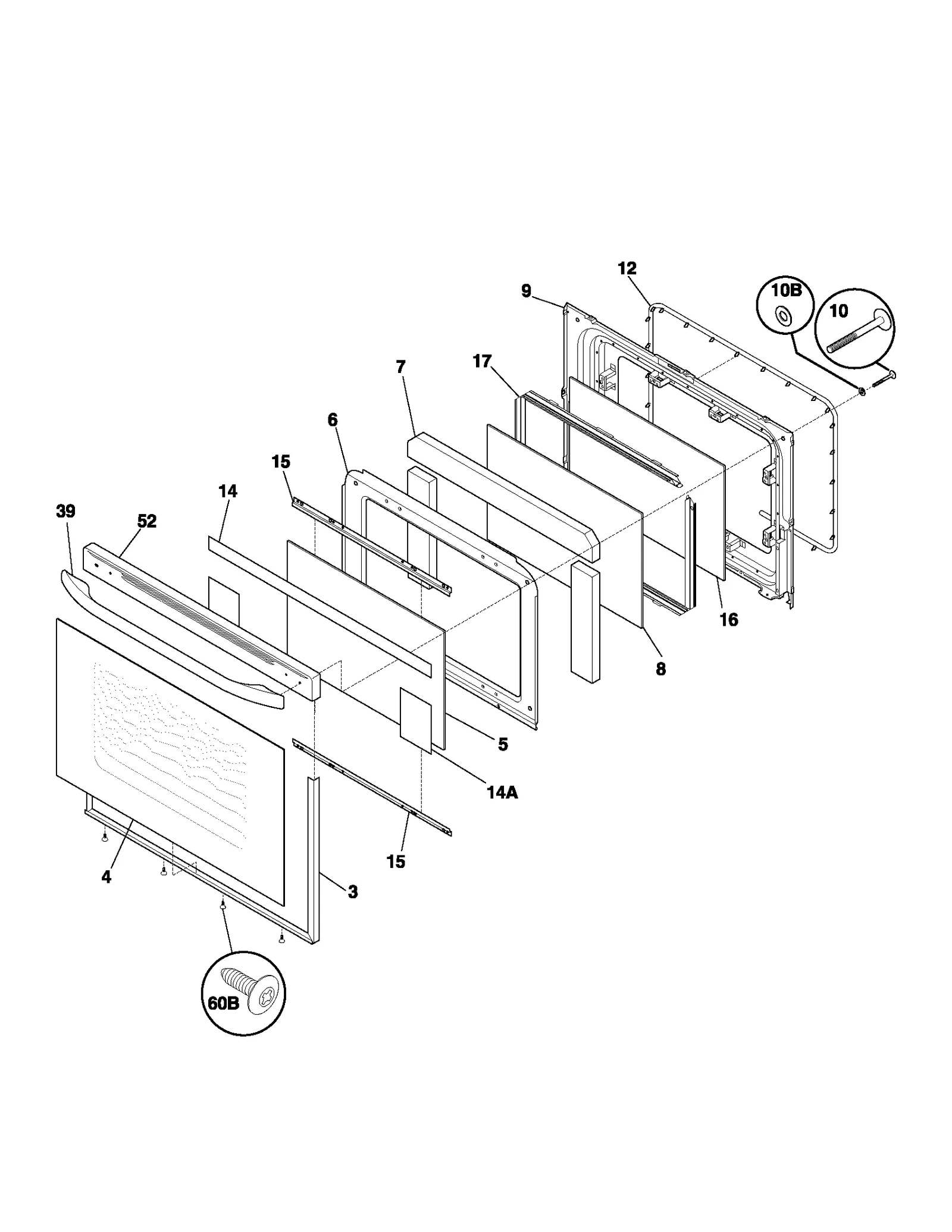

DOOR

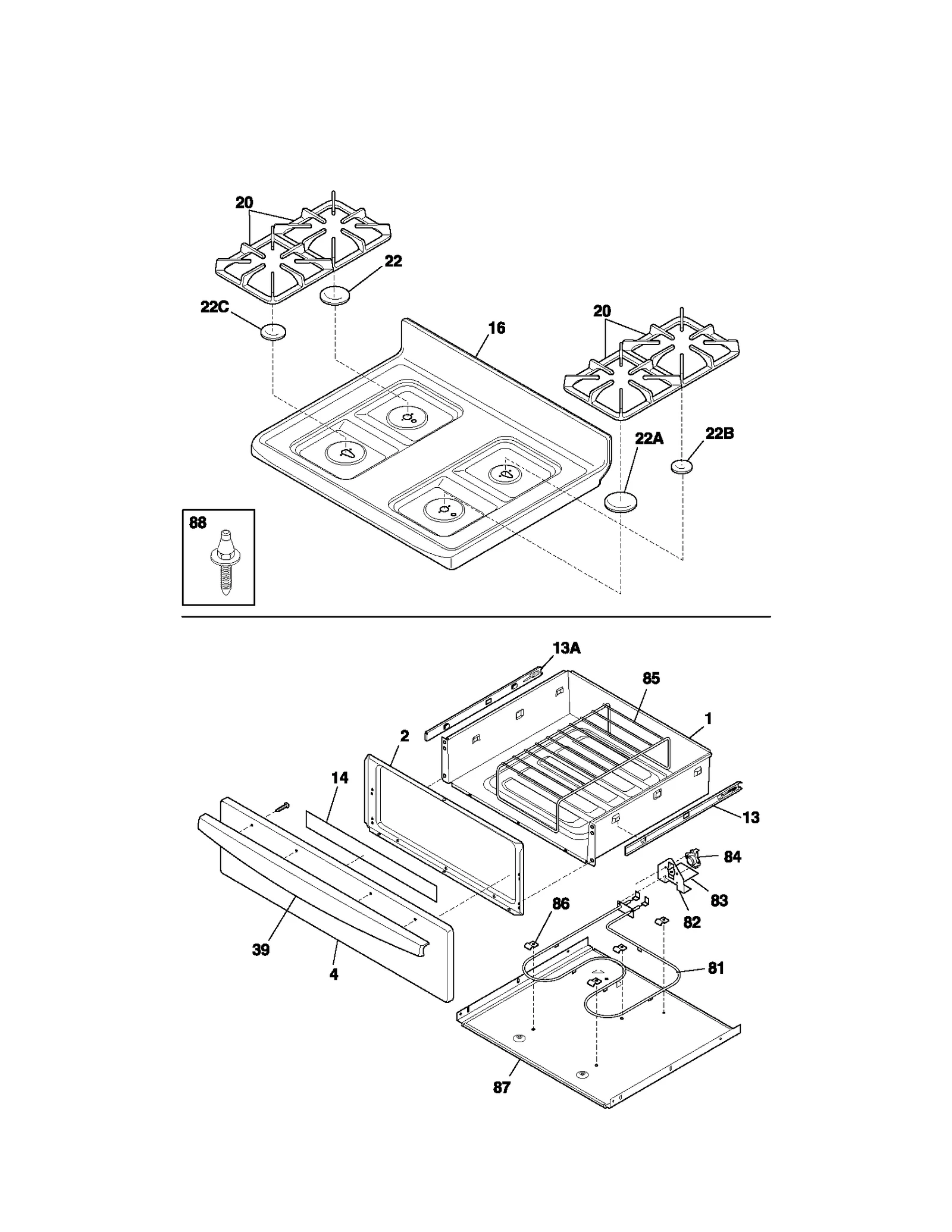

TOP/DRAWER
Common parts from model Electrolux 790.75662101 Gas Range (Kenmore 79075662101)
1
Warming Drawer WCI 316115901 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2
Liner WCI 316231403 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
3
Range Oven Door Trim Kit (Bisque) WCI 5303935193 Contact Us For Availability
4
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4
Oven Door Glass WCI 5303935202 Contact Us For Availability
4
Drawer Panel WCI 316231201 Contact Us For Availability
4
Panel WCI 316231208 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Oven Door Glass WCI 316237000 Contact Us For Availability
6
Wool Cover Shield WCI 316222707 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Door Liner WCI 316230605 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
11
Range Surface Burner Tube and Orifice WCI 316237702 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
14
Aluminum Foil WCI 316102211 Contact Us For Availability
14A
Range Oven Door Foil Tape, 4 x 5-1/2-in WCI 316102202 Contact Us For Availability
15
Glass Bracket WCI 316237201 Contact Us For Availability
16
Main WCI 316202327 Contact Us For Availability
16
Main WCI 316202329 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
20
Range Surface Burner Grate WCI 316213803 Contact Us For Availability
20
Grate WCI 316213801 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22
Range Surface Burner Cap (Gray) WCI 316213601 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
22A
Range Surface Burner Cap, 14,000-BTU (Gray) WCI 316213701 Contact Us For Availability
22A
Burner Cap WCI 316213703 Contact Us For Availability
22B
Burner Cap WCI 316213401 Contact Us For Availability
22B
Burner Cap WCI 316213403 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316213501 Contact Us For Availability
22C
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
36
Range Surface Burner Knob WCI 316240700 Contact Us For Availability
39
Handle (White) WCI 316235506 Contact Us For Availability
39
Oven Handle WCI 316235507 Contact Us For Availability
39
Handle-dra WCI 316235401 Contact Us For Availability
39
Handle-dra WCI 316235403 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
52
Drive Cap Trim WCI 316201010 Contact Us For Availability
52
Drive Cap Trim WCI 316201012 Contact Us For Availability
81
Range Warming Drawer Element WCI 316239200 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
151
Shield Body WCI 316239300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Wiring Harness WCI 316253405 Contact Us For Availability
NI
Screw-heat S WCI 5303288570 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
× ![]()
