Model Electrolux 790.75661100 Gas Range (Kenmore 79075661100) – Common Parts & Diagrams
BODY
All Parts

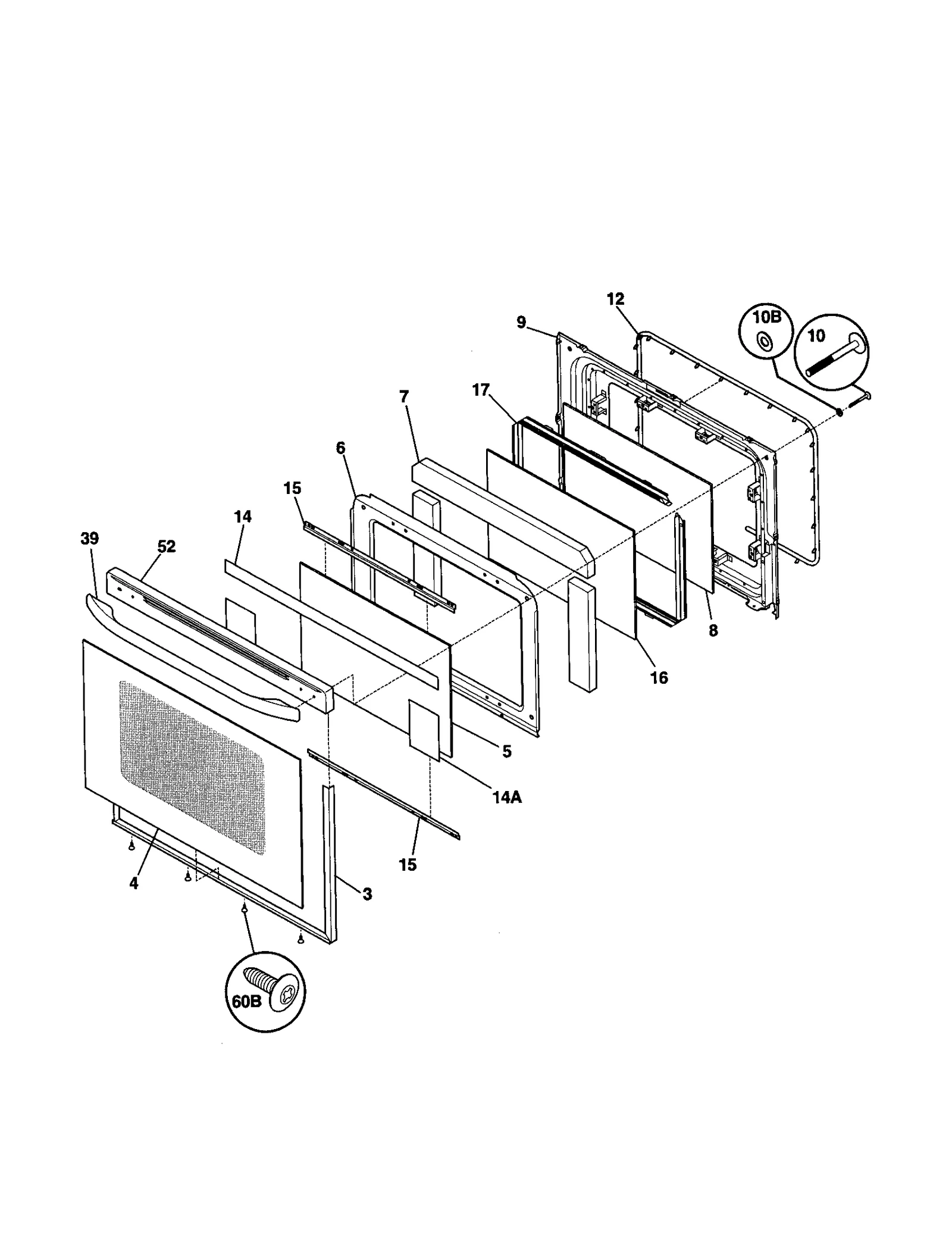

DOOR

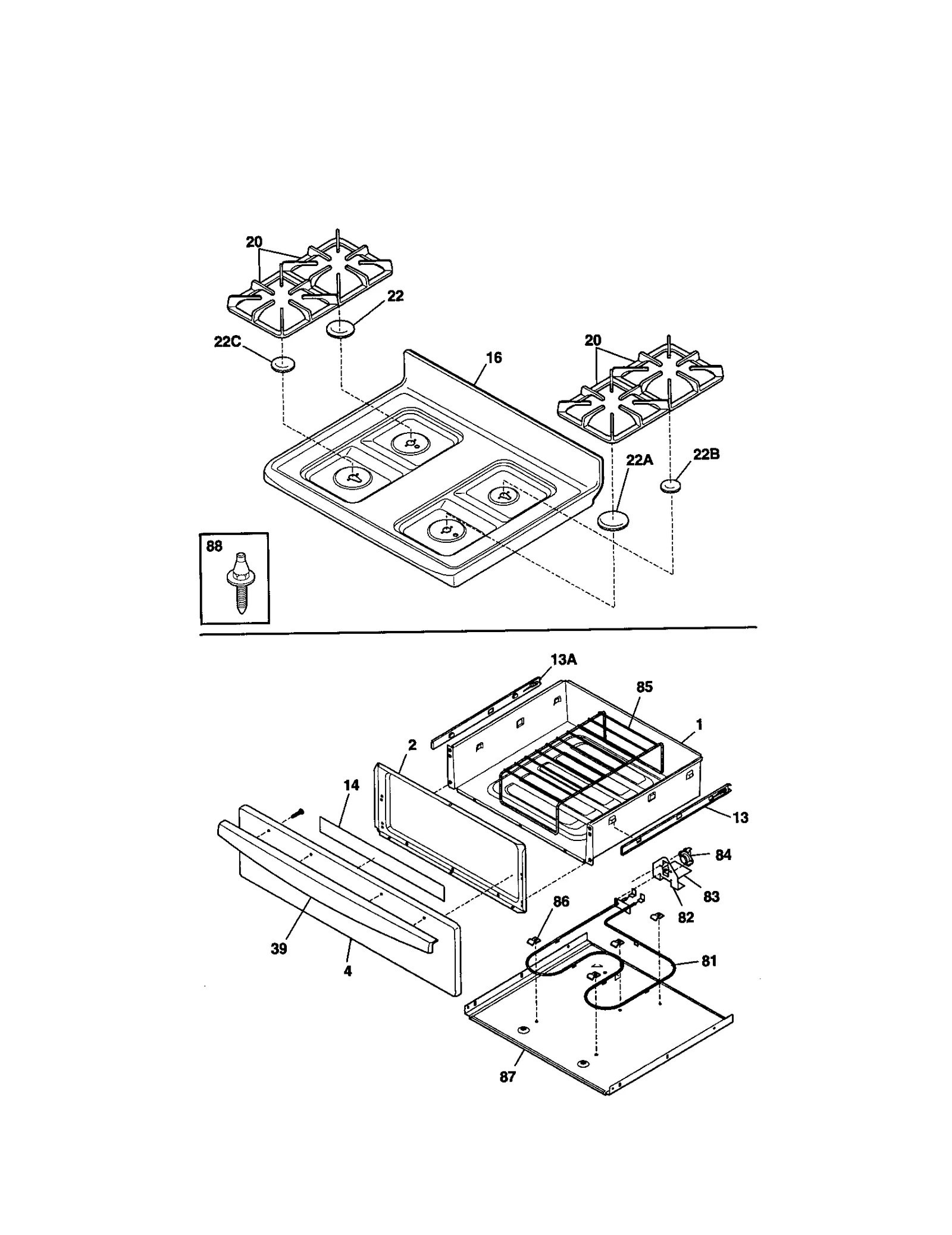

TOP/DRAWER

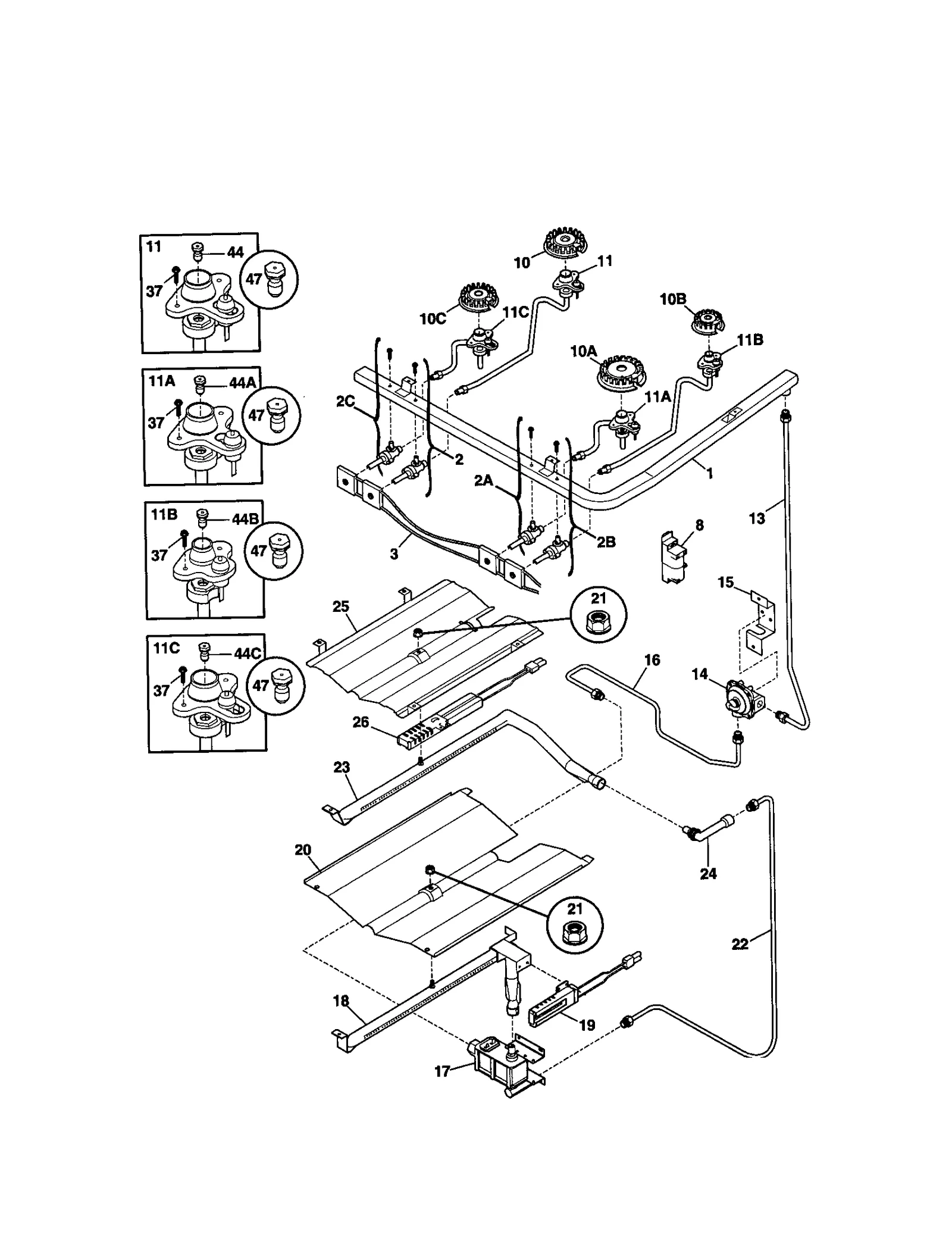

BURNER

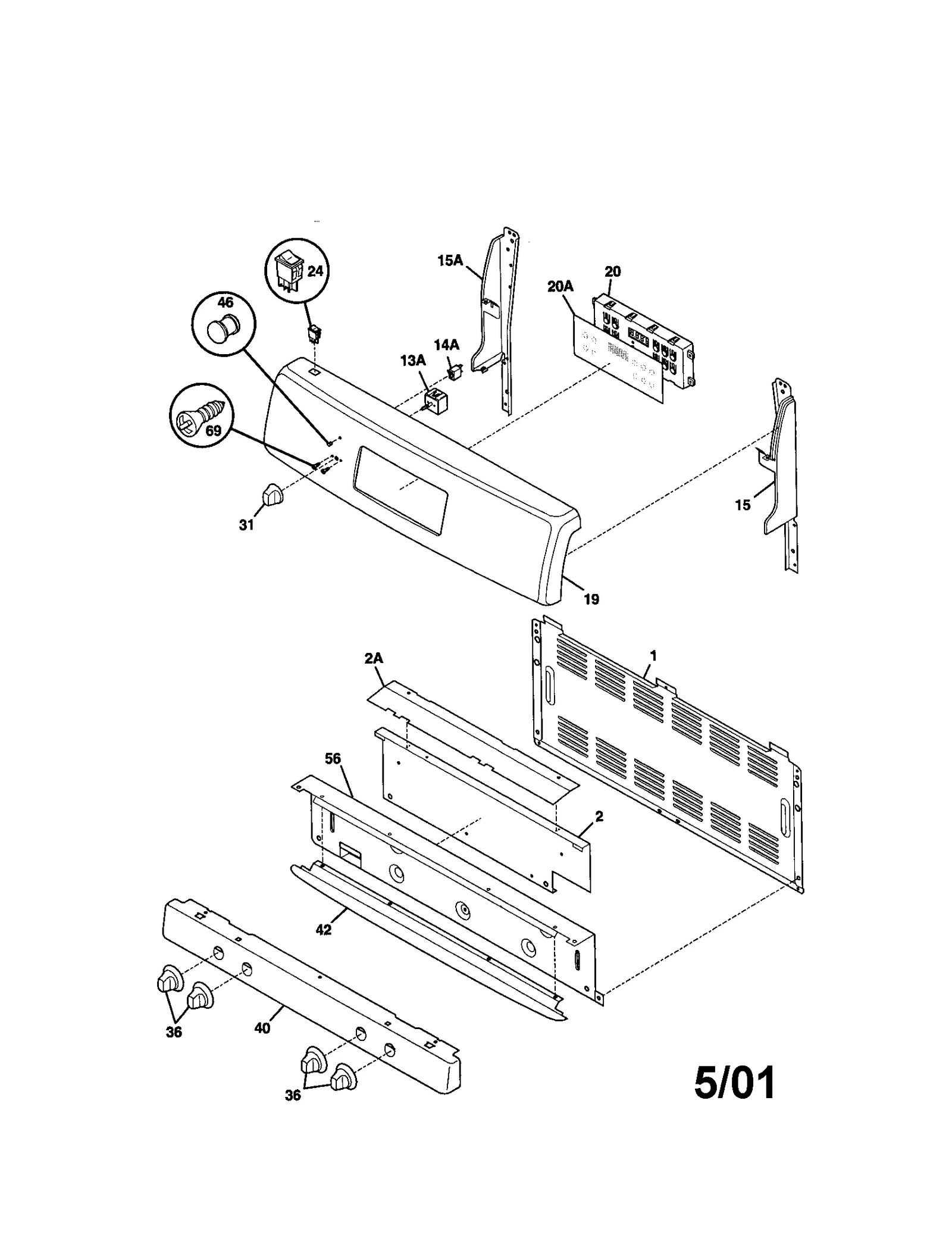

BACKGUARD
Common parts from model Electrolux 790.75661100 Gas Range (Kenmore 79075661100)
1
Pipe WCI 316204000 Contact Us For Availability
1
Range Control Panel Back Shield WCI 316239900 Contact Us For Availability
2
Range Surface Burner Valve, 12,000-BTU WCI 5303935210 Contact Us For Availability
2
Backing Shield WCI 316051600 Contact Us For Availability
2A
Range Surface Burner Valve, 14,000-BTU WCI 5303935211 Contact Us For Availability
2A
Shield WCI 316235100 Contact Us For Availability
2B
Valve WCI 5303935212 Contact Us For Availability
2C
Valve WCI 5303935213 Contact Us For Availability
3
Range Oven Door Trim Kit WCI 5303935191 Contact Us For Availability
3A
Range Oven Door Trim Kit (White) WCI 5303935192 Contact Us For Availability
4A
Range Oven Door Outer Panel and Foil Tape (Wh WCI 5303935201 Contact Us For Availability
4B
Oven Door Glass WCI 5303935202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
7
Range Oven Door Insulation WCI 316236700 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10B
Burner WCI 316212600 Contact Us For Availability
11
Range Surface Burner Tube and Orifice WCI 316237702 Contact Us For Availability
11A
Igniter and Orifice Holder WCI 316237802 Contact Us For Availability
12
Range Oven Door Seal WCI 316230900 Contact Us For Availability
13
Range Gas Supply Tube WCI 316207000 Contact Us For Availability
13
Drawer Glide WCI 316231700 Contact Us For Availability
13A
Drawer Glide WCI 316231701 Contact Us For Availability
15
Support-ba WCI 316220204 Contact Us For Availability
15A
Support-ba WCI 316220205 Contact Us For Availability
15AA
Support-ba WCI 316220203 Contact Us For Availability
15AB
Support-ba WCI 316220209 Contact Us For Availability
15B
Support-ba WCI 316220202 Contact Us For Availability
15C
Support-ba WCI 316220208 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
18
Range Oven Door Latch WCI 316213900 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
19
Panel WCI 316246206 Contact Us For Availability
19A
Panel WCI 316246205 Contact Us For Availability
19B
Panel WCI 316246207 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20
Clock and Timer WCI 316222900 Contact Us For Availability
20AB
Clock Overlay WCI 316220819 Contact Us For Availability
20B
Range Surface Burner Grate WCI 316213803 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Surface Burner Cap, 12,000-BTU (Black) WCI 316213600 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22A
Range Surface Burner Cap WCI 316213700 Contact Us For Availability
22AA
Range Surface Burner Cap, 14,000-BTU (Gray) WCI 316213701 Contact Us For Availability
22AB
Burner Cap WCI 316213703 Contact Us For Availability
22B
Burner Cap WCI 316213400 Contact Us For Availability
22BA
Burner Cap WCI 316213401 Contact Us For Availability
22BB
Burner Cap WCI 316213403 Contact Us For Availability
22CA
Range Surface Burner Cap (Gray) WCI 316213501 Contact Us For Availability
22CB
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
22D
Range Surface Burner Cap (Gray) WCI 316213601 Contact Us For Availability
22E
Range Surface Burner Cap, 12,000-BTU (Brown) WCI 316213603 Contact Us For Availability
23
Range Broil Burner WCI 08067935 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
24A
Spacer Broil WCI 316113400 Contact Us For Availability
24B
Range Oven Light Rocker Switch (Bisque) WCI 316246002 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
30
Range Main Top Right Hinge Pin WCI 316217700 Contact Us For Availability
31A
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
36
Range Burner Control Knob WCI 316240702 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316240700 Contact Us For Availability
36B
Range Surface Burner Knob WCI 316240703 Contact Us For Availability
39
Handle-dra WCI 316235400 Contact Us For Availability
39A
Handle-dra WCI 316235401 Contact Us For Availability
39B
Handle-dra WCI 316235403 Contact Us For Availability
40
Manifold Panel WCI 316204942 Contact Us For Availability
40A
Manifold Panel WCI 316204941 Contact Us For Availability
40B
Manifold Panel WCI 316204943 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
42
Extrusion Trim WCI 316236600 Contact Us For Availability
42A
Extrusion Trim WCI 316236601 Contact Us For Availability
44
Door Spacer WCI 316246500 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
81
Range Warming Drawer Element WCI 316239200 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
