Model Kenmore 790.75503207 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

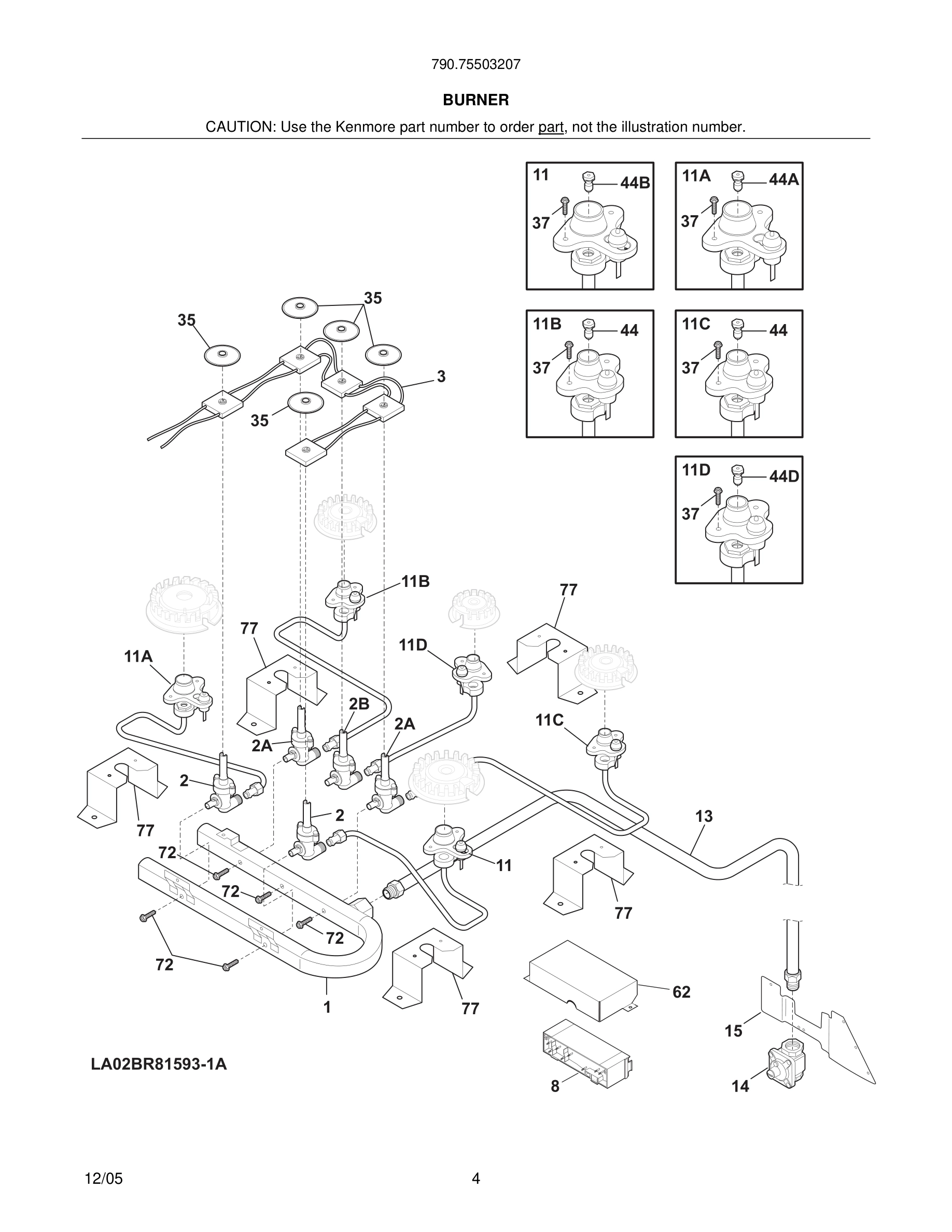

05 - BURNER

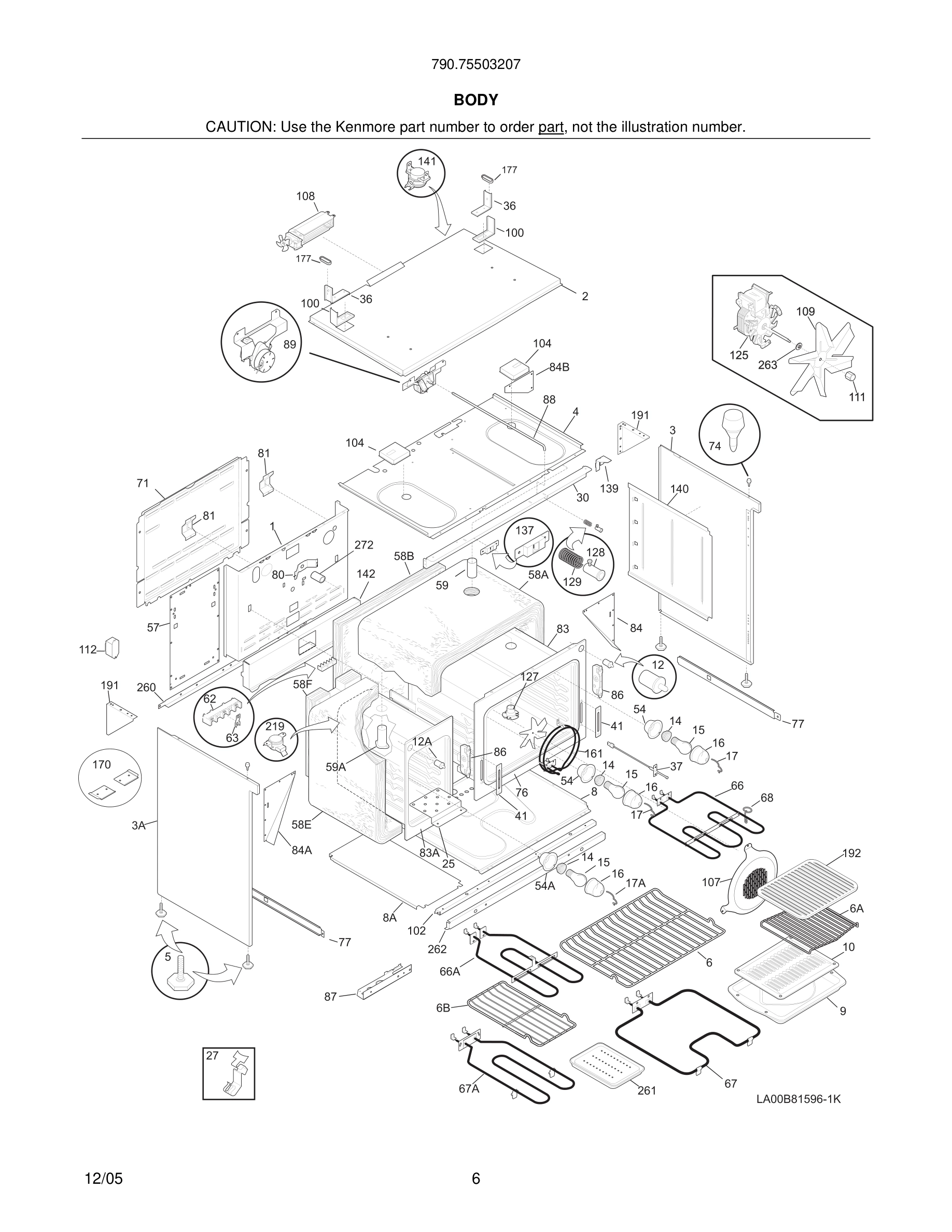

07 - BODY
09 - BODY

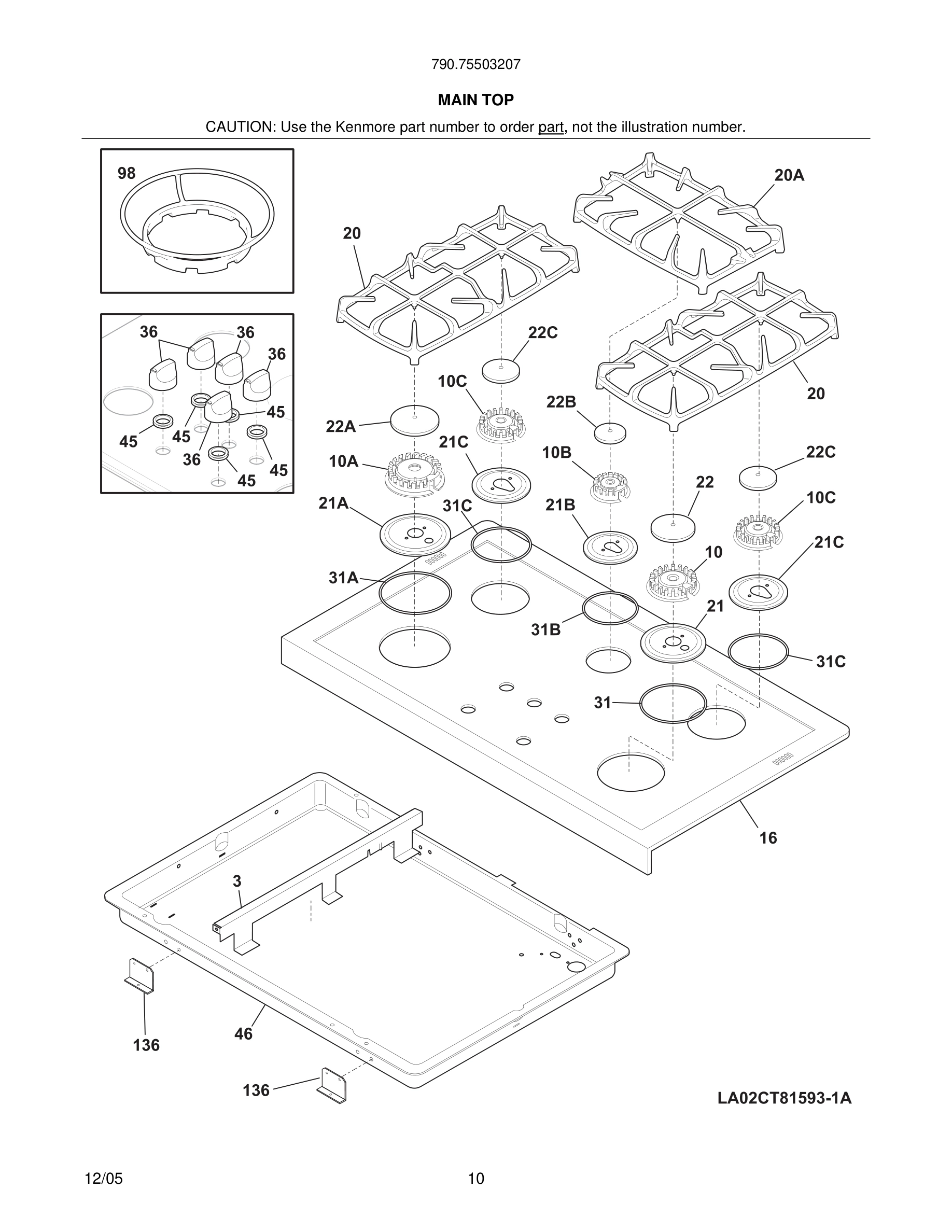

11 - MAIN TOP

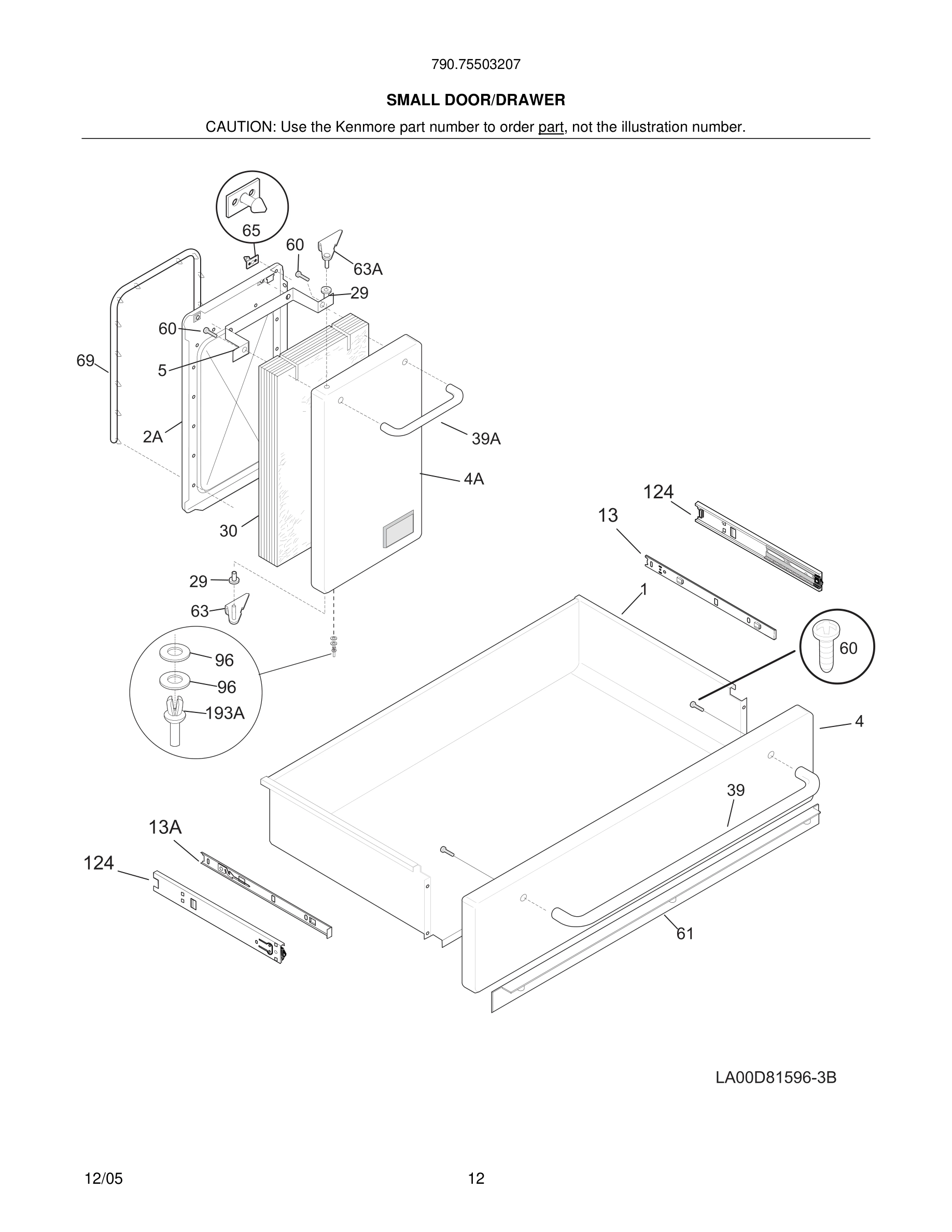

13 - SMALL DOOR / DRAWER

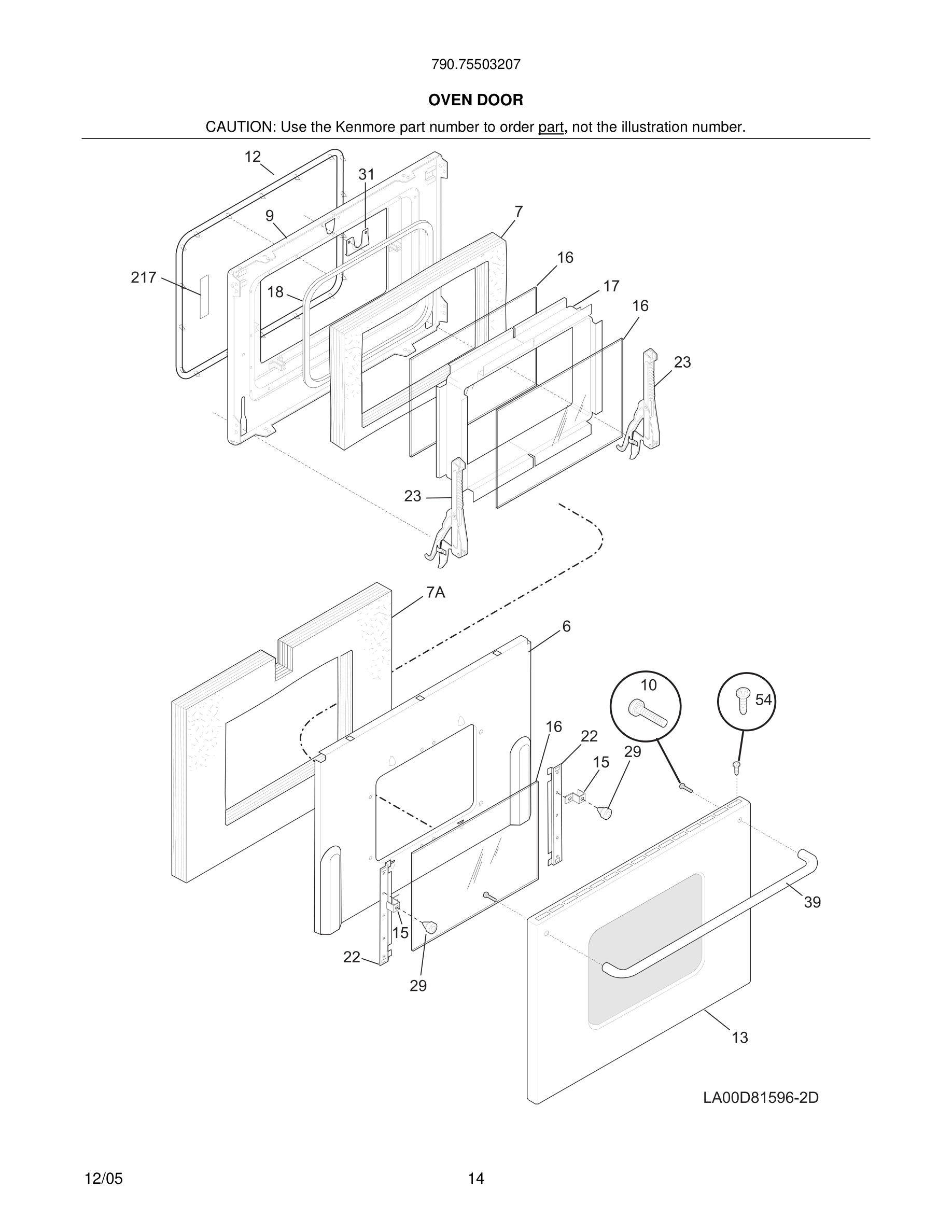

15 - OVEN DOOR

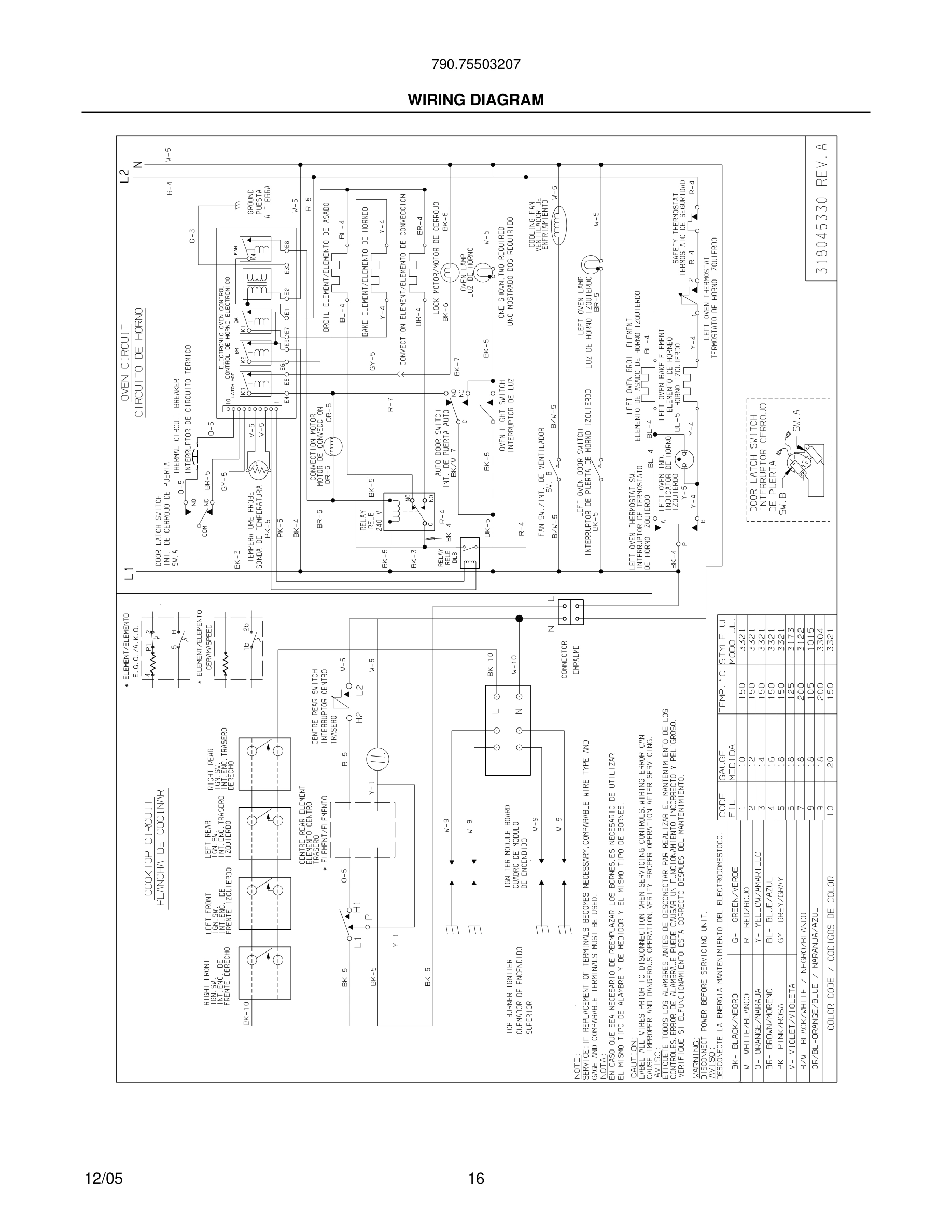

16 - WIRING DIAGRAM
Common parts from model Kenmore 790.75503207 RANGE
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, grate WCI 316119700 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Washer, flat, steel WCI 318086002 Contact Us For Availability
*#
Relay, convection, oven light, (1) WCI 318111501 Contact Us For Availability
1
Drawer, utility WCI 3202108 Contact Us For Availability
2#
Valve, burner, 11K/14K WCI 318087315 Contact Us For Availability
2A
Liner, inner door, small oven WCI 318048221 Contact Us For Availability
2A#
Valve, burner, 9.5K WCI 318087314 Contact Us For Availability
2A*
Baffle, small door WCI 318229000 Contact Us For Availability
2B#
Valve, burner, 5K WCI 318087313 Contact Us For Availability
3
Support WCI 318171401 Contact Us For Availability
4
Panel, drawer WCI 318158221 Contact Us For Availability
4A
Panel, door, small oven, w/nameplate WCI 318324101 Contact Us For Availability
5
Spacer, door handle WCI 318014511 Contact Us For Availability
6
Shield, insulation, door WCI 318057020 Contact Us For Availability
7
Insulation, oven door WCI 318285050 Contact Us For Availability
7A
Insulation, oven door WCI 318285096 Contact Us For Availability
9
Door, inner WCI 318156911 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
10B#
Burner, sealed, 5K WCI 316206400 Contact Us For Availability
11#
Ignitor/orifice assy., top burner, right fron WCI 316224600 Contact Us For Availability
12A#
Switch, oven light, sm door frame WCI 5301314211 Contact Us For Availability
13
Connector, manifold tube WCI 318054507 Contact Us For Availability
13
Stainless Panel, oven door, w/glass WCI 318187926 Contact Us For Availability
14#
Regulator, pressure WCI 318122700 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Maintop, glass & frame WCI 318159631 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Gasket, door glass seal WCI 318293501 Contact Us For Availability
20
Grate, black WCI 316249700 Contact Us For Availability
20A
Grate, center WCI 318221100 Contact Us For Availability
21
Skirt, 14K burner, black WCI 316241601 Contact Us For Availability
21C
Skirt, 9.5K burner, black WCI 316241801 Contact Us For Availability
22
Cap, 14K burner, black WCI 316242700 Contact Us For Availability
22
Bar, glass retainer WCI 5303310511 Contact Us For Availability
22A
Cap, 11K burner, black WCI 316242800 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206500 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316242900 Contact Us For Availability
23
Hinge, lower door, (2) WCI 318024721 Contact Us For Availability
28A
Shaft, push button, black, (11), clock/timer/ WCI 316080600 Contact Us For Availability
29
Knob, clock, black, (11) WCI 318017800 Contact Us For Availability
29
Bumper, base WCI 318147412 Contact Us For Availability
29
Spacer, hinge pin, upper/lower WCI 318141800 Contact Us For Availability
30
Insulation, oven door WCI 318285016 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
35
Bushing WCI 318146301 Contact Us For Availability
39
Handle, door WCI 318039803 Contact Us For Availability
39
Handle, door, stainless steel, oven WCI 318039801 Contact Us For Availability
39A
Handle, door, small oven WCI 318039802 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44C
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
45
Bushing, black WCI 318146211 Contact Us For Availability
46
Box, burner WCI 318077006 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
54
Screw, 10 x 1/2 WCI 5303317975 Contact Us For Availability
61
Toeplate WCI 318107700 Contact Us For Availability
63
Hinge, door, lwr small oven, lower WCI 318024508 Contact Us For Availability
63A
Hinge, door, upr small oven WCI 318024509 Contact Us For Availability
65
Strike, door WCI 318090220 Contact Us For Availability
66A#
Element, broil, small oven WCI 318255700 Contact Us For Availability
69
Seal, small oven door WCI 318053110 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
89
Motor, latch assy, w/brkt & switch WCI 318095954 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
98
Grate, WOK WCI 316241400 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
136
Bracket, box WCI 318180301 Contact Us For Availability
139
Bracket, filler WCI 318042900 Contact Us For Availability
140
Plate, insul retainer WCI 318071300 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005201 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
170
Anti-tip bracket WCI 5304405241 Contact Us For Availability
177
Gasket, vent WCI 318053810 Contact Us For Availability
191
Angle, rear plenum, (2) WCI 318322800 Contact Us For Availability
193A
Plug, button WCI 5303321106 Contact Us For Availability
217
Label, anti-tip WCI 316221000 Contact Us For Availability
219#
Thermostat, safety WCI 318003600 Contact Us For Availability
260
Bracket, gusset support WCI 318055500 Contact Us For Availability
261
Pan, broiler, small oven WCI 08014183 Contact Us For Availability
262
Channel, oven support, front WCI 08011954 Contact Us For Availability
272
Tube, protector WCI 318249400 Contact Us For Availability
× ![]()
