Model Kenmore 790.75503203 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

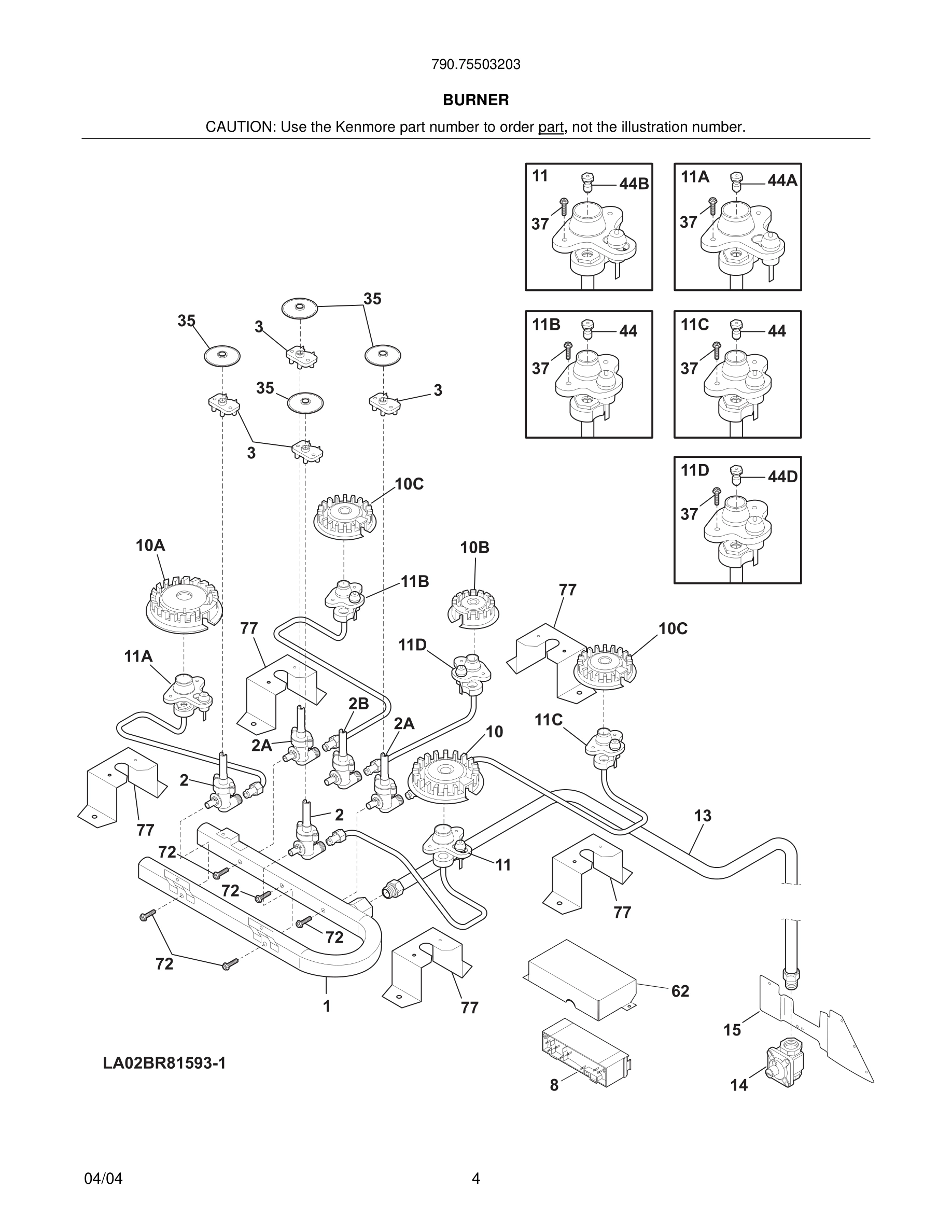

05 - BURNER

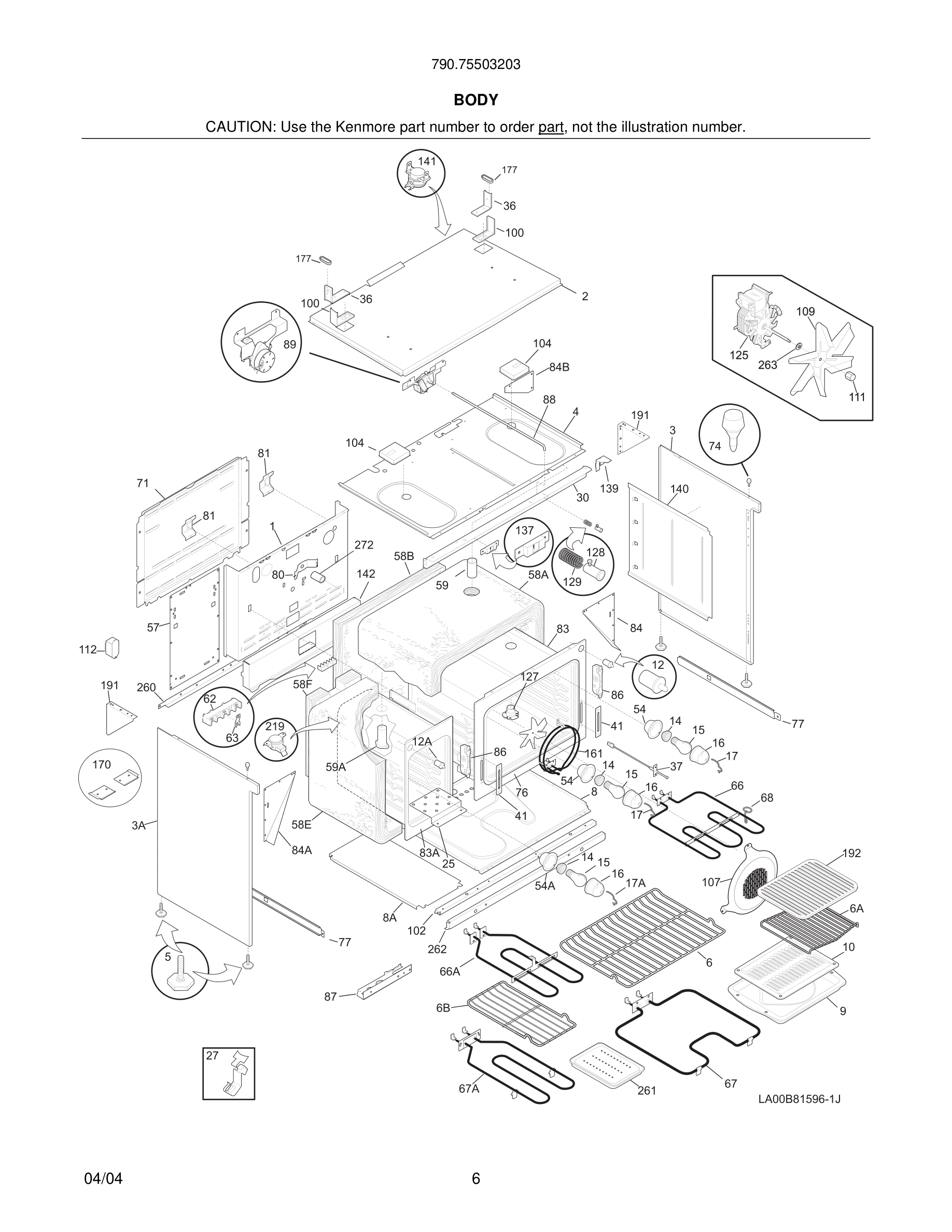

07 - BODY
09 - BODY

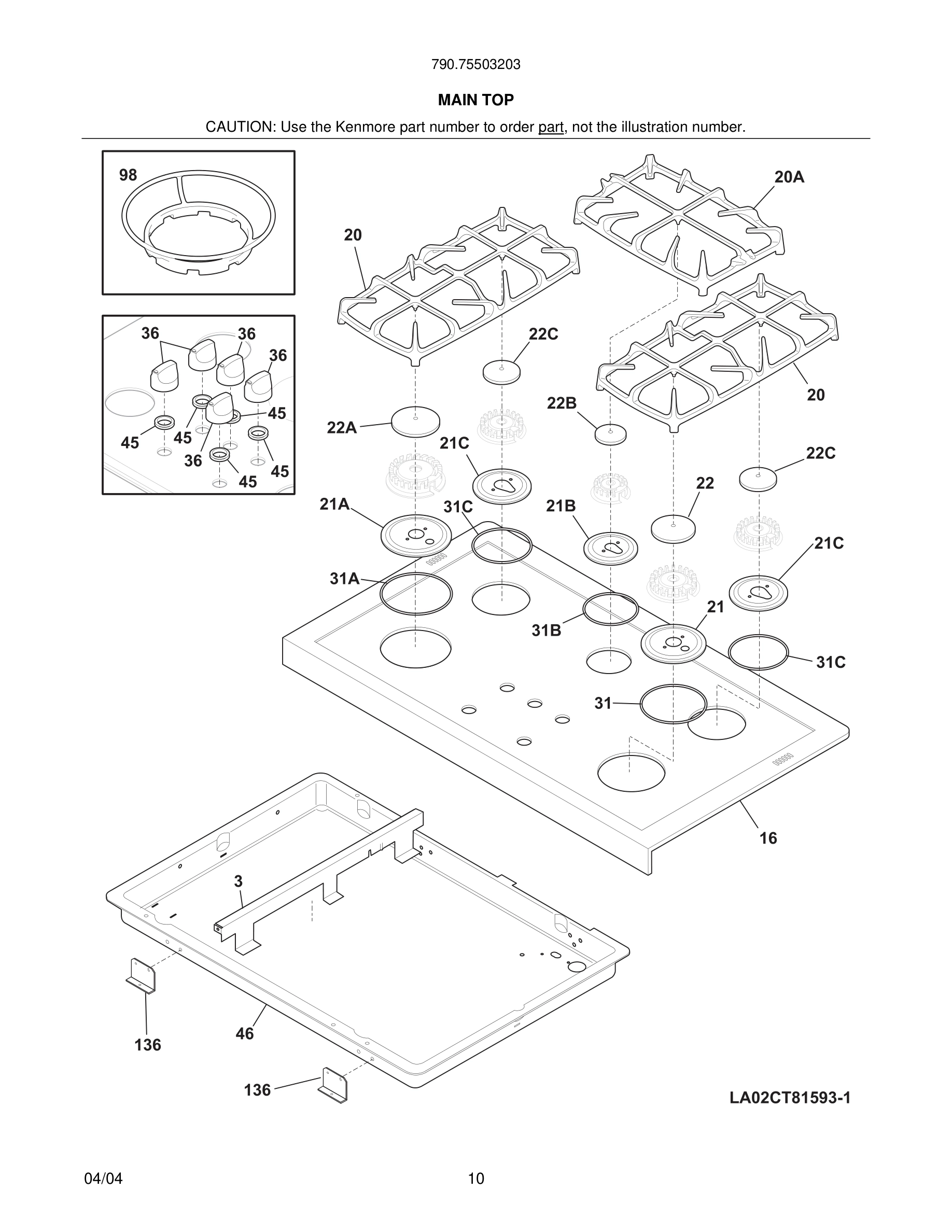

11 - MAIN TOP

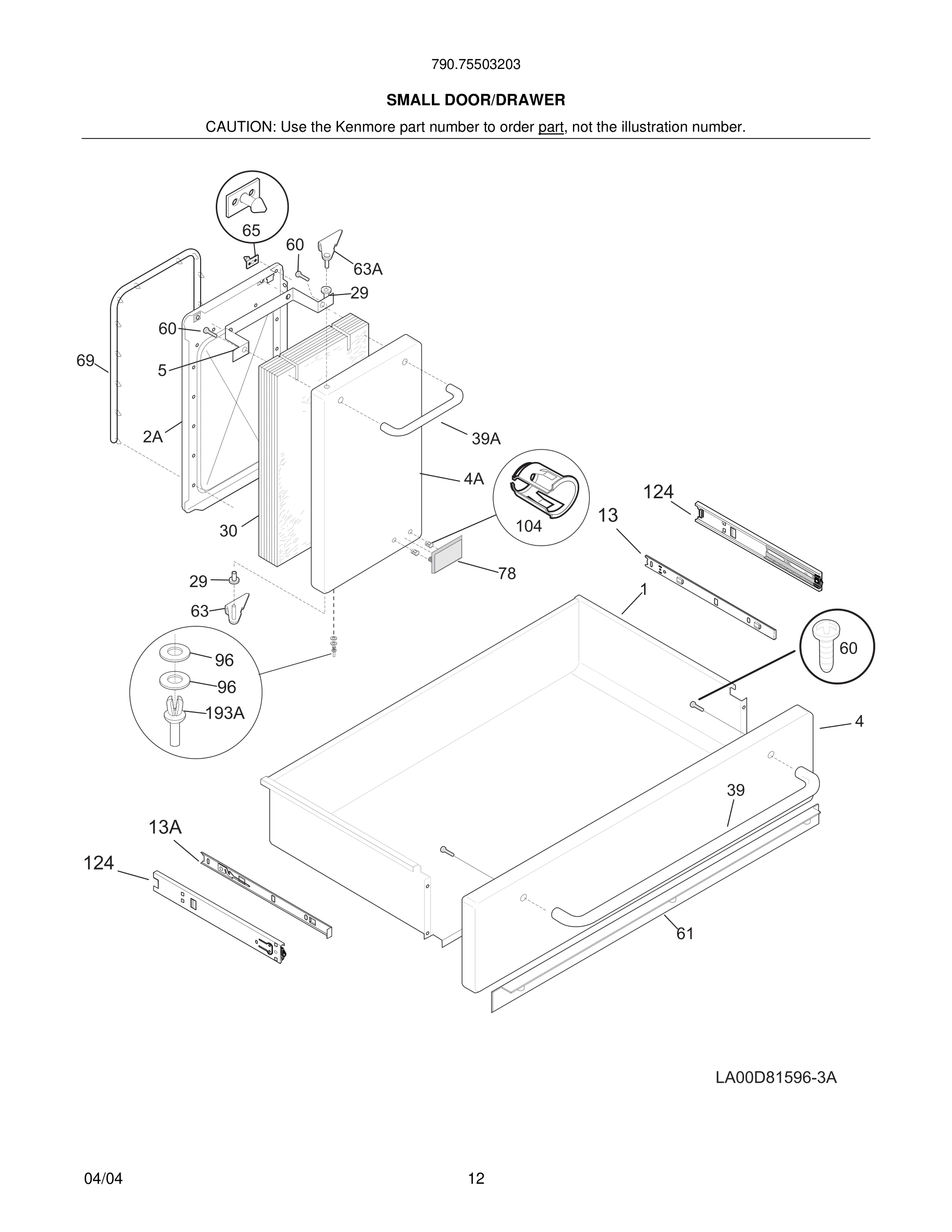

13 - SMALL DOOR / DRAWER

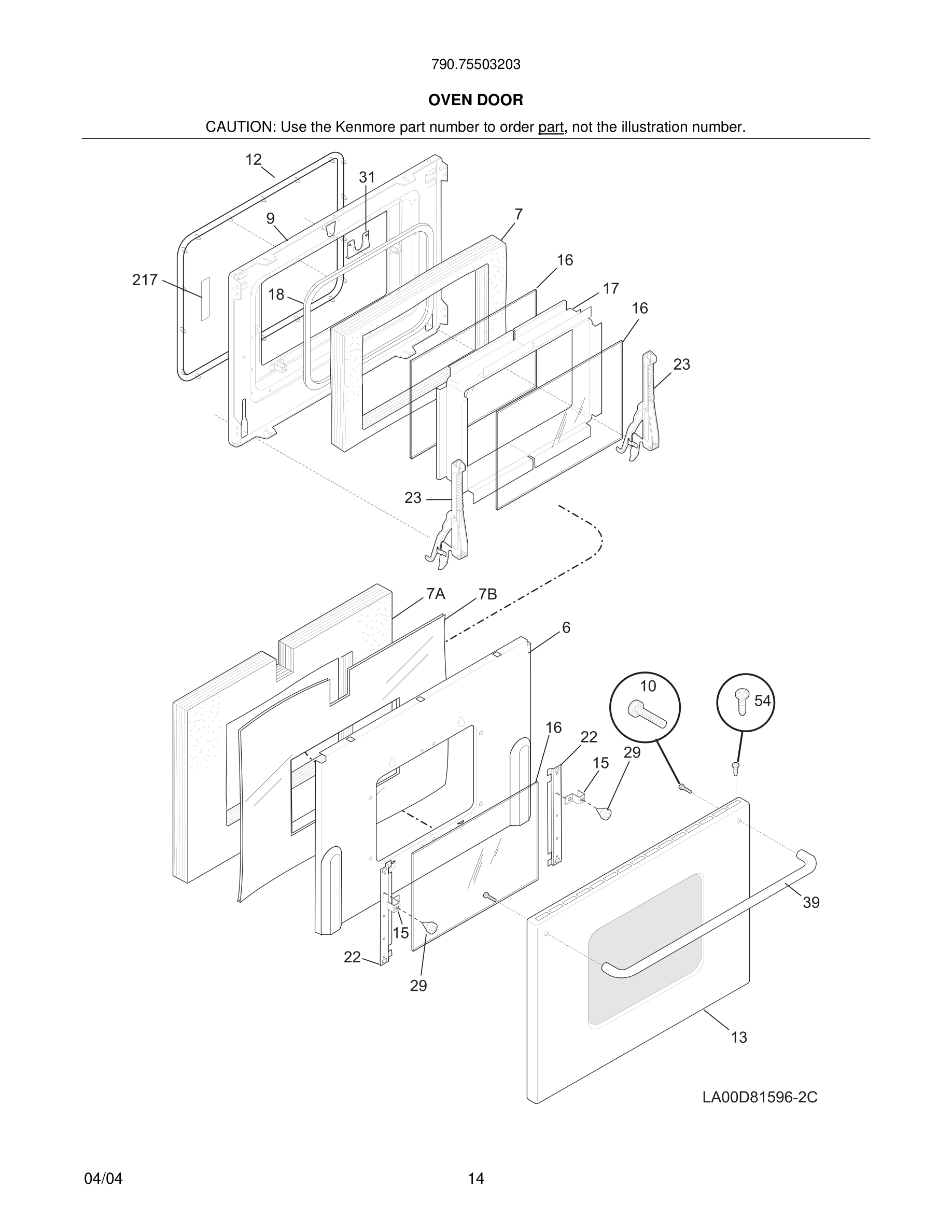

15 - OVEN DOOR

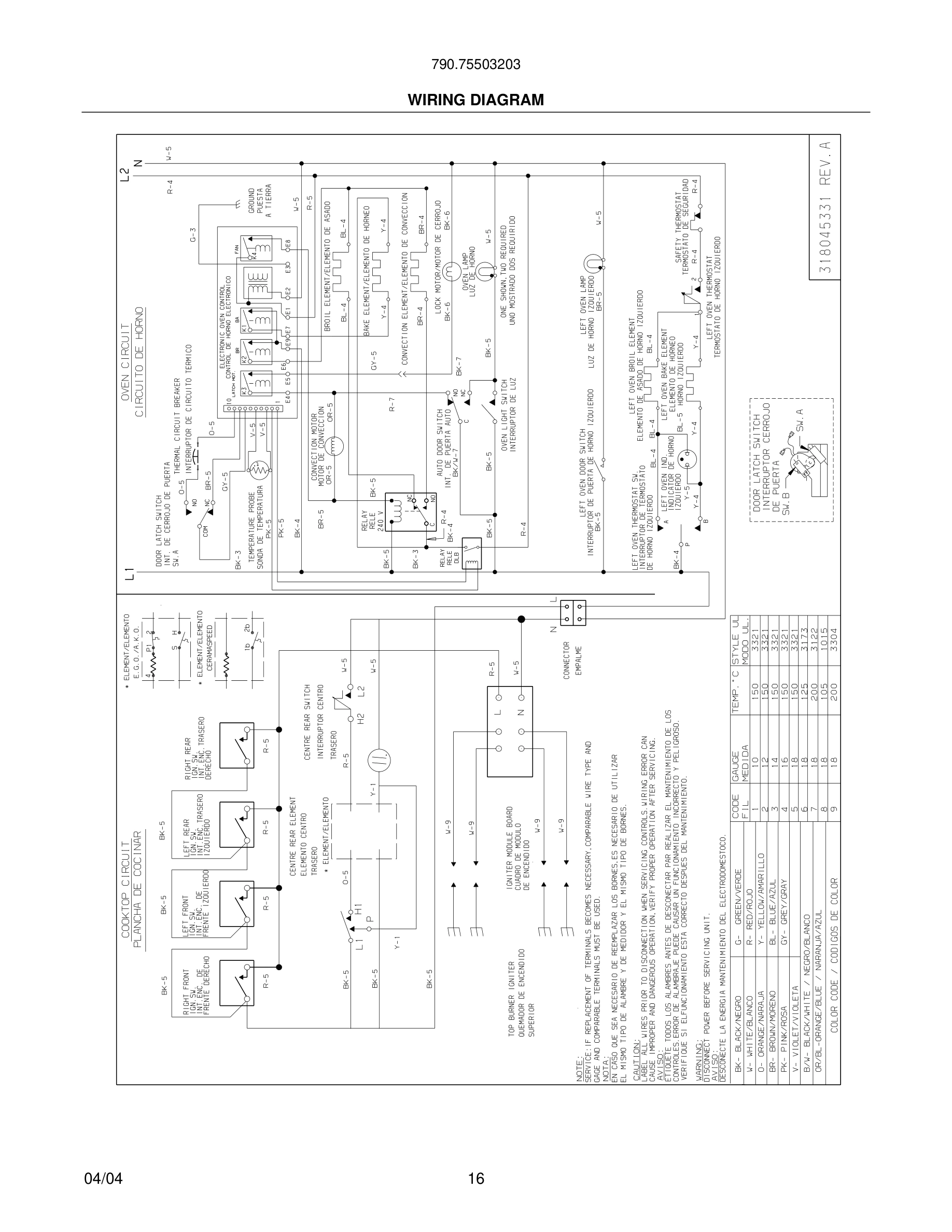

16 - WIRING DIAGRAM
Common parts from model Kenmore 790.75503203 RANGE
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, grate WCI 316119700 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Washer, flat, steel WCI 318086002 Contact Us For Availability
*#
Relay, convection, oven light, (1) WCI 318111501 Contact Us For Availability
1
Drawer, utility WCI 3202108 Contact Us For Availability
2#
Valve, burner, 1800 BTU WCI 318087315 Contact Us For Availability
2A
Liner, inner door, small oven WCI 318048221 Contact Us For Availability
2A#
Valve, burner, 1200 BTU WCI 318087314 Contact Us For Availability
2A*
Baffle, small door WCI 318229000 Contact Us For Availability
2B#
Valve, burner, 675 BTU WCI 318087313 Contact Us For Availability
3
Support WCI 318171401 Contact Us For Availability
4
Panel, drawer WCI 318158220 Contact Us For Availability
4A
Panel, oven door, stainless, small WCI 318009317 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
5
Spacer, door handle WCI 318014510 Contact Us For Availability
6
Shield, insulation, door WCI 318057020 Contact Us For Availability
7
Insulation, oven door WCI 318133774 Contact Us For Availability
7A
Insulation, oven door, cavity WCI 318133773 Contact Us For Availability
7B
Insulation, w/aluminum foil WCI 318106029 Contact Us For Availability
9
Door, inner WCI 318156911 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
11#
Ignitor/orifice assy., top burner, right fron WCI 316224600 Contact Us For Availability
12A#
Switch, oven light, sm door frame WCI 5301314211 Contact Us For Availability
13
Connector, manifold tube WCI 318054507 Contact Us For Availability
13
Stainless Panel, oven door, w/ glass WCI 318187921 Contact Us For Availability
14#
Regulator, pressure WCI 318122700 Contact Us For Availability
15
Stiffener, glass WCI 318172904 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Maintop, glass & frame WCI 318159630 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Seal, window WCI 318053001 Contact Us For Availability
20
Grate, black WCI 316249700 Contact Us For Availability
20A
Grate, center WCI 318221100 Contact Us For Availability
21
Skirt, 14K burner, black WCI 316241601 Contact Us For Availability
21A
Skirt, 12K burner, black WCI 316241701 Contact Us For Availability
21B
Skirt, 5K burner, black WCI 316241901 Contact Us For Availability
21C
Skirt, 9.5K burner, black WCI 316241801 Contact Us For Availability
22
Cap, 14K burner, black WCI 316242700 Contact Us For Availability
22
Bar, glass retainer WCI 5303310511 Contact Us For Availability
22A
Cap, 12K burner, black WCI 316242800 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206500 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316242900 Contact Us For Availability
23
Hinge, oven door WCI 318024700 Contact Us For Availability
28A
Shaft, push button, black, (11), clock/timer/ WCI 316080600 No Longer Available
29
Knob, clock, black, (11) WCI 318017800 Contact Us For Availability
29
Spacer, hinge pin, upper/lower WCI 318141800 Contact Us For Availability
29
Bumper, base WCI 318147410 Contact Us For Availability
30
Insulation, small oven door WCI 318133786 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
32A
Knob, control, graphite WCI 318164902 Contact Us For Availability
39
Handle, door WCI 318039803 Contact Us For Availability
39
Handle, door, stainless steel, oven WCI 318039801 Contact Us For Availability
39A
Handle, door, small oven WCI 318039802 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44B
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44C
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
45
Bushing WCI 318146210 Contact Us For Availability
46
Box, burner WCI 318077006 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
54
Screw, 10 x 1/2 WCI 5303317975 Contact Us For Availability
58B
Insulation, oven back WCI 318133785 Contact Us For Availability
61
Toeplate WCI 318107700 Contact Us For Availability
63
Hinge, door, lwr small oven, lower WCI 318024508 Contact Us For Availability
63A
Hinge, door, upr small oven WCI 318024509 Contact Us For Availability
65
Strike, door WCI 318090220 Contact Us For Availability
66A#
Element, broil, small oven WCI 318255700 Contact Us For Availability
69
Seal, small oven door WCI 318053110 Contact Us For Availability
78
Nameplate, Kenmore WCI 318194000 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
98
Grate, WOK WCI 316241400 Contact Us For Availability
100
flue conduit inf. WCI 318182011 Contact Us For Availability
102
Channel, oven support, black WCI 318111901 Contact Us For Availability
104
Adapter, flue WCI 318182212 Contact Us For Availability
104
Clip WCI 5303325631 Contact Us For Availability
107
Cover, fan WCI 318219401 Contact Us For Availability
109
Blade, fan WCI 5303311203 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
136
Bracket, box WCI 318180301 Contact Us For Availability
139
Bracket, filler WCI 318042900 Contact Us For Availability
140
Plate, insul retainer WCI 318071300 Contact Us For Availability
141#
Switch, thermal cutout WCI 318005201 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
170
Anti-tip bracket WCI 5304405241 Contact Us For Availability
177
Gasket, vent WCI 318053810 Contact Us For Availability
191
Bracket, angle, corner WCI 5303304030 Contact Us For Availability
193A
Plug, button WCI 5303321106 Contact Us For Availability
217
Label, anti-tip WCI 316221000 Contact Us For Availability
219#
Thermostat, safety WCI 318003600 Contact Us For Availability
260
Bracket, gusset support WCI 318055500 Contact Us For Availability
261
Pan, broiler, small oven WCI 08014183 Contact Us For Availability
262
Channel, oven support, front WCI 08011954 Contact Us For Availability
272
Tube, protector WCI 318249400 Contact Us For Availability
× ![]()
