Model Kenmore 790.75403501 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

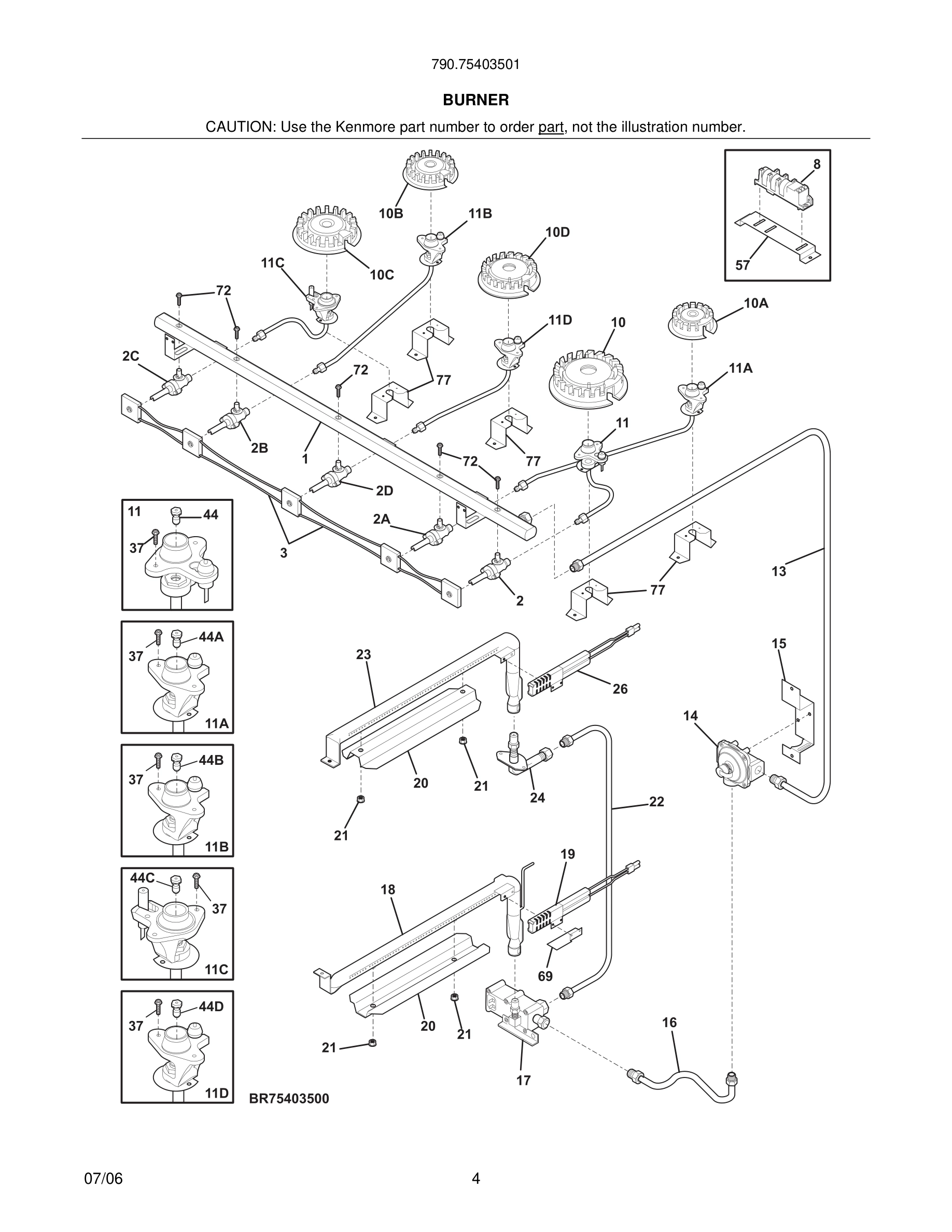

05 - BURNER

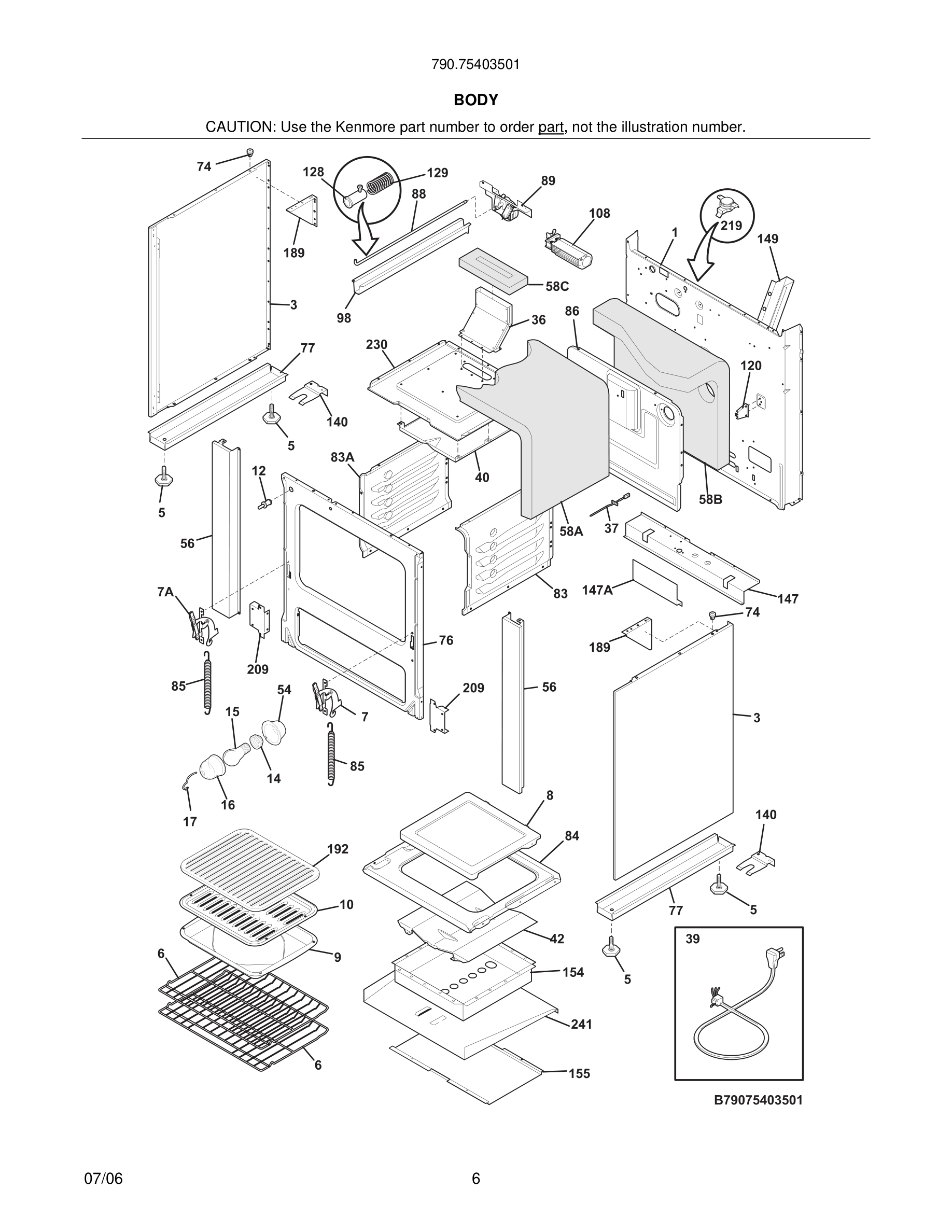

07 - BODY

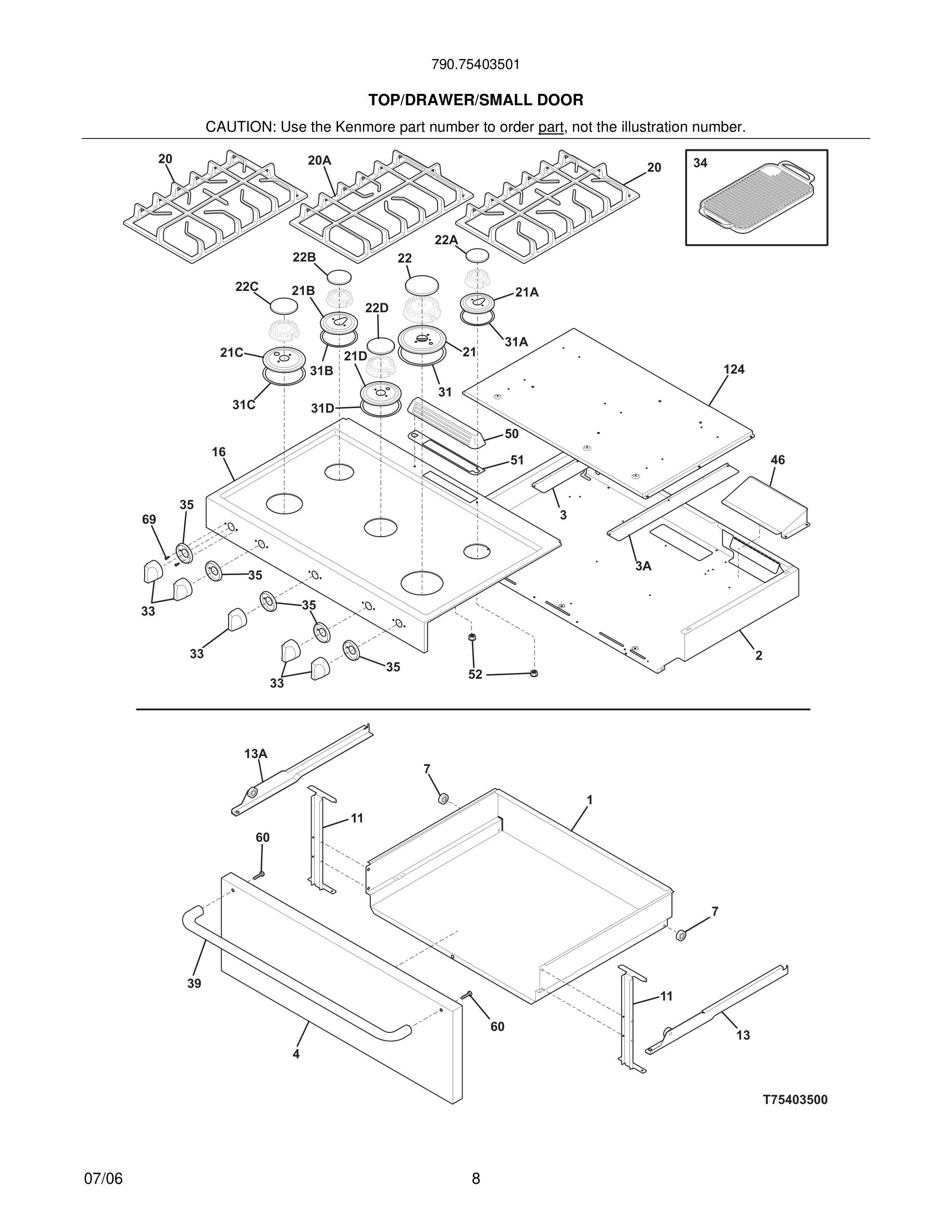

09 - TOP / DRAWER / SMALL DOOR

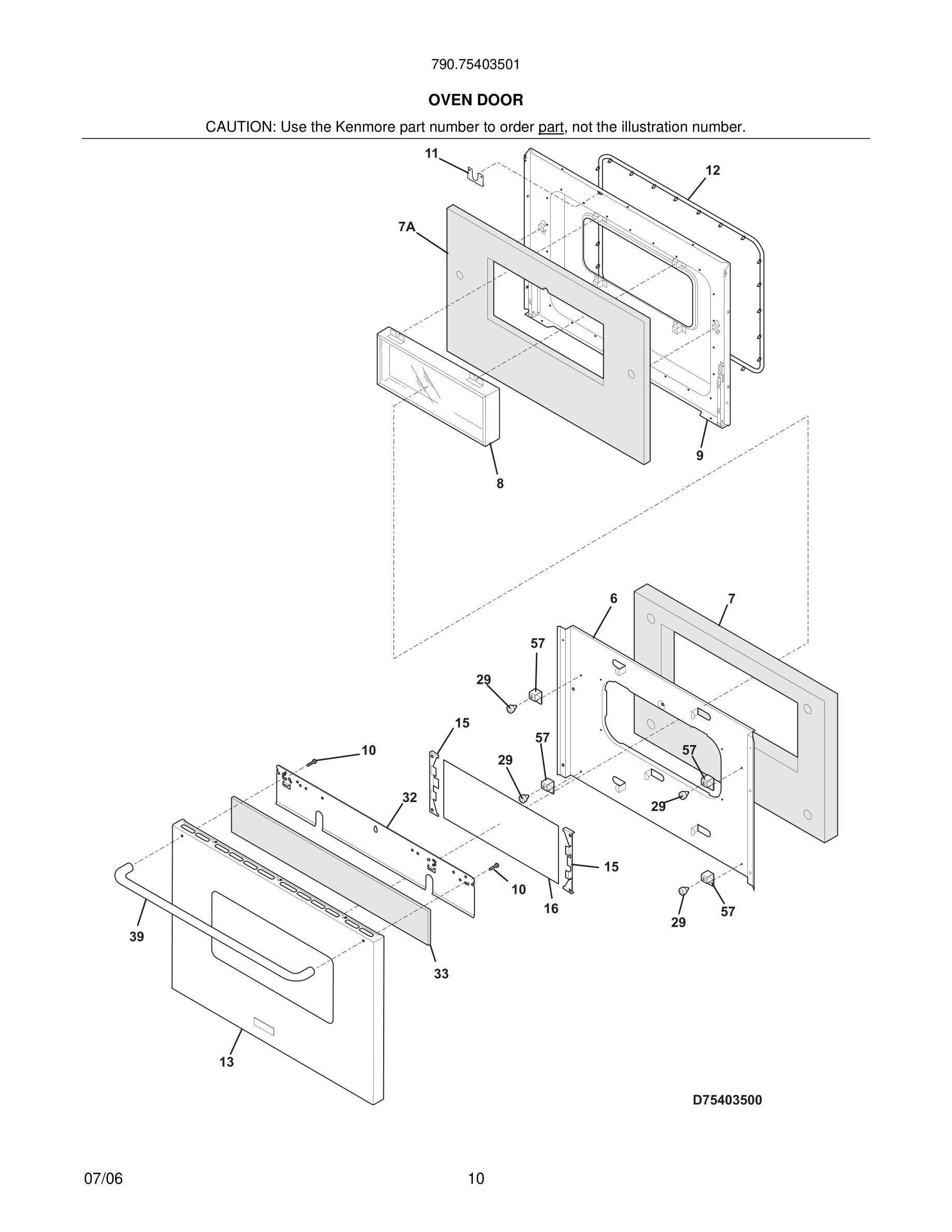

11 - OVEN DOOR

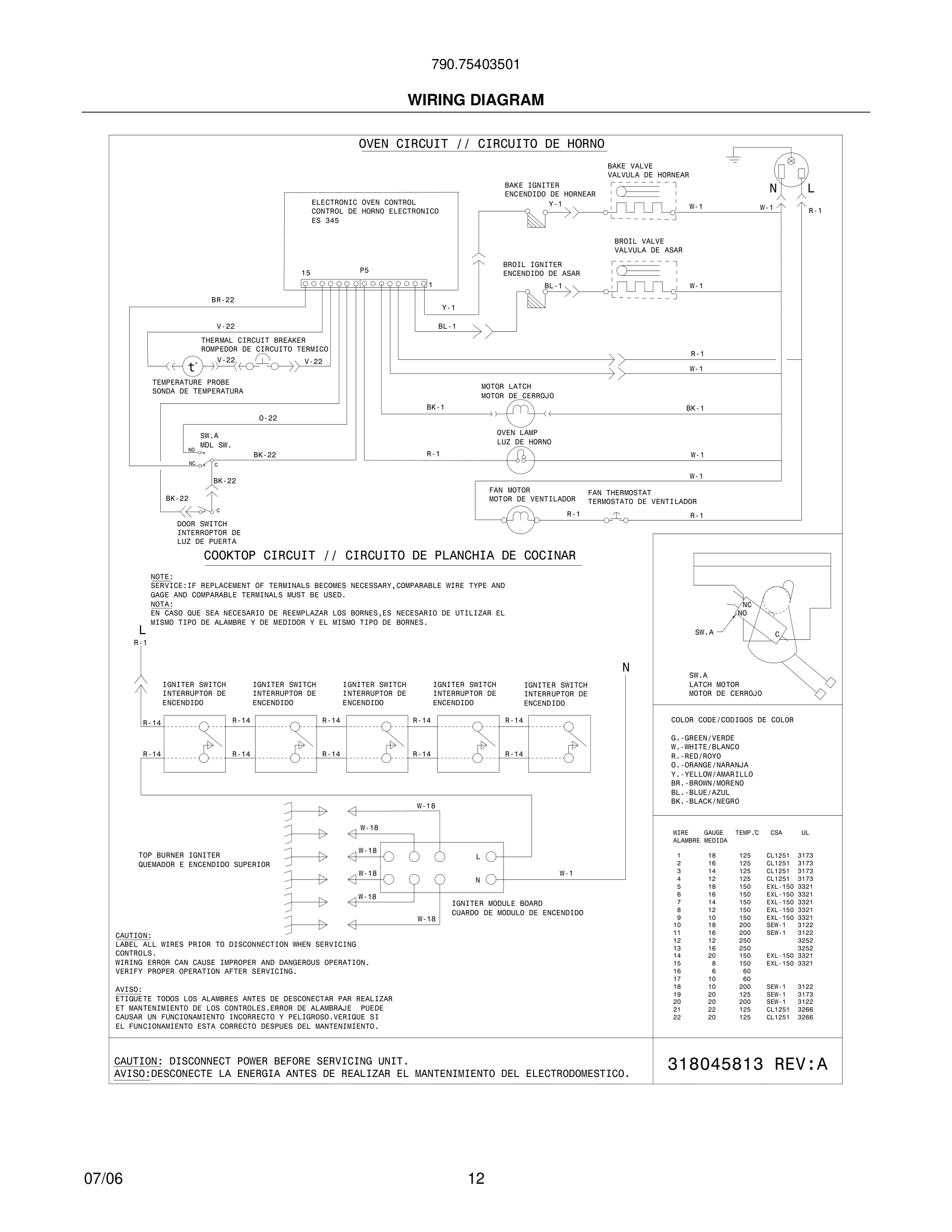

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.75403501 RANGE
*
Screw, shoulder WCI 3051050 Contact Us For Availability
*
Label, anti-tip WCI 316221000 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, 10 x 3/8 WCI 5303131801 Contact Us For Availability
2#
Valve, top burner, 17K WCI 318234021 Contact Us For Availability
2A#
Valve, top burner, 5K WCI 318234025 Contact Us For Availability
2B#
Valve, top burner, 9.5K WCI 318234024 Contact Us For Availability
2C#
Valve, top burner, 14K WCI 318234022 Contact Us For Availability
2D#
Valve, top burner, 12K WCI 318234023 Contact Us For Availability
3
Divider, vent box, side WCI 318336100 Contact Us For Availability
3A
Divider, vent box, center WCI 318336200 Contact Us For Availability
4
Panel, drawer, stainless, outer WCI 318315100 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Shield, insullation, door WCI 318319601 Contact Us For Availability
7
Hinge Assy, RH WCI 318348800 Contact Us For Availability
7
Insulation, oven door WCI 318285082 Contact Us For Availability
7A
Insullation, door WCI 318294908 Contact Us For Availability
8
Glass, oven door, inner WCI 5303271567 Contact Us For Availability
8
Panel, oven bottom, insert WCI 318135500 Contact Us For Availability
9
Panel, door, inner WCI 318157211 Contact Us For Availability
10#
Burner, sealed, 16/17K WCI 316223300 Contact Us For Availability
10C#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
10D#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
11
Bracket, Drawer Panel, (2) WCI 318316000 Contact Us For Availability
11A#
Ignitor/orifice assy., top burner, right rear WCI 318221351 Contact Us For Availability
11B#
Ignitor/orifice assy., top burner, left rear, WCI 318221352 Contact Us For Availability
11C#
Ignitor/orifice assy., top burner, left front WCI 318221354 Contact Us For Availability
11D#
Ignitor/orifice assy., top burner, center, 12 WCI 318221353 Contact Us For Availability
13
Channel, drawer, RH WCI 5303051055 Contact Us For Availability
13
Door Assmebly, stainless, w/glass WCI 318344000 Contact Us For Availability
13A
Channel, drawer, LH WCI 5303051056 Contact Us For Availability
15
Bracket, glass mtg WCI 318122100 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318041610 Contact Us For Availability
16
Main Top Assy, glass, black WCI 318185210 Contact Us For Availability
17#
Valve, safety WCI 316031400 Contact Us For Availability
18#
Burner, oven WCI 5303311544 Contact Us For Availability
19
Control Panel Assembly, stainless, w/touch pa WCI 318343900 Contact Us For Availability
20
Grate, black, (2) WCI 318221641 Contact Us For Availability
20A
Grate, black, center WCI 318221758 Contact Us For Availability
21
Skirt, 16/17K burner, black WCI 316264803 Contact Us For Availability
21A
Skirt, 5K burner, black WCI 316241904 Contact Us For Availability
21B
Skirt, 9.5K burner, black, (2) WCI 316241804 Contact Us For Availability
21C
Skirt, 14K burner, black WCI 316264903 Contact Us For Availability
21D
Skirt, 12K burner, black WCI 316241704 Contact Us For Availability
22A
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
22B
Cap, 9.5K burner, black, (2) WCI 316213505 Contact Us For Availability
22C
Cap, 14K burner, black WCI 316219905 Contact Us For Availability
22D
Cap, 12K burner, black WCI 316213605 Contact Us For Availability
29
Bumper, base WCI 318147412 Contact Us For Availability
32
Panel, heat deflector, door handle WCI 318057202 Contact Us For Availability
33
Insullation, deflector, door WCI 318294910 Contact Us For Availability
34
Griddle WCI 318251610 Contact Us For Availability
35
Skirt, (5) WCI 318285615 Contact Us For Availability
36
Box, flue assy. WCI 318316100 Contact Us For Availability
39
Handle, door, stainless steel, oven WCI 318039801 Contact Us For Availability
44
Orifice, top burner, 17.2K WCI 316237909 Contact Us For Availability
44A
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
44C
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
46
Deflector, ventilation WCI 318336300 Contact Us For Availability
50
Deflector, flue WCI 318315900 Contact Us For Availability
51
Gasket, flue deflector WCI 318315300 Contact Us For Availability
52
Pushnut, flue deflector, (2) WCI 5304453933 Contact Us For Availability
57
Stiffener, glass WCI 318172902 Contact Us For Availability
76
Frame, oven, front WCI 318320801 Contact Us For Availability
77
Bracket, burner mtg, (4) WCI 318192606 Contact Us For Availability
83
Liner, oven, RH WCI 318134400 Contact Us For Availability
83A
Liner, oven, LH WCI 318134401 Contact Us For Availability
85*
Spring, oven door, (1) WCI 5303207651 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
124
Box, vent WCI 318336400 Contact Us For Availability
209
Support, rail WCI 5303286692 Contact Us For Availability
219#
Thermostat, safety, .945" mtg., 140/170 WCI 318003606 Contact Us For Availability
× ![]()
