Model Kenmore 790.73033316 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

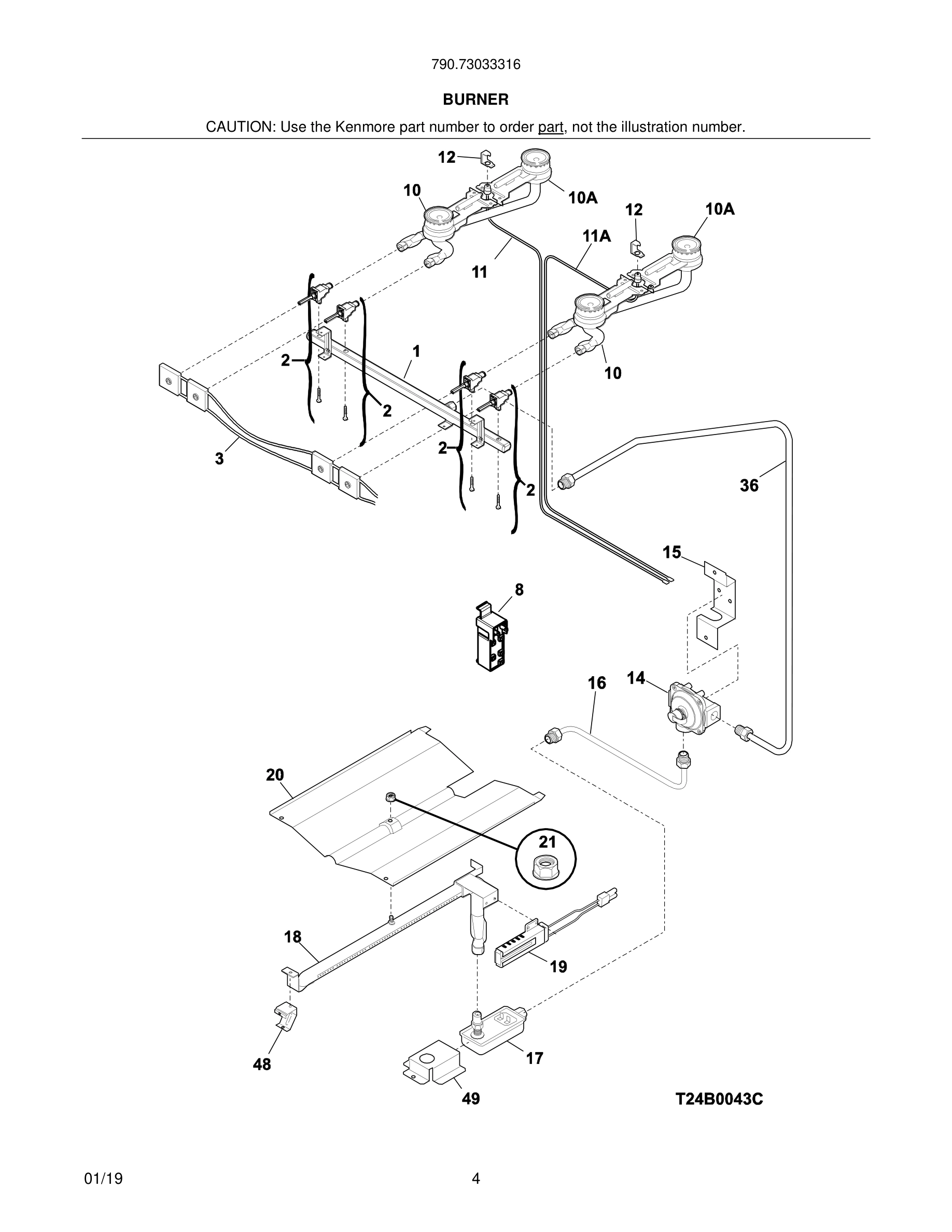

05 - BURNER

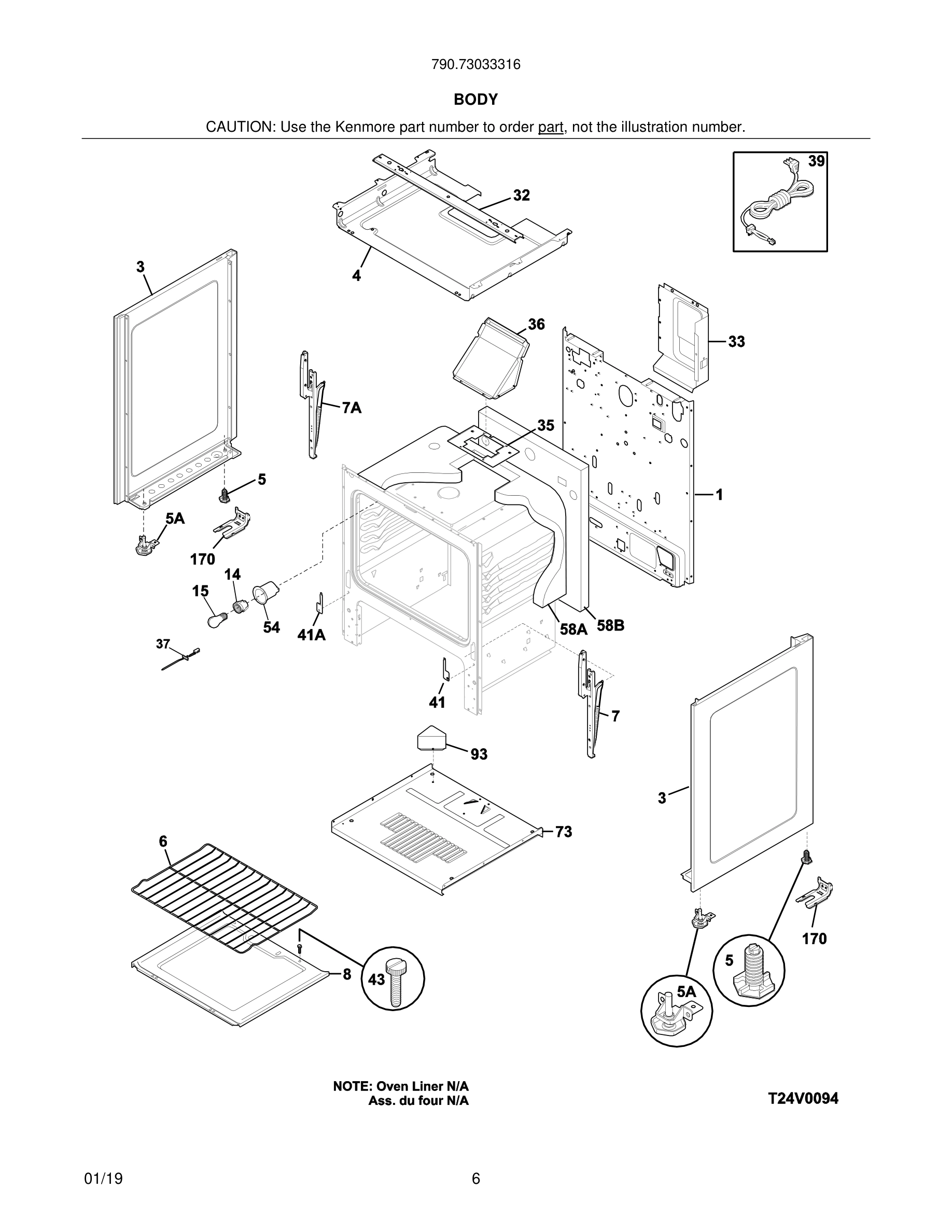

07 - BODY

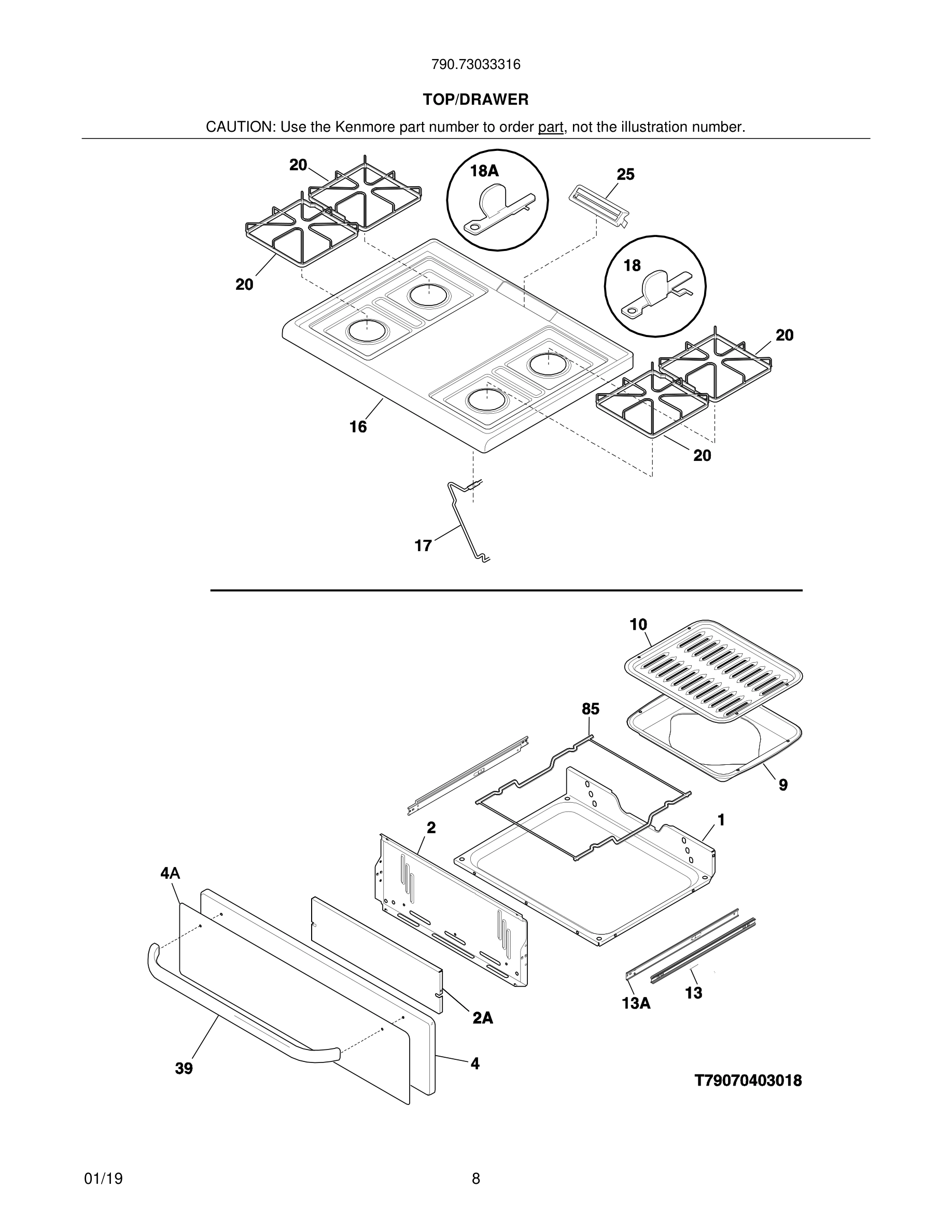

09 - TOP/DRAWER

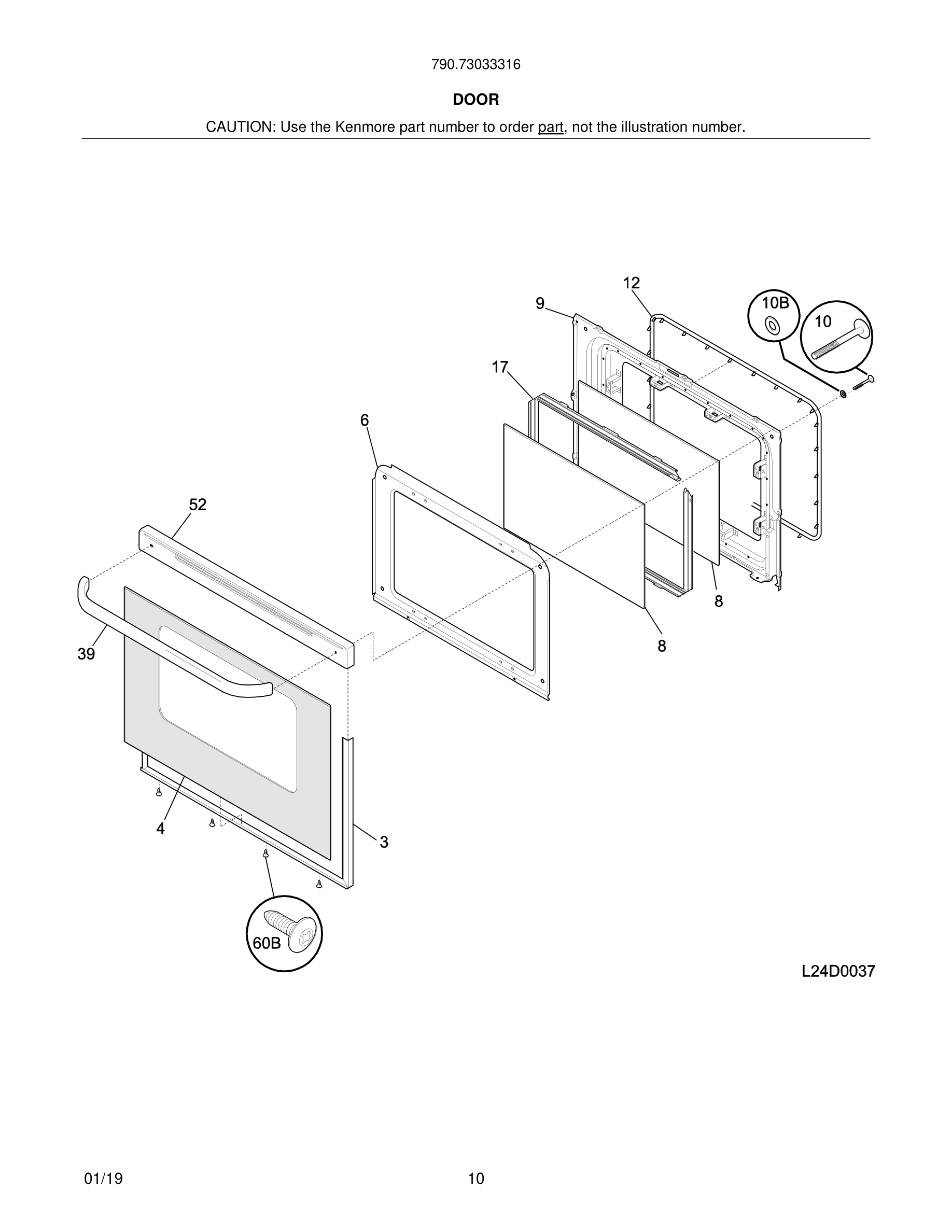

11 - DOOR
Common parts from model Kenmore 790.73033316 RANGE
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
1
Panel, main back WCI 316029419 Contact Us For Availability
1
Manifold WCI 5304506153 Contact Us For Availability
1
Carriage, low broil WCI 316110201 Contact Us For Availability
1
Shield, backguard, rear wall WCI 5303289640 Contact Us For Availability
2
Liner, low broil WCI 316236401 Contact Us For Availability
2A
Shield, broiler WCI 316541500 Contact Us For Availability
3
Trim kit-door, 3 sided, black, w/tape and foi WCI 5303935398 Contact Us For Availability
4
Drawer Panel, assy, stainless, w/ overlay WCI 316581603 Contact Us For Availability
8
Panel, oven bottom WCI 316495901 Contact Us For Availability
13
Glide, low broil, outer/RH & LH, (2) WCI 316111503 Contact Us For Availability
13A
Glide-Low Broil, Inner WCI 316534200 Contact Us For Availability
16
Main Top, black WCI 316273002 Contact Us For Availability
17
Rod, maintop support WCI 316066900 Contact Us For Availability
18A
Bracket, hinge, main top LH WCI 08067746 Contact Us For Availability
20
Baffle, oven burner WCI 316496001 Contact Us For Availability
23
Bracket, clock mtg, RH WCI 316263500 Contact Us For Availability
23A
Bracket, clock mtg, LH WCI 316263501 Contact Us For Availability
25
Cover, vent, chrome WCI 316104500 Contact Us For Availability
58A
Insulation, oven wrapper WCI 3017142 Contact Us For Availability
73
Base, low broil WCI 316109902 Contact Us For Availability
85
Rack, low broil WCI 316115600 Contact Us For Availability
× ![]()
