Model Kenmore 790.72863300 RANGE – Common Parts & Diagrams

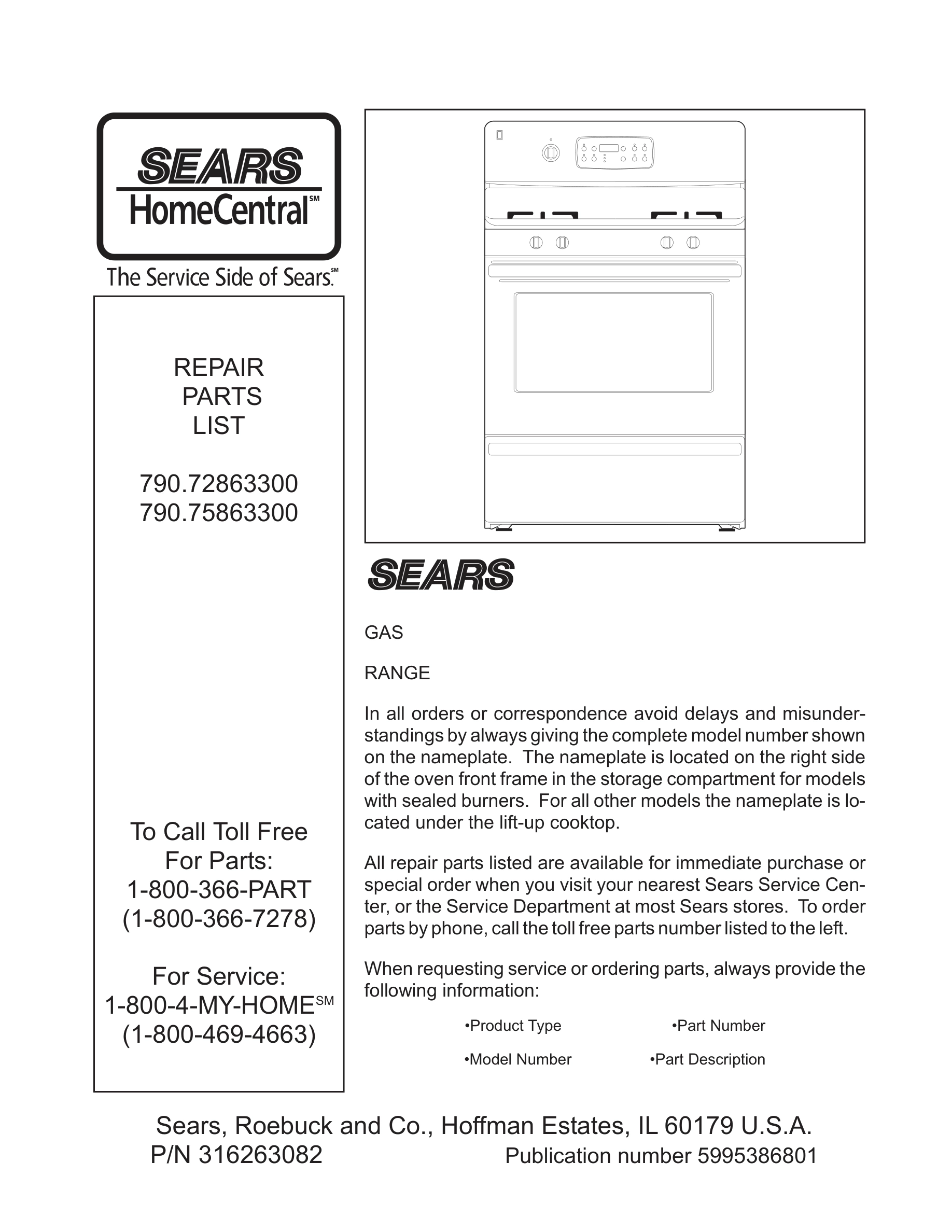

01 - COVER

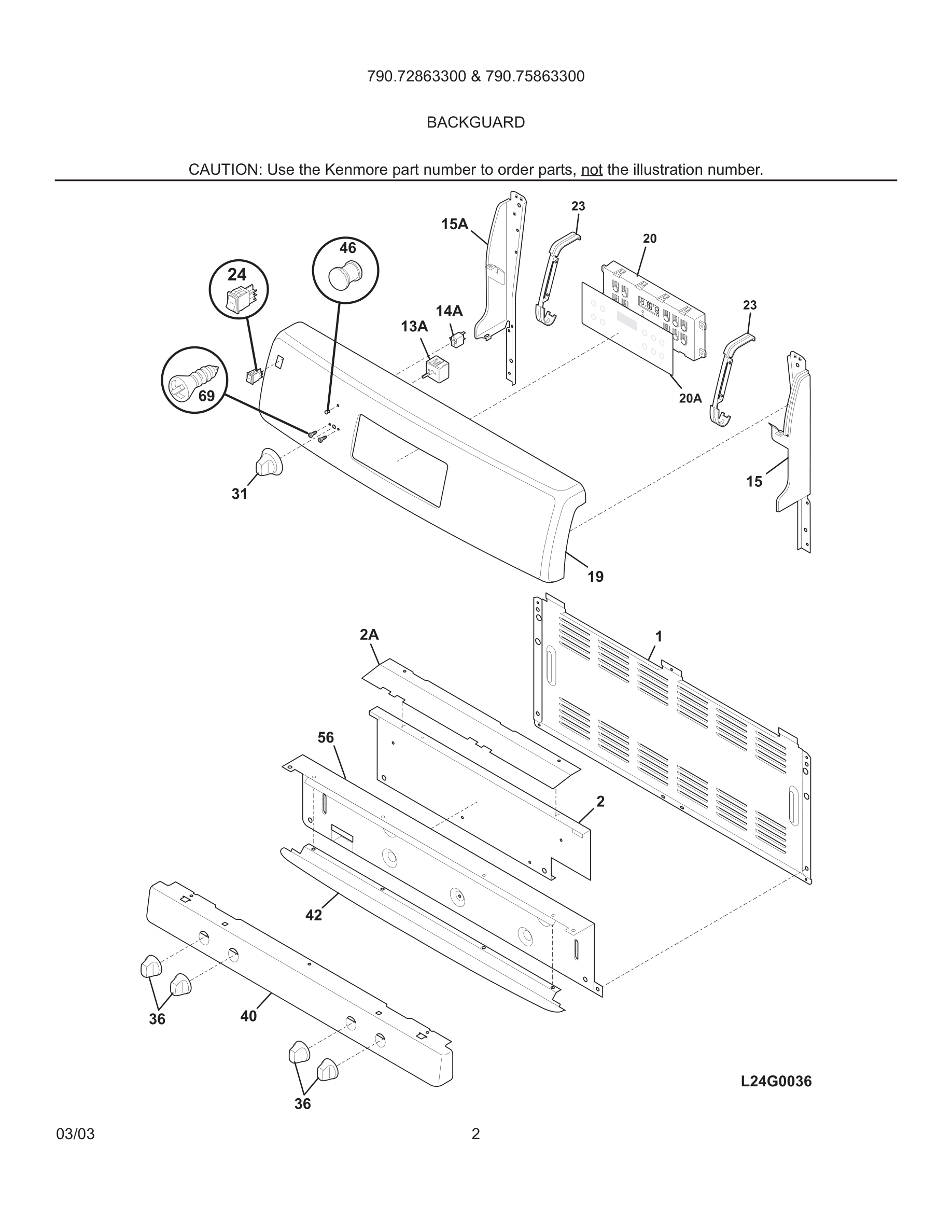

03 - BACKGUARD

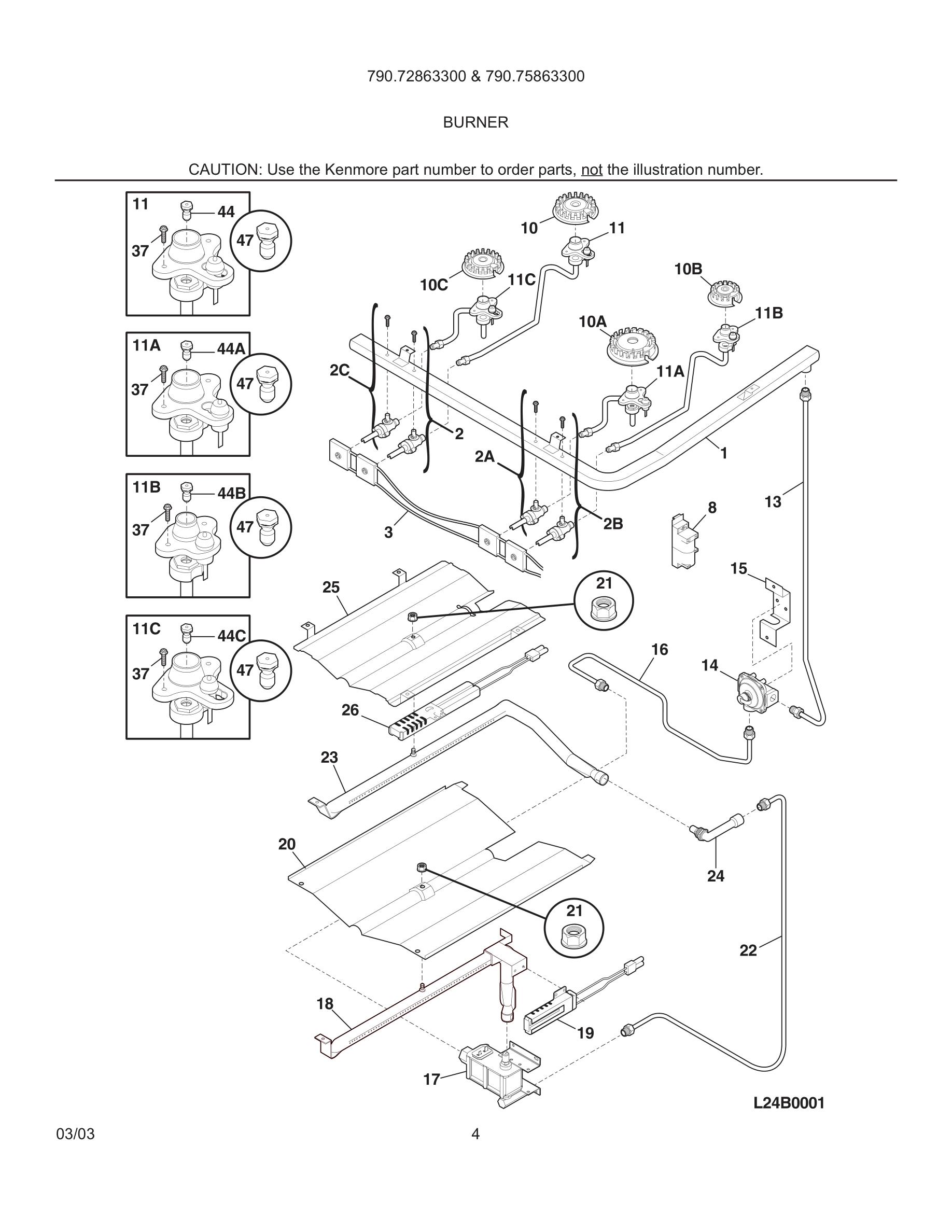

05 - BURNER

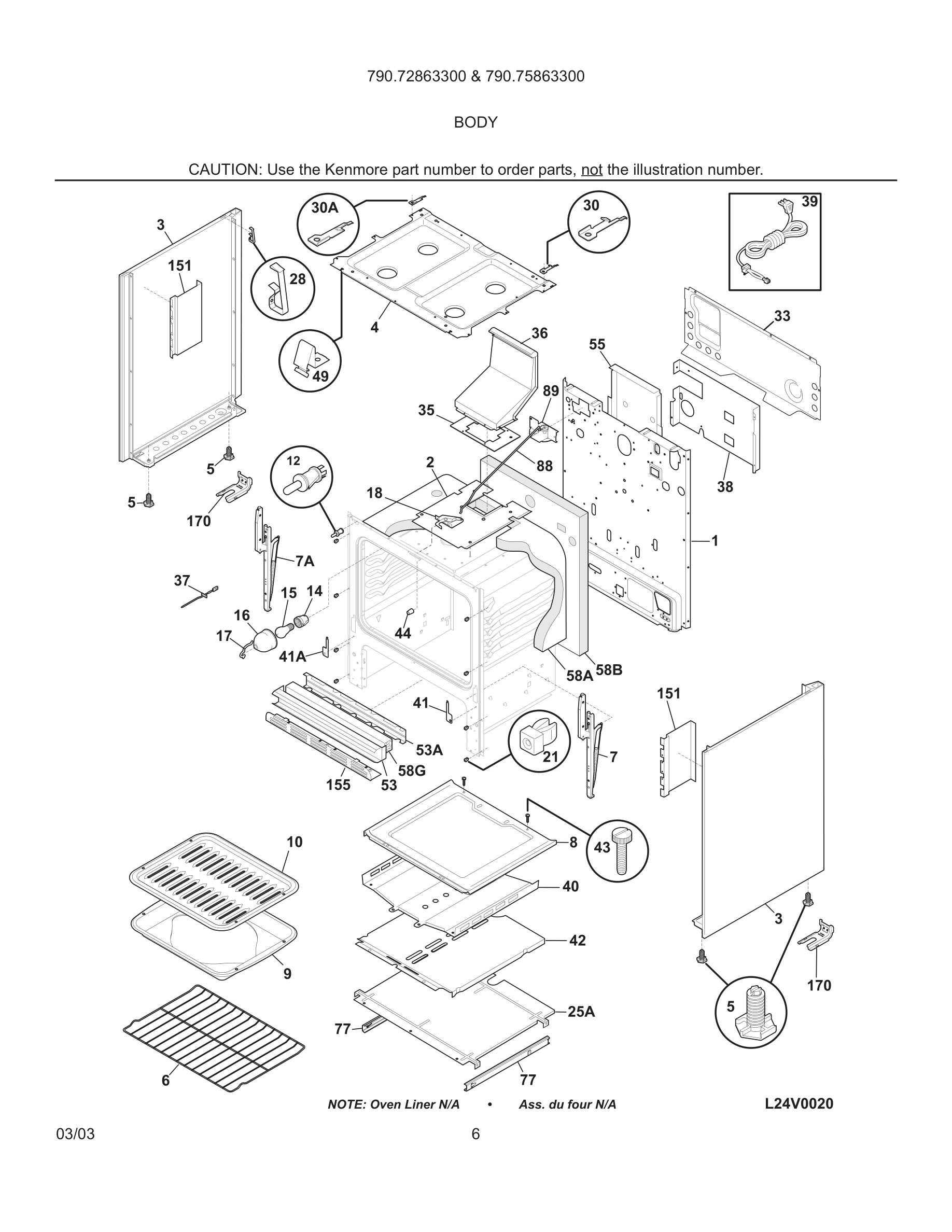

07 - BODY
09 - BODY

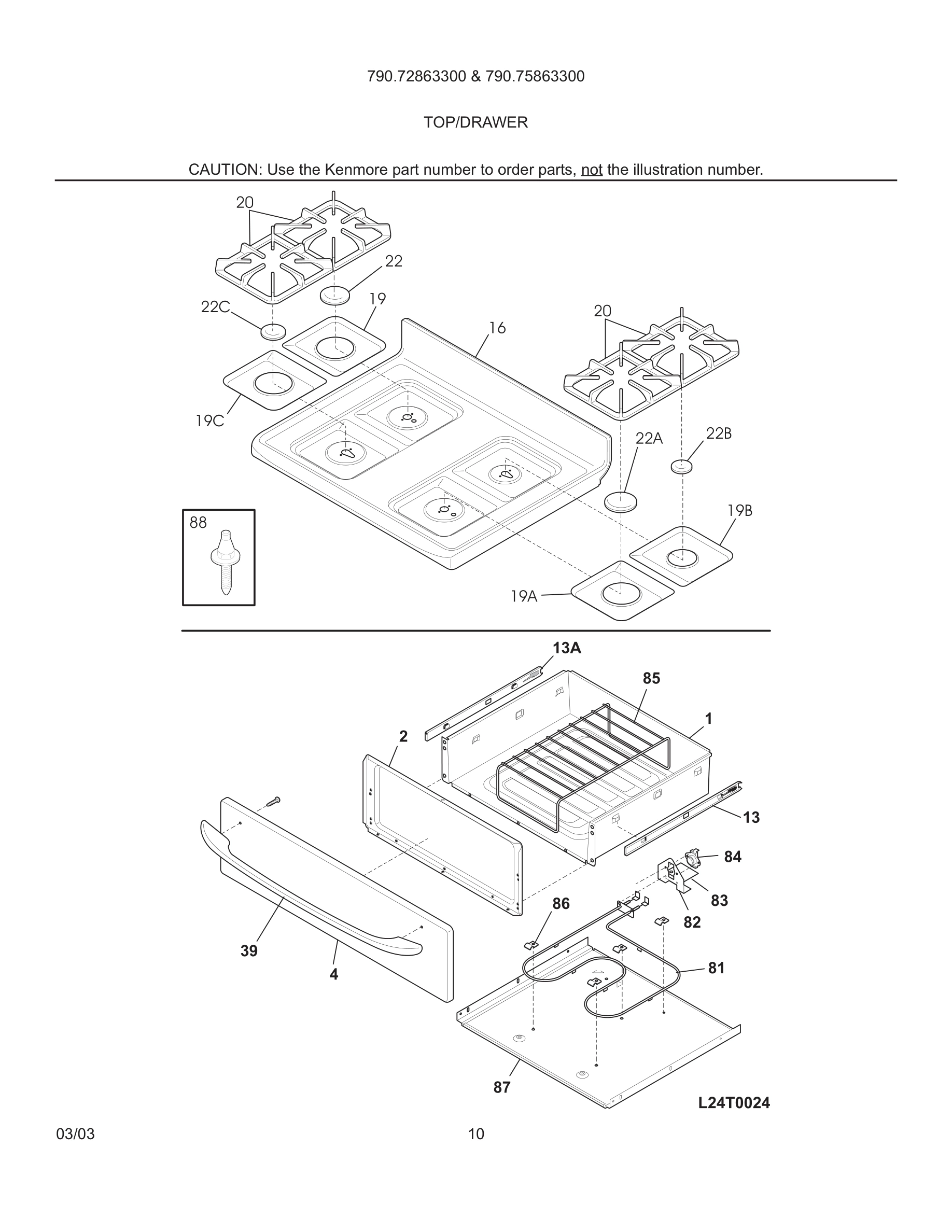

11 - TOP/DRAWER

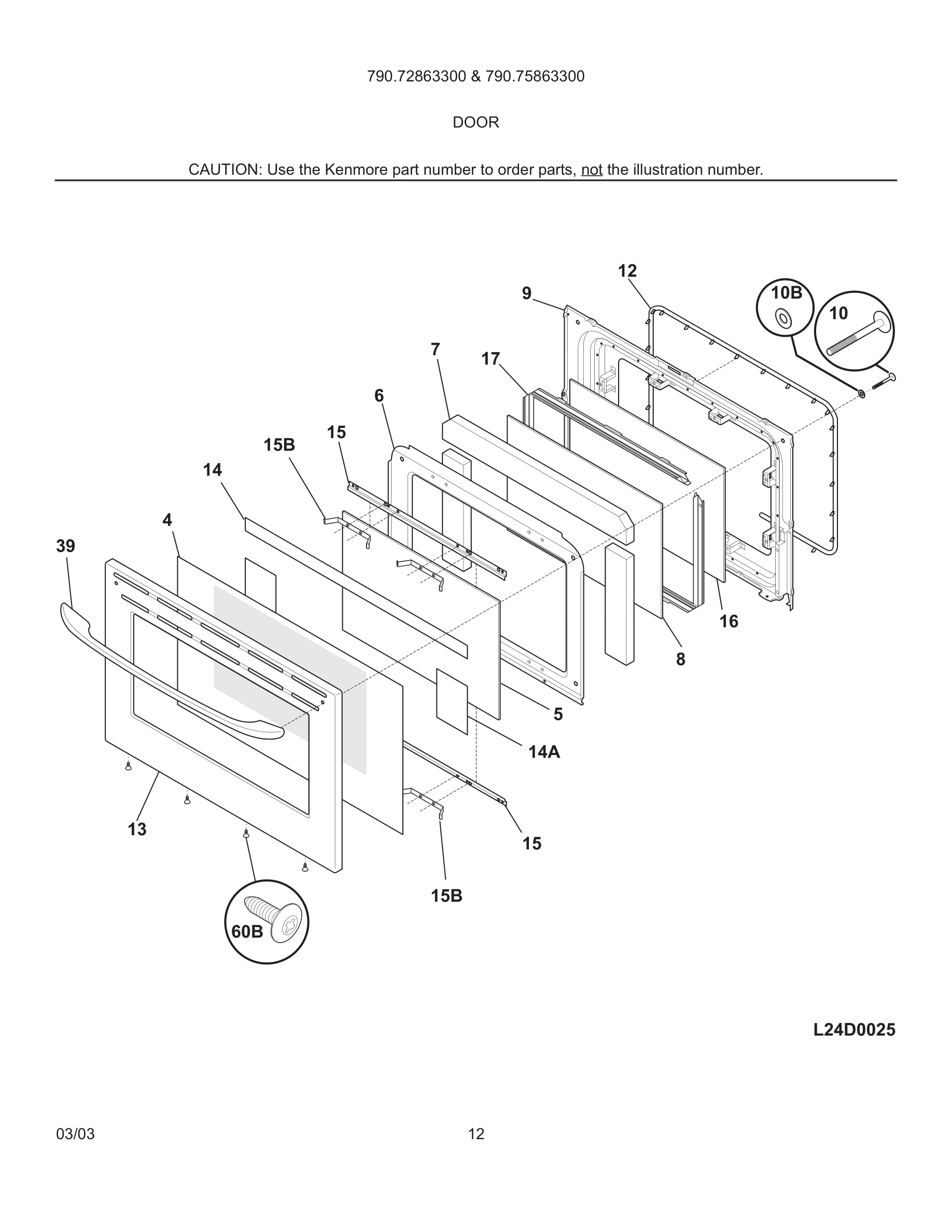

13 - DOOR

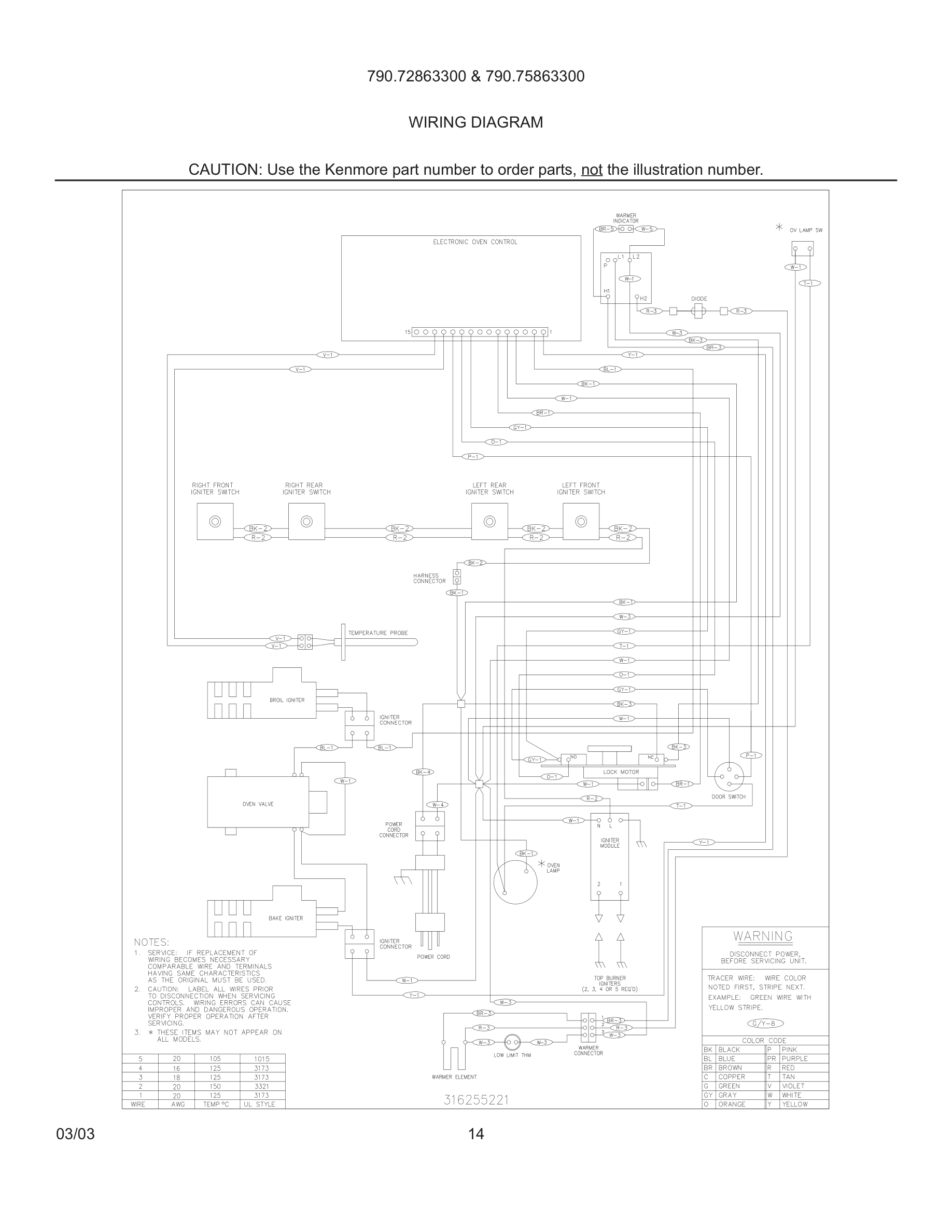

14 - WIRING DIAGRAM

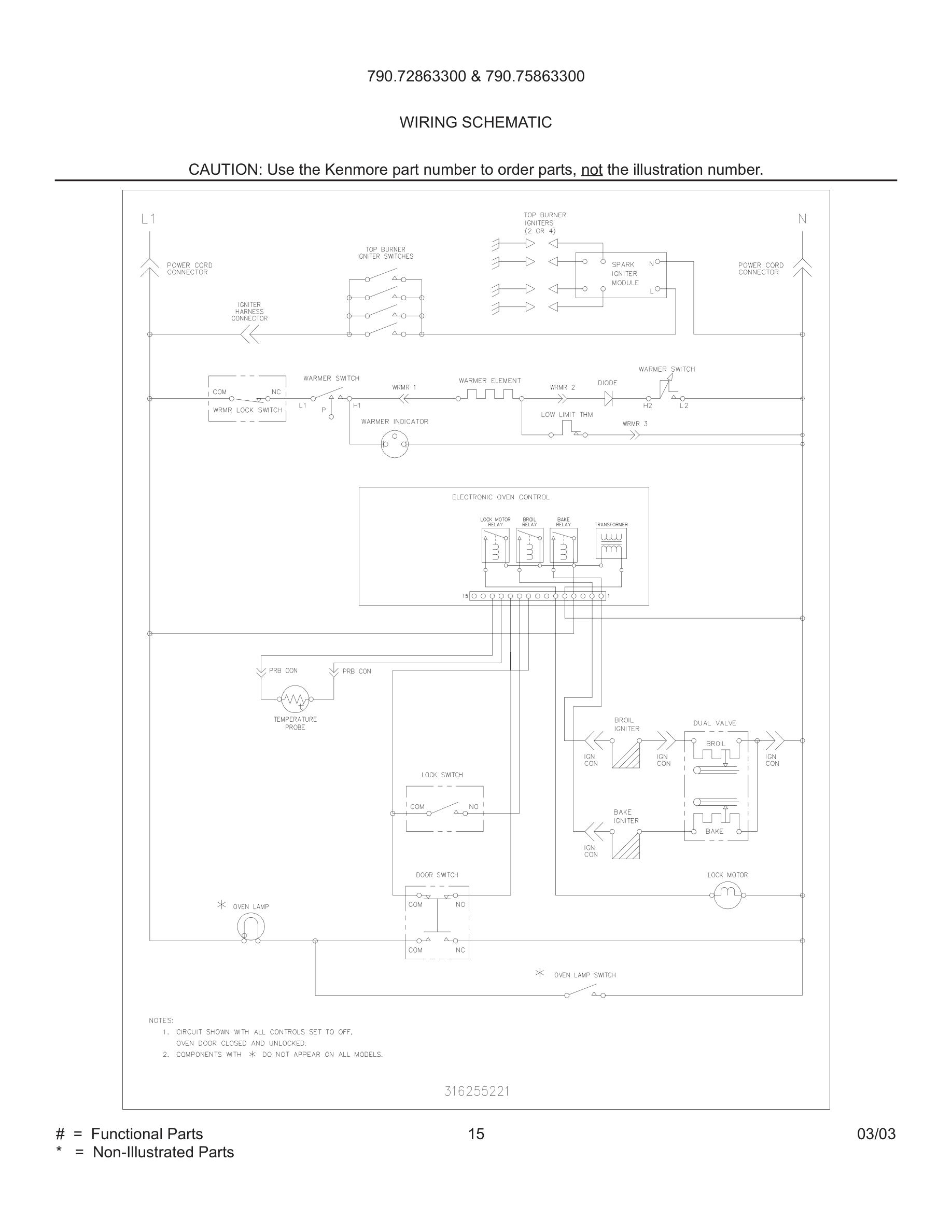

15 - WIRING SCHEMATIC
Common parts from model Kenmore 790.72863300 RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*#
Wiring Harness,ignitor module WCI 316253700 Contact Us For Availability
2#
Valve,12K top burner ,w/mtg screw WCI 5303935210 Contact Us For Availability
2A#
Valve,14K top burner ,w/mtg screw WCI 5303935211 Contact Us For Availability
2B#
Valve,5K top burner ,w/mtg screw WCI 5303935212 Contact Us For Availability
2C#
Valve,9.5K top burner ,w/mtg screw WCI 5303935213 Contact Us For Availability
4
Glass,oven door ,black ,outer WCI 316240000 Contact Us For Availability
5
Screw,leveling ,plastic ,with stop WCI 316129200 Contact Us For Availability
5
Glass,oven door ,air wash WCI 316237000 Contact Us For Availability
6
Shield,wool ,oven door WCI 316222707 Contact Us For Availability
7
Insulation,oven door WCI 316236700 Contact Us For Availability
7A
Hinge,oven door ,LH WCI 316216501 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
Liner,oven door WCI 316230605 Contact Us For Availability
10
Insert,broiler pan WCI 316082000 Contact Us For Availability
10
Screw,waf hd sq ,10-24 x 1.25 ,(2) ,handle mt WCI 316001015 Contact Us For Availability
10#
Burner,sealed ,12K WCI 316212300 Contact Us For Availability
11#
Ignitor/orifice assy.,top burner ,rear ,12K,w WCI 316237702 Contact Us For Availability
12#
Switch,oven light/door WCI 316209901 Contact Us For Availability
13
Glide,drawer ,RH inner WCI 316231700 Contact Us For Availability
13
Panel,oven door ,stainless ,outer WCI 316209401 Contact Us For Availability
13#
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316207000 Contact Us For Availability
13A
Glide,drawer ,LH inner WCI 316231701 Contact Us For Availability
15
Bracket,glass support ,(2) WCI 316237201 Contact Us For Availability
15B
Bracket,glass support WCI 316085501 Contact Us For Availability
17
Spacer,door glass ,(2) WCI 316117701 Contact Us For Availability
18#
Latch,oven door WCI 316213900 Contact Us For Availability
19
Pan,burner ,black ,12K WCI 316202509 Contact Us For Availability
19A
Pan,burner ,black ,14K WCI 316202513 Contact Us For Availability
19B
Pan,burner ,black ,5K WCI 316202501 Contact Us For Availability
19C
Pan,burner ,black ,9.5K WCI 316202505 Contact Us For Availability
21
Spacer,bodyside WCI 3014099 Contact Us For Availability
22
Cap,12K burner ,black WCI 316213600 Contact Us For Availability
22#
Tube,valve to mixer WCI 316065002 Contact Us For Availability
22A
Cap,14K burner ,black WCI 316213700 Contact Us For Availability
22B
Cap,5K burner ,black WCI 316206600 Contact Us For Availability
23#
Burner,broiler WCI 08067935 Contact Us For Availability
30
Bracket,hinge ,RH ,main top WCI 316217700 Contact Us For Availability
31
Knob,warmer ,bisque WCI 316208105 Contact Us For Availability
39
Handle,door ,black WCI 316209701 Contact Us For Availability
41
Cover,hinge cutout ,RH WCI 316233400 Contact Us For Availability
44
Spacer,oven door WCI 316246500 Contact Us For Availability
44A
Orifice,top burner ,14K WCI 316237900 Contact Us For Availability
44B
Orifice,top burner ,5K WCI 316237903 Contact Us For Availability
84
Thermo disc,warmer drawer WCI 316093501 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Base,warmer drawer WCI 316091900 Contact Us For Availability
× ![]()
