Model Kenmore 790.72850300 RANGE – Common Parts & Diagrams

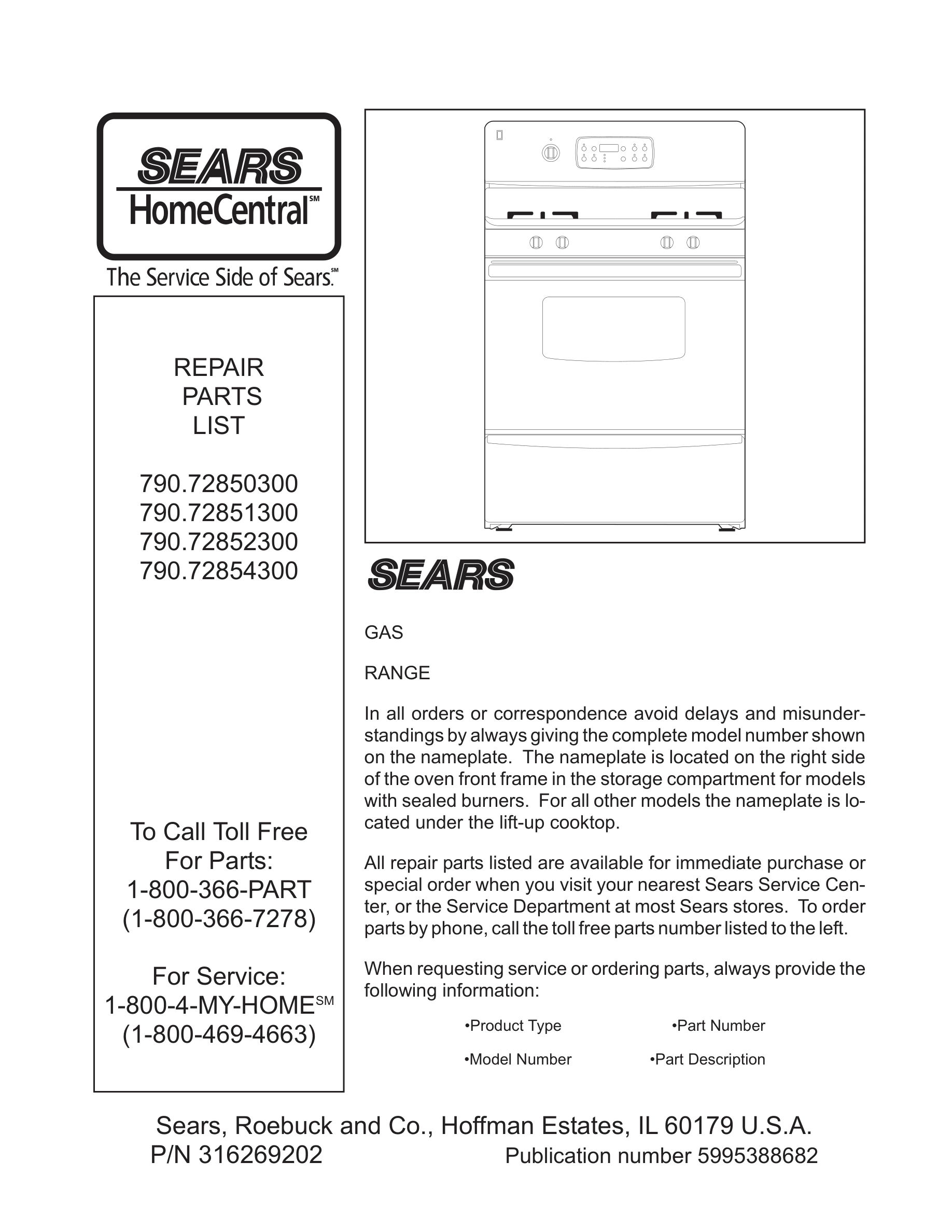

01 - COVER

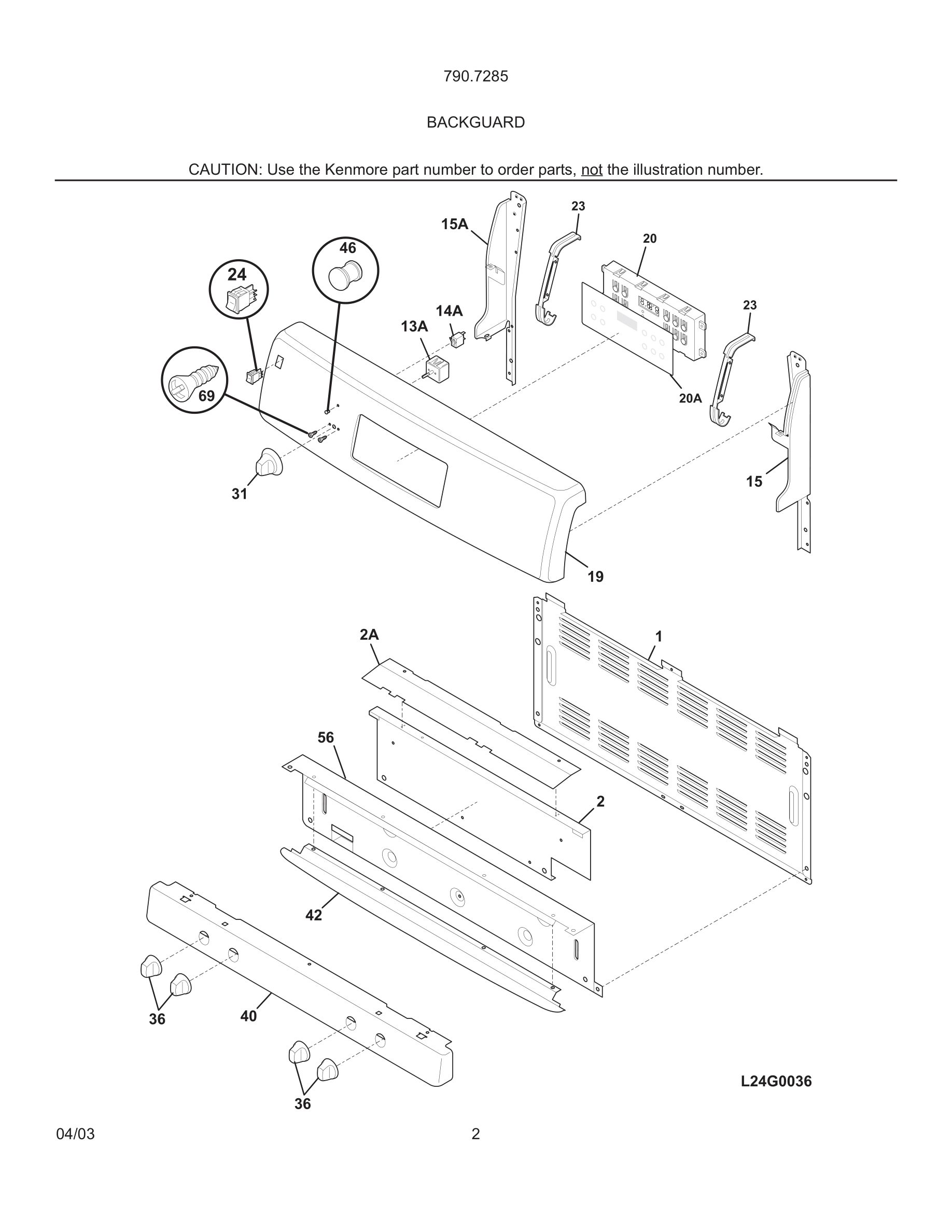

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - BODY
11 - TOP/DRAWER
13 - DOOR
14 - WIRING DIAGRAM
15 - WIRING SCHEMATIC
Common parts from model Kenmore 790.72850300 RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
*
Harness,warmer drawer WCI 316001917 Contact Us For Availability
*
Cleaner,grate WCI 316119700 Contact Us For Availability
*#
Wiring Harness,ignitor module WCI 316253700 Contact Us For Availability
1
Drawer,warmer WCI 316115901 Contact Us For Availability
2
Liner,drawer WCI 316231403 Contact Us For Availability
2#
Valve,12K top burner ,w/mtg screw WCI 5303935210 Contact Us For Availability
2C#
Valve,9.5K top burner ,w/mtg screw WCI 5303935213 Contact Us For Availability
3
Trim kit-door,3 sided ,black ,w/tape and foil WCI 5303935191 Contact Us For Availability
4
Panel,drawer ,black WCI 316231202 Contact Us For Availability
5
Screw,leveling ,plastic ,with stop WCI 316129200 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
6
Shield,wool ,oven door WCI 316222706 Contact Us For Availability
7
Insulation,oven door WCI 316236800 Contact Us For Availability
8
Glass,oven door ,inner WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
Liner,oven door WCI 316230604 Contact Us For Availability
10
Insert,broiler pan WCI 316082000 Contact Us For Availability
10#
Burner,sealed ,12K WCI 316212300 Contact Us For Availability
12#
Switch,oven light/door WCI 316209901 Contact Us For Availability
13
Glide,drawer ,RH inner WCI 316231700 Contact Us For Availability
13#
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316207000 Contact Us For Availability
13A
Glide,drawer ,LH inner WCI 316231701 Contact Us For Availability
14
Foil,2" x 19" ,aluminum ,clear WCI 316102211 Contact Us For Availability
15
Bracket,glass mtg WCI 316081403 Contact Us For Availability
16
Glass,oven door ,heat barrier WCI 316085701 Contact Us For Availability
16
Main Top,bisque WCI 316202334 Contact Us For Availability
18#
Latch,oven door WCI 316213900 Contact Us For Availability
21
Spacer,bodyside WCI 3014099 Contact Us For Availability
22
Cap,12K burner ,black WCI 316213600 Contact Us For Availability
22#
Tube,valve to mixer WCI 316065002 Contact Us For Availability
23#
Burner,broiler WCI 08067935 Contact Us For Availability
30
Bracket,hinge ,RH ,main top WCI 316217700 Contact Us For Availability
31
Knob,warmer ,black WCI 316208104 Contact Us For Availability
39
Handle,drawer ,black WCI 316235406 Contact Us For Availability
39
Handle,door ,black WCI 316209701 Contact Us For Availability
41
Cover,hinge cutout ,RH WCI 316233400 Contact Us For Availability
44
Spacer,oven door WCI 316246500 Contact Us For Availability
52
Cap,door trim ,black WCI 316201005 Contact Us For Availability
58A
Insulation,2" ,oven wrapper WCI 316047708 Contact Us For Availability
82
Bracket,element mtg WCI 316093200 Contact Us For Availability
83
Shield,terminal ,warmer drawer WCI 316093300 Contact Us For Availability
84
Thermo disc,warmer drawer WCI 316093501 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Base,warmer drawer WCI 316091900 Contact Us For Availability
× ![]()
