Model Electrolux 790.72114100 Gas Range (Kenmore 79072114100) – Common Parts & Diagrams

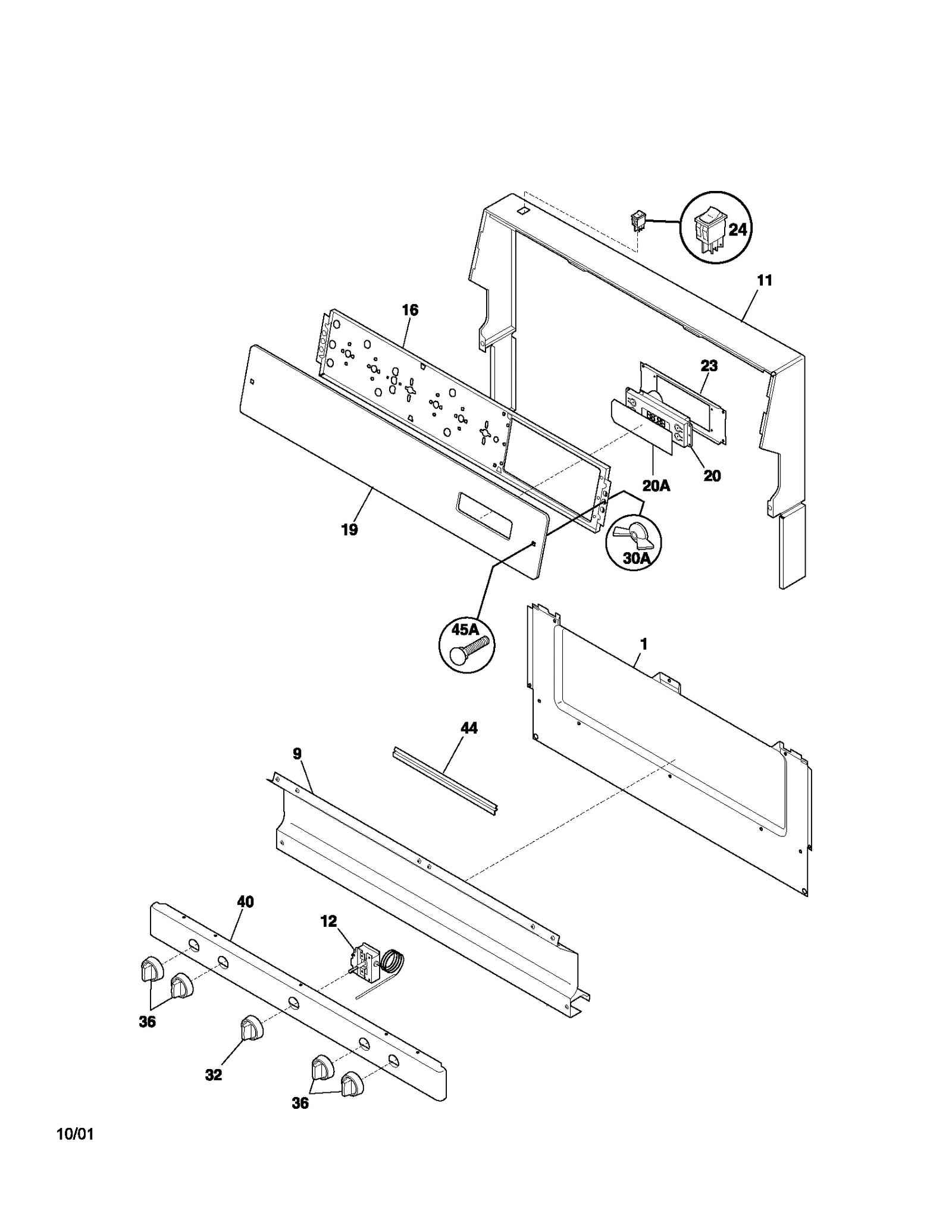

BACKGUARD

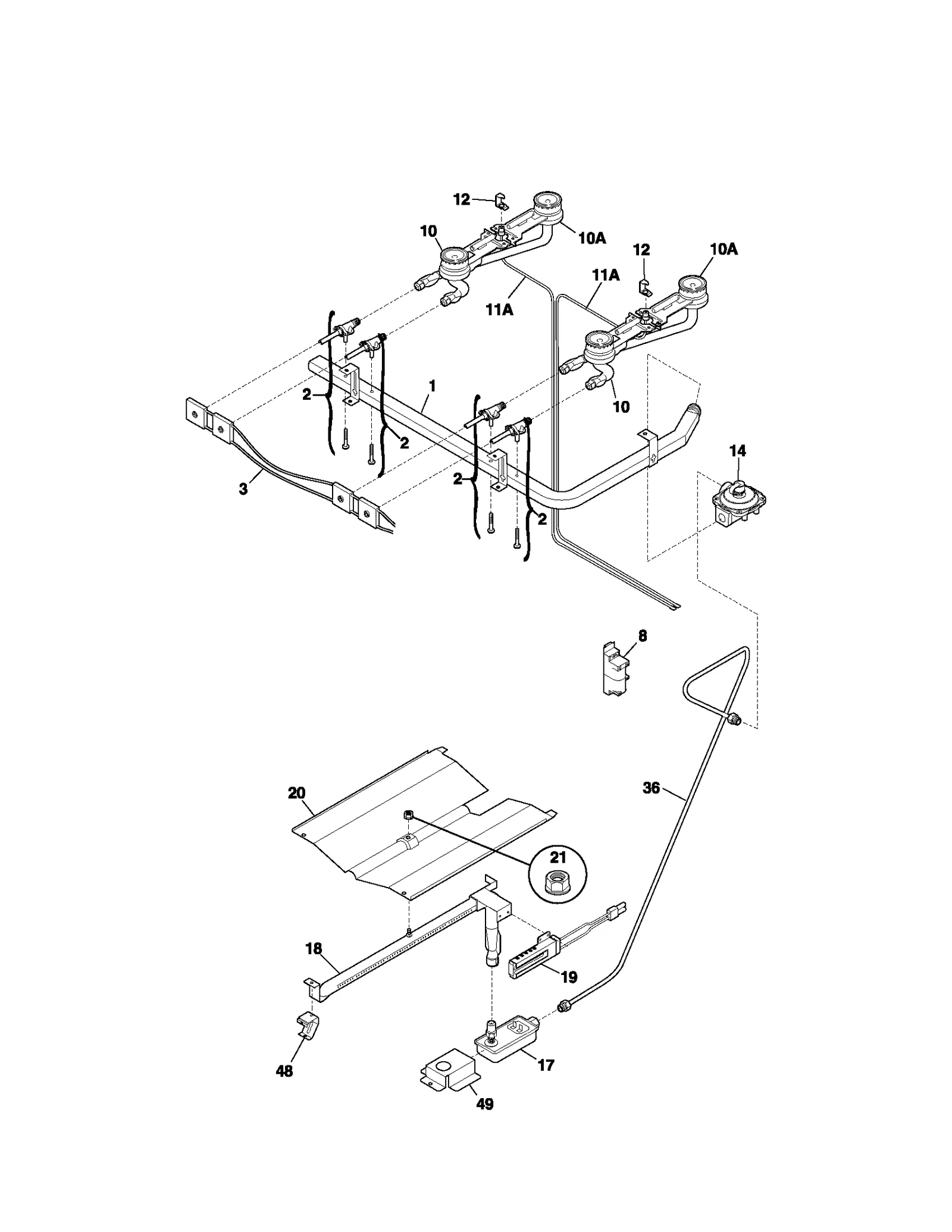

BURNER

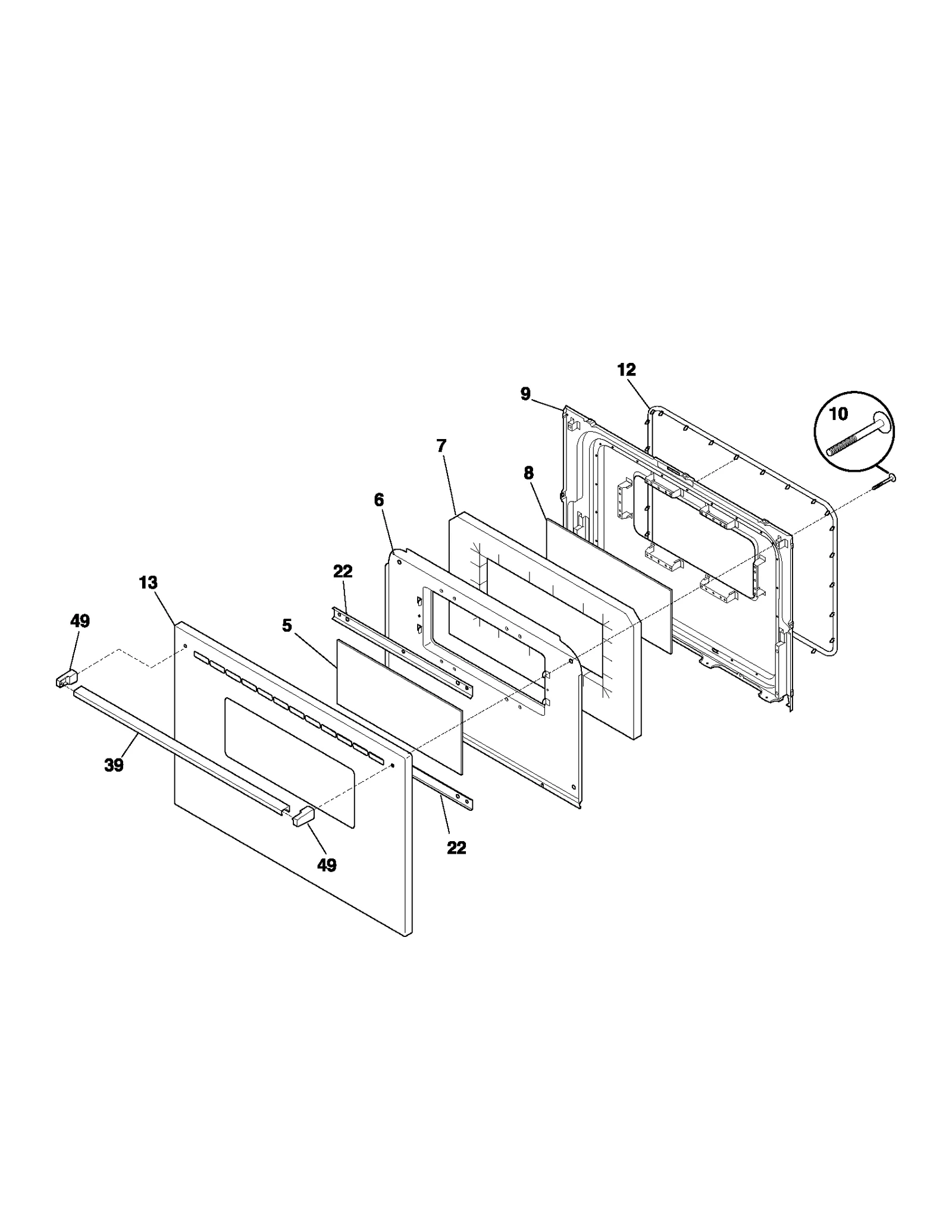

DOOR

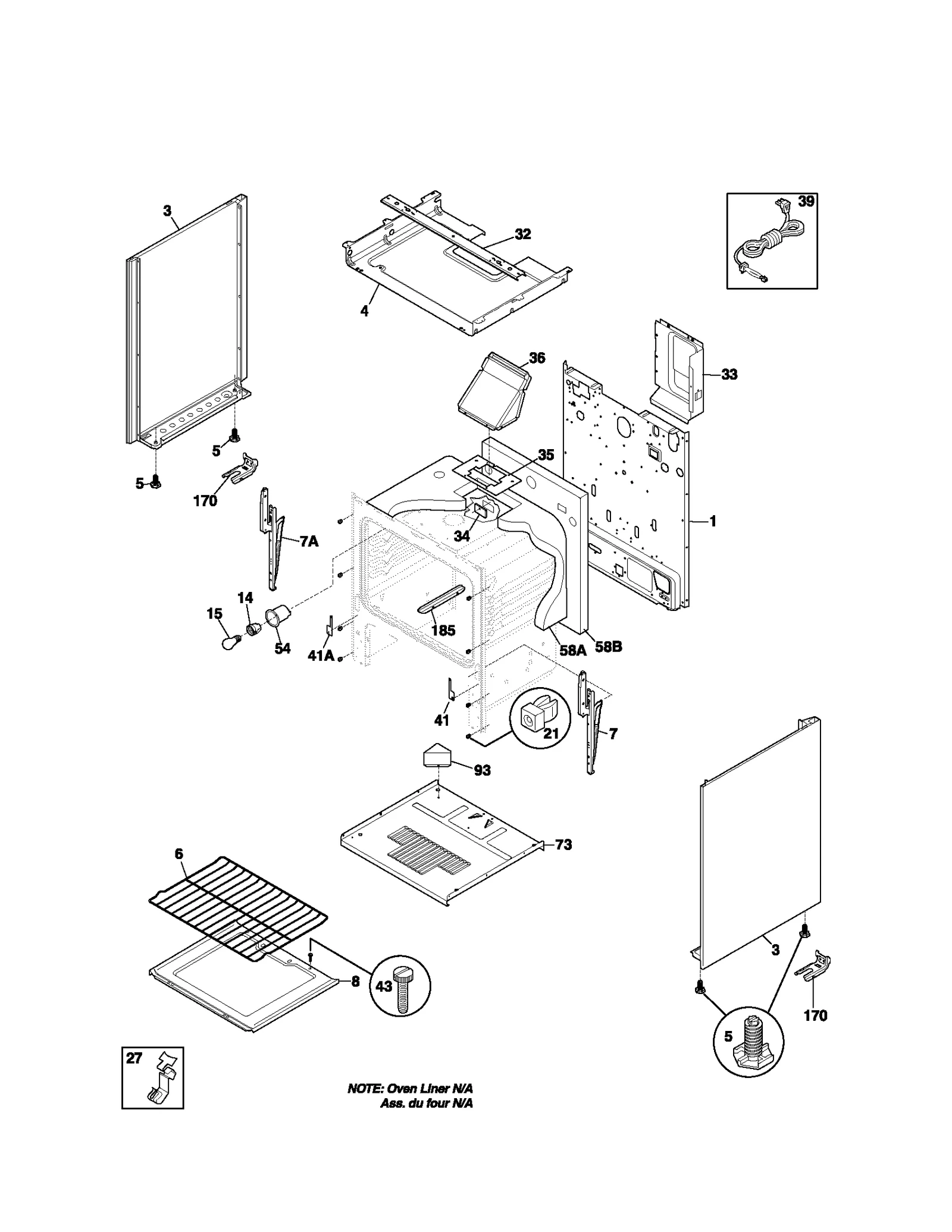

BODY

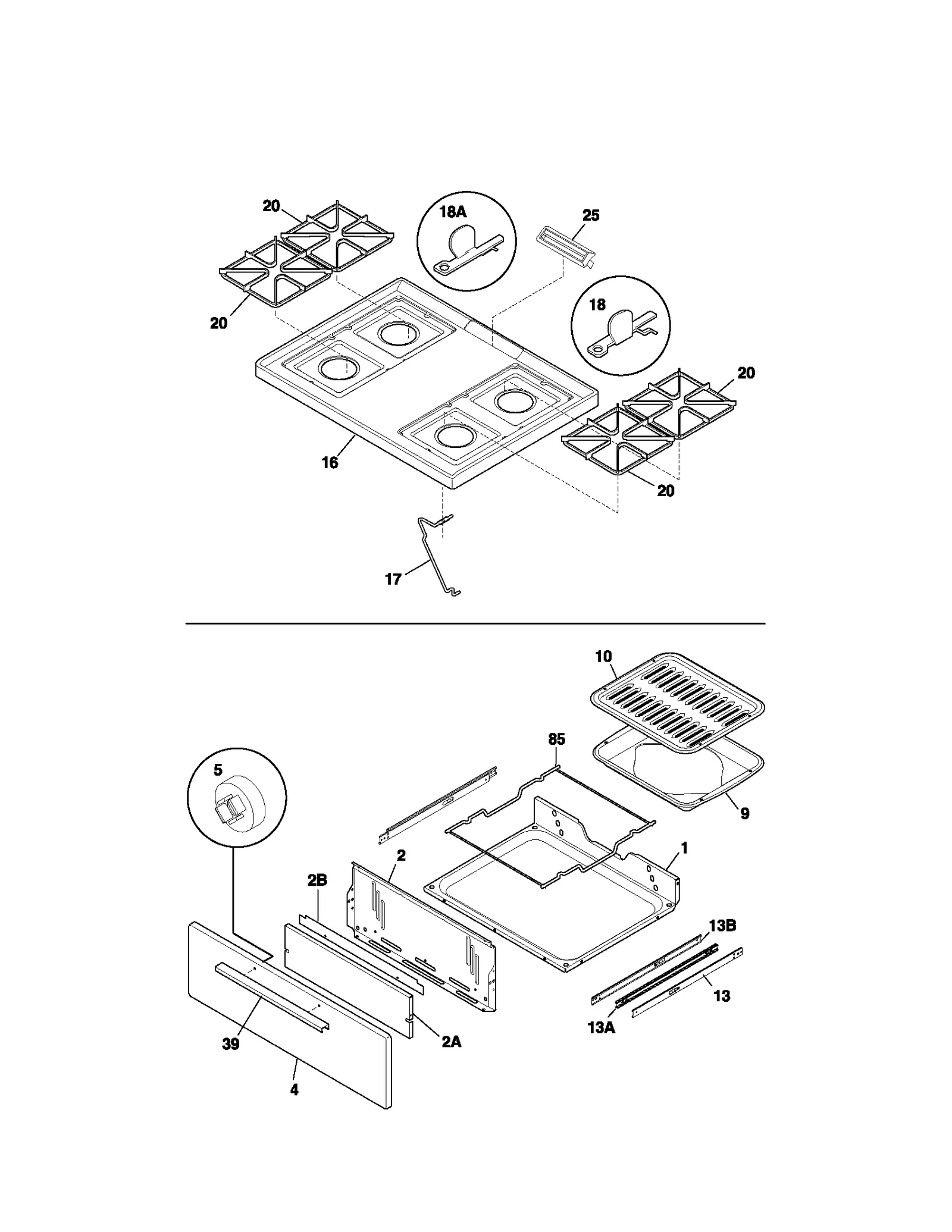

TOP/DRAWER
Common parts from model Electrolux 790.72114100 Gas Range (Kenmore 79072114100)
1
Range Broil Drawer Bottom Panel WCI 316110201 Contact Us For Availability
1
Shield WCI 5303289640 Contact Us For Availability
2
Range 2-Position Surface Burner Valve WCI 5303935189 Contact Us For Availability
2
Range Broil Drawer Liner WCI 316236401 Contact Us For Availability
2A
Shield Broil WCI 316110800 Contact Us For Availability
2B
Shield WCI 316237600 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316001828 Contact Us For Availability
4
Range Storage Drawer Front Panel WCI 316231211 Contact Us For Availability
4
Drawer Panel WCI 316231214 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Broil Drawer Handle Push-In Nut WCI 316129100 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
13
Oven Panel WCI 316202704 Contact Us For Availability
13
Range Drawer Glide WCI 316111502 Contact Us For Availability
13A
Guide Bar WCI 316111600 Contact Us For Availability
13B
Broil Glide WCI 316111501 Contact Us For Availability
14
Range Pressure Regulator WCI 316091705 Contact Us For Availability
16
Main Top Panel WCI 316104401 Contact Us For Availability
16
Main WCI 316104412 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
18
Bracket WCI 08067747 Contact Us For Availability
18A
Range Main Top Hinge WCI 08067746 Contact Us For Availability
20
Grate WCI 316088900 Contact Us For Availability
20A
Range Clock and Timer Overlay (White) WCI 316115319 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303272476 Contact Us For Availability
25
Range Oven Vent Cover (Chrome) WCI 316104500 Contact Us For Availability
32
Range Oven Temperature Knob WCI 316102329 Contact Us For Availability
34
Cover WCI 3018607 Contact Us For Availability
36
Range Oven Gas Valve Tubing WCI 316065004 Contact Us For Availability
36
Range Surface Burner Knob (Bisque) WCI 316102323 Contact Us For Availability
39
Range Oven Door Handle (Bisque) WCI 316020206 Contact Us For Availability
39
Range Broil Drawer Handle (White) WCI 316019511 Contact Us For Availability
39
Handle WCI 316019513 Contact Us For Availability
41
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
49
Gibson Range Oven Door Handle End Cap WCI 316137000 Contact Us For Availability
49
Range Oven Door Handle End Cap (Bisque) WCI 316137002 Contact Us For Availability
58A
Range Oven Insulation WCI 3017142 Contact Us For Availability
73
Range Broil Drawer Base WCI 316109902 Contact Us For Availability
85
Range Broil Drawer Rack WCI 316115600 Contact Us For Availability
NI
Bisq Paint WCI 5304414035 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Oven Door Air Gap Seal WCI 316245600 Contact Us For Availability
NI
Range Oven Meat Probe Hole Plug WCI 316246400 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Plate Weight WCI 316249200 Contact Us For Availability
NI
Range Wire Harness WCI 316253303 Contact Us For Availability
NI
Range Screw, #8-18 x 5/8-in WCI 316021120 Contact Us For Availability
NI
Bushing WCI 316072100 Contact Us For Availability
× ![]()
