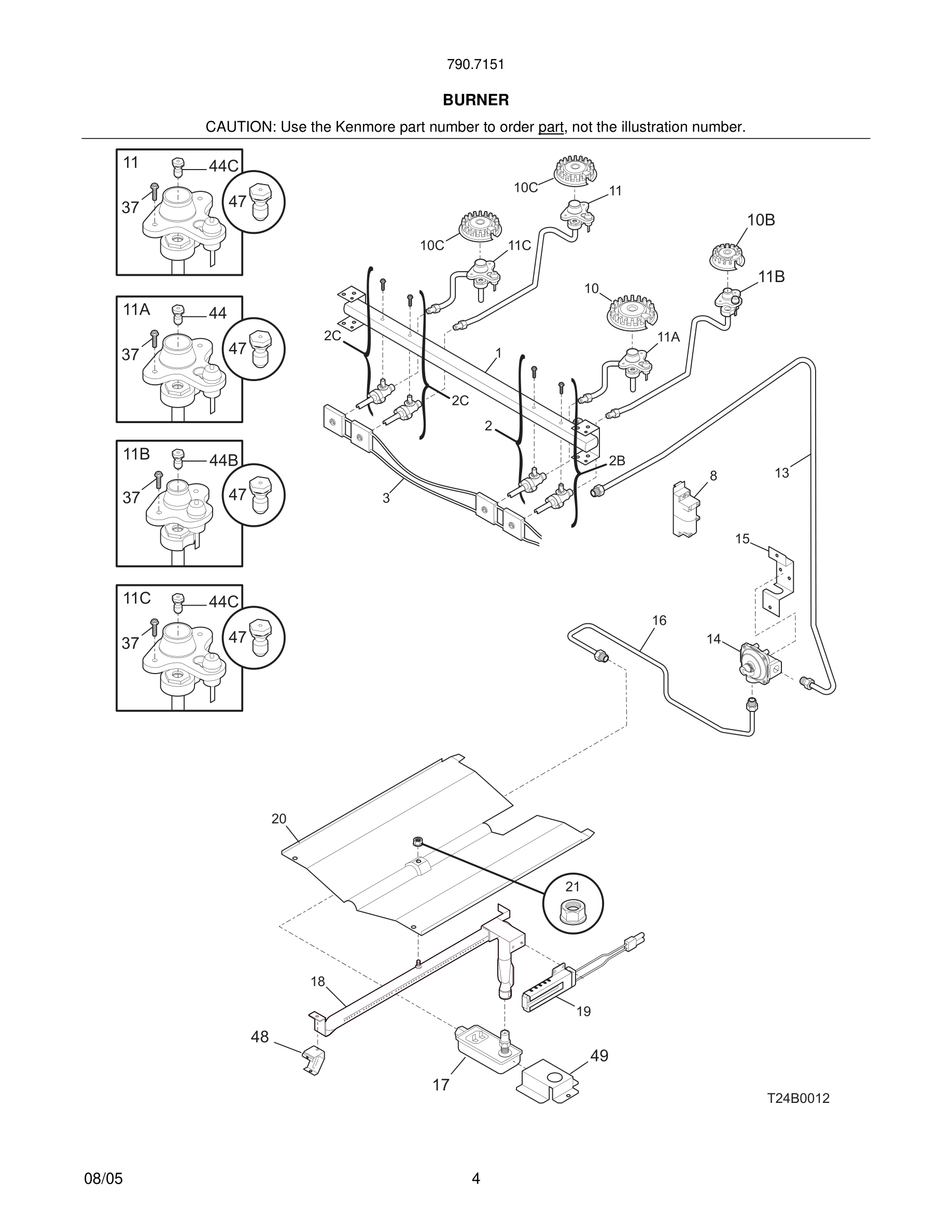

05 - BURNER

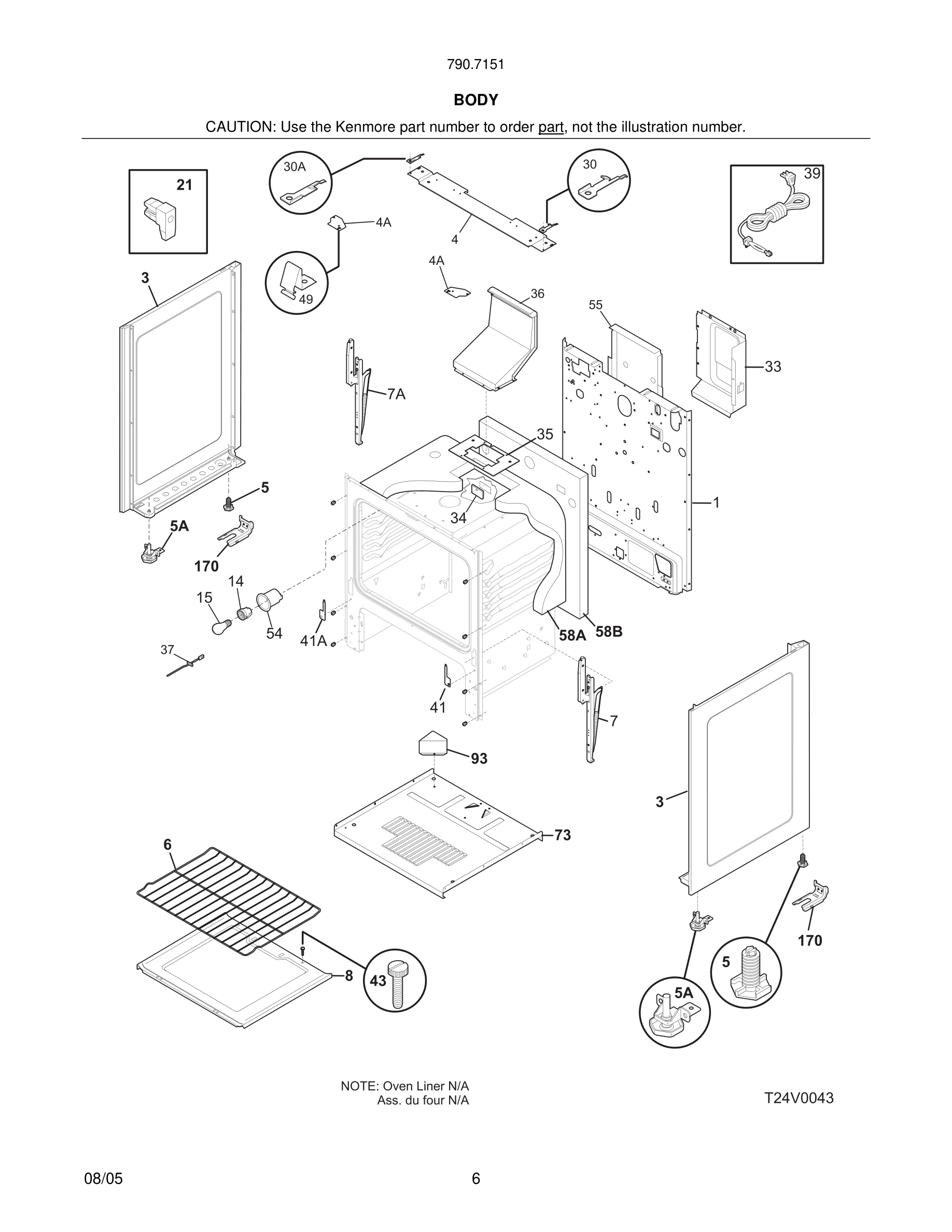

07 - BODY

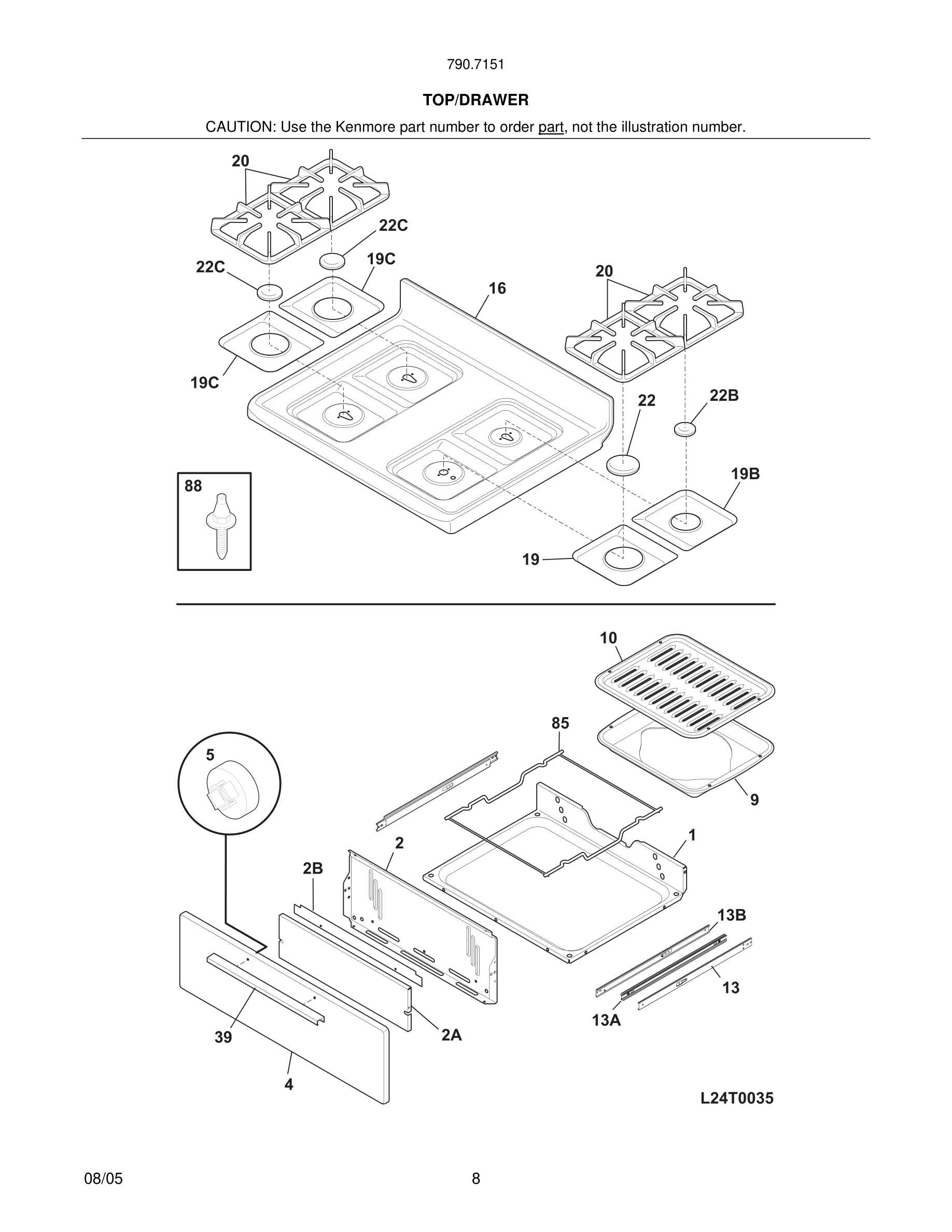

09 - TOP/DRAWER

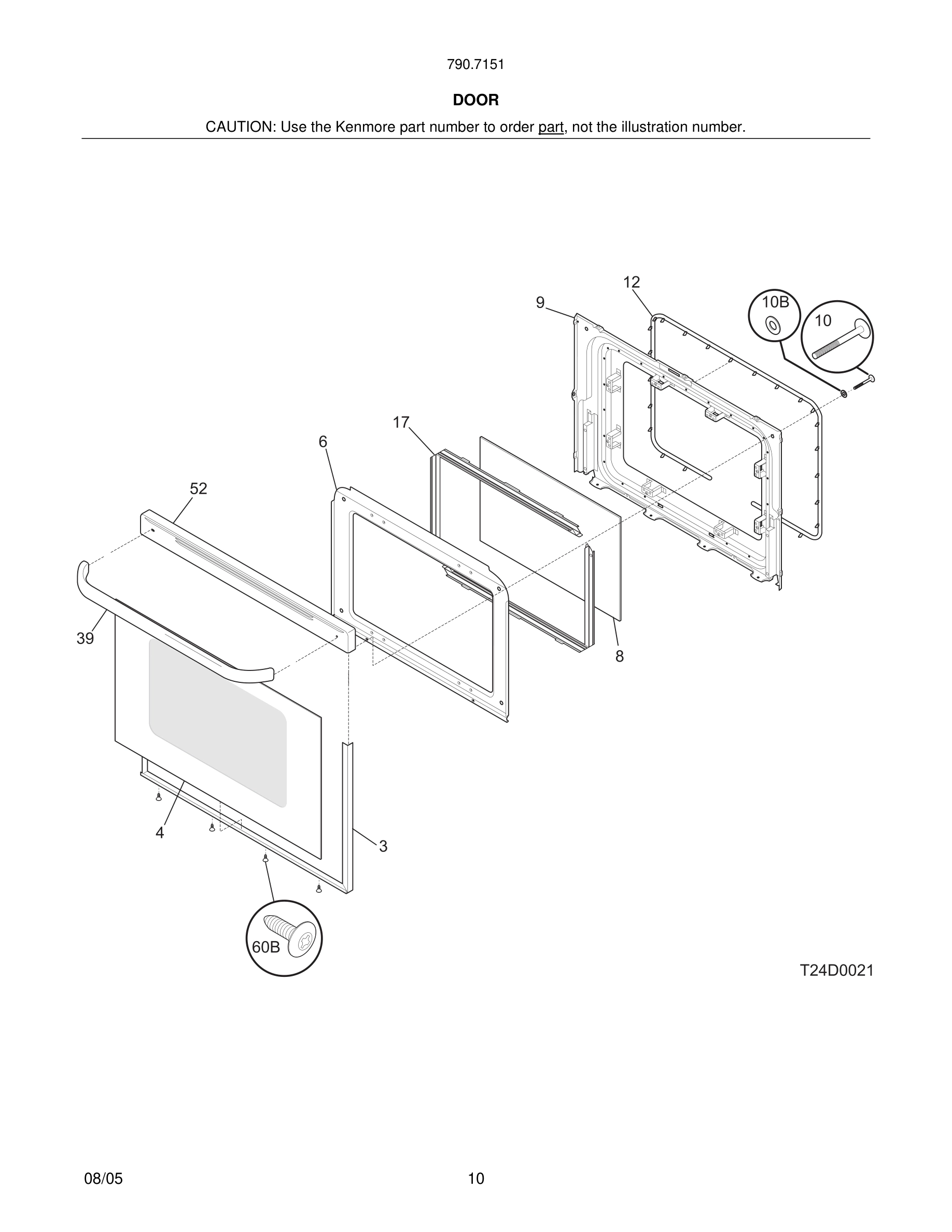

11 - DOOR

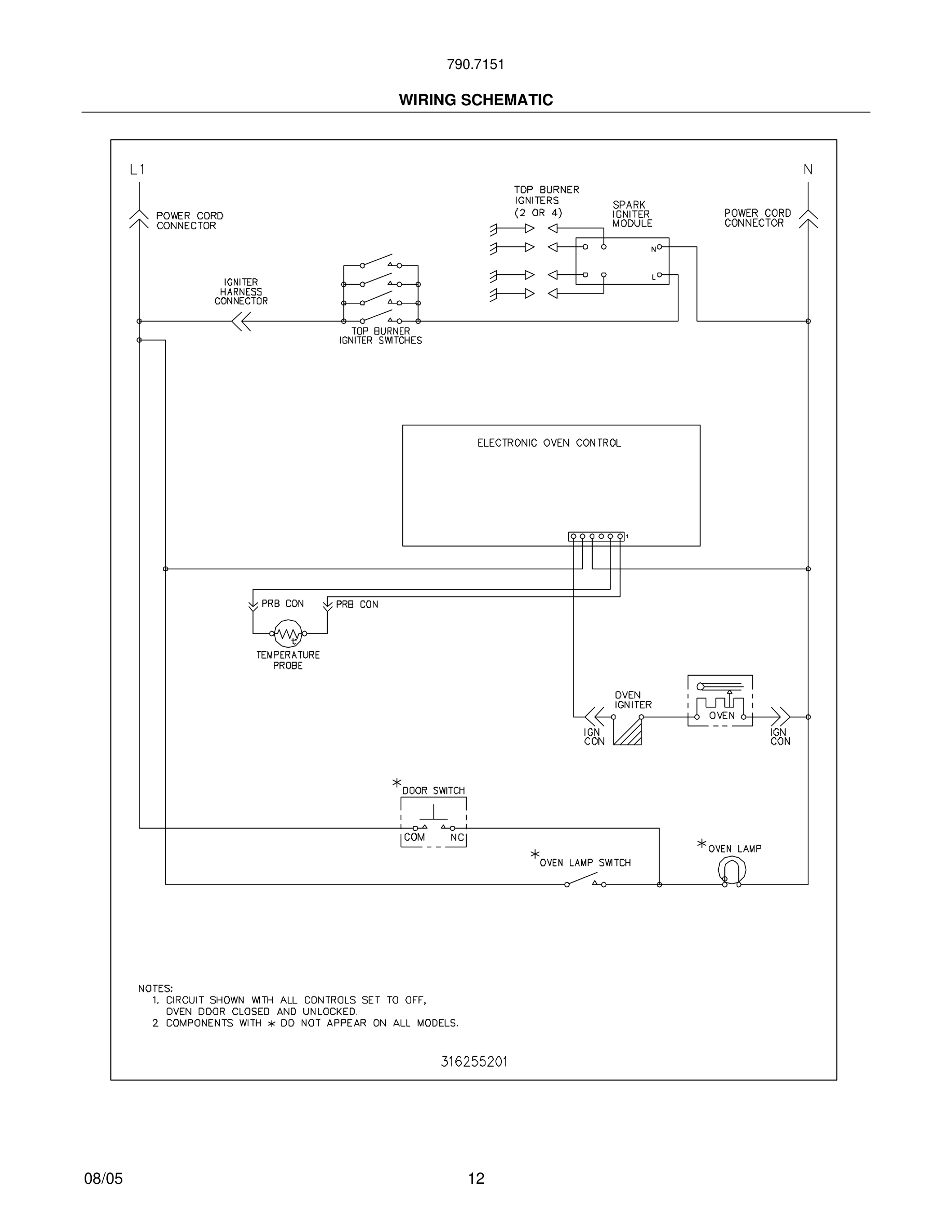

12 - WIRING SCHEMATIC

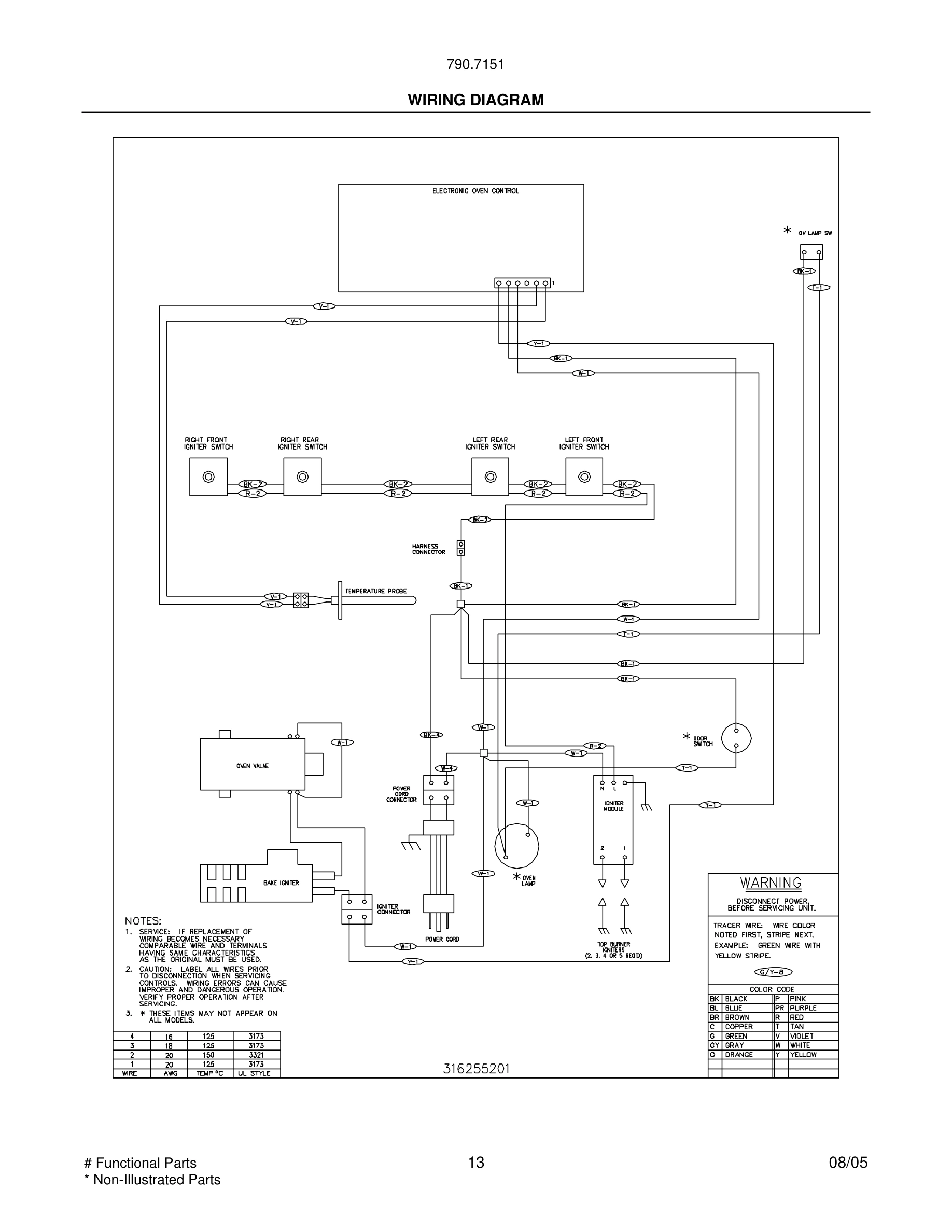

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.71519404 RANGE
*
Screw, wafer head, 8-32T x 0.500, black WCI 5303285179 Contact Us For Availability
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
*
Screw, wafer hd sq dr, 8-18AB x 0.5 WCI 5303271648 Contact Us For Availability
*#
Wiring Harness, ignitor module WCI 316253700 Contact Us For Availability
*#
Harness, main WCI 316253308 Contact Us For Availability
1
Carriage, low broil WCI 316110201 Contact Us For Availability
2
Liner, low broil WCI 316236401 Contact Us For Availability
2B#
Valve, 5K burner, w/mtg screw WCI 5303935235 Contact Us For Availability
2C#
Valve, 9.5K burner, w/mtg screw WCI 5303935234 Contact Us For Availability
3
Trim kit-door, 3 sided, black, w/tape and foi WCI 5303935191 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 316219004 Contact Us For Availability
4
Glass, door kit, black, outer, w/foil tape WCI 5303935200 Contact Us For Availability
5
Fastener, push-in nut, nylon, spacer WCI 316129100 Contact Us For Availability
9
Pan, broiler WCI 316081900 Contact Us For Availability
10
Screw, waf hd sq, 10-24 x 1.6, handle, (2) WCI 316001014 Contact Us For Availability
10
Insert, broiler pan WCI 316082000 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
10B
Washer, 3/4 OD x 1/4 ID, steel WCI 316008401 Contact Us For Availability
10C#
Burner, sealed, 9.5K WCI 316212400 Contact Us For Availability
11A#
Ignitor/orifice assy., top burner, front WCI 316237801 Contact Us For Availability
12
Seal, oven door WCI 316239700 Contact Us For Availability
13B
Glide, low broil, outer WCI 316111501 Contact Us For Availability
14
Receptacle, oven light WCI 316116400 Contact Us For Availability
16
Tube, valve to regul, 3/8 WCI 316065006 Contact Us For Availability
16
Main Top, black WCI 316202321 Contact Us For Availability
17
Spacer, door glass, (2) WCI 316117701 Contact Us For Availability
18
End Cap, black, RH WCI 316240904 Contact Us For Availability
18A
End Cap, black, LH WCI 316240905 Contact Us For Availability
19
Pan, burner, black, 12K WCI 316202509 Contact Us For Availability
19B
Pan, burner, black, 5K WCI 316202501 Contact Us For Availability
19C
Pan, burner, black, 9.5K WCI 316202505 Contact Us For Availability
21
Nut, hex head sems WCI 5303013272 Contact Us For Availability
22
Cap, 12K burner, black WCI 316213600 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206600 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316213500 Contact Us For Availability
23
Bracket, clock mtg WCI 316245900 Contact Us For Availability
24#
Switch, rocker, black WCI 316280100 Contact Us For Availability
34
Plate, cover WCI 3018607 Contact Us For Availability
36
Knob, top valve, black, (4) WCI 316240702 Contact Us For Availability
37
Screw, assy mtg, ignitor/orifice WCI 316240600 Contact Us For Availability
41
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
44
Orifice, top burner, 12K WCI 316237901 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
44C
Orifice, top burner, 9.5K WCI 316237902 Contact Us For Availability
47#
LP Conversion Kit, blue WCI 316243702 Contact Us For Availability
58A
Insulation, oven wrapper WCI 3017142 Contact Us For Availability
58B
Insulation, 1", oven back WCI 316054202 Contact Us For Availability
73
Base, low broil WCI 316109902 Contact Us For Availability
85
Rack, low broil WCI 316115600 Contact Us For Availability
× ![]()
