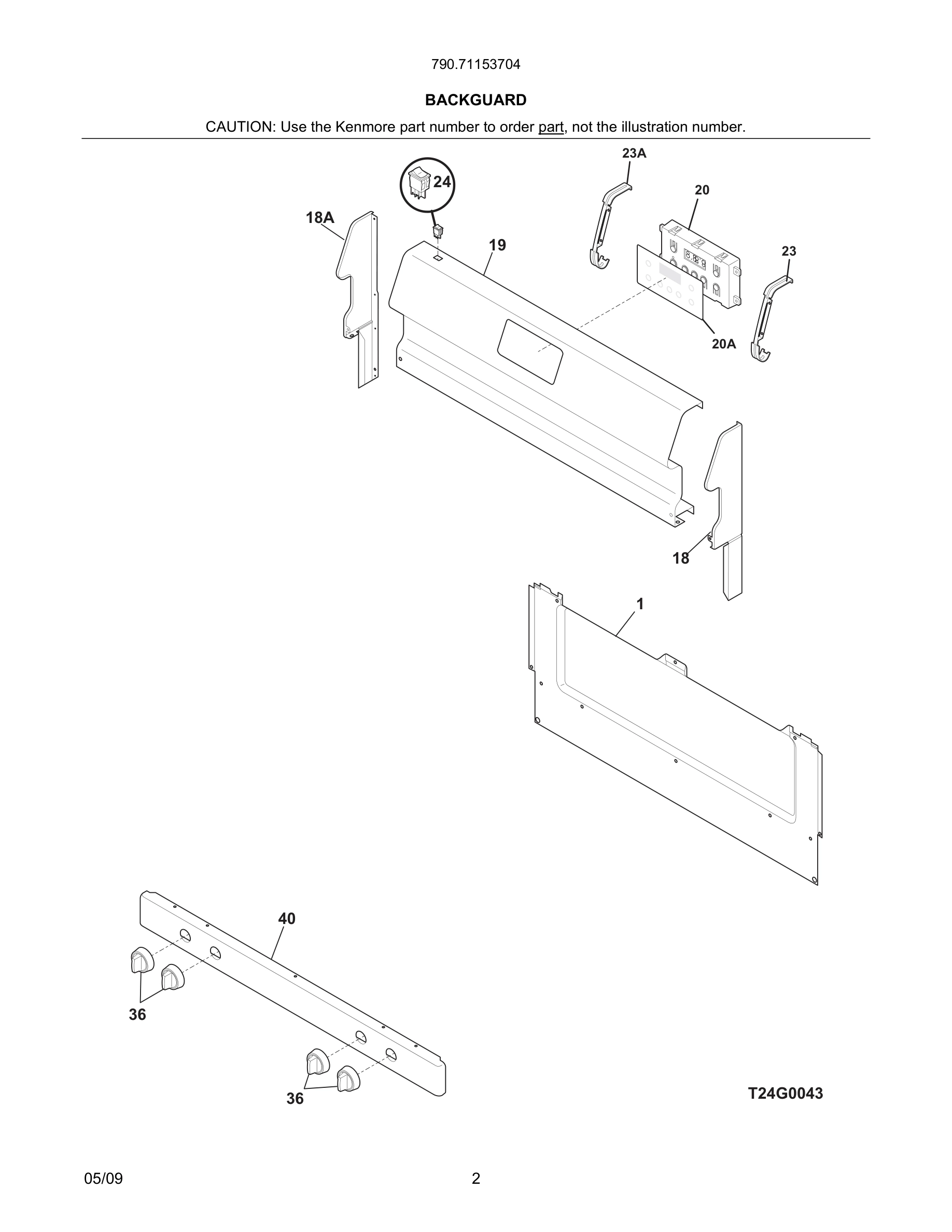

Model Kenmore 790.71153704 RANGE – Common Parts & Diagrams

*
Screw, cup pt, 8-18 x 0.375, chrome
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
View on Model
*
Label, anti-tip
Label, anti-tip WCI 316433601 Contact Us For Availability
View on Model
1
Carriage, low broil
Carriage, low broil WCI 316110201 Contact Us For Availability
View on Model
1
Shield, backguard, rear wall
Shield, backguard, rear wall WCI 5303289640 Contact Us For Availability
View on Model
2
Liner, low broil
Liner, low broil WCI 316236401 Contact Us For Availability
View on Model
2A
Shield, broiler
Shield, broiler WCI 316541500 Contact Us For Availability
View on Model
3#
Wiring Harness, w/igntr switch
Wiring Harness, w/igntr switch WCI 316219015 Contact Us For Availability
View on Model
4
Glass, oven door, black, outer
Glass, oven door, black, outer WCI 316240000 Contact Us For Availability
View on Model
8
Panel,, oven bottom
Panel,, oven bottom WCI 316495901 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 316230623 Contact Us For Availability
View on Model
13A
Glide-Low Broil, Inner
Glide-Low Broil, Inner WCI 316534200 Contact Us For Availability
View on Model
16
Main Top, black
Main Top, black WCI 316273002 Contact Us For Availability
View on Model
17
Rod, maintop support
Rod, maintop support WCI 316066900 Contact Us For Availability
View on Model
17
Spacer, door glass, (2)
Spacer, door glass, (2) WCI 316117701 Contact Us For Availability
View on Model
18A
Bracket, hinge, main top LH
Bracket, hinge, main top LH WCI 08067746 Contact Us For Availability
View on Model
20
Baffle, oven burner
Baffle, oven burner WCI 316496001 Contact Us For Availability
View on Model
23
Bracket, clock mtg, RH
Bracket, clock mtg, RH WCI 316263500 Contact Us For Availability
View on Model
23A
Bracket, clock mtg, LH
Bracket, clock mtg, LH WCI 316263501 Contact Us For Availability
View on Model
25
Cover, vent, chrome
Cover, vent, chrome WCI 316104500 Contact Us For Availability
View on Model
36
Knob, top valve, black, (4)
Knob, top valve, black, (4) WCI 316009044 No Longer Available
View on Model
41
Cover, hinge cutout, RH
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
View on Model
58A
Insulation, oven wrapper
Insulation, oven wrapper WCI 3017142 Contact Us For Availability
View on Model
73
Base, low broil
Base, low broil WCI 316109902 Contact Us For Availability
View on Model
85
Rack, low broil
Rack, low broil WCI 316115600 Contact Us For Availability
View on Model
