Model Kenmore 790.71152701 RANGE – Common Parts & Diagrams

*
Screw, cup pt, 8-18 x 0.375, chrome
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
View on Model
*
Seal, door, air gap
Seal, door, air gap WCI 316245600 Contact Us For Availability
View on Model
*
Label, anti-tip
Label, anti-tip WCI 316433601 Contact Us For Availability
View on Model
*#

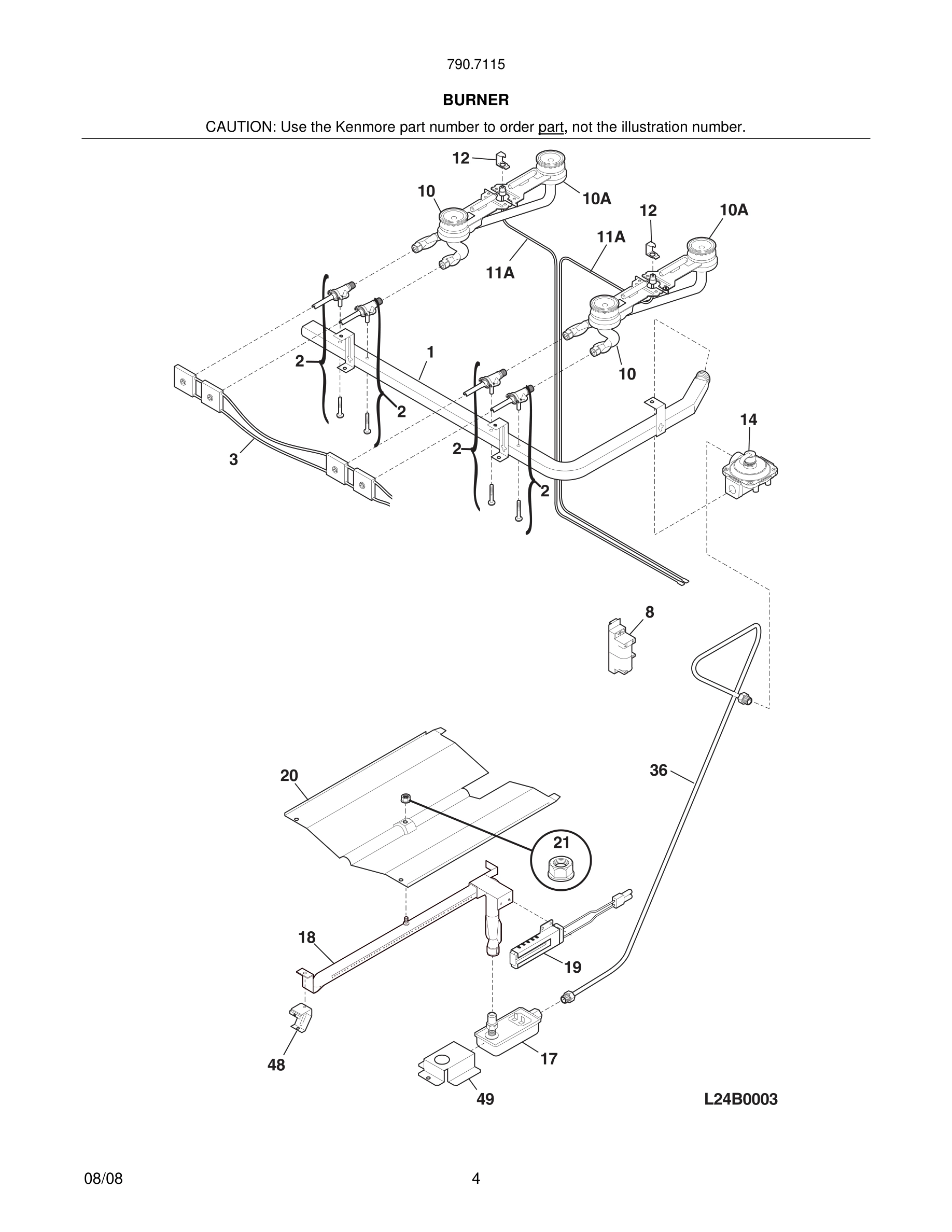

Spud, orifice, natural gas
Spud, orifice, natural gas WCI 316470400 No Longer Available
View on Model
*#
Harness, main
Harness, main WCI 316253308 Contact Us For Availability
View on Model

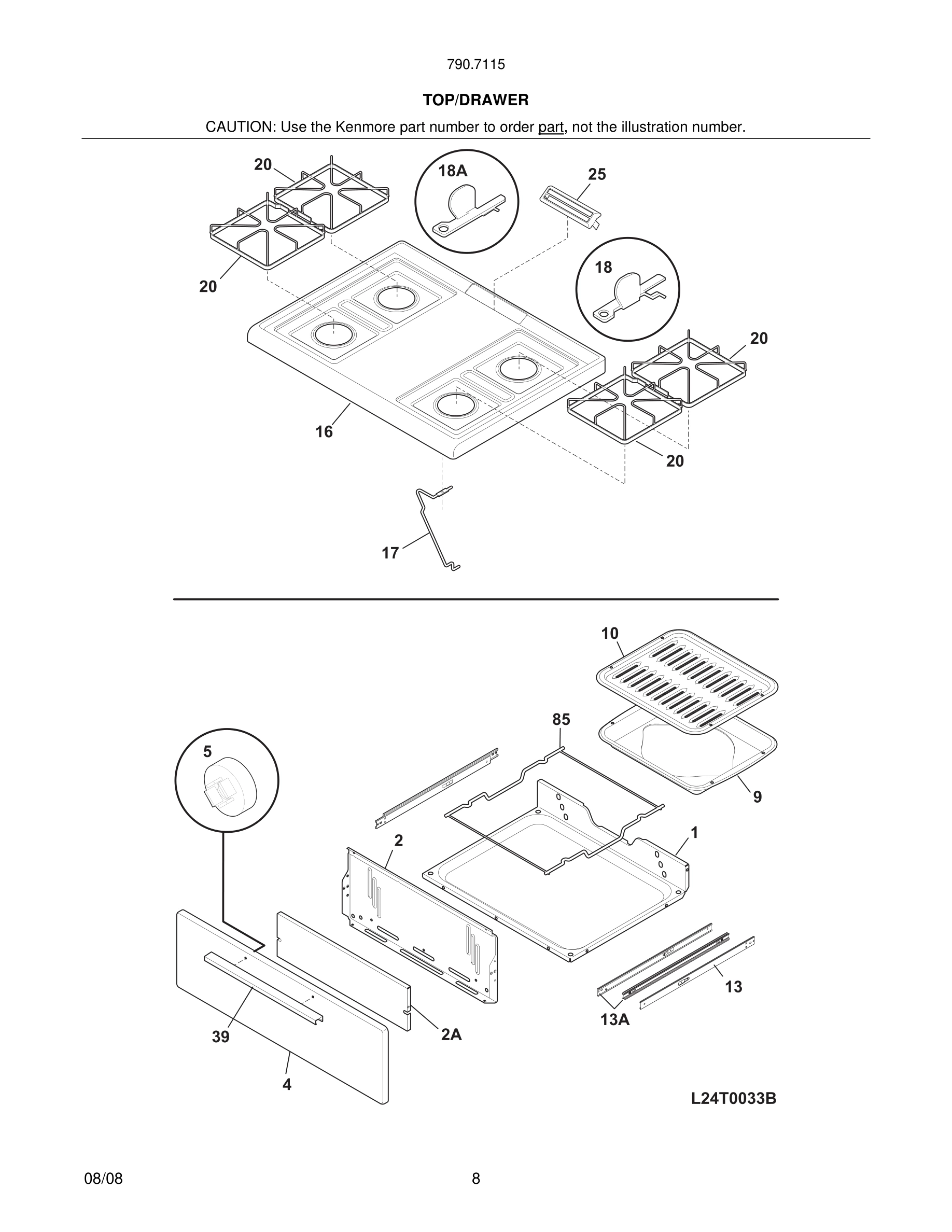

1
Carriage, low broil
Carriage, low broil WCI 316110201 Contact Us For Availability
View on Model

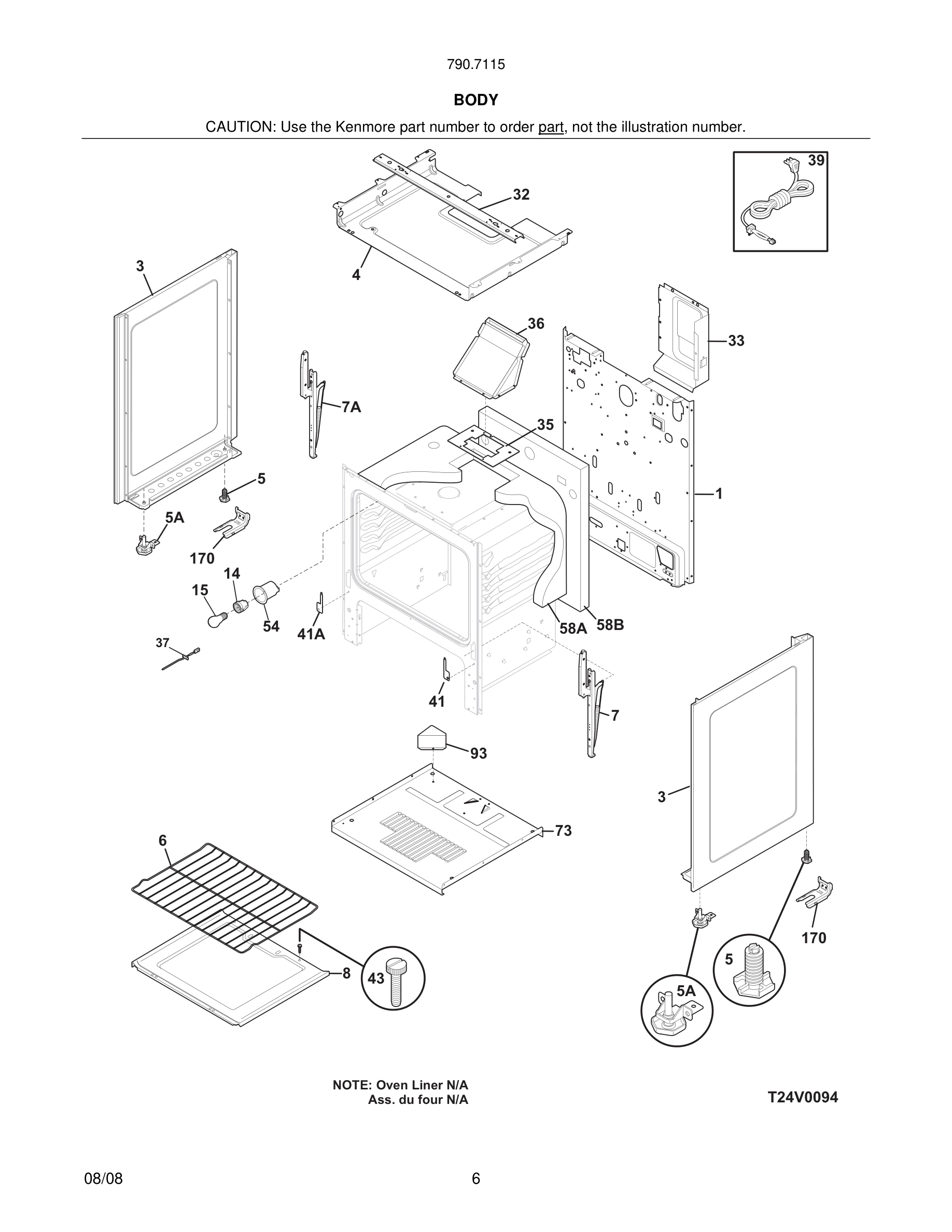

1
Shield, backguard, rear wall
Shield, backguard, rear wall WCI 5303289640 Contact Us For Availability
View on Model
2
Liner, low broil
Liner, low broil WCI 316236401 Contact Us For Availability
View on Model
2A
Shield, broiler
Shield, broiler WCI 316541500 Contact Us For Availability
View on Model
3#
Wiring Harness, w/igntr switch
Wiring Harness, w/igntr switch WCI 316219015 Contact Us For Availability
View on Model
4
Panel, drawer, white
Panel, drawer, white WCI 316231211 Contact Us For Availability
View on Model

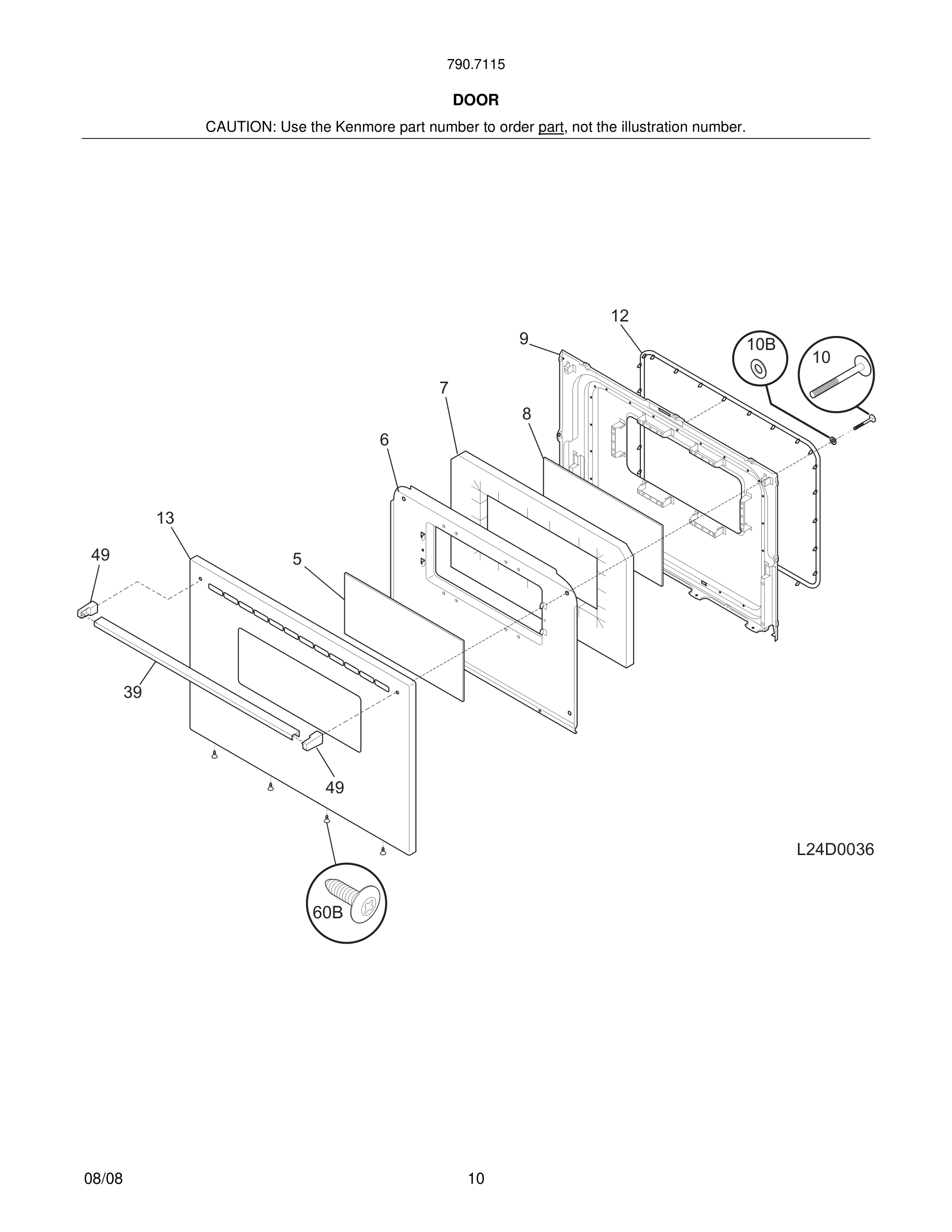

5
Glass, oven door, white, outer
Glass, oven door, white, outer WCI 316050307 Contact Us For Availability
View on Model
5
Fastener, push-in nut, nylon, spacer
Fastener, push-in nut, nylon, spacer WCI 316129100 Contact Us For Availability
View on Model
7
Insulation, oven door
Insulation, oven door WCI 316236802 Contact Us For Availability
View on Model
8
Glass, oven door, inner
Glass, oven door, inner WCI 316088600 Contact Us For Availability
View on Model
8
Panel,, oven bottom
Panel,, oven bottom WCI 316495901 Contact Us For Availability
View on Model
9
Pan, broiler
Pan, broiler WCI 316081900 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 316230622 Contact Us For Availability
View on Model
10
Insert, broiler pan
Insert, broiler pan WCI 316082000 Contact Us For Availability
View on Model
13
Glide, low broil, outer/RH & LH, (2)
Glide, low broil, outer/RH & LH, (2) WCI 316111503 Contact Us For Availability
View on Model
13A
Glide-Low Broil, Inner
Glide-Low Broil, Inner WCI 316534200 Contact Us For Availability
View on Model
14#
Regulator, pressure
Regulator, pressure WCI 316091705 Contact Us For Availability
View on Model
17
Rod, maintop support
Rod, maintop support WCI 316066900 Contact Us For Availability
View on Model
18A
Bracket, hinge, main top LH
Bracket, hinge, main top LH WCI 08067746 Contact Us For Availability
View on Model
18A
End Cap, white, LH
End Cap, white, LH WCI 316263405 Contact Us For Availability
View on Model
20
Baffle, oven burner
Baffle, oven burner WCI 316496001 Contact Us For Availability
View on Model
23
Bracket, clock mtg, RH
Bracket, clock mtg, RH WCI 316263500 Contact Us For Availability
View on Model
23A
Bracket, clock mtg, LH
Bracket, clock mtg, LH WCI 316263501 Contact Us For Availability
View on Model
25
Cover, vent, chrome
Cover, vent, chrome WCI 316104500 Contact Us For Availability
View on Model
36
Tubing, 3/8, alum
Tubing, 3/8, alum WCI 316065004 Contact Us For Availability
View on Model
39
Handle, drawer, white
Handle, drawer, white WCI 316019511 Contact Us For Availability
View on Model
41
Cover, hinge cutout, RH
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
View on Model
49
End Cap, handle, white, (2)
End Cap, handle, white, (2) WCI 316137000 No Longer Available
View on Model
58A
Insulation, oven wrapper
Insulation, oven wrapper WCI 3017142 Contact Us For Availability
View on Model
73
Base, low broil
Base, low broil WCI 316109902 Contact Us For Availability
View on Model
85
Rack, low broil
Rack, low broil WCI 316115600 Contact Us For Availability
View on Model
