Model Electrolux 790.71107004 Gas Range (Kenmore 79071107004) – Common Parts & Diagrams
BODY
BACKGUARD

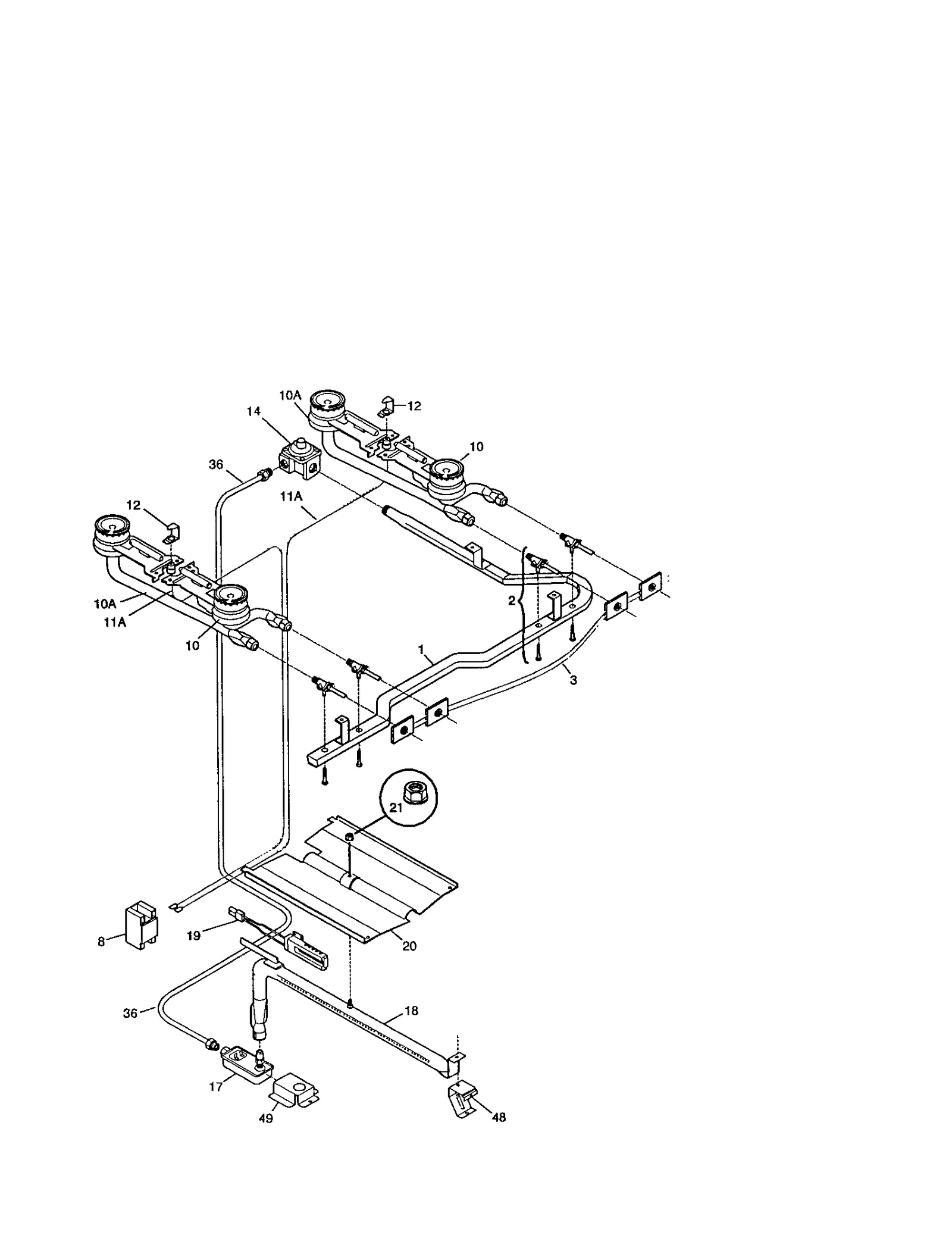

BUNER
All Parts

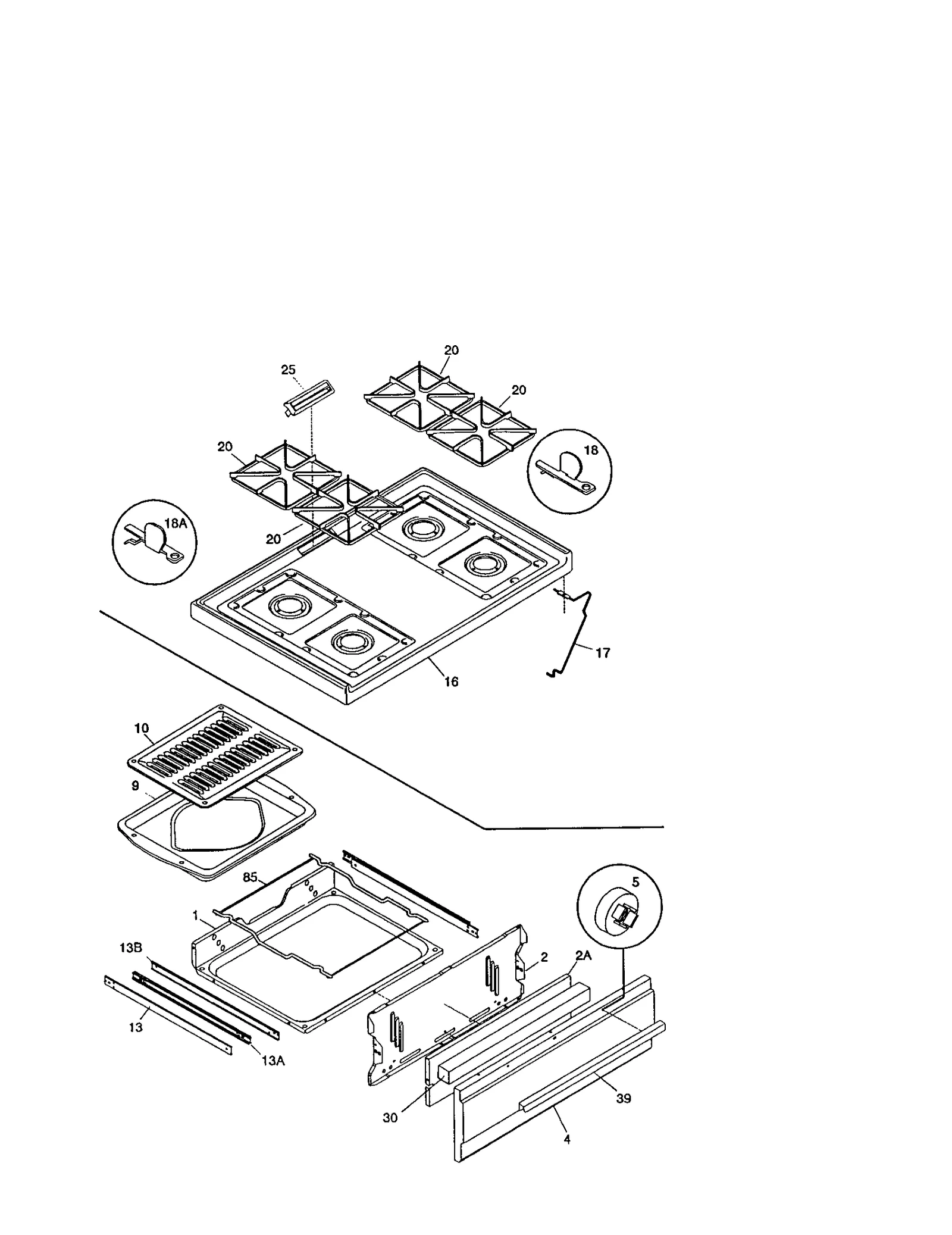

TOP/DRAWER

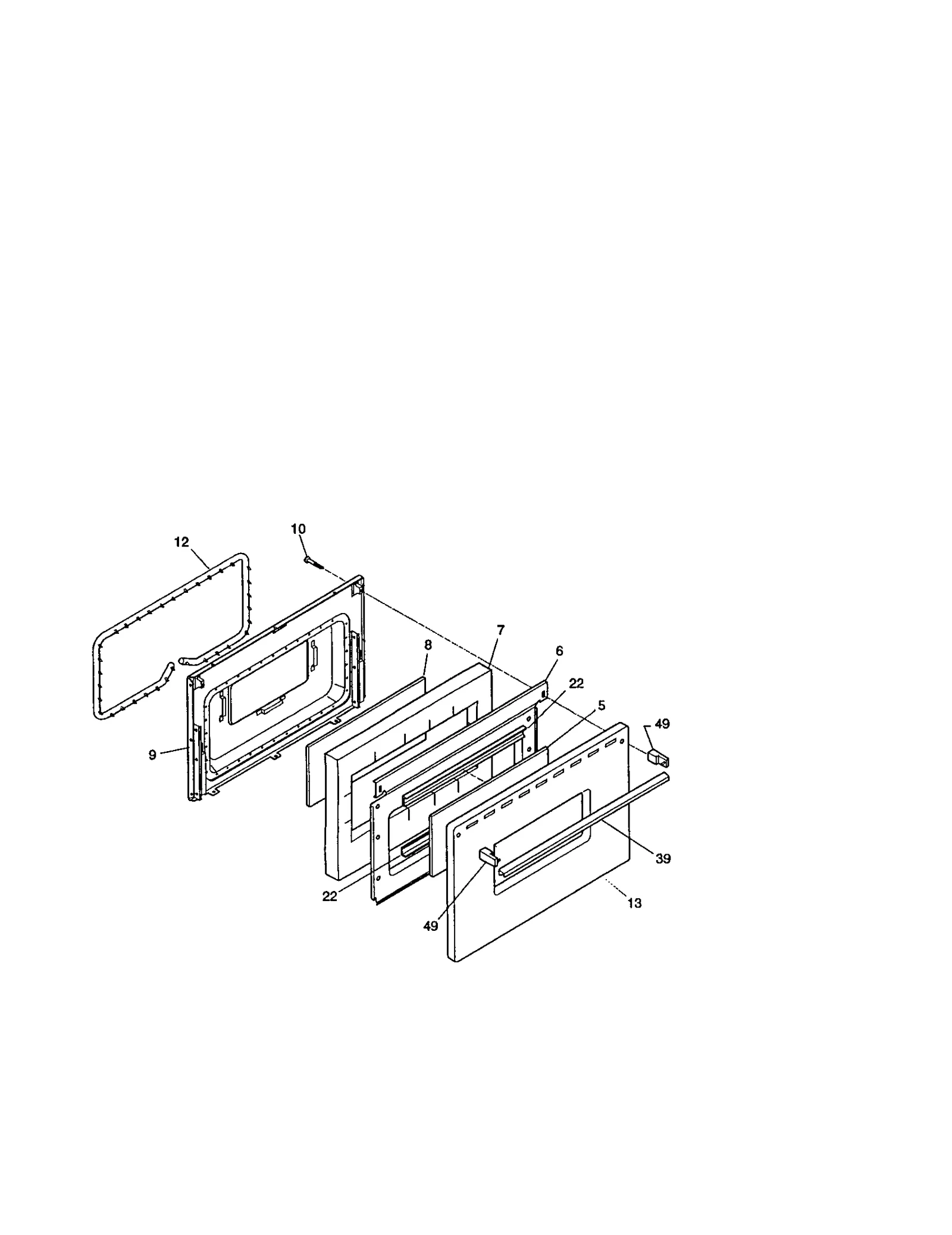

DOOR
Common parts from model Electrolux 790.71107004 Gas Range (Kenmore 79071107004)
1
Range Broil Drawer Bottom Panel WCI 316110201 Contact Us For Availability
1
Shield WCI 5303289640 Contact Us For Availability
2
Liner-low Br WCI 316110101 Contact Us For Availability
2A
Shield Broil WCI 316110800 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316001828 Contact Us For Availability
4
Wt Drwr Panl WCI 316056205 Contact Us For Availability
4A
Store Drawer WCI 316056206 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Broil Drawer Handle Push-In Nut WCI 316129100 Contact Us For Availability
5
Glass-oven D WCI 316050300 Contact Us For Availability
5A
Glass-oven D WCI 316050301 Contact Us For Availability
6
Shield WCI 316088403 Contact Us For Availability
7
Insulation WCI 316076401 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Oven Door Handle Screw, #10-24 WCI 5303281378 Contact Us For Availability
13
Range Drawer Glide WCI 316111502 Contact Us For Availability
13
Panel WCI 3017081 Contact Us For Availability
13A
Guide Bar WCI 316111600 Contact Us For Availability
13A
Panel WCI 3017096 Contact Us For Availability
13B
Broil Glide WCI 316111501 Contact Us For Availability
14
Range Pressure Regulator WCI 316082900 Contact Us For Availability
16
Main Top Panel WCI 316104401 Contact Us For Availability
16A
Complete Top WCI 316104402 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
18
BRACKET, HINGE, MAIN TOP RH WCI 8067747 Contact Us For Availability
18A
BRACKET, HINGE, MAIN TOP LH WCI 8067746 Contact Us For Availability
20
Grate WCI 316088900 Contact Us For Availability
20AA
Range Control Panel Overlay WCI 316115312 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303272476 Contact Us For Availability
24A
Oven Light Switch WCI 316118102 Contact Us For Availability
25
Range Oven Vent Cover (Chrome) WCI 316104500 Contact Us For Availability
30
Insulation WCI 316111400 Contact Us For Availability
32
Range Oven Temperature Knob WCI 316109003 Contact Us For Availability
32A
Range Oven Control Knob WCI 316109004 Contact Us For Availability
34
Cover WCI 3018607 Contact Us For Availability
36
Range Oven Gas Valve Tubing WCI 316083000 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316109006 Contact Us For Availability
39
Handle WCI 316019505 Contact Us For Availability
39A
Drawer Handle WCI 316019508 Contact Us For Availability
39A
Door Handle WCI 316020205 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
48
Range Oven Burner Bracket WCI 3018603 Contact Us For Availability
49
Bracket Valve WCI 3131438 Contact Us For Availability
49
End Cap WCI 316020101 Contact Us For Availability
49A
End Rh Al WCI 316020103 Contact Us For Availability
58A
Range Oven Insulation WCI 3017142 Contact Us For Availability
73
Range Broil Drawer Base WCI 316109902 Contact Us For Availability
85
Range Broil Drawer Rack WCI 316115600 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Owner's Manual WCI 316000964 Contact Us For Availability
NI
Wiring Harness WCI 316001225 Contact Us For Availability
NI
Wiring Diagram WCI 316002174 Contact Us For Availability
NI
Label Anti-t WCI 316071606 Contact Us For Availability
NI
Bushing WCI 316072100 Contact Us For Availability
NI
Plate Weight WCI 316073400 Contact Us For Availability
NI
Installation WCI 316105806 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Spacer-spong WCI 316132100 Contact Us For Availability
NI
Clip Backguard WCI 5303272555 Contact Us For Availability
NI
Parts List WCI 5995350849 Contact Us For Availability
× ![]()
