Model Electrolux 790.71106890 Gas Range (Kenmore 79071106890) – Common Parts & Diagrams

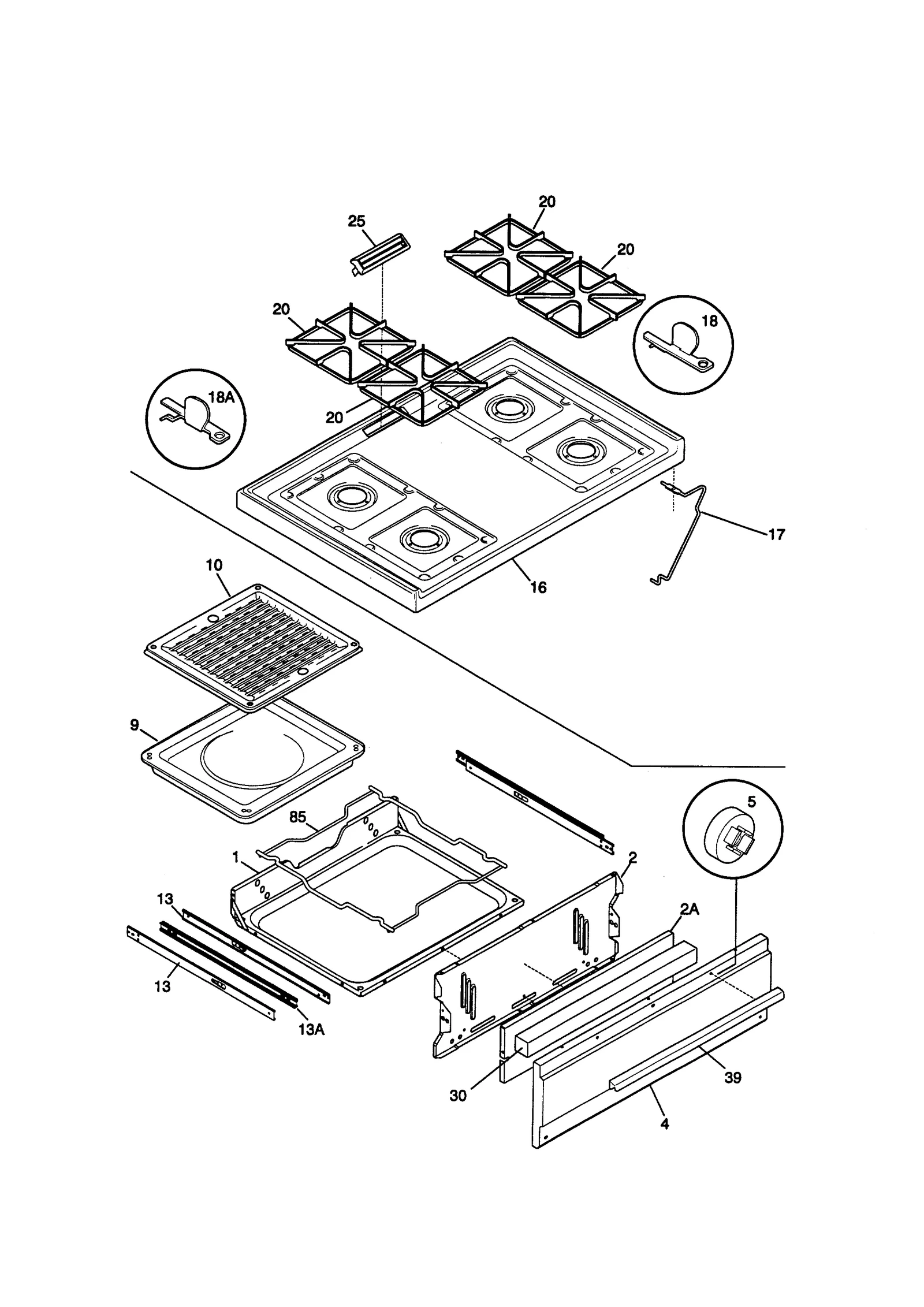

TOP/DRAWER

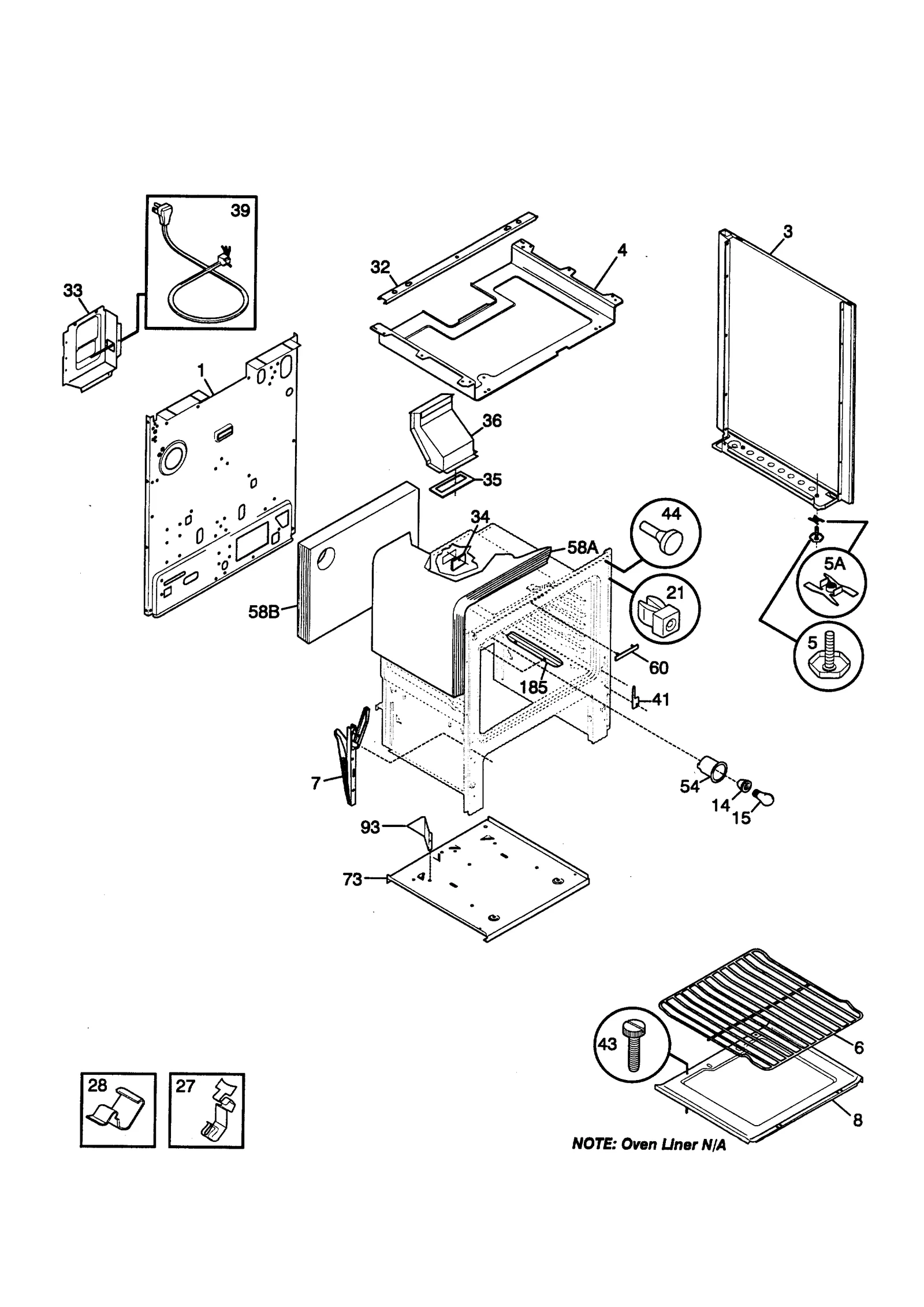

BODY
BACKGUARD

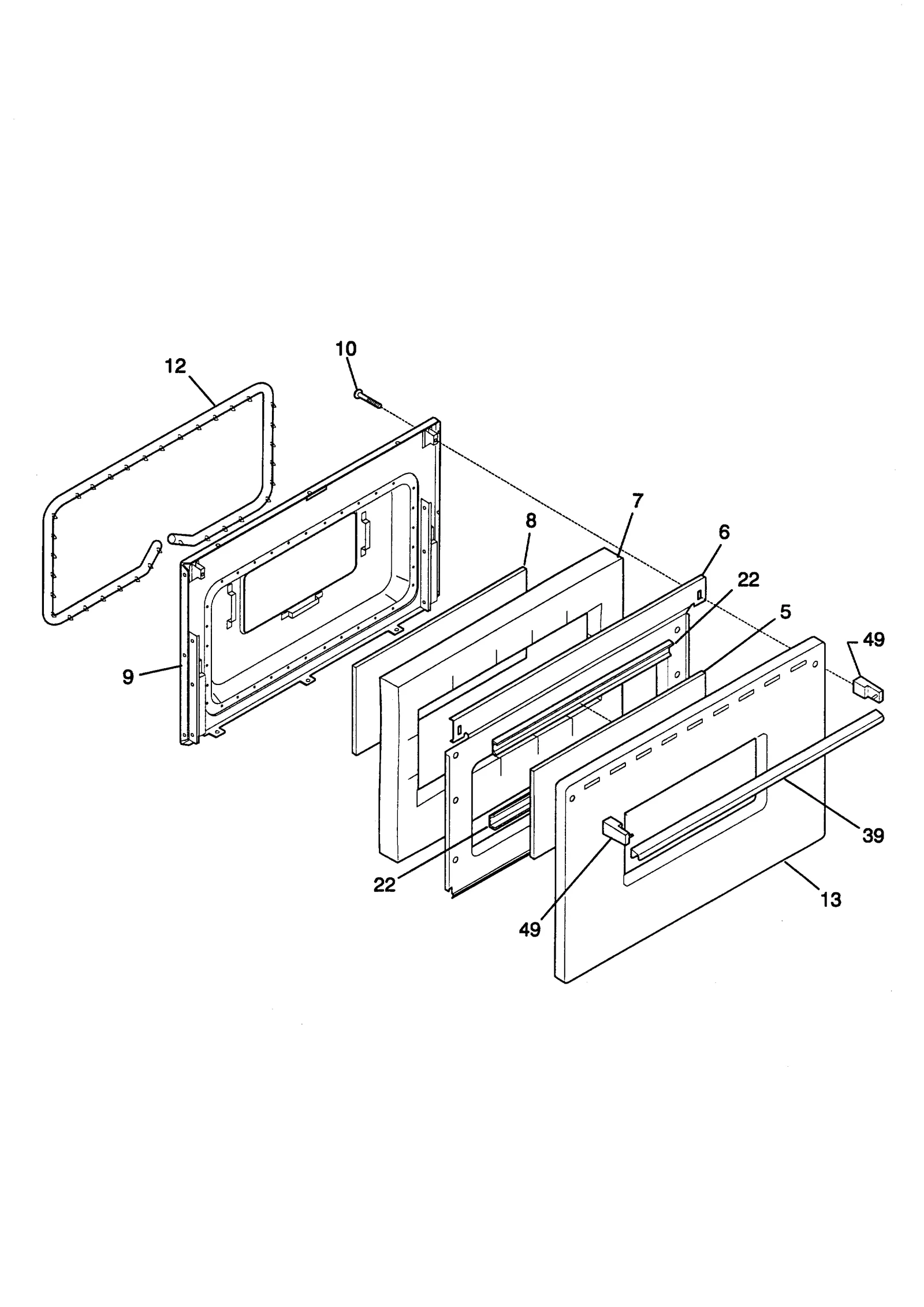

DOOR

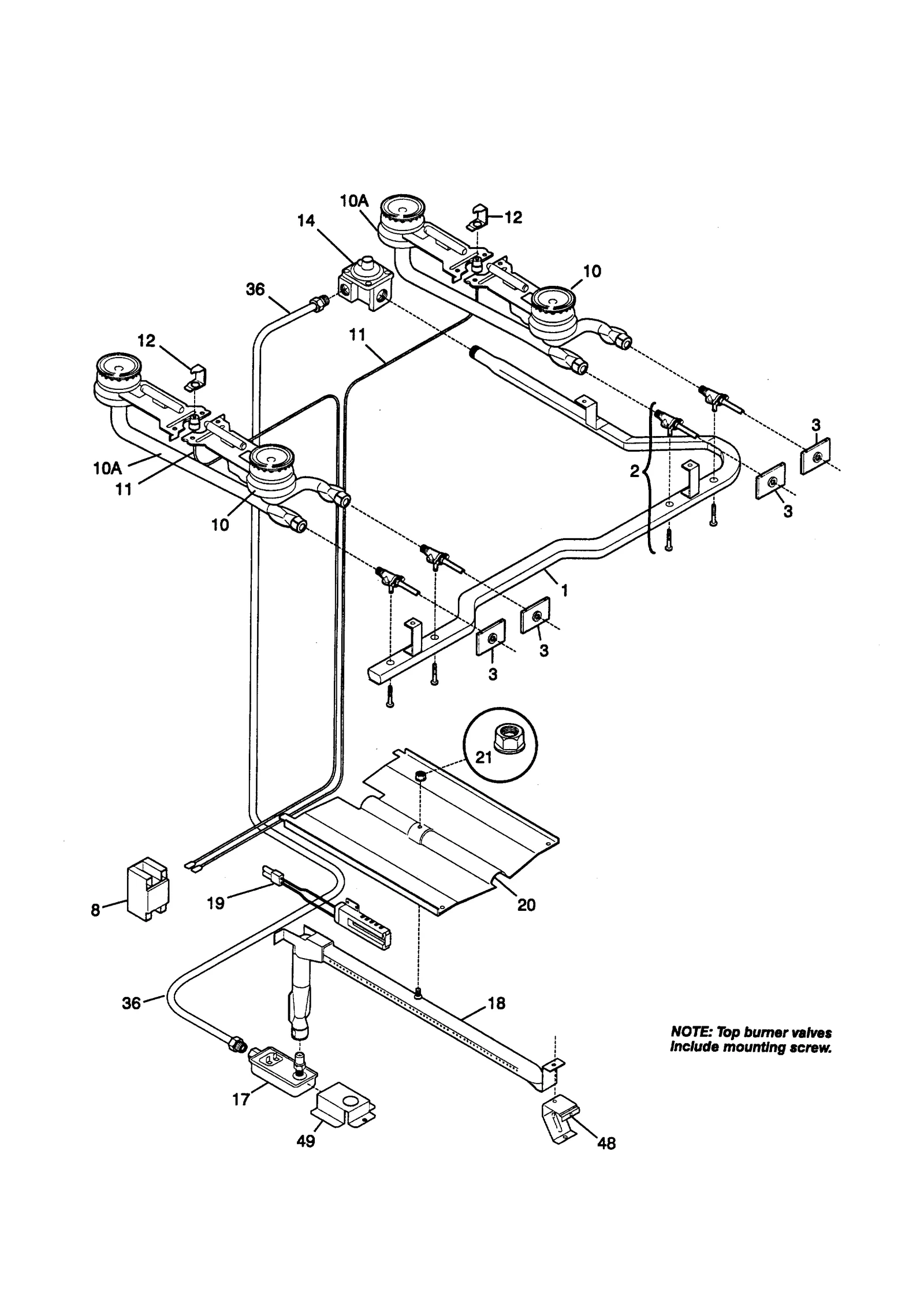

BURNER
Common parts from model Electrolux 790.71106890 Gas Range (Kenmore 79071106890)
1
Manifold WCI 5303272435 Contact Us For Availability
2
Valve Screw WCI 316098600 Contact Us For Availability
2A
Range Surface Burner Valve Mounting Screw WCI 316048200 Contact Us For Availability
3
Igniter Switch WCI 316103601 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5
Glass-oven D WCI 316050300 Contact Us For Availability
5A
Glass-oven D WCI 316050301 Contact Us For Availability
5B
Anti-Tip Kit WCI 3934058 Contact Us For Availability
6
Shield WCI 316088403 Contact Us For Availability
7
Insulation WCI 316076401 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Range Spark Module WCI 5303912606 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Range Oven Door Handle Screw, #10-24 WCI 5303281378 Contact Us For Availability
11
Igniter WCI 316081700 Contact Us For Availability
11A
Range Surface Burner Igniter WCI 316081701 Contact Us For Availability
11A
Control Panel WCI 316083717 Contact Us For Availability
13
Panel WCI 3017081 Contact Us For Availability
13A
Panel WCI 3017096 Contact Us For Availability
14
Range Pressure Regulator WCI 316082900 Contact Us For Availability
15
Support WCI 5303131237 Contact Us For Availability
16
Plate WCI 316042610 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
18
Range Oven Burner WCI 3131439 Contact Us For Availability
18A
Range Main Top Hinge WCI 08067746 Contact Us For Availability
19
Backguard Panel WCI 316034136 Contact Us For Availability
19A
Backguard Panel WCI 316034137 Contact Us For Availability
20
Clock WCI 316113200 Contact Us For Availability
20
Oven Burner Baffle WCI 3203265 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303272476 Contact Us For Availability
24A
Rocker Switch WCI 316005608 Contact Us For Availability
25
Range Oven Vent Cover (Chrome) WCI 316104500 Contact Us For Availability
28
Clock Button WCI 316017303 Contact Us For Availability
28A
Push Button WCI 316017304 Contact Us For Availability
29
Range Clock Timer Selector Button (White) WCI 316028402 Contact Us For Availability
29A
Button Selector WCI 316028403 Contact Us For Availability
30A
Wing Nut WCI 316064300 Contact Us For Availability
32
Range Oven Temperature Knob WCI 316109003 Contact Us For Availability
32A
Range Oven Control Knob WCI 316109004 Contact Us For Availability
34
Cover WCI 3018607 Contact Us For Availability
36
Range Oven Gas Valve Tubing WCI 316083000 Contact Us For Availability
36
Wh Surf Knob WCI 316109005 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316109006 Contact Us For Availability
39A
Door Handle WCI 316020205 Contact Us For Availability
40
Manifold Panel WCI 316086847 Contact Us For Availability
40A
Monifold Cov WCI 316086848 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
44
Bracket WCI 3131468 Contact Us For Availability
45A
Bolt WCI 316056903 Contact Us For Availability
45AA
Bolt Fastner WCI 316056904 Contact Us For Availability
48
Range Oven Burner Bracket WCI 3018603 Contact Us For Availability
49
End Cap WCI 316020101 Contact Us For Availability
49
Bracket Valve WCI 3131438 Contact Us For Availability
49A
End Rh Al WCI 316020103 Contact Us For Availability
58A
Range Oven Insulation WCI 3017142 Contact Us For Availability
60
Cover WCI 5303015372 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Owner's Manual WCI 316000939 Contact Us For Availability
NI
Clip Backguard WCI 5303272555 Contact Us For Availability
× ![]()
