Model Electrolux 790.71105892 Gas Range (Kenmore 79071105892) – Common Parts & Diagrams

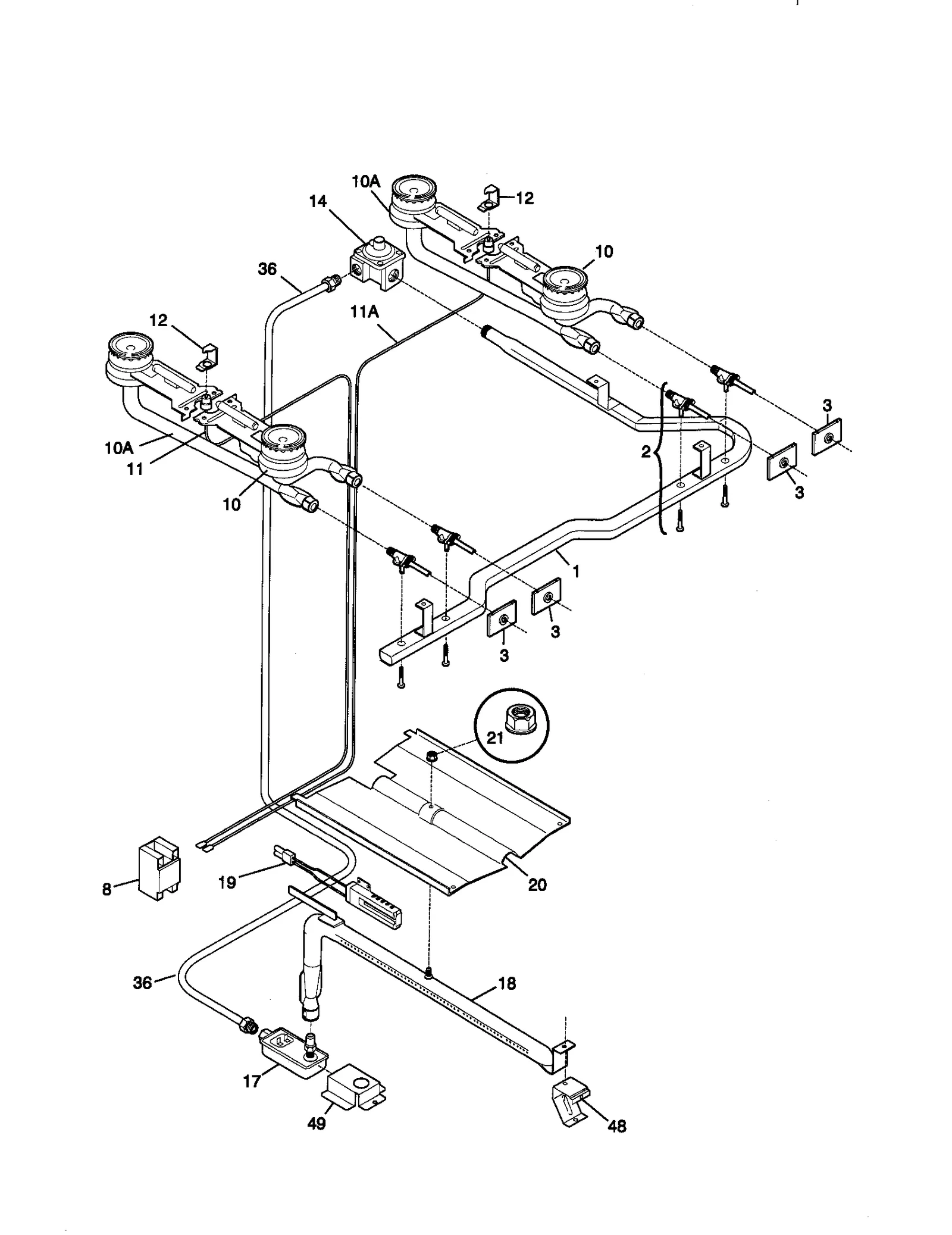

BURNER

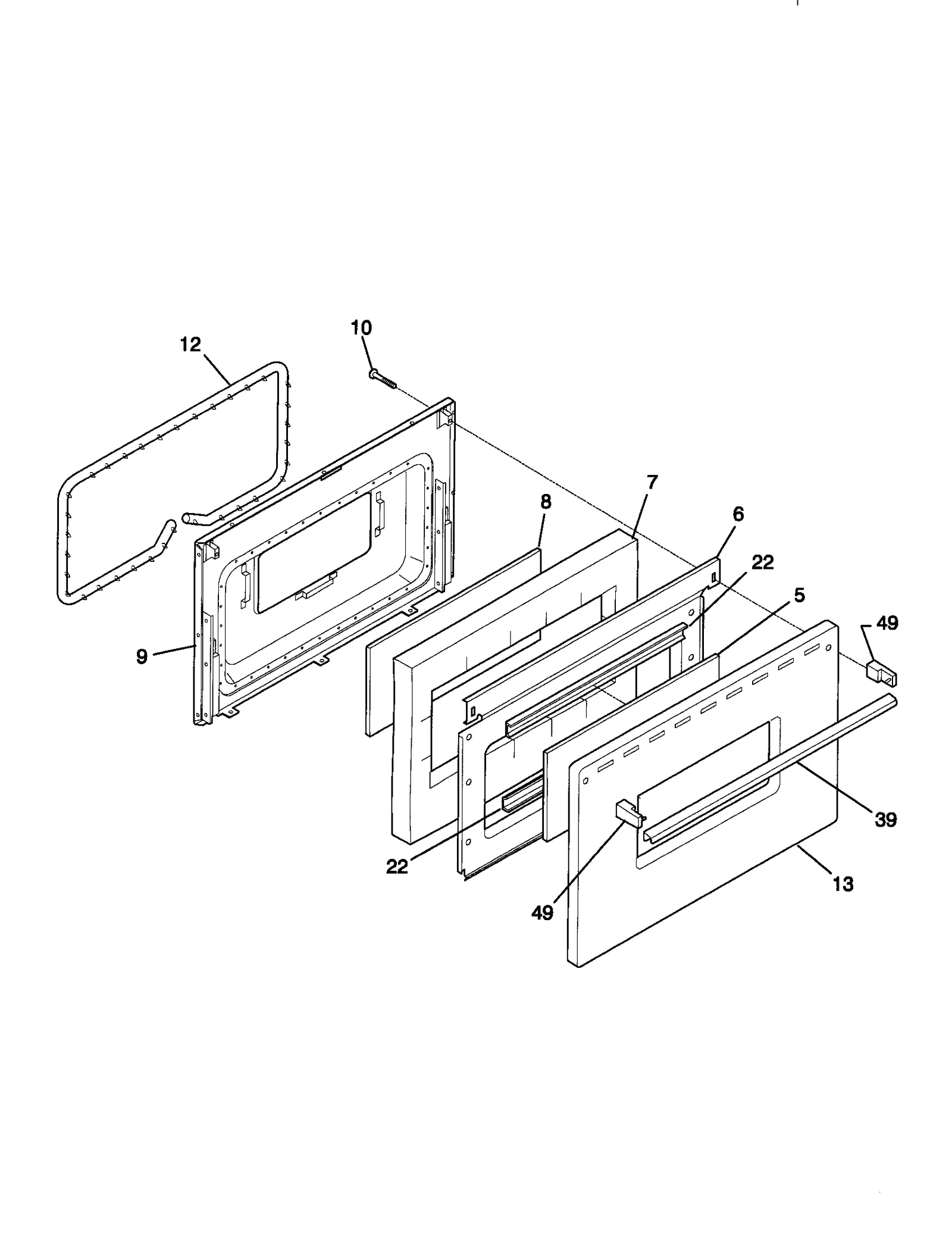

DOOR

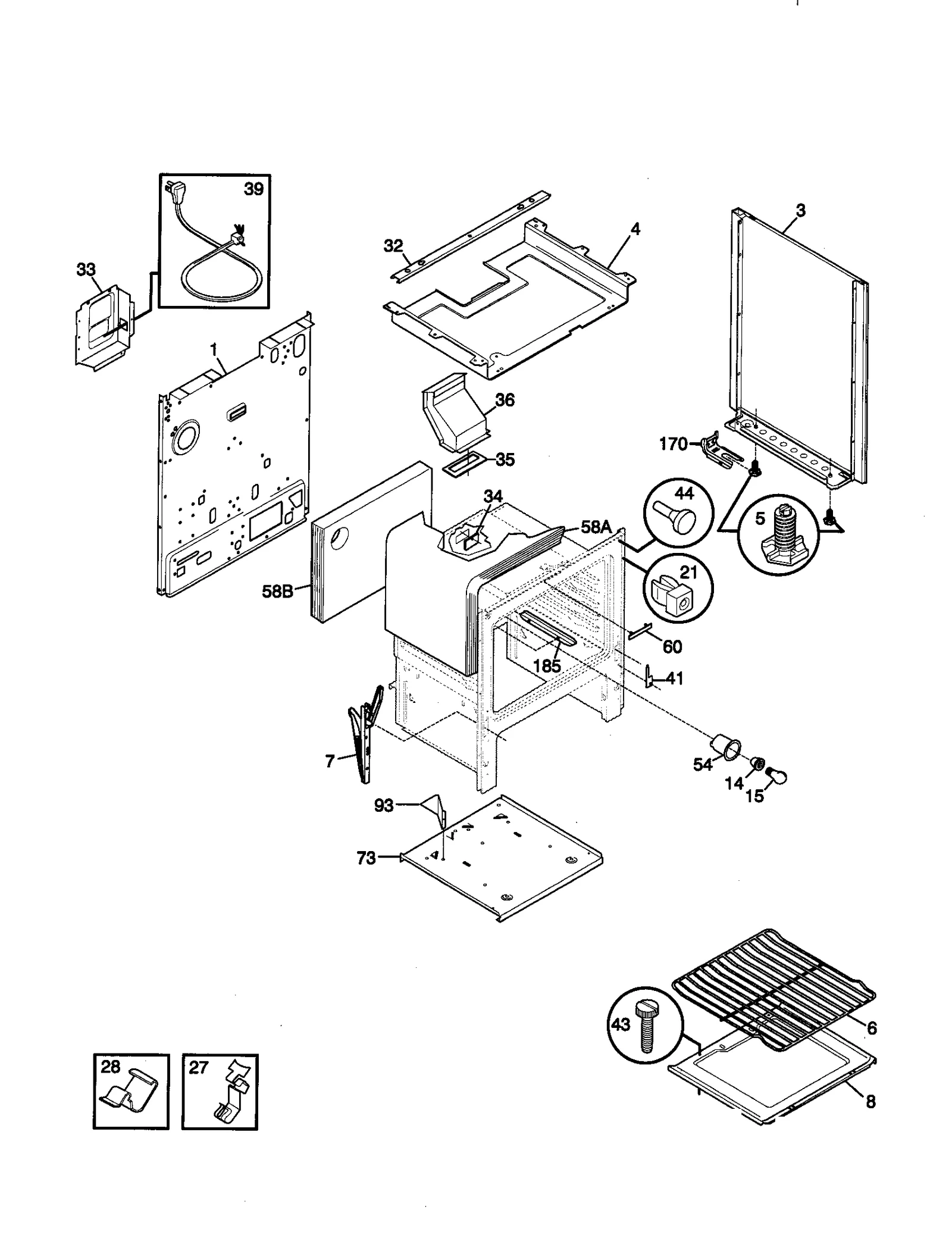

BODY

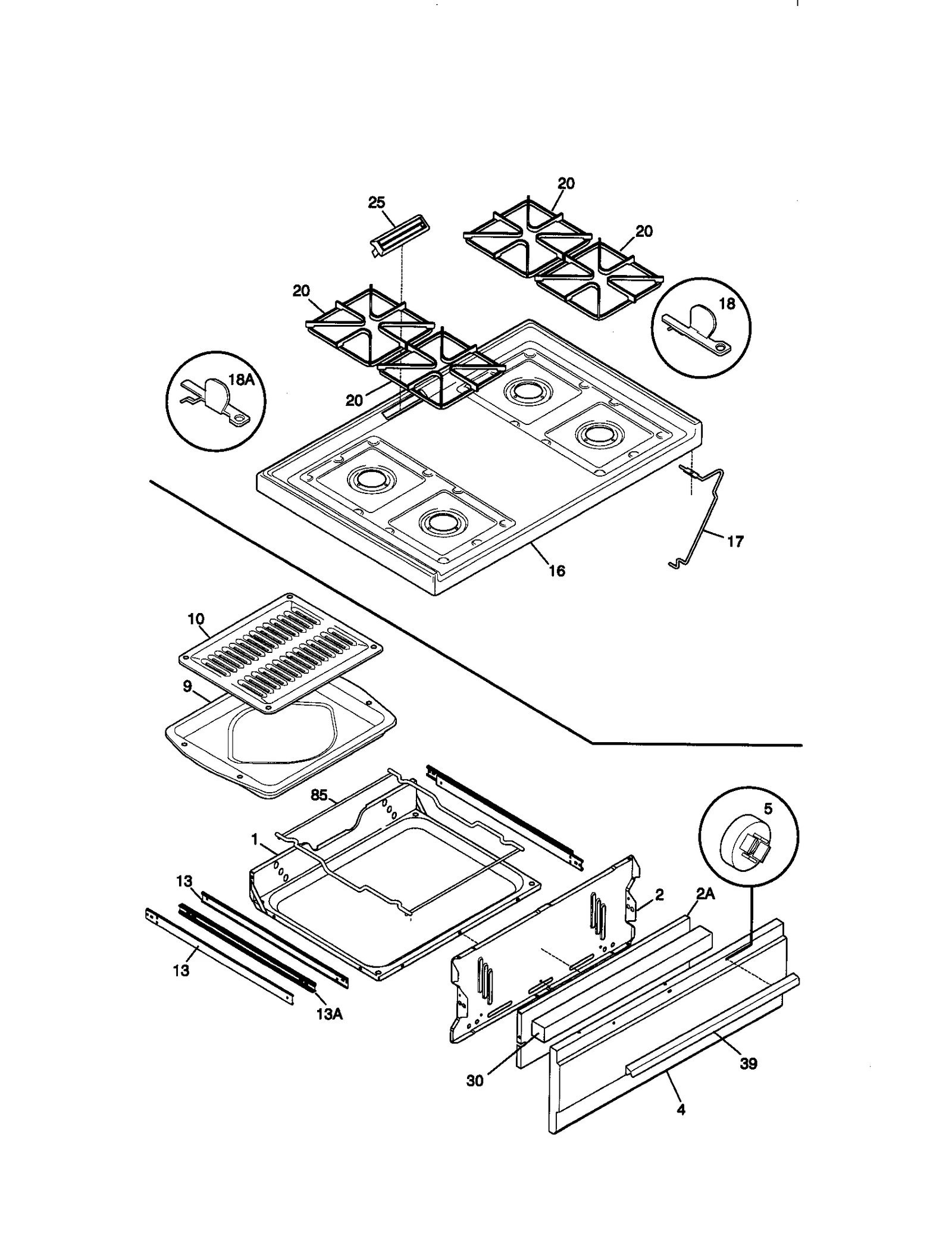

TOP/DRAWER
All Parts

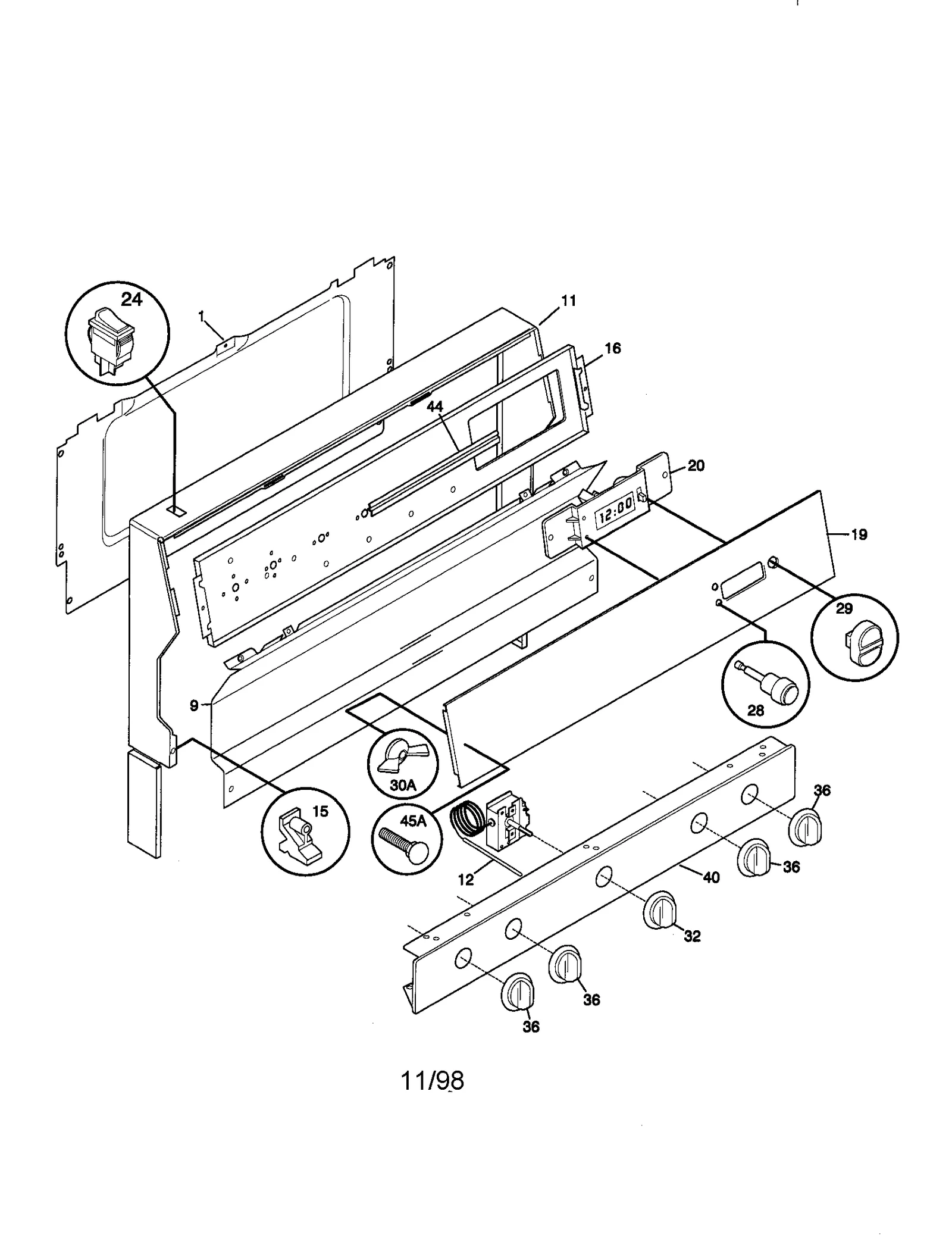

BACKGUARD
Common parts from model Electrolux 790.71105892 Gas Range (Kenmore 79071105892)
1
Broiler WCI 316110401 Contact Us For Availability
1
Shield WCI 3131123 Contact Us For Availability
2
Liner-low Br WCI 316110101 Contact Us For Availability
2A
Shield Broil WCI 316110800 Contact Us For Availability
4
Wt Drwr Panl WCI 316056205 Contact Us For Availability
4A
Store Drawer WCI 316056206 Contact Us For Availability
5
Fastener WCI 3131387 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Range Spark Module WCI 5303912606 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Trim Splasher WCI 316043611 Contact Us For Availability
9A
Trim Splasher WCI 316043615 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Oven Door Handle Screw, #10-24 WCI 5303281378 Contact Us For Availability
11
Wrapper Trim WCI 316083716 Contact Us For Availability
11A
Range Surface Burner Igniter WCI 316081701 Contact Us For Availability
11A
Control Panel WCI 316083717 Contact Us For Availability
13
Pin WCI 316111500 Contact Us For Availability
13A
Guide Bar WCI 316111600 Contact Us For Availability
14
Range Pressure Regulator WCI 316082900 Contact Us For Availability
15
Support WCI 5303131237 Contact Us For Availability
16
Main Top Panel WCI 316104401 Contact Us For Availability
16
Plate Instruction WCI 316042601 Contact Us For Availability
16A
Complete Top WCI 316104402 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
18
Range Oven Burner WCI 3131439 Contact Us For Availability
18
Bracket WCI 08067747 Contact Us For Availability
18A
Range Main Top Hinge WCI 08067746 Contact Us For Availability
19
Backguard Panel WCI 316034136 Contact Us For Availability
19A
Backguard Panel WCI 316034137 Contact Us For Availability
20
Clock WCI 316113200 Contact Us For Availability
20
Grate WCI 316088900 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303272476 Contact Us For Availability
24A
Rocker Switch WCI 316005608 Contact Us For Availability
25
Range Oven Vent Cover (Chrome) WCI 316104500 Contact Us For Availability
28
Clock Button WCI 316017303 Contact Us For Availability
28A
Push Button WCI 316017304 Contact Us For Availability
29
Range Clock Timer Selector Button (White) WCI 316028402 Contact Us For Availability
29A
Button Selector WCI 316028403 Contact Us For Availability
30
Insulation WCI 316111400 Contact Us For Availability
30A
Wing Nut WCI 316064300 Contact Us For Availability
32
Range Oven Temperature Knob WCI 316109003 Contact Us For Availability
32A
Range Oven Control Knob WCI 316109004 Contact Us For Availability
34
Cover WCI 3018607 Contact Us For Availability
36
Range Oven Gas Valve Tubing WCI 316083000 Contact Us For Availability
36
Wh Surf Knob WCI 316109005 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316109006 Contact Us For Availability
39
Handle WCI 316019505 Contact Us For Availability
39A
Drawer Handle WCI 316019508 Contact Us For Availability
40
Manifold Panel WCI 316086847 Contact Us For Availability
40A
Monifold Cov WCI 316086848 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
44
Bracket WCI 3131468 Contact Us For Availability
45A
Bolt WCI 316056903 Contact Us For Availability
45AA
Bolt Fastner WCI 316056904 Contact Us For Availability
58A
Range Oven Insulation WCI 3017142 Contact Us For Availability
85
Range Broil Drawer Rack WCI 316115600 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Owner's Manual WCI 316000939 Contact Us For Availability
NI
Label Anti-t WCI 316071606 Contact Us For Availability
NI
Bushing WCI 316072100 Contact Us For Availability
NI
Plate Weight WCI 316073400 Contact Us For Availability
NI
Installation WCI 316105806 Contact Us For Availability
NI
Clip Backguard WCI 5303272555 Contact Us For Availability
NI
Repair Parts List WCI 5995313144 Contact Us For Availability
× ![]()
