Model Electrolux 790.71105891 Gas Range (Kenmore 79071105891) – Common Parts & Diagrams

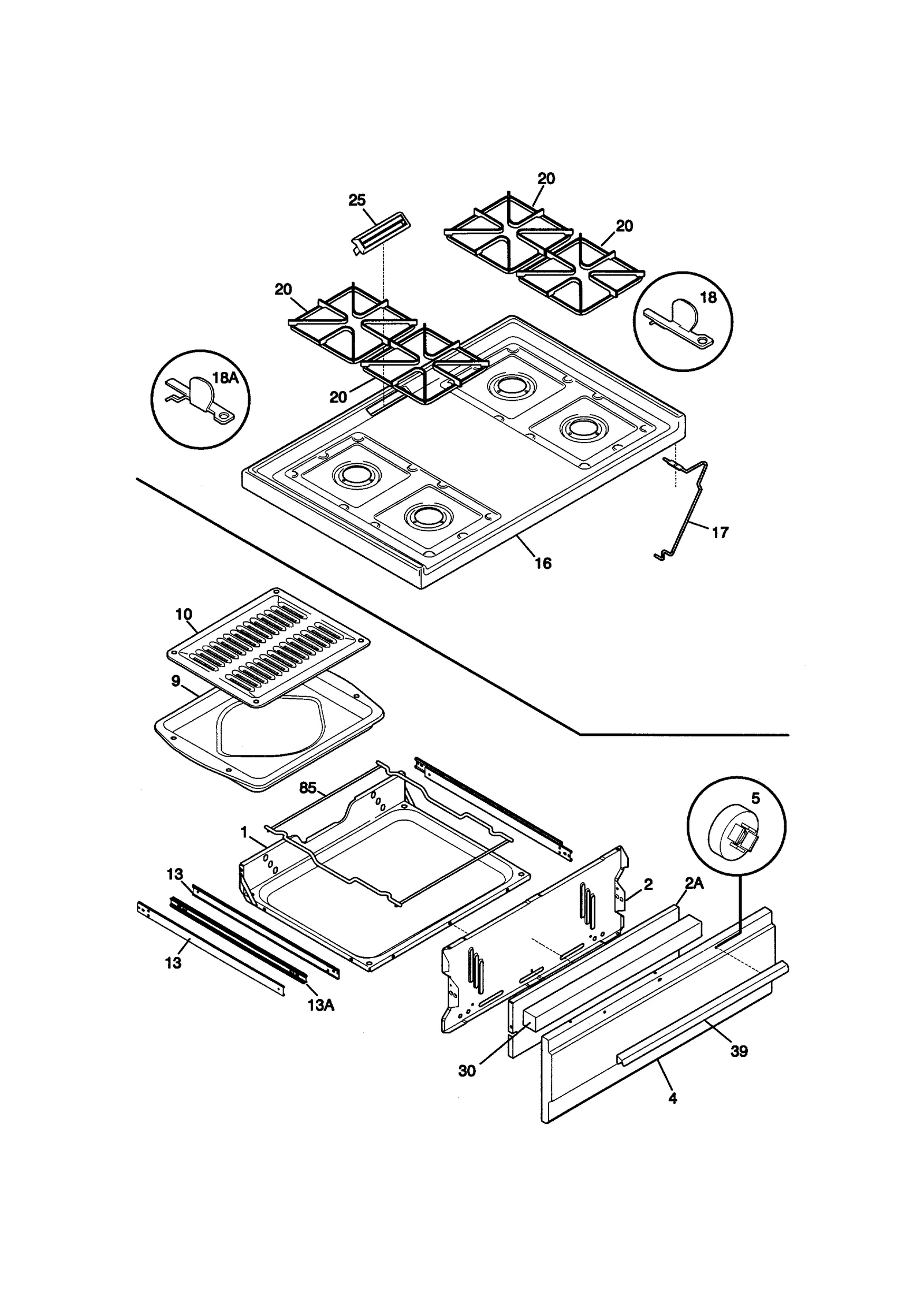

TOP/DRAWER

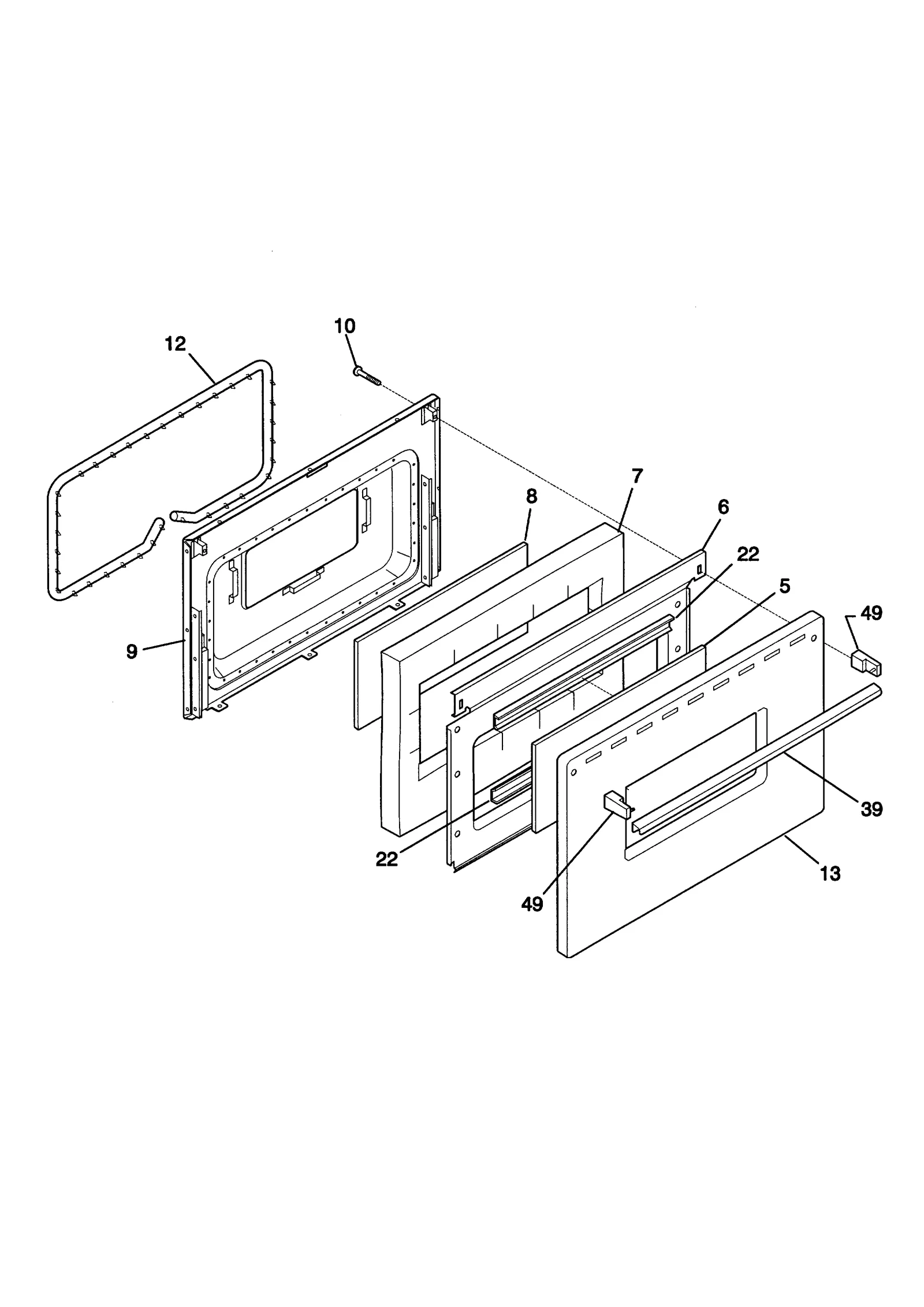

DOOR

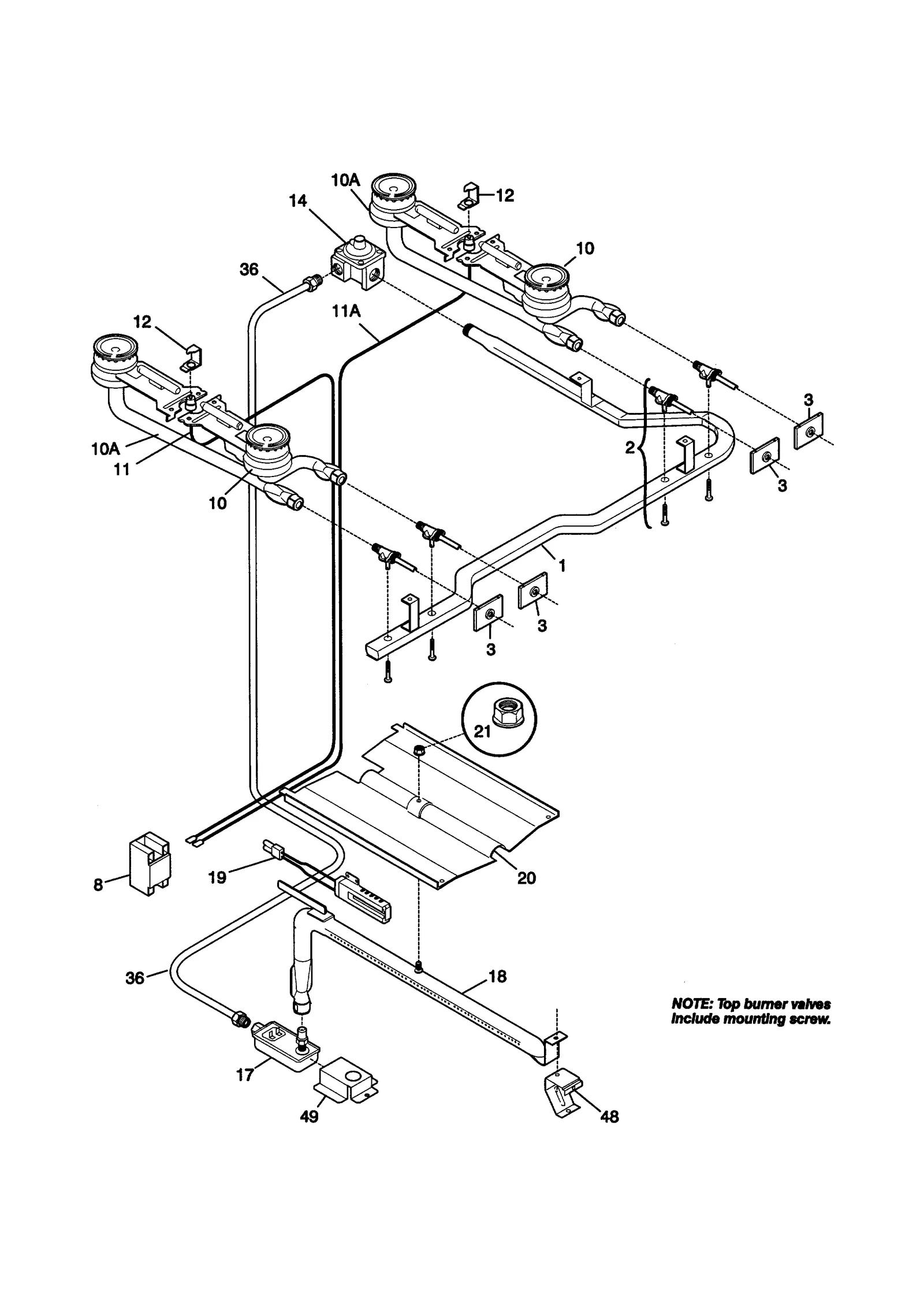

BURNER
All Parts

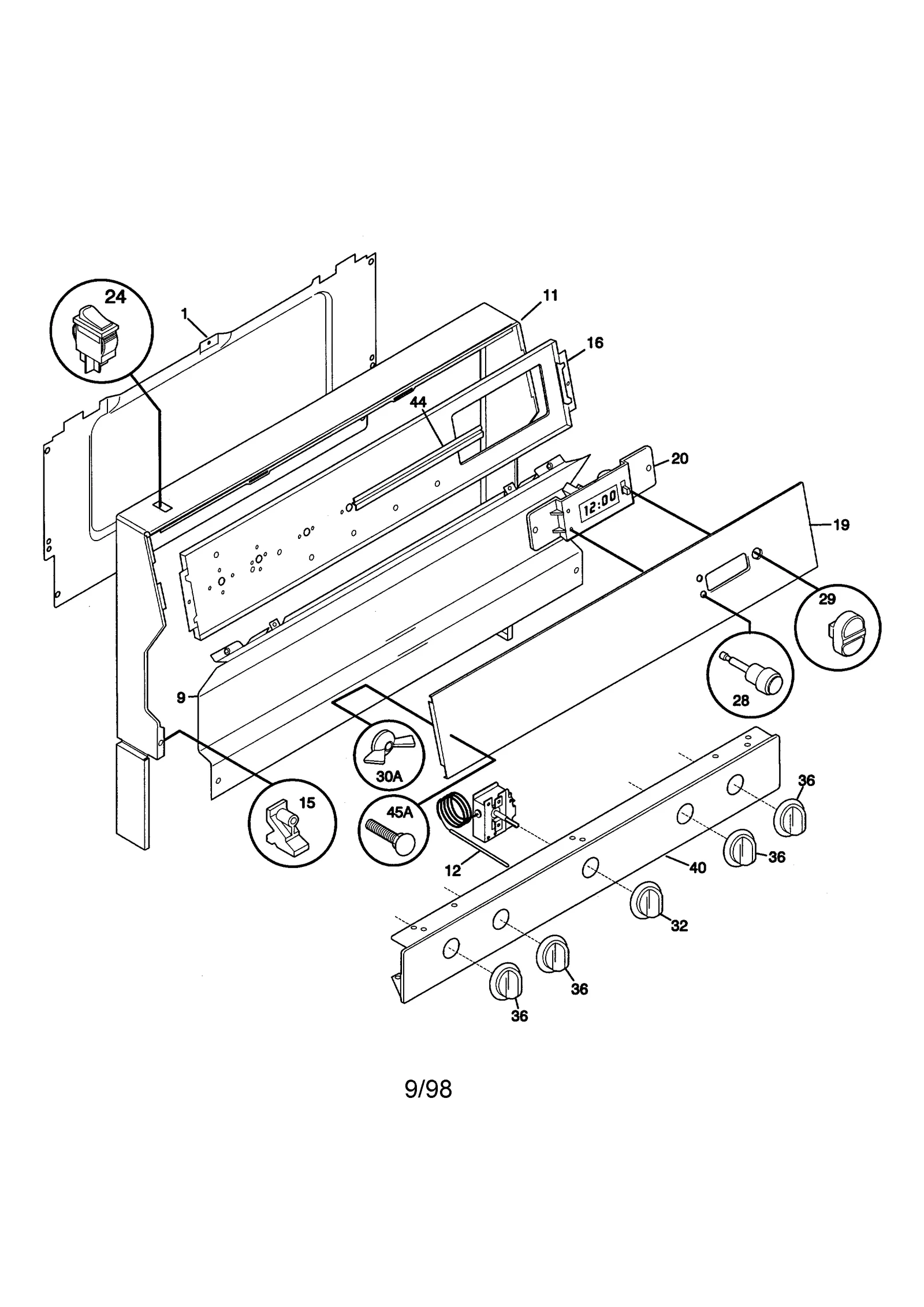

BACKGUARD

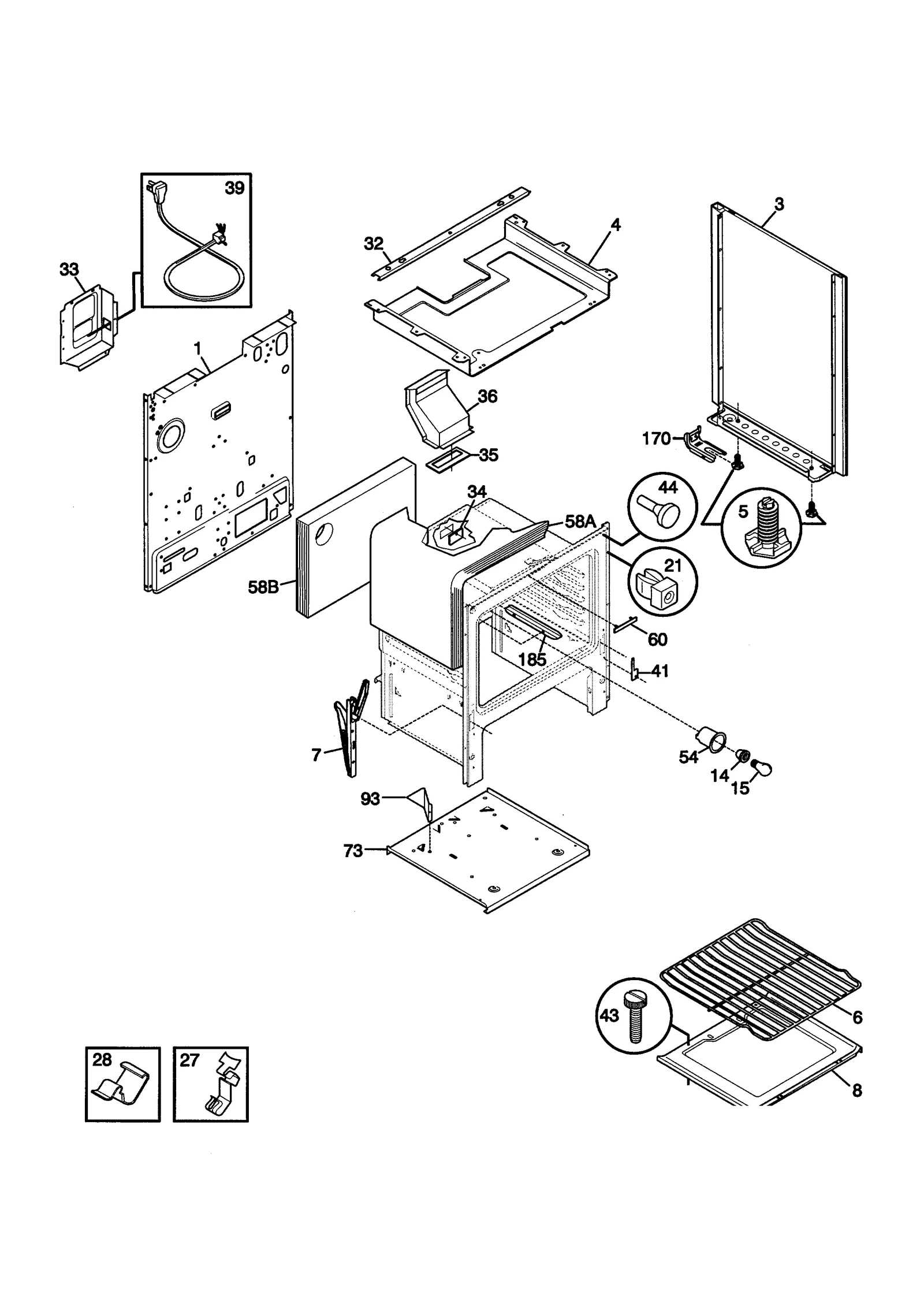

BODY
Common parts from model Electrolux 790.71105891 Gas Range (Kenmore 79071105891)
1
Main WCI 316029412 Contact Us For Availability
3
Rh Wh Panel WCI 316081034 Contact Us For Availability
3A
Panel WCI 316081035 Contact Us For Availability
3B
Panel WCI 316081036 Contact Us For Availability
3C
Panel WCI 316081037 Contact Us For Availability
4
Burner Box WCI 316067206 Contact Us For Availability
5
Range Level Leg WCI 316107300 Contact Us For Availability
7
Oven Hinge WCI 316007003 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Range Spark Module WCI 5303912606 Contact Us For Availability
8
Oven WCI 5303212540 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Oven Door Handle Screw, #10-24 WCI 5303281378 Contact Us For Availability
11
Wrapper Trim WCI 316083716 Contact Us For Availability
11A
Range Surface Burner Igniter WCI 316081701 Contact Us For Availability
11A
Control Panel WCI 316083717 Contact Us For Availability
14
Range Pressure Regulator WCI 316082900 Contact Us For Availability
15
Support WCI 5303131237 Contact Us For Availability
16
Plate Instruction WCI 316042601 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
18
Range Oven Burner WCI 3131439 Contact Us For Availability
18A
Range Main Top Hinge WCI 08067746 Contact Us For Availability
19
Backguard Panel WCI 316034136 Contact Us For Availability
19A
Backguard Panel WCI 316034137 Contact Us For Availability
20
Clock WCI 316113200 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303272476 Contact Us For Availability
24A
Rocker Switch WCI 316005608 Contact Us For Availability
25
Range Oven Vent Cover (Chrome) WCI 316104500 Contact Us For Availability
28
Clock Button WCI 316017303 Contact Us For Availability
28
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
28A
Push Button WCI 316017304 Contact Us For Availability
29
Range Clock Timer Selector Button (White) WCI 316028402 Contact Us For Availability
29A
Button Selector WCI 316028403 Contact Us For Availability
30A
Wing Nut WCI 316064300 Contact Us For Availability
32
Range Oven Temperature Knob WCI 316109003 Contact Us For Availability
32
Channel WCI 3203441 Contact Us For Availability
32A
Range Oven Control Knob WCI 316109004 Contact Us For Availability
33
Spark Shield WCI 316055601 Contact Us For Availability
34
Cover WCI 3018607 Contact Us For Availability
36
Range Oven Gas Valve Tubing WCI 316083000 Contact Us For Availability
36
Wh Surf Knob WCI 316109005 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316109006 Contact Us For Availability
40
Manifold Panel WCI 316086847 Contact Us For Availability
40
Screw-heat S WCI 5303288570 Contact Us For Availability
40A
Monifold Cov WCI 316086848 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
44
Bracket WCI 3131468 Contact Us For Availability
45A
Bolt WCI 316056903 Contact Us For Availability
45AA
Bolt Fastner WCI 316056904 Contact Us For Availability
54
Oven Light Housing WCI 5303271606 Contact Us For Availability
58A
Range Oven Insulation WCI 3017142 Contact Us For Availability
58B
Insulation WCI 3203541 Contact Us For Availability
60
Cover WCI 5303015372 Contact Us For Availability
73
Pan Base WCI 316109901 Contact Us For Availability
85
Range Broil Drawer Rack WCI 316115600 Contact Us For Availability
93
Range Oven Burner Igniter Cover WCI 316110000 Contact Us For Availability
185
Shield-therm WCI 316112900 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
