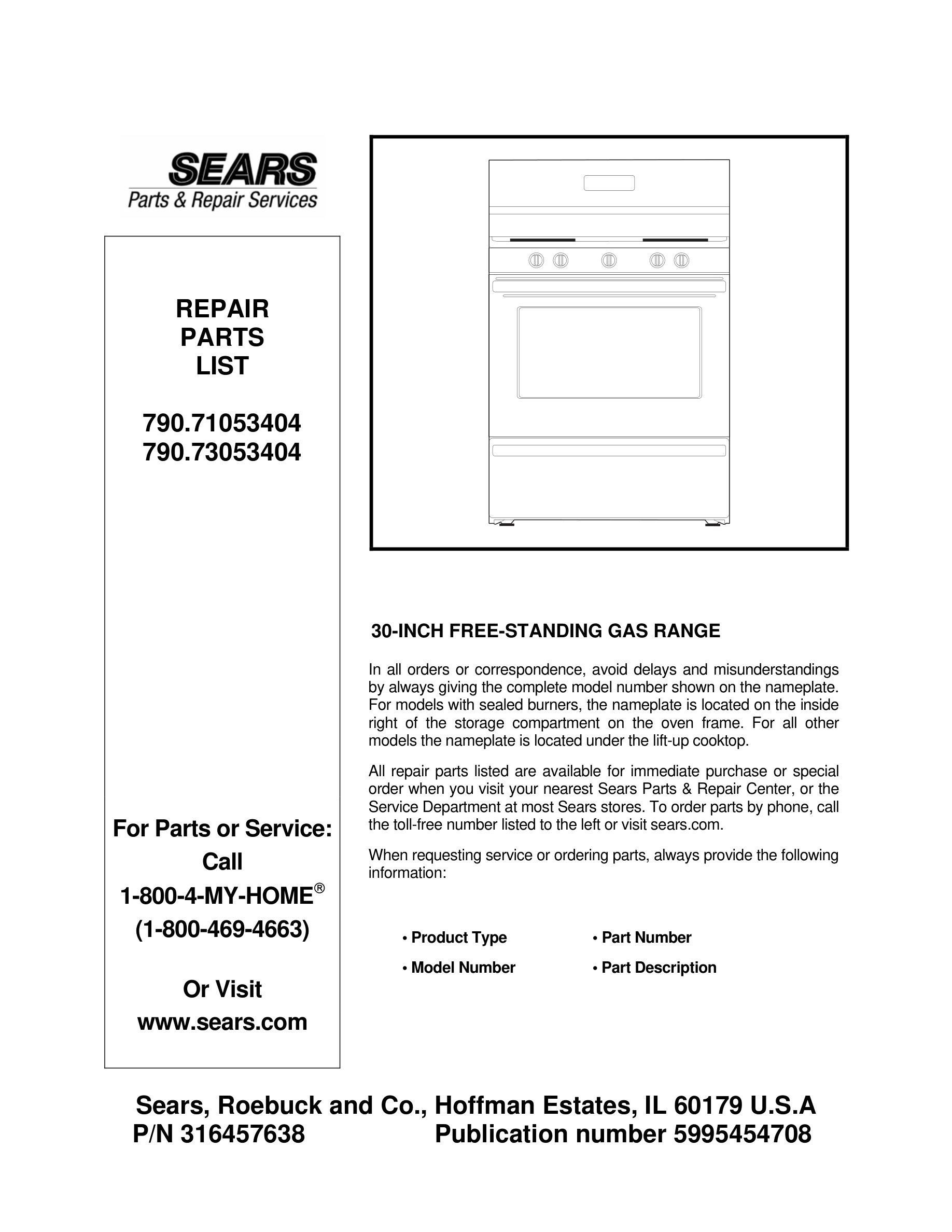

Model Kenmore 790.71053404 RANGE – Common Parts & Diagrams

*
Screw, cup pt, 8-18 x 0.375, chrome
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
View on Model
*
Plug, button, oven probe
Plug, button, oven probe WCI 316246400 Contact Us For Availability
View on Model
*
Harness, main
Harness, main WCI 316253307 Contact Us For Availability
View on Model
1
Carriage, low broil
Carriage, low broil WCI 316110201 Contact Us For Availability
View on Model
1

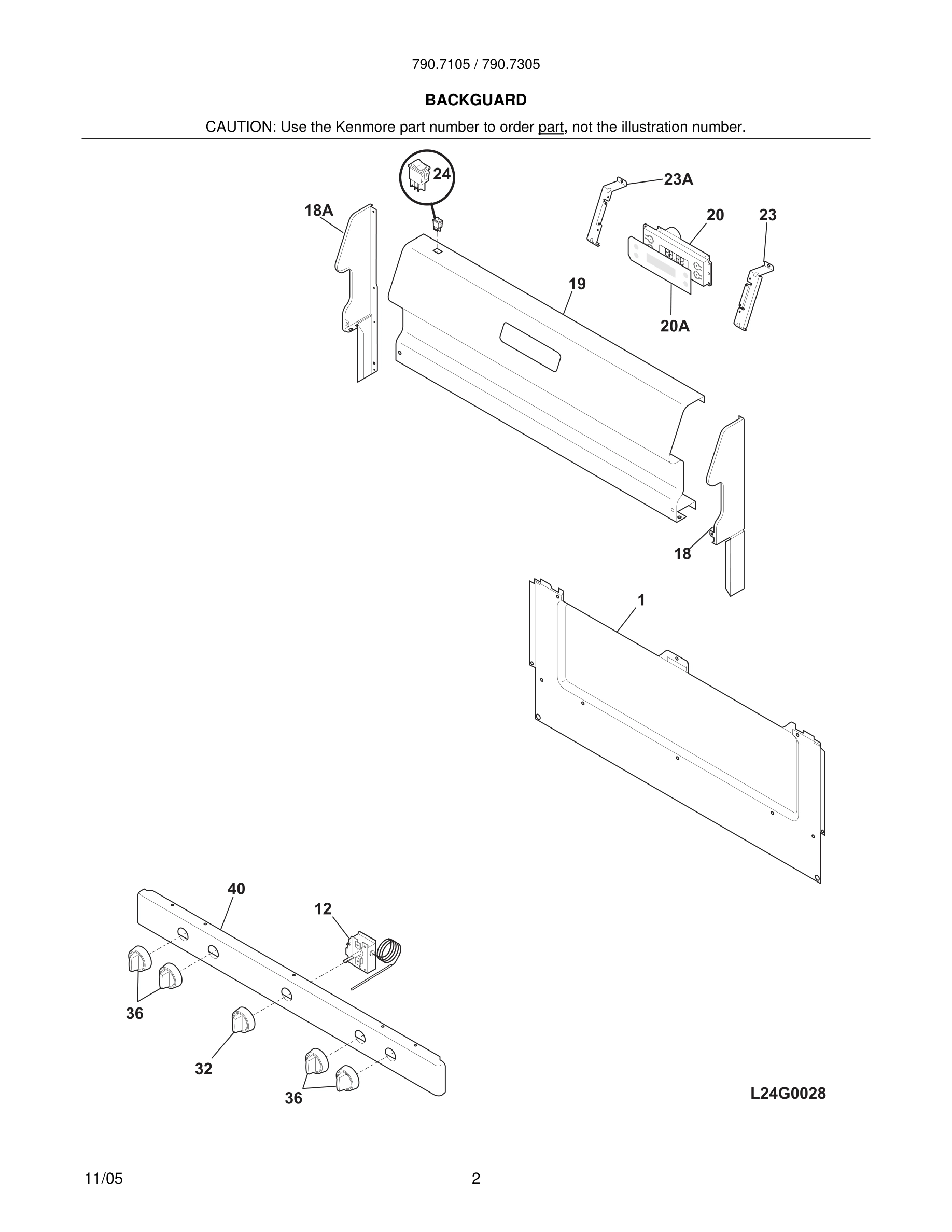

Shield, backguard, rear wall
Shield, backguard, rear wall WCI 5303289640 Contact Us For Availability
View on Model
2
Liner, low broil
Liner, low broil WCI 316236401 Contact Us For Availability
View on Model
2#
Valve, top burner, w/mtg screw
Valve, top burner, w/mtg screw WCI 5303935237 Contact Us For Availability
View on Model
3
Wiring Harness, w/igntr switch
Wiring Harness, w/igntr switch WCI 316001830 Contact Us For Availability
View on Model
4
Glass, oven door, black, outer
Glass, oven door, black, outer WCI 316240000 Contact Us For Availability
View on Model
9
Pan, broiler
Pan, broiler WCI 316081900 Contact Us For Availability
View on Model
10
Insert, broiler pan
Insert, broiler pan WCI 316082000 Contact Us For Availability
View on Model
13B
Glide, low broil, outer
Glide, low broil, outer WCI 316111501 Contact Us For Availability
View on Model
14#
Regulator, pressure
Regulator, pressure WCI 316091705 Contact Us For Availability
View on Model
16
Main Top, black
Main Top, black WCI 316273002 Contact Us For Availability
View on Model
17
Rod, maintop support
Rod, maintop support WCI 316066900 Contact Us For Availability
View on Model
17
Spacer, door glass, (2)
Spacer, door glass, (2) WCI 316117701 Contact Us For Availability
View on Model
18A
Bracket, hinge, main top LH
Bracket, hinge, main top LH WCI 08067746 Contact Us For Availability
View on Model
20#
Clock/Timer
Clock/Timer WCI 316440000 Contact Us For Availability
View on Model
23
Bracket, clock mtg, RH
Bracket, clock mtg, RH WCI 316263500 Contact Us For Availability
View on Model
23A
Bracket, clock mtg, LH
Bracket, clock mtg, LH WCI 316263501 Contact Us For Availability
View on Model
25
Cover, vent, chrome
Cover, vent, chrome WCI 316104500 Contact Us For Availability
View on Model
34
Plate, cover
Plate, cover WCI 3018607 Contact Us For Availability
View on Model
36
Knob, top valve, black, (4)
Knob, top valve, black, (4) WCI 316009008 No Longer Available
View on Model
36
Tubing, 3/8, alum
Tubing, 3/8, alum WCI 316065004 Contact Us For Availability
View on Model
41
Cover, hinge cutout, RH
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
View on Model
58A
Insulation, oven wrapper
Insulation, oven wrapper WCI 3017142 Contact Us For Availability
View on Model
73
Base, low broil
Base, low broil WCI 316109902 Contact Us For Availability
View on Model
85
Rack, low broil
Rack, low broil WCI 316115600 Contact Us For Availability
View on Model
