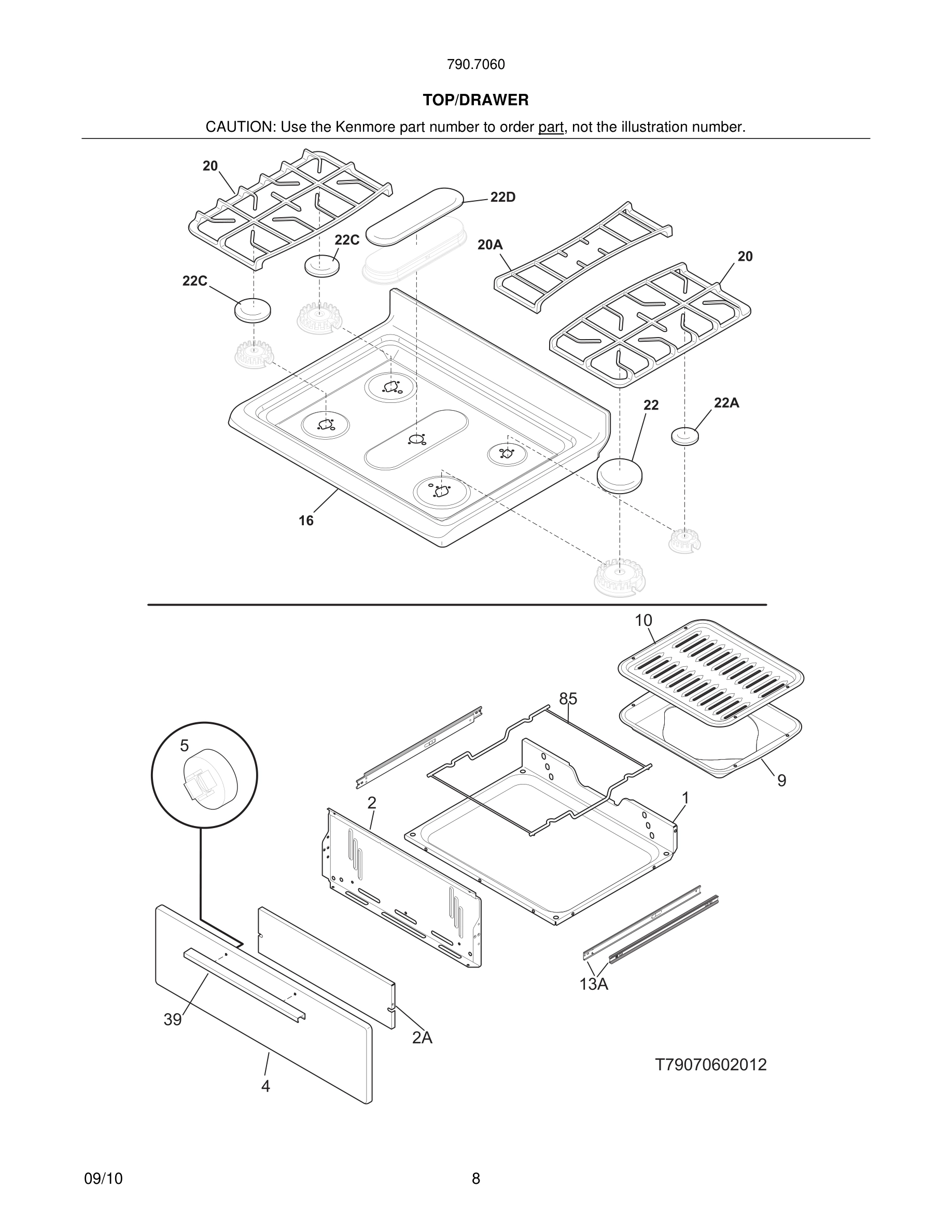

Model Kenmore 790.70602012 RANGE – Common Parts & Diagrams

*
Screw, cup pt, 8-18 x 0.375, chrome
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
View on Model
*
Label, anti-tip
Label, anti-tip WCI 316433601 Contact Us For Availability
View on Model
1
Panel, main back
Panel, main back WCI 316029419 Contact Us For Availability
View on Model
1
Carriage, low broil
Carriage, low broil WCI 316110201 Contact Us For Availability
View on Model
2
Liner, low broil
Liner, low broil WCI 316236401 Contact Us For Availability
View on Model
2A
Shield, broiler
Shield, broiler WCI 316541500 Contact Us For Availability
View on Model
3
Trim kit-door, 3 sided, white, w/tape
Trim kit-door, 3 sided, white, w/tape WCI 5303935347 Contact Us For Availability
View on Model
4
Glass, oven door, white, outer
Glass, oven door, white, outer WCI 316202826 Contact Us For Availability
View on Model
4
Panel, drawer, white
Panel, drawer, white WCI 316231211 Contact Us For Availability
View on Model
5
Fastener, push-in nut, nylon, spacer
Fastener, push-in nut, nylon, spacer WCI 316129100 Contact Us For Availability
View on Model
8
Panel,, oven bottom
Panel,, oven bottom WCI 316495901 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 316230623 Contact Us For Availability
View on Model
13#
Tube, 3/8, aluminum, rgltr to manf, with fitt
Tube, 3/8, aluminum, rgltr to manf, with fitt WCI 316207000 Contact Us For Availability
View on Model
13A
Glide-Low Broil, Inner
Glide-Low Broil, Inner WCI 316534200 Contact Us For Availability
View on Model
15
Support, backguard, white, RH
Support, backguard, white, RH WCI 316411403 Contact Us For Availability
View on Model
15A
Support, backguard, white, LH
Support, backguard, white, LH WCI 316411402 Contact Us For Availability
View on Model
16
Maintop panel, white
Maintop panel, white WCI 316469646 No Longer Available
View on Model
17
Spacer, door glass, (2)
Spacer, door glass, (2) WCI 316117701 Contact Us For Availability
View on Model
19
Control Panel, white
Control Panel, white WCI 316448466 Contact Us For Availability
View on Model
20
Baffle, oven burner
Baffle, oven burner WCI 316496001 Contact Us For Availability
View on Model
20
Grate, double, black, (2)
Grate, double, black, (2) WCI 316426003 Contact Us For Availability
View on Model
20A
Grate, center, black
Grate, center, black WCI 316426103 Contact Us For Availability
View on Model
23
Bracket, clock mtg
Bracket, clock mtg WCI 316441500 Contact Us For Availability
View on Model
36
Knob, top valve, white, (4)
Knob, top valve, white, (4) WCI 316353103 Contact Us For Availability
View on Model
39
Handle, drawer, white
Handle, drawer, white WCI 316019511 Contact Us For Availability
View on Model
41
Cover, hinge cutout, RH
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
View on Model
58A
Insulation, oven wrapper
Insulation, oven wrapper WCI 3017142 Contact Us For Availability
View on Model
73
Base, low broil
Base, low broil WCI 316109902 Contact Us For Availability
View on Model
85
Rack, low broil
Rack, low broil WCI 316115600 Contact Us For Availability
View on Model
