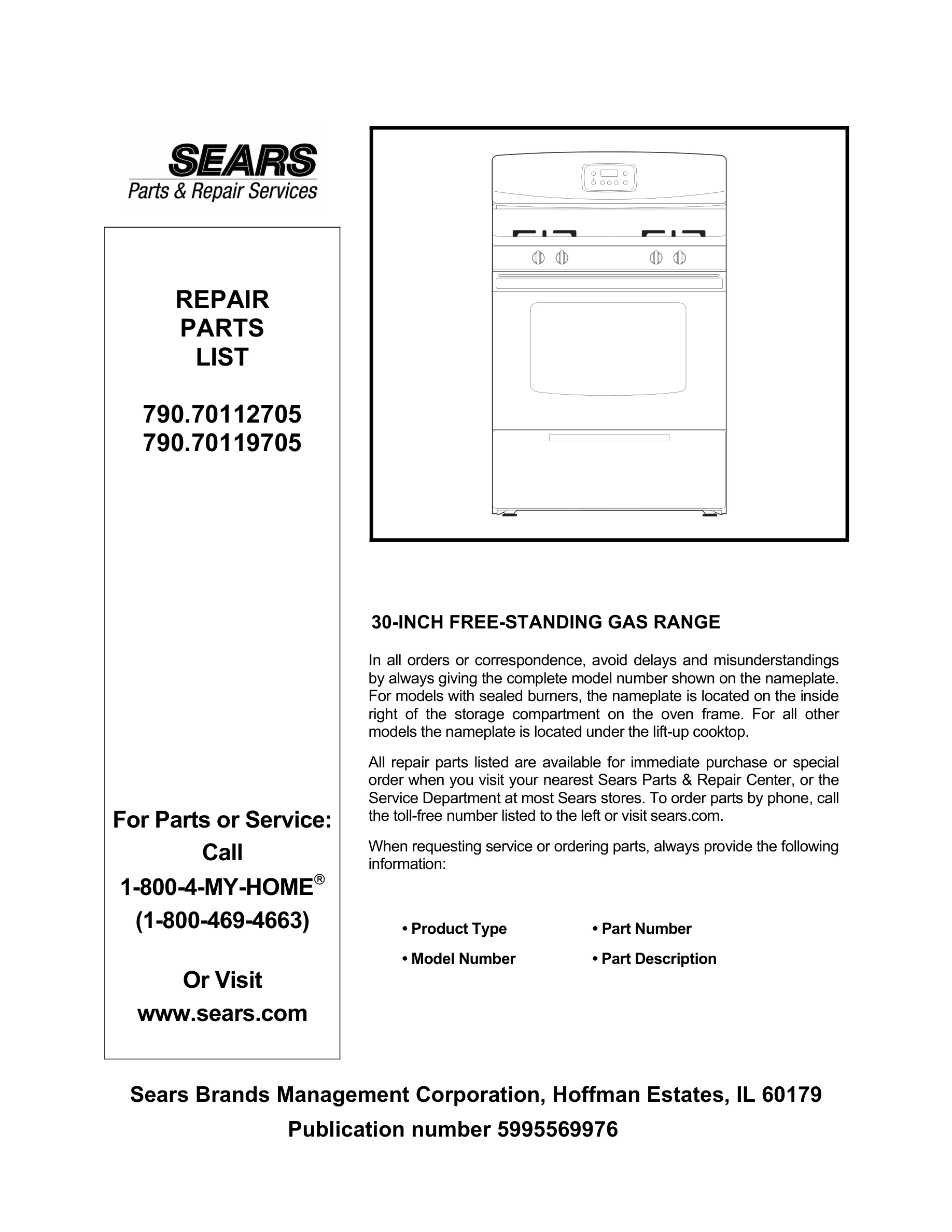

Model Kenmore 790.70112705 RANGE – Common Parts & Diagrams

*
Screw, cup pt, 8-18 x 0.375, chrome
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
View on Model
*
Label, anti-tip
Label, anti-tip WCI 316433601 Contact Us For Availability
View on Model
1

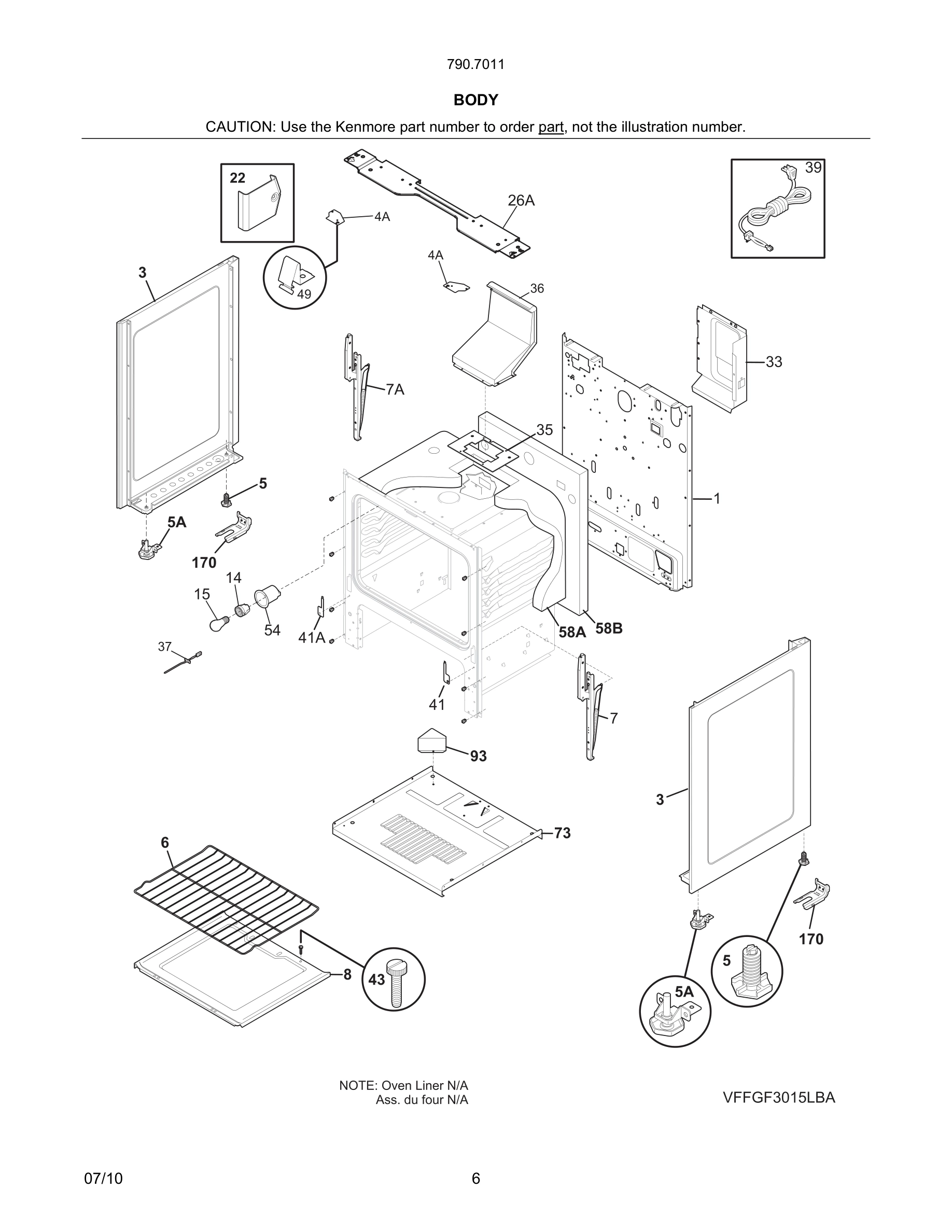

Panel, main back
Panel, main back WCI 316029419 Contact Us For Availability
View on Model
1
Carriage, low broil
Carriage, low broil WCI 316110201 Contact Us For Availability
View on Model
2
Liner, low broil
Liner, low broil WCI 316236401 Contact Us For Availability
View on Model
2A
Shield, broiler
Shield, broiler WCI 316541500 Contact Us For Availability
View on Model
4

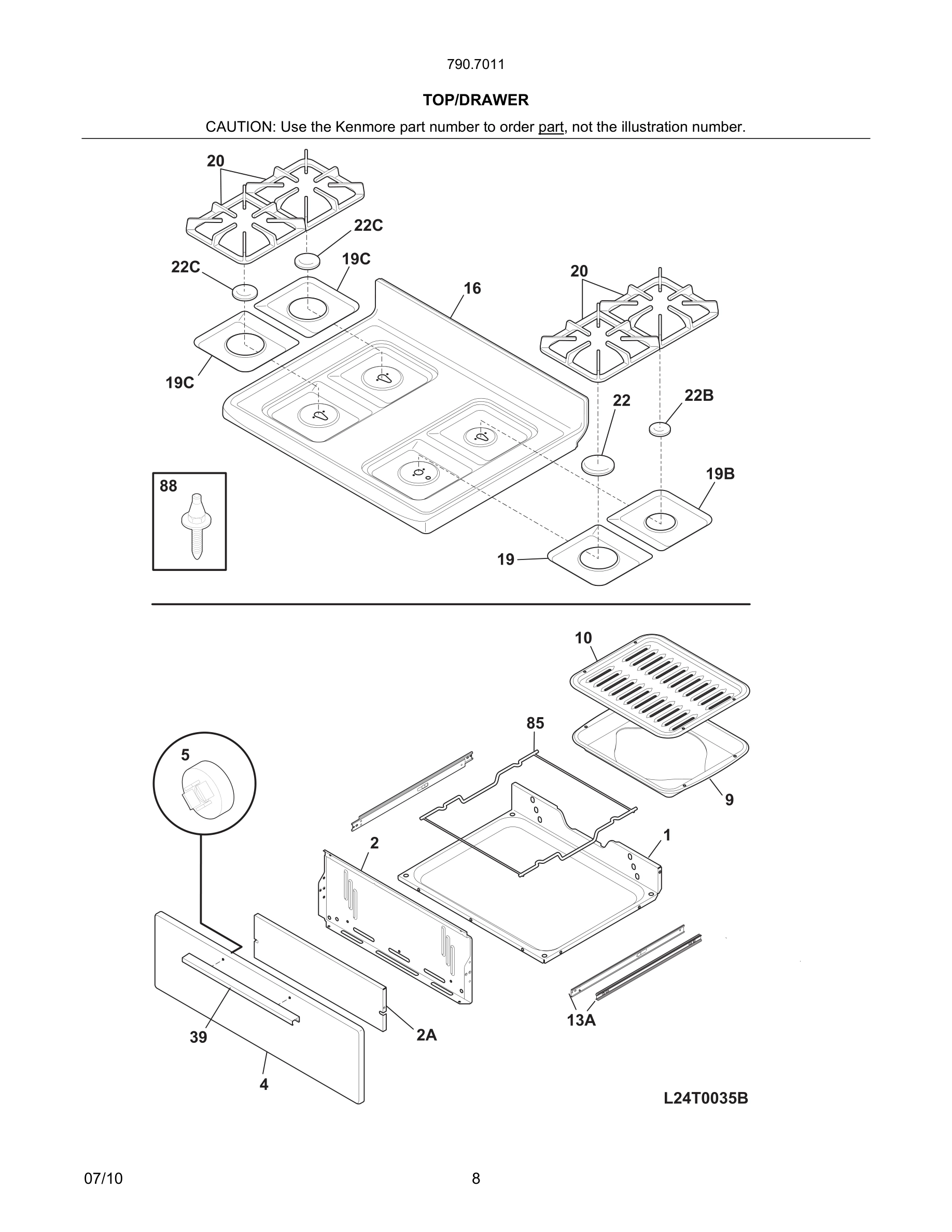

Panel, drawer, white
Panel, drawer, white WCI 316231211 Contact Us For Availability
View on Model
5
Fastener, push-in nut, nylon, spacer
Fastener, push-in nut, nylon, spacer WCI 316129100 Contact Us For Availability
View on Model
7

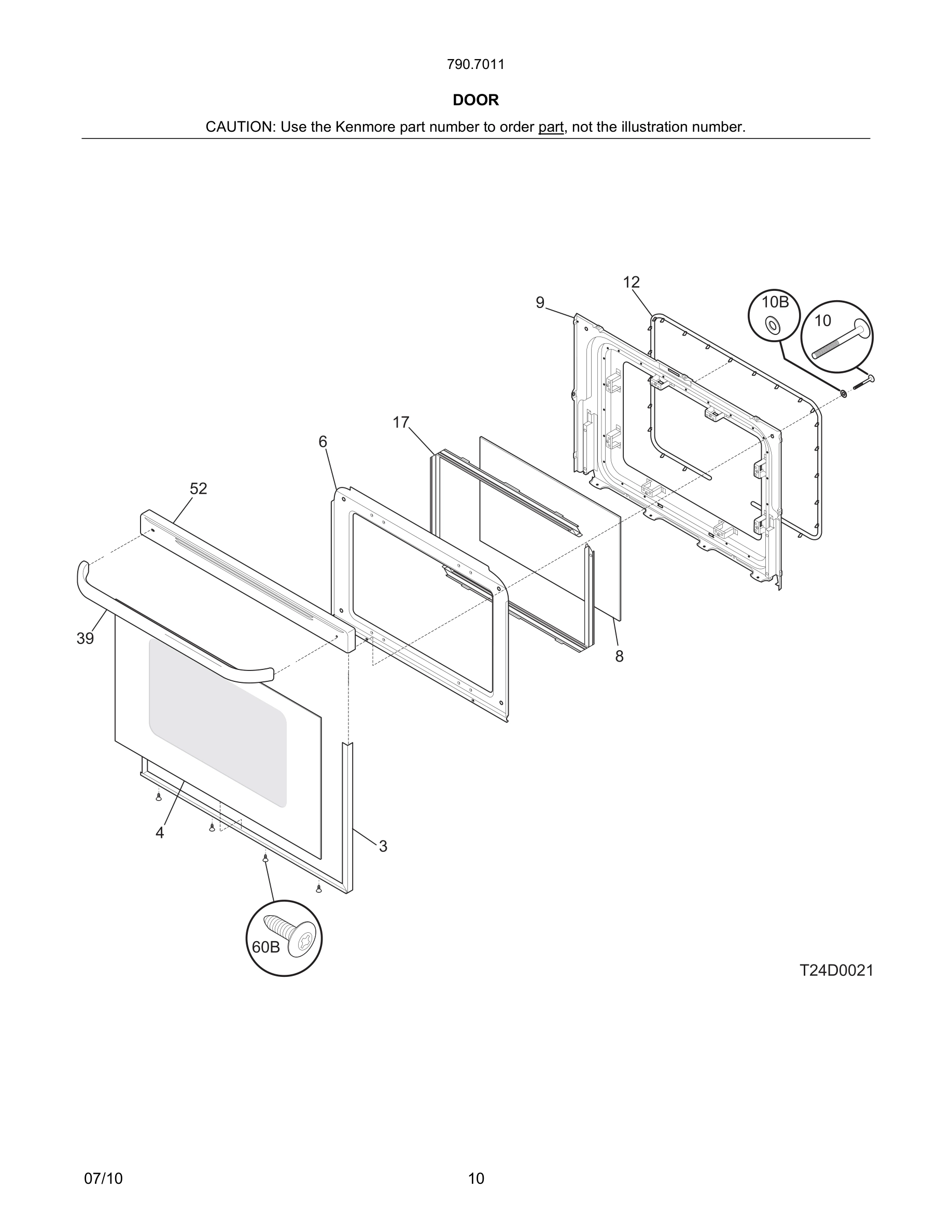

Hinge, oven door, RH
Hinge, oven door, RH WCI 316566204 Contact Us For Availability
View on Model
8
Panel,, oven bottom
Panel,, oven bottom WCI 316495901 Contact Us For Availability
View on Model
9
Liner, oven door
Liner, oven door WCI 316230623 Contact Us For Availability
View on Model
10#

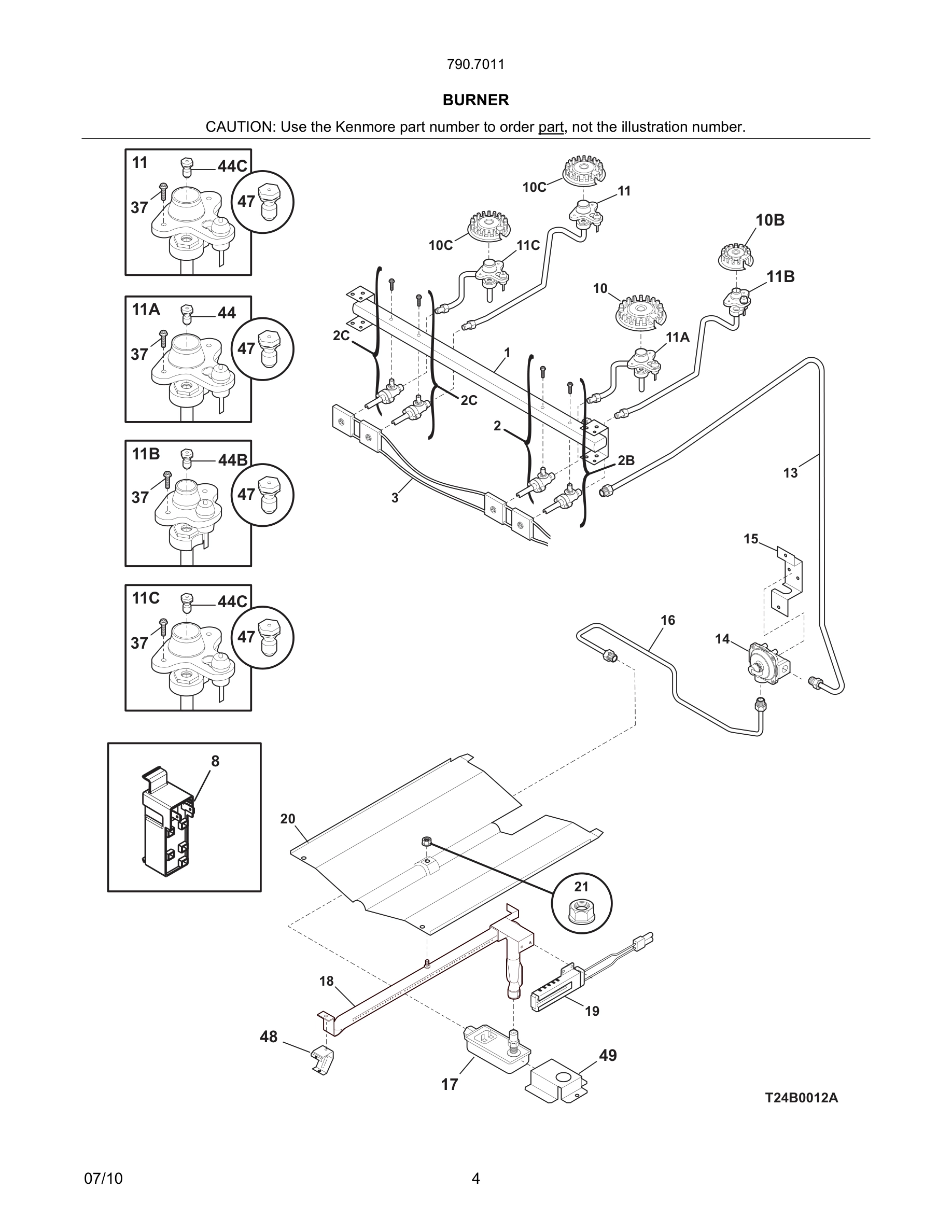

Burner, sealed, 12K
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
View on Model
10B#
Burner, sealed, 5K
Burner, sealed, 5K WCI 316206401 Contact Us For Availability
View on Model
13A
Glide-Low Broil, Inner
Glide-Low Broil, Inner WCI 316534200 Contact Us For Availability
View on Model
15

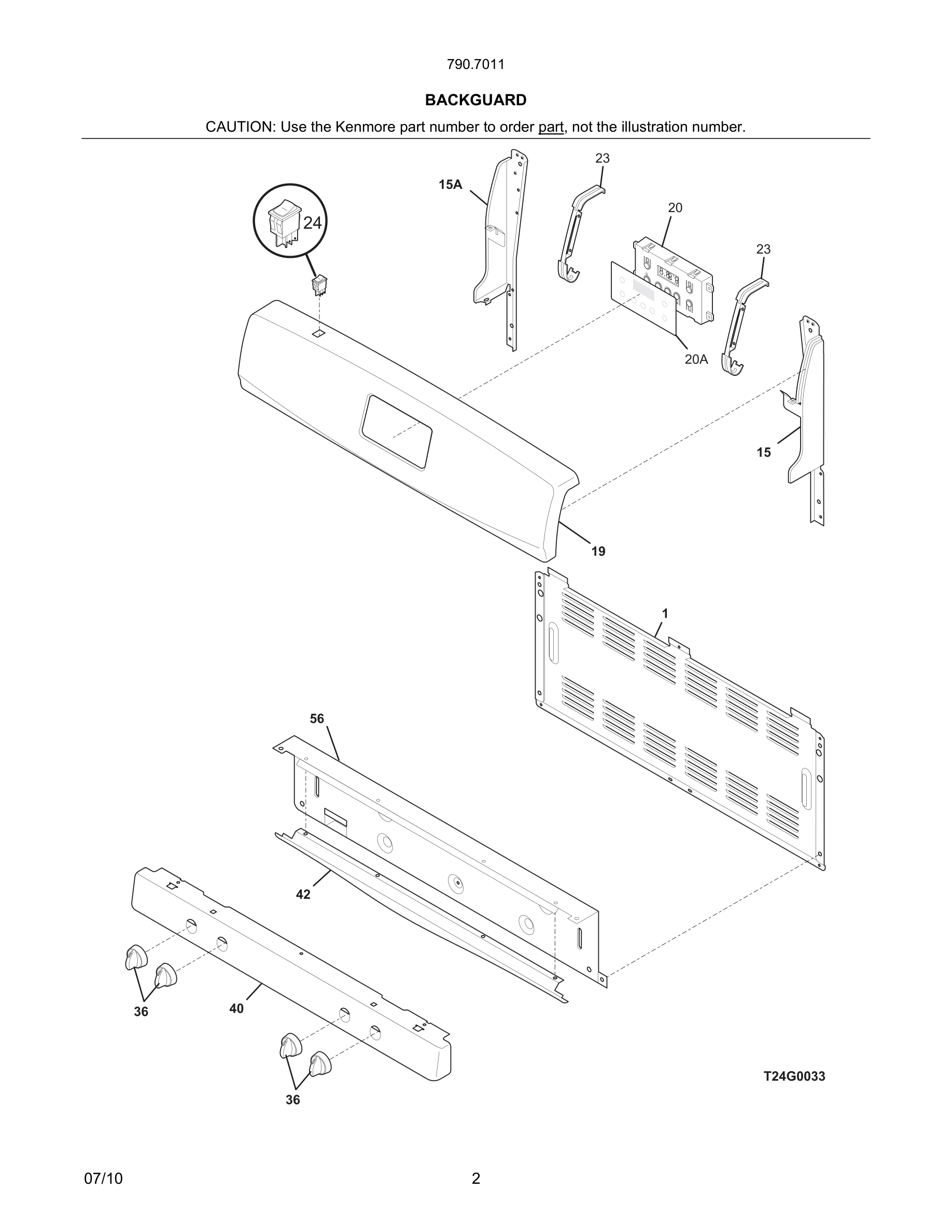

Support, backguard, white, RH
Support, backguard, white, RH WCI 316411403 Contact Us For Availability
View on Model
15A
Support, backguard, white, LH
Support, backguard, white, LH WCI 316411402 Contact Us For Availability
View on Model
17
Spacer, door glass, (2)
Spacer, door glass, (2) WCI 316117701 Contact Us For Availability
View on Model
19
Pan, burner, gray, 12K
Pan, burner, gray, 12K WCI 316202522 Contact Us For Availability
View on Model
19
Control Panel, white
Control Panel, white WCI 316448425 Contact Us For Availability
View on Model
19B
Pan, burner, gray, 5K
Pan, burner, gray, 5K WCI 316202520 Contact Us For Availability
View on Model
19C
Pan, burner, gray, 9.5K
Pan, burner, gray, 9.5K WCI 316202521 Contact Us For Availability
View on Model
20
Baffle, oven burner
Baffle, oven burner WCI 316496001 Contact Us For Availability
View on Model
22
Cap, 12K burner, gray
Cap, 12K burner, gray WCI 316213604 Contact Us For Availability
View on Model
22B
Cap, 5K burner, gray, small
Cap, 5K burner, gray, small WCI 316206603 Contact Us For Availability
View on Model
22C
Cap, 9.5K burner, gray, medium
Cap, 9.5K burner, gray, medium WCI 316213504 Contact Us For Availability
View on Model
23
Bracket, clock mtg
Bracket, clock mtg WCI 316441500 Contact Us For Availability
View on Model
39
Handle, drawer, white
Handle, drawer, white WCI 316019511 Contact Us For Availability
View on Model
41
Cover, hinge cutout, RH
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
View on Model
44B
Orifice, top burner, 5K
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
View on Model
47#
LP Conversion Kit, blue
LP Conversion Kit, blue WCI 316243702 Contact Us For Availability
View on Model
52
Cap, door trim, white
Cap, door trim, white WCI 316468600 Contact Us For Availability
View on Model
58A
Insulation, oven wrapper
Insulation, oven wrapper WCI 3017142 Contact Us For Availability
View on Model
73
Base, low broil
Base, low broil WCI 316109902 Contact Us For Availability
View on Model
85
Rack, low broil
Rack, low broil WCI 316115600 Contact Us For Availability
View on Model
