Model Kenmore 790.65312211 RANGE – Common Parts & Diagrams

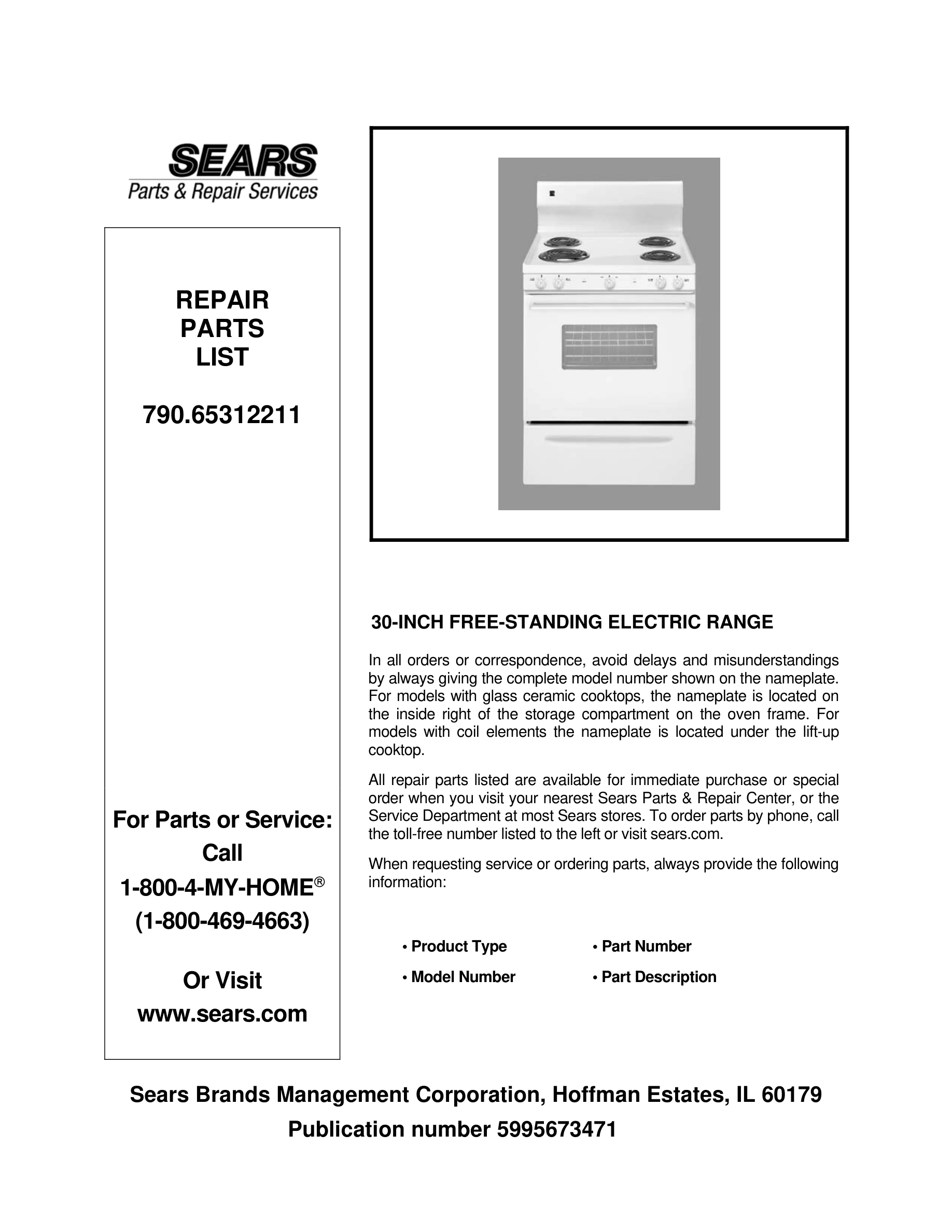

01 - COVER

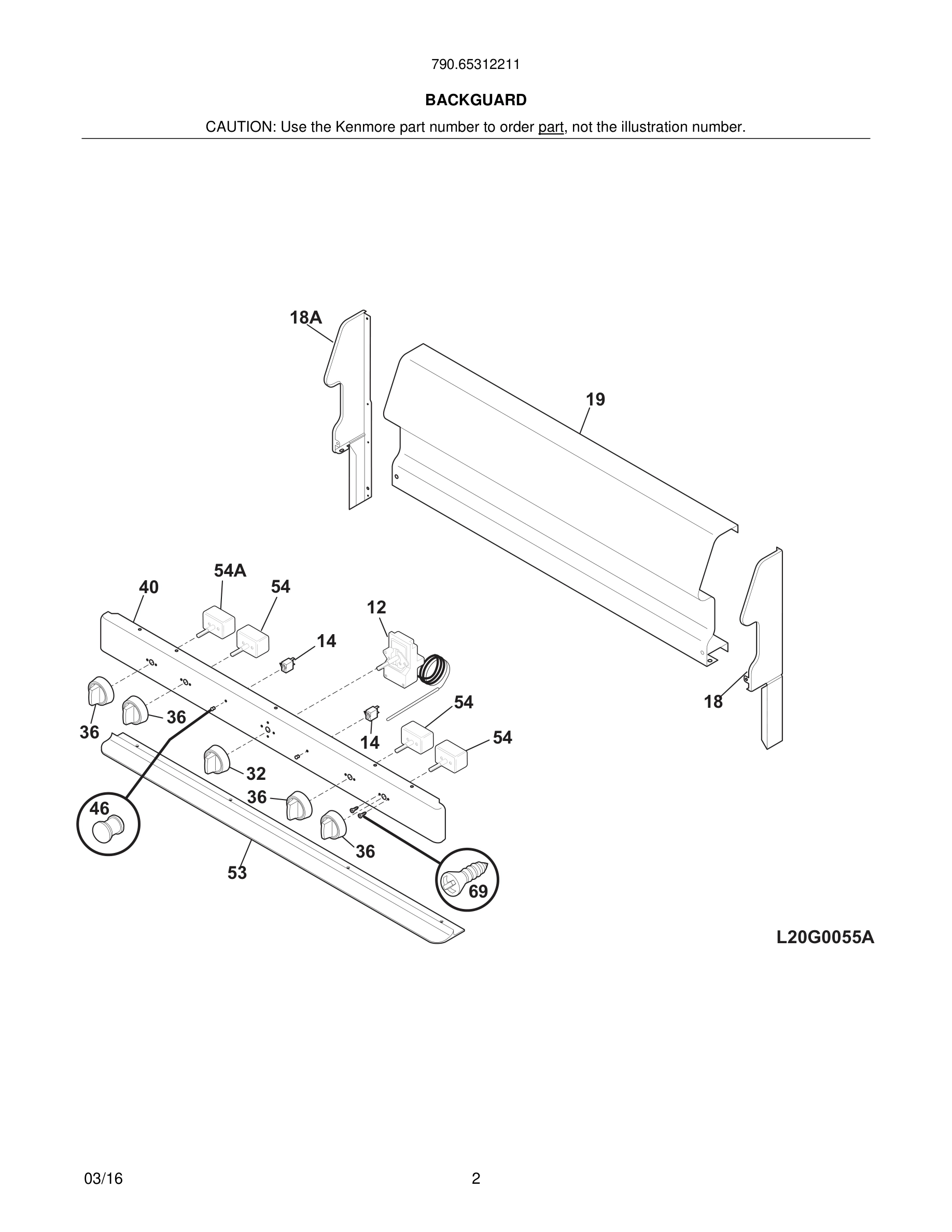

03 - BACKGUARD

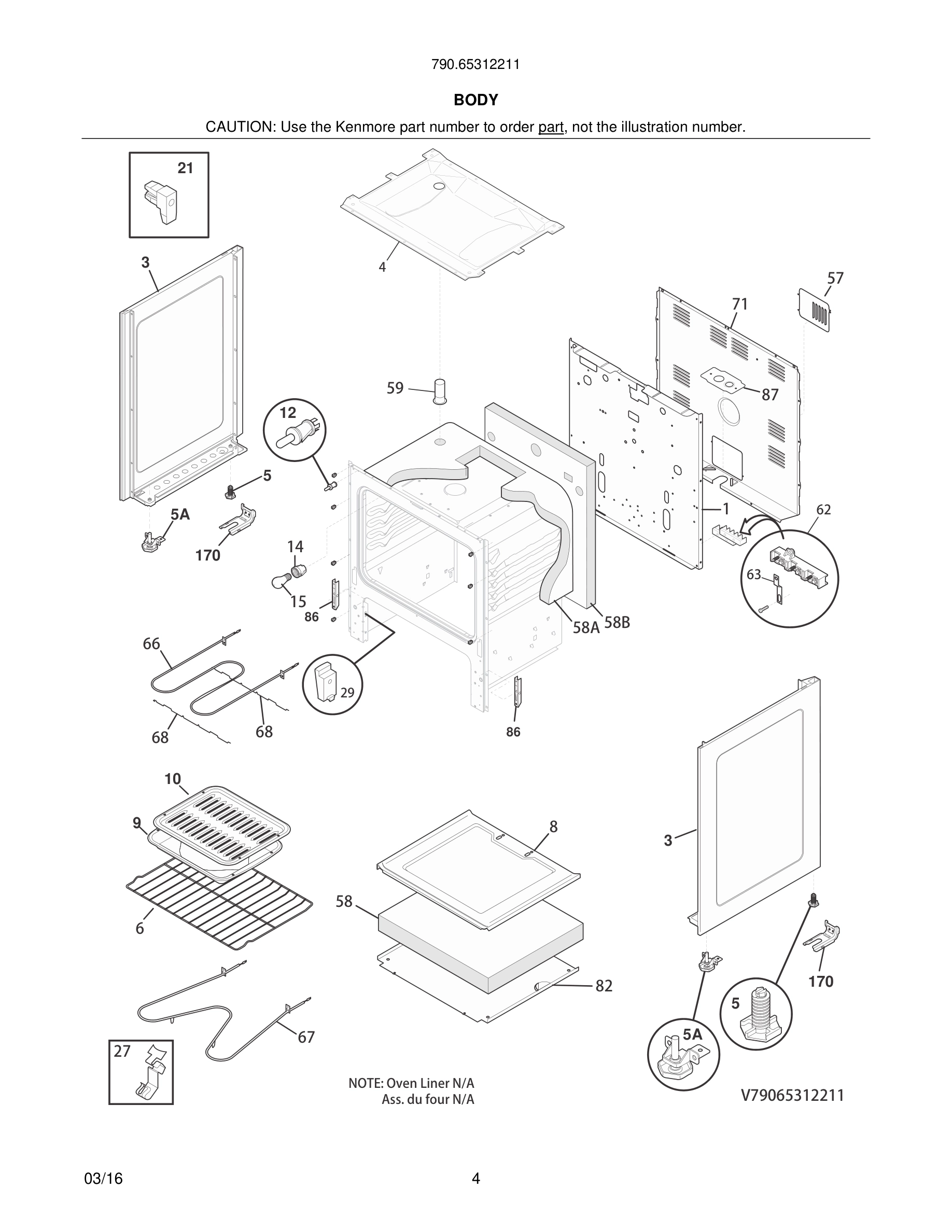

05 - BODY

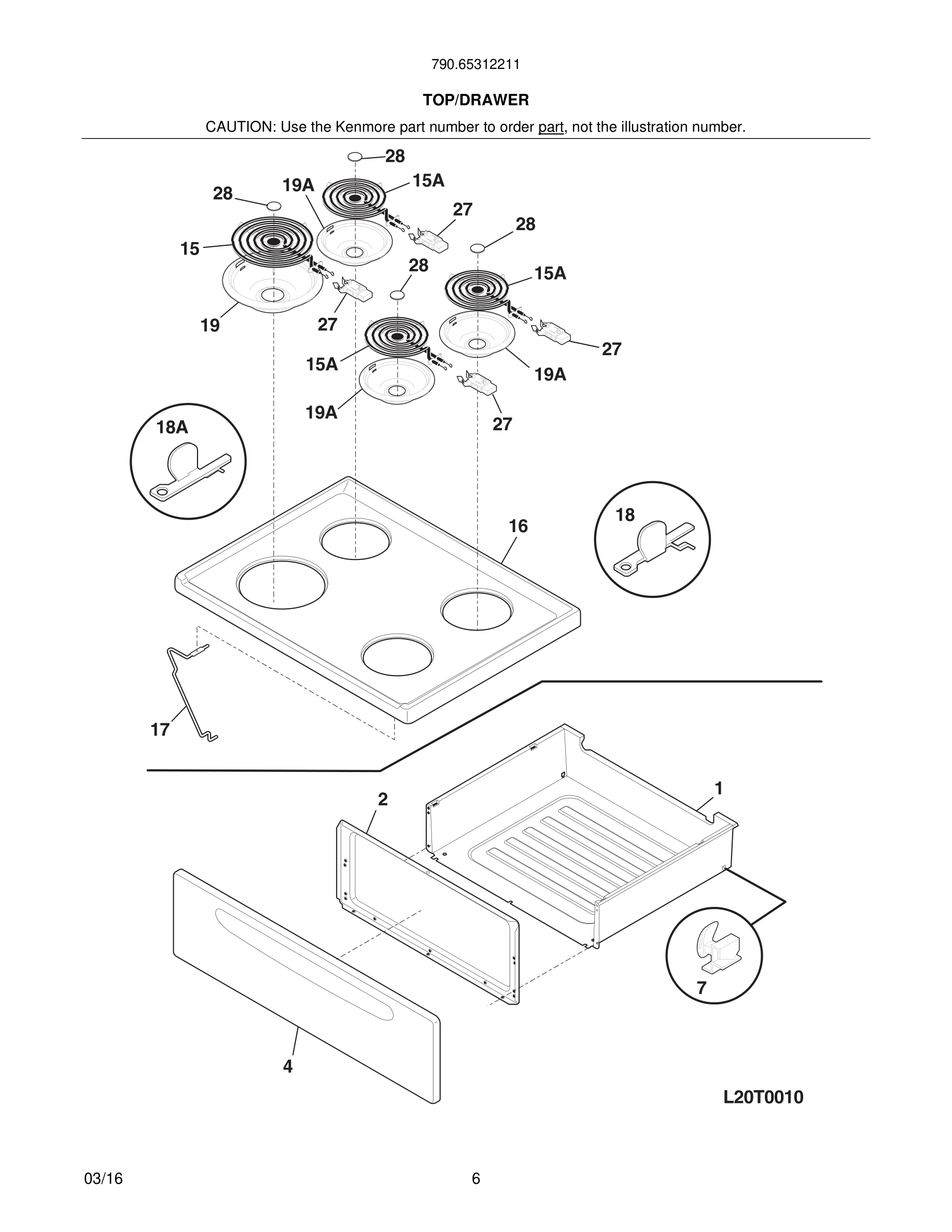

07 - TOP/DRAWER

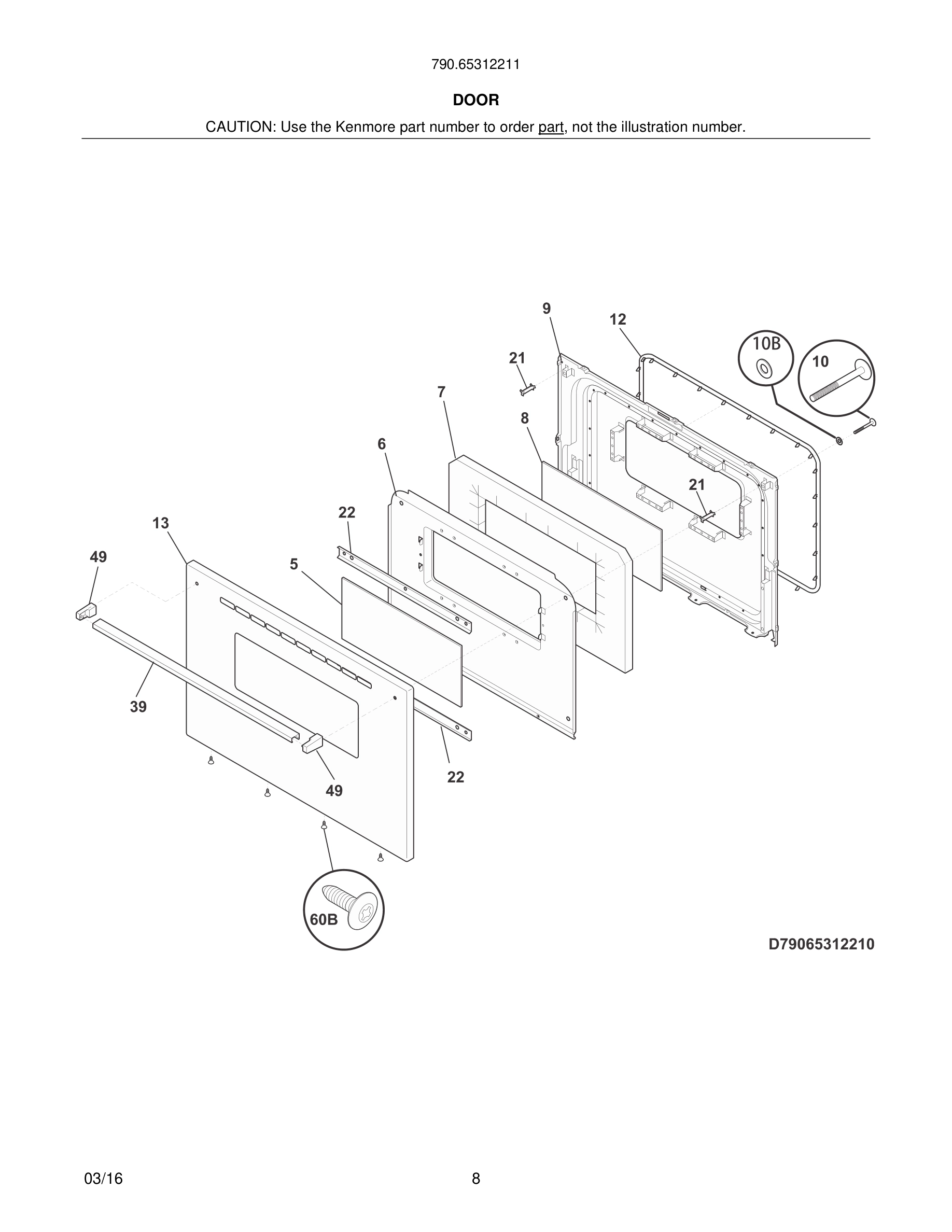

09 - DOOR
Common parts from model Kenmore 790.65312211 RANGE
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
*
Seal, door, air gap WCI 316245600 Contact Us For Availability
*
Plug, button, oven probe WCI 316246400 Contact Us For Availability
4
Panel, drawer front, white WCI 316403501 Contact Us For Availability
4
Burner Box WCI 316210103 Contact Us For Availability
5
Glass, oven door, white, outer WCI 316050307 Contact Us For Availability
7
Insulation, oven door WCI 316236802 Contact Us For Availability
7A
Hinge, oven door, LH WCI 316566203 Contact Us For Availability
8
Glass, oven door, inner WCI 316088600 Contact Us For Availability
8
Panel,, oven bottom WCI 316495903 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
13
Panel, oven door, white WCI 316202707 Contact Us For Availability
17
Rod, maintop support WCI 316066900 Contact Us For Availability
18A
End Cap, white, LH WCI 316263405 Contact Us For Availability
18A
Bracket, hinge, main top LH WCI 08067746 Contact Us For Availability
21
Spacer, door handle, (2) WCI 316284101 No Longer Available
22
Retainer, glass, (2), angle WCI 5303272476 Contact Us For Availability
32
Knob, thermostat, white WCI 316102331 Contact Us For Availability
36
Knob, control, white WCI 316102327 Contact Us For Availability
41
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
49
End Cap, handle, white, (2) WCI 316137000 No Longer Available
× ![]()
