Model Kenmore 790.61752106 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

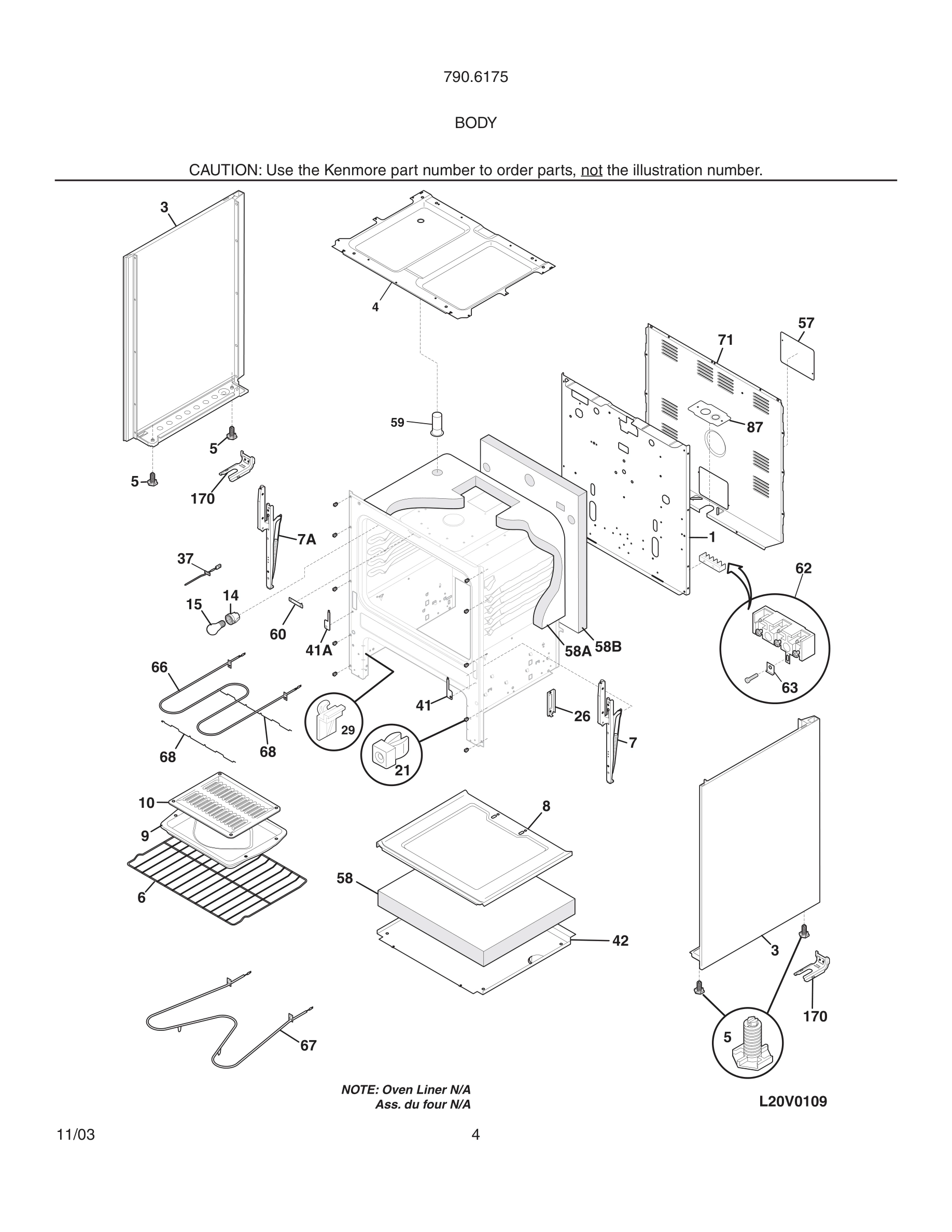

05 - BODY

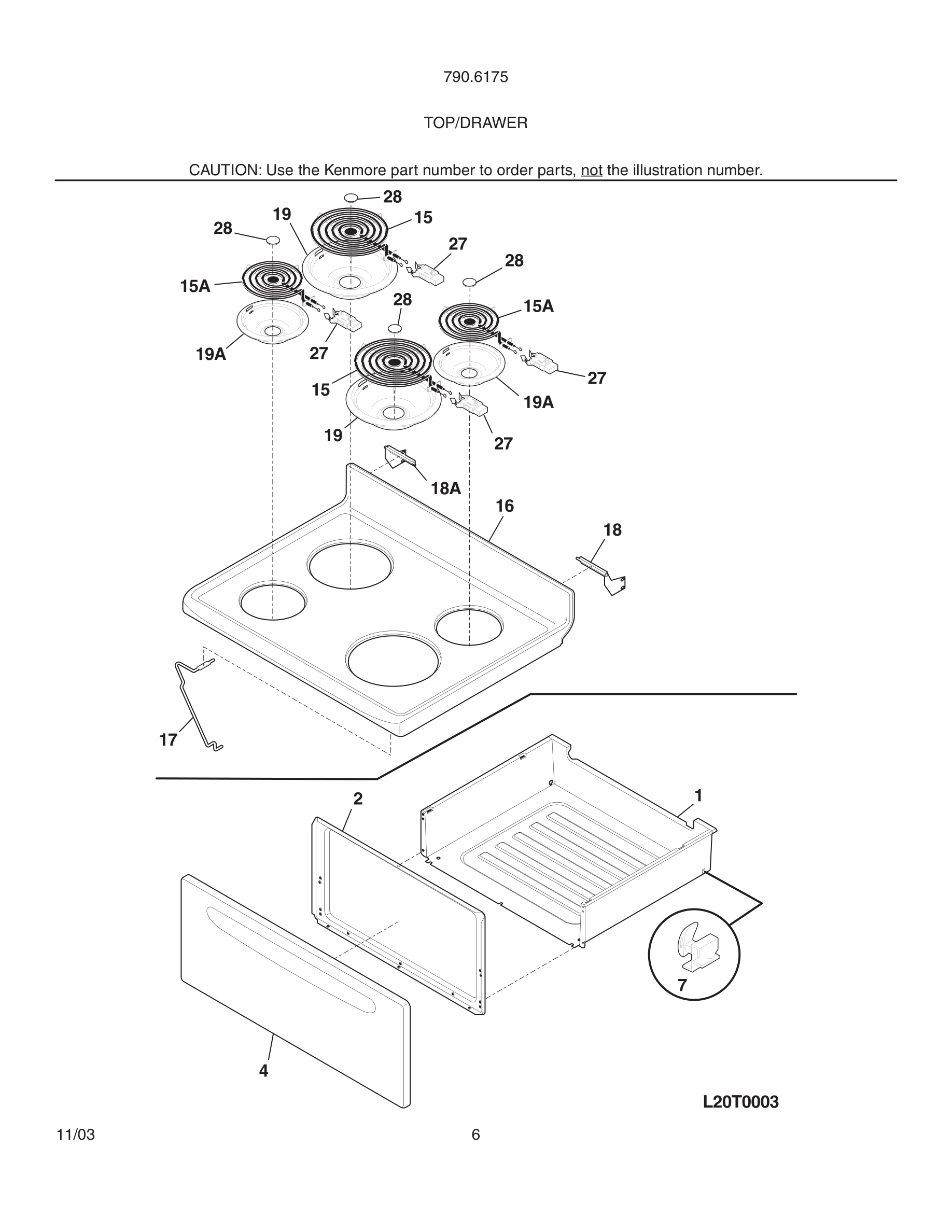

07 - TOP/DRAWER

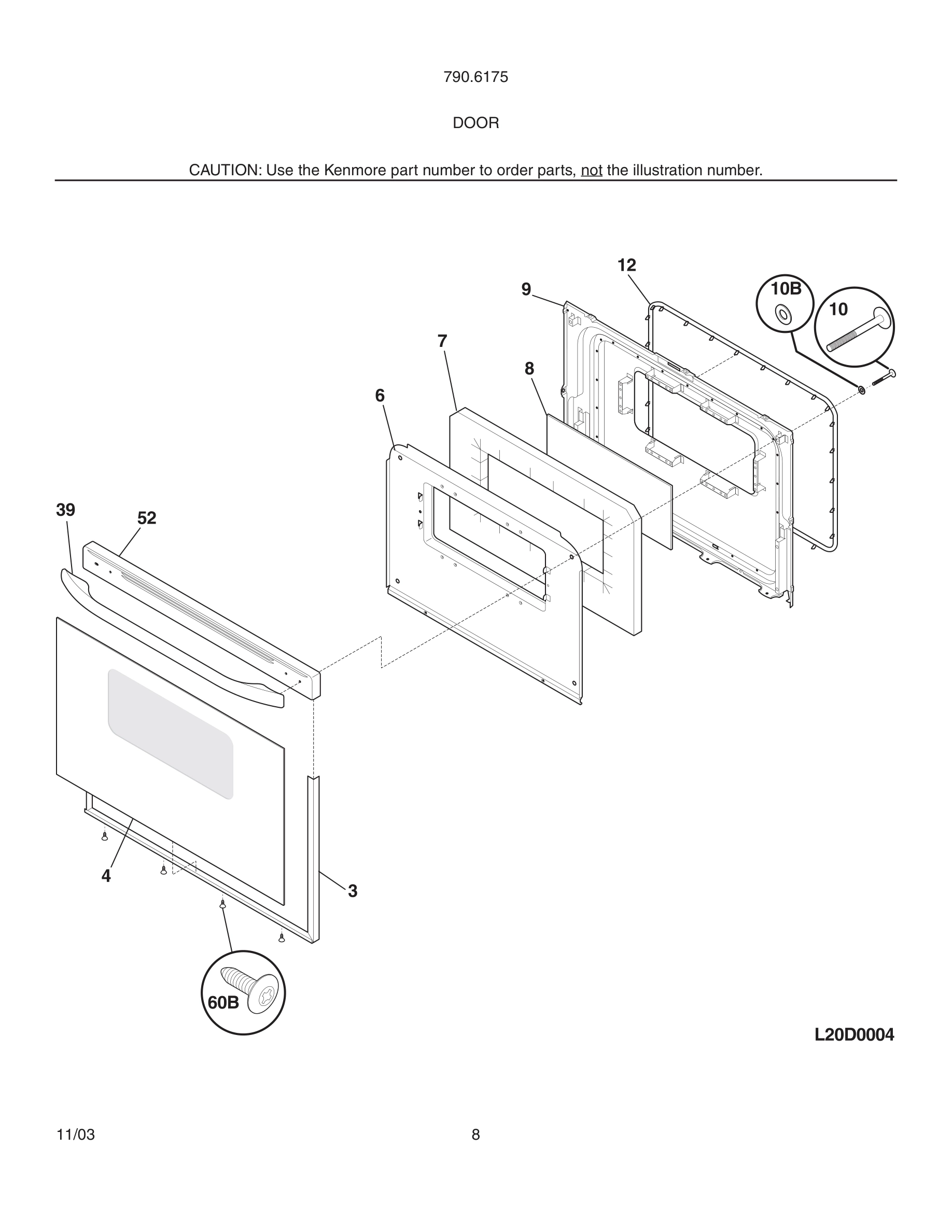

09 - DOOR

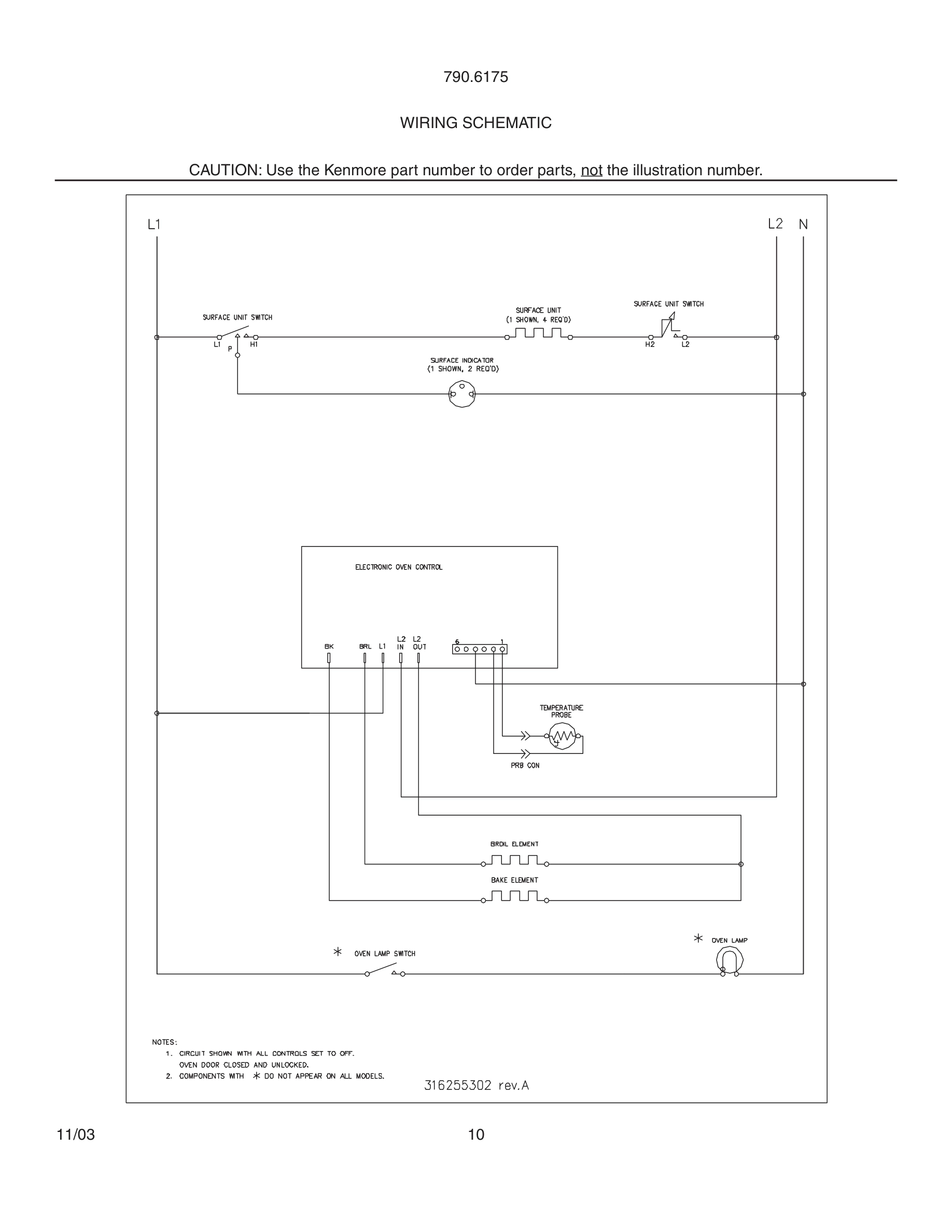

10 - WIRING SCHEMATIC

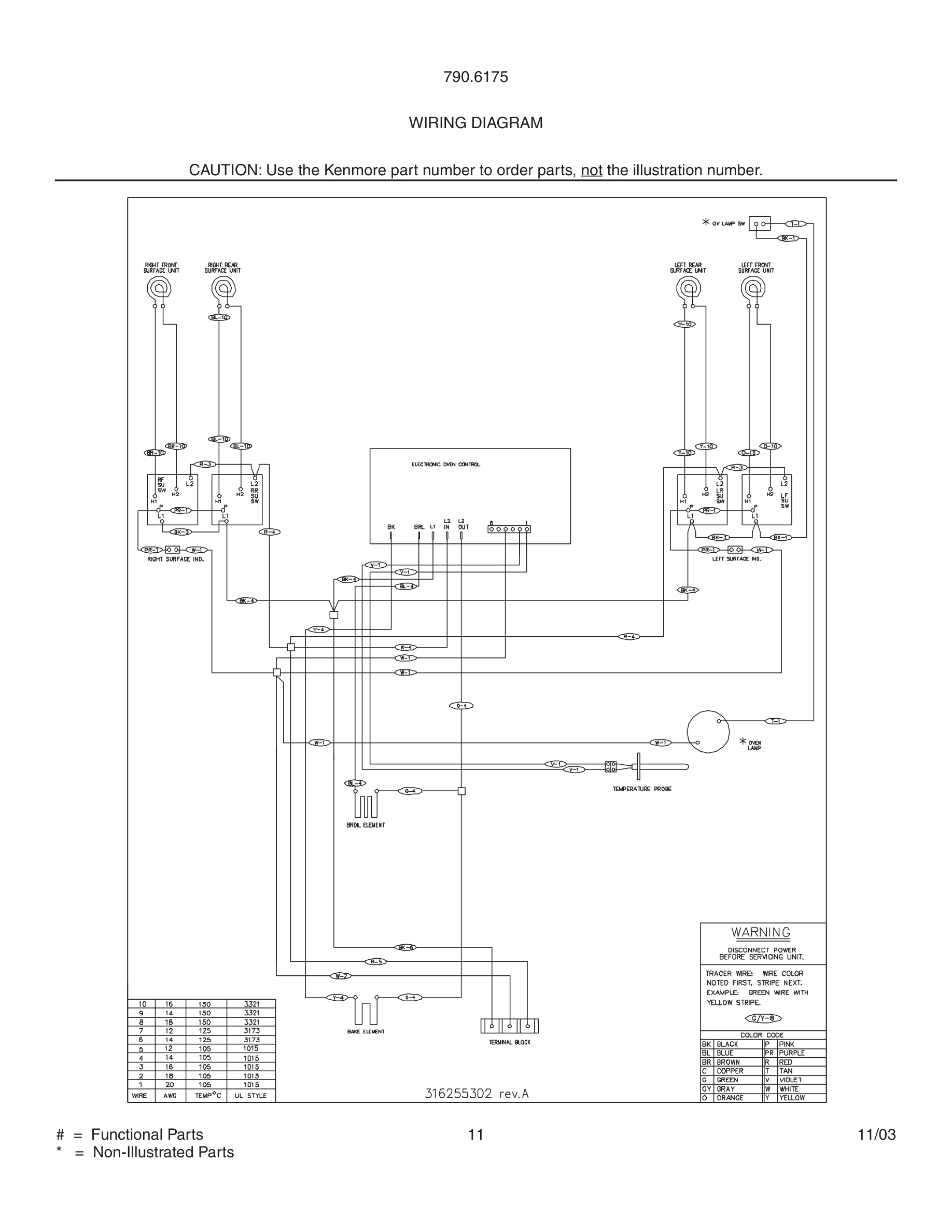

11 - WIRING DIAGRAM
Common parts from model Kenmore 790.61752106 RANGE
*
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
1
Drawer WCI 316011503 Contact Us For Availability
2
Liner,drawer WCI 316231500 Contact Us For Availability
3
Trim kit-door,3 sided ,white ,w/tape and foil WCI 5303935192 Contact Us For Availability
4
Panel,drawer ,white WCI 316231305 Contact Us For Availability
5
Screw,leveling ,plastic ,with stop WCI 316129200 Contact Us For Availability
7
Hinge,oven door ,RH WCI 316216504 Contact Us For Availability
7
Insulation,oven door WCI 316236801 Contact Us For Availability
8
Glass,oven door ,inner WCI 316088600 Contact Us For Availability
8
Panel,sump ,oven bottom WCI 316201501 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
10
Insert,broiler pan WCI 316082000 Contact Us For Availability
15
Support,backguard ,white ,RH WCI 316220214 Contact Us For Availability
18
End Cap,white ,RH WCI 316240900 Contact Us For Availability
18A
End Cap,white ,LH WCI 316240901 Contact Us For Availability
21
Spacer,bodyside WCI 3014099 Contact Us For Availability
23
Bracket,clock mtg WCI 316245900 Contact Us For Availability
31
Knob,control ,white WCI 316240800 Contact Us For Availability
41
Cover,hinge cutout ,RH WCI 316233400 Contact Us For Availability
× ![]()
