Model Electrolux 790.61081896 Range (Kenmore 79061081896) – Common Parts & Diagrams

1

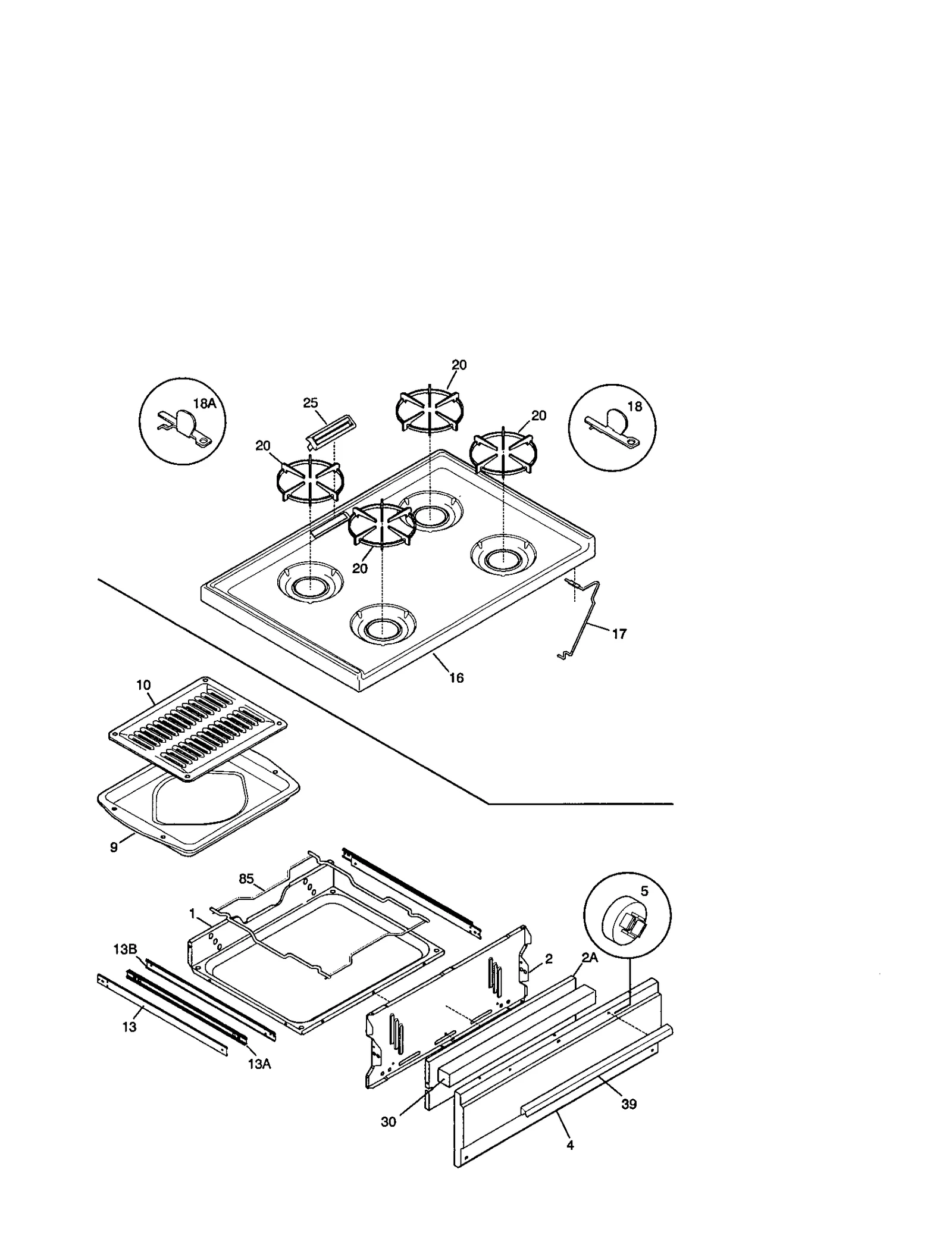

Range Broil Drawer Bottom Panel
Range Broil Drawer Bottom Panel WCI 316110201 Contact Us For Availability
View on Model
5
Range Leveling Leg
Range Leveling Leg WCI 316129200 Contact Us For Availability
View on Model
5
Range Broil Drawer Handle Push-In Nut
Range Broil Drawer Handle Push-In Nut WCI 316129100 Contact Us For Availability
View on Model
7

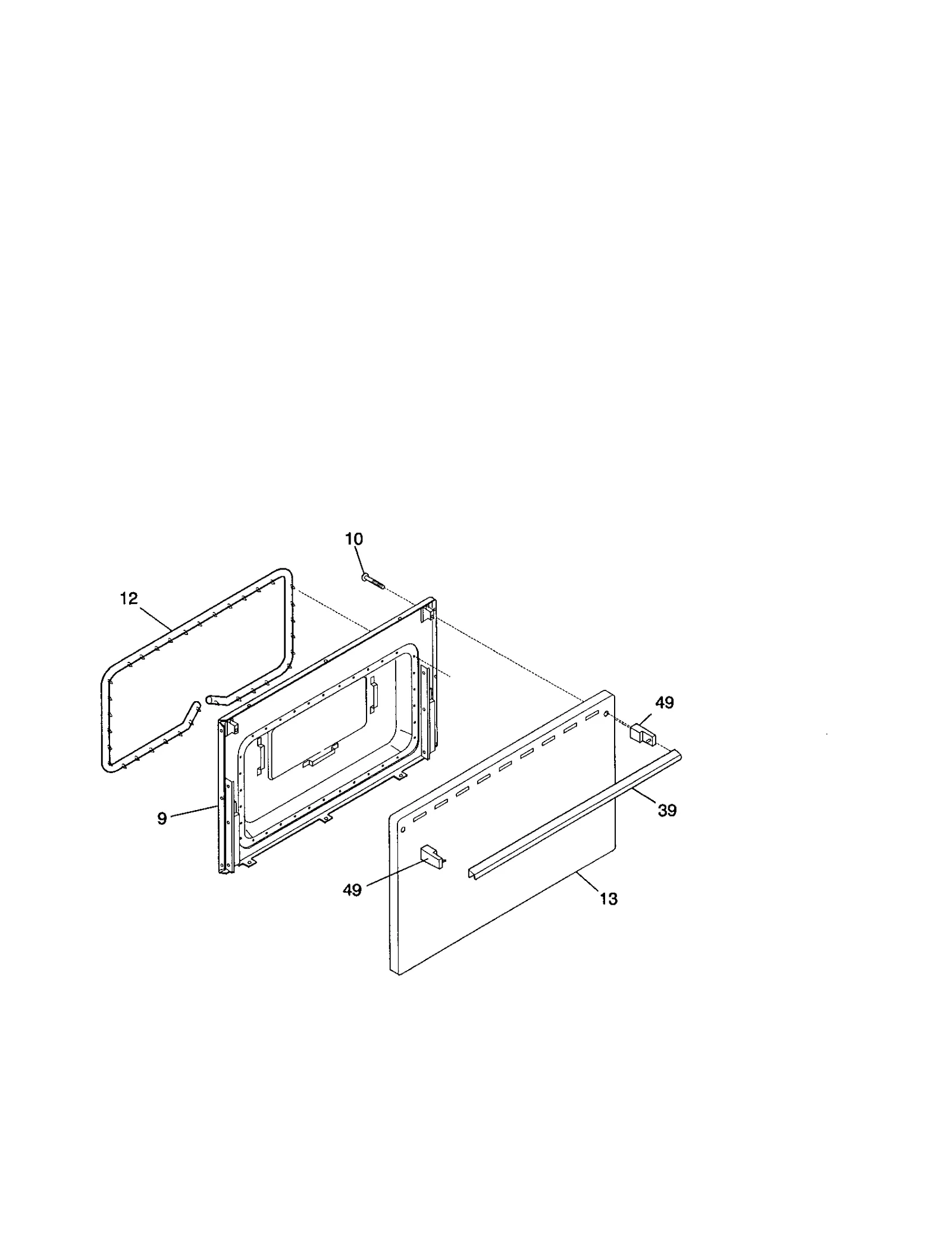

Oven Hinge
Oven Hinge WCI 316007007 Contact Us For Availability
View on Model
9
Range Broil Pan
Range Broil Pan WCI 316081900 Contact Us For Availability
View on Model
10
Range Broil Pan Insert
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
View on Model
10
Range Oven Door Handle Screw, #10-24
Range Oven Door Handle Screw, #10-24 WCI 5303281378 Contact Us For Availability
View on Model
13B
Broil Glide
Broil Glide WCI 316111501 Contact Us For Availability
View on Model
14

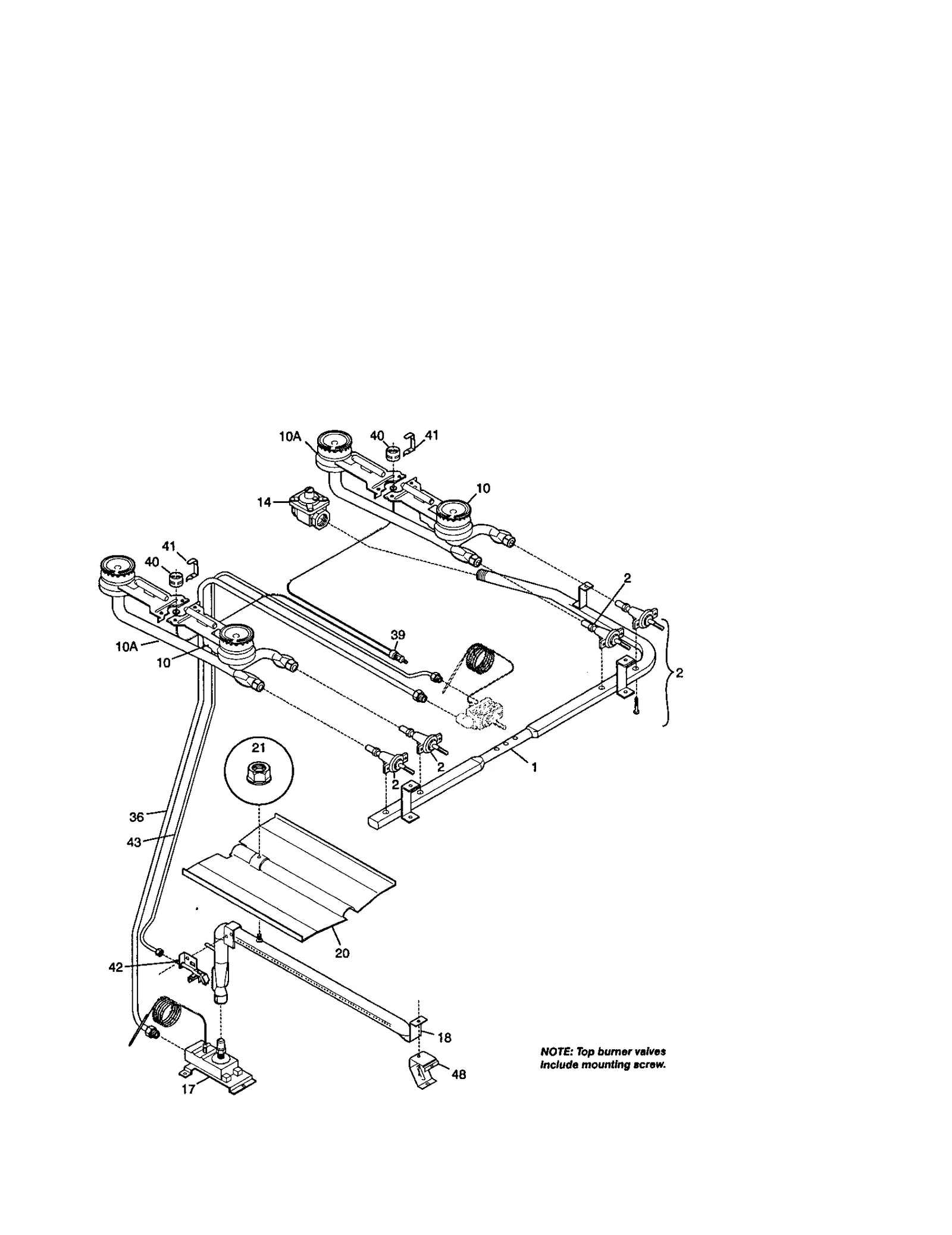

Pressure Regulator
Pressure Regulator WCI 316113600 Contact Us For Availability
View on Model
16
Range Main Top Assembly
Range Main Top Assembly WCI 316104301 Contact Us For Availability
View on Model
17
Range Main Top Support
Range Main Top Support WCI 316066900 Contact Us For Availability
View on Model
17
Safety Valve
Safety Valve WCI 5303280593 Contact Us For Availability
View on Model
18
End Cap
End Cap WCI 3202802 Contact Us For Availability
View on Model
18
Oven Burner
Oven Burner WCI 5303280585 Contact Us For Availability
View on Model
18A
End Cap
End Cap WCI 3202801 Contact Us For Availability
View on Model
18A
Range Main Top Hinge
Range Main Top Hinge WCI 08067746 Contact Us For Availability
View on Model
20
Oven Burner Baffle
Oven Burner Baffle WCI 3203265 Contact Us For Availability
View on Model
21
Range Screw Anchor
Range Screw Anchor WCI 3014099 Contact Us For Availability
View on Model
25
Range Oven Vent Cover (Chrome)
Range Oven Vent Cover (Chrome) WCI 316104500 Contact Us For Availability
View on Model
32

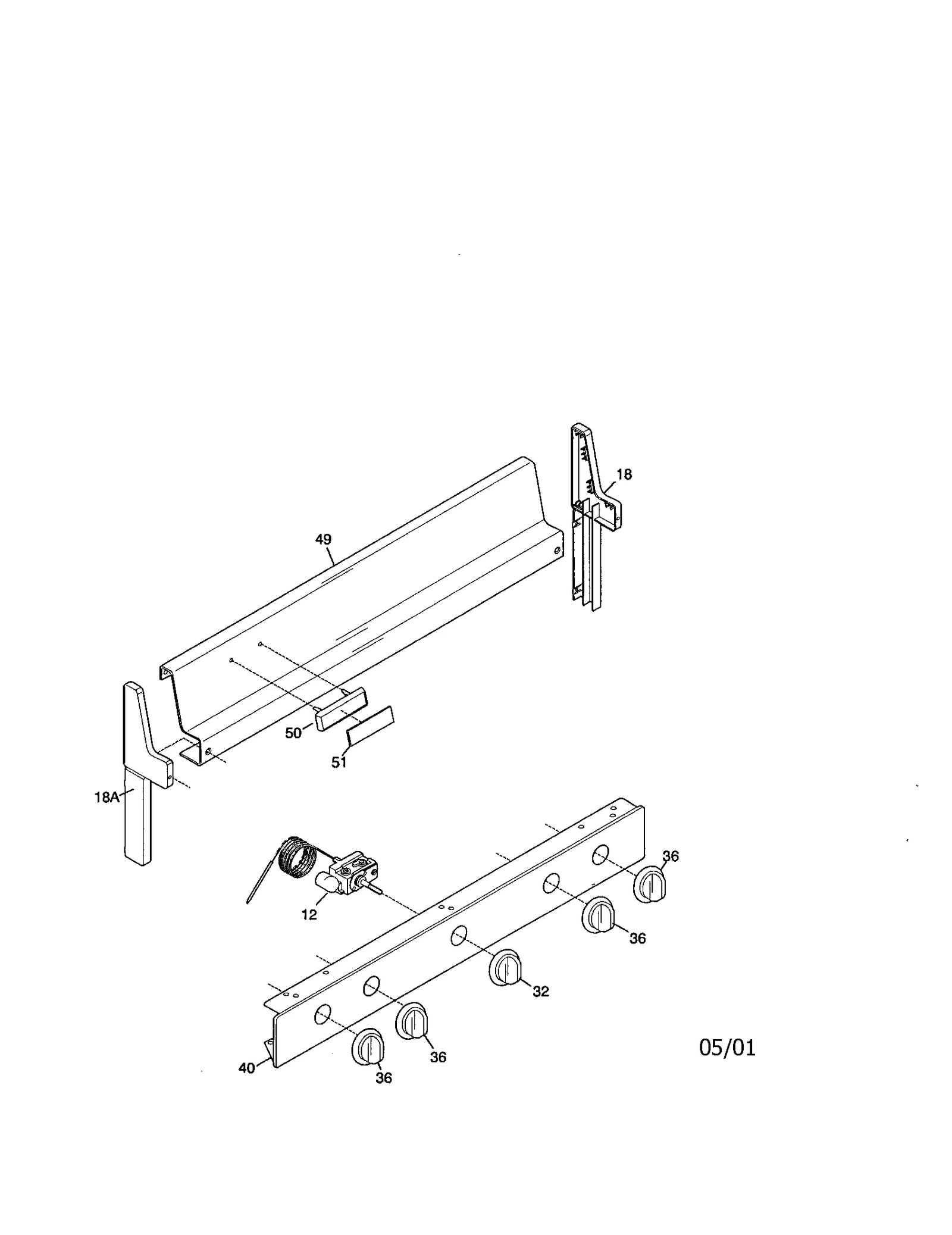

Gibson Range Surface Burner Knob
Gibson Range Surface Burner Knob WCI 316102304 Contact Us For Availability
View on Model
34
Cover
Cover WCI 3018607 Contact Us For Availability
View on Model
36
Range Surface Burner Knob
Range Surface Burner Knob WCI 316009008 Contact Us For Availability
View on Model
36
Tubing/therm
Tubing/therm WCI 316060800 Contact Us For Availability
View on Model
39
Range Oven Door Handle (Black)
Range Oven Door Handle (Black) WCI 316020204 Contact Us For Availability
View on Model
39
Tubing-top P
Tubing-top P WCI 5303211133 Contact Us For Availability
View on Model
40
Range Surface Burner Pilot Cap
Range Surface Burner Pilot Cap WCI 5303211191 Contact Us For Availability
View on Model
41
Range Oven Door Hinge Cut-Out Cover
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
View on Model
41
Pilot Shield
Pilot Shield WCI 3202798 Contact Us For Availability
View on Model
42
Range Oven Burner Pilot Assembly
Range Oven Burner Pilot Assembly WCI 5303280589 Contact Us For Availability
View on Model
43
Range Oven Burner Pilot Tube
Range Oven Burner Pilot Tube WCI 3203398 Contact Us For Availability
View on Model
48
Range Oven Burner Bracket
Range Oven Burner Bracket WCI 3018603 Contact Us For Availability
View on Model
58A

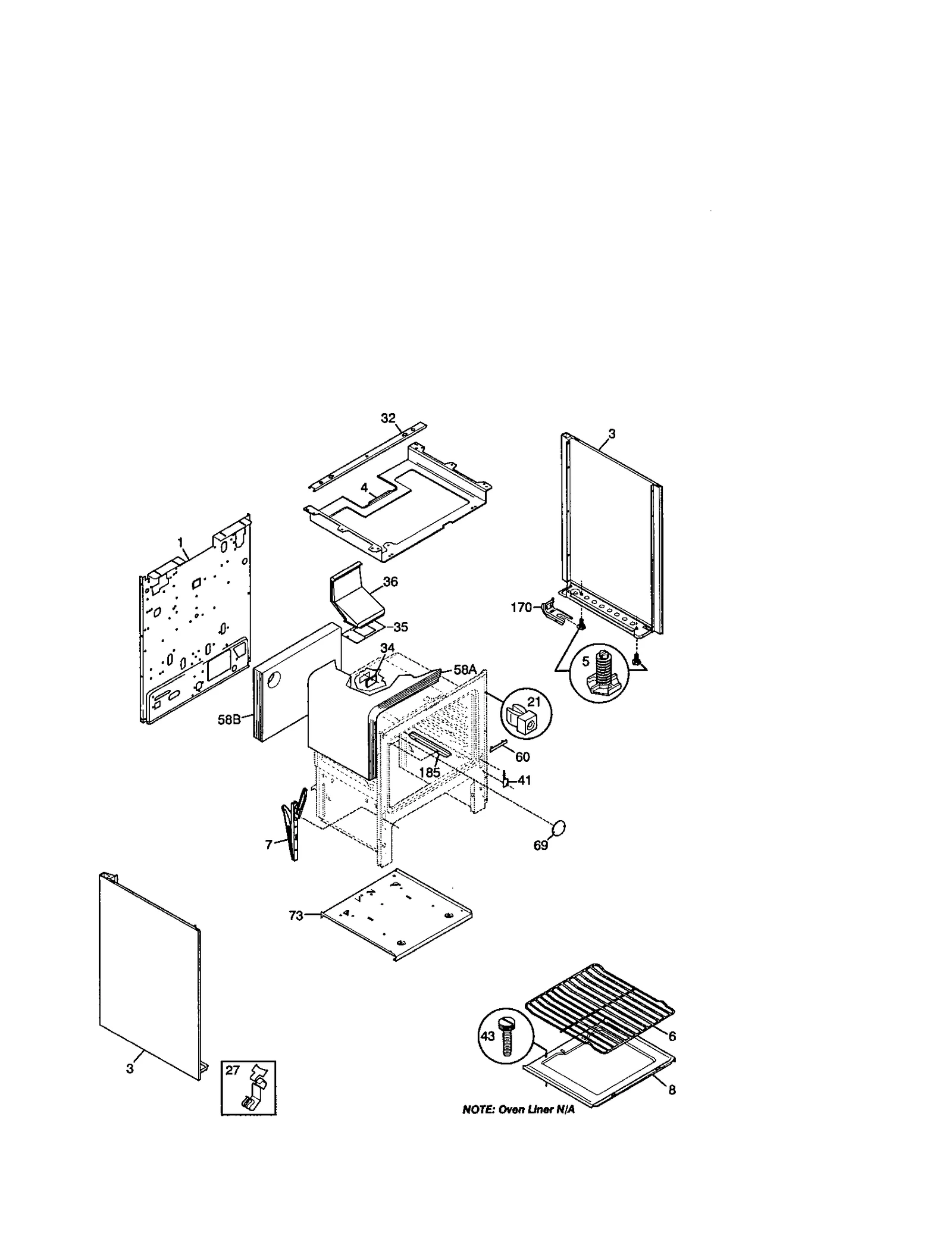

Range Oven Insulation
Range Oven Insulation WCI 3017142 Contact Us For Availability
View on Model
73
Range Broil Drawer Base
Range Broil Drawer Base WCI 316109902 Contact Us For Availability
View on Model
85
Range Broil Drawer Rack
Range Broil Drawer Rack WCI 316115600 Contact Us For Availability
View on Model
NI
Range Screw
Range Screw WCI 316021108 Contact Us For Availability
View on Model
NI
Range Screw
Range Screw WCI 5303280311 Contact Us For Availability
View on Model
