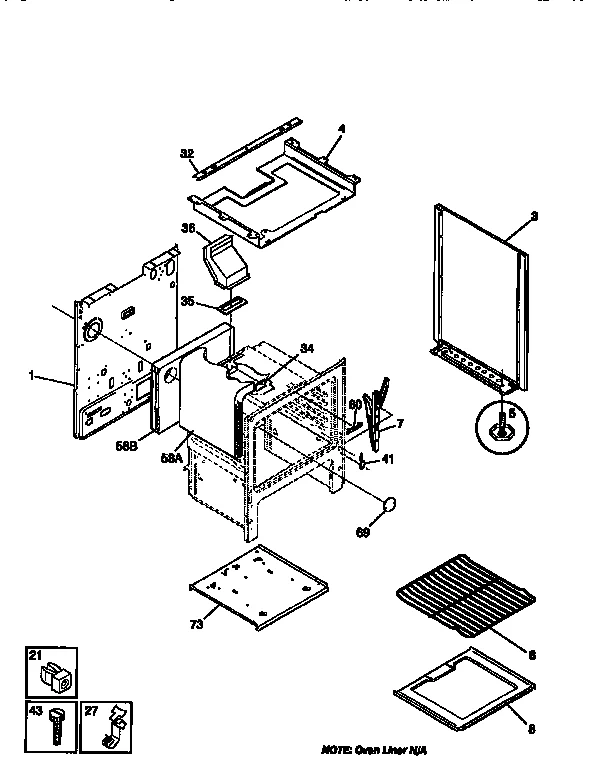

BODY
BODY
All Parts
All Parts

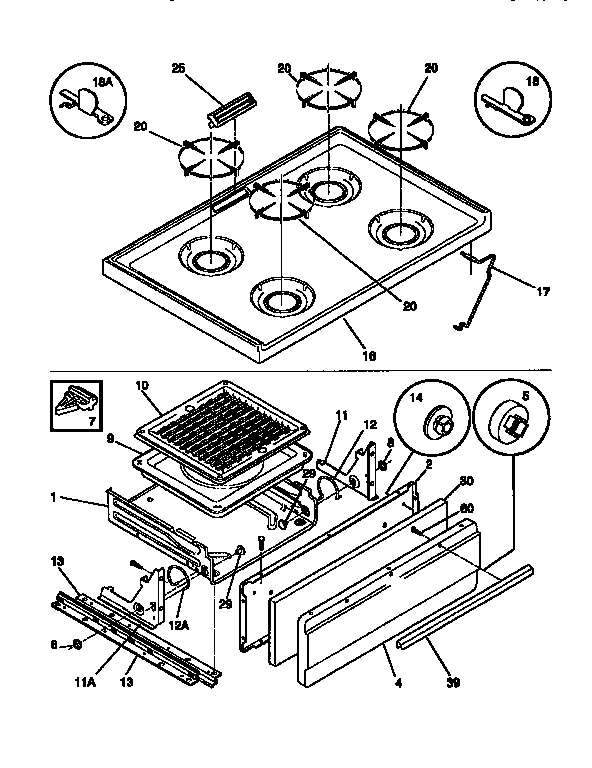

TOP/DRAWER
TOP/DRAWER

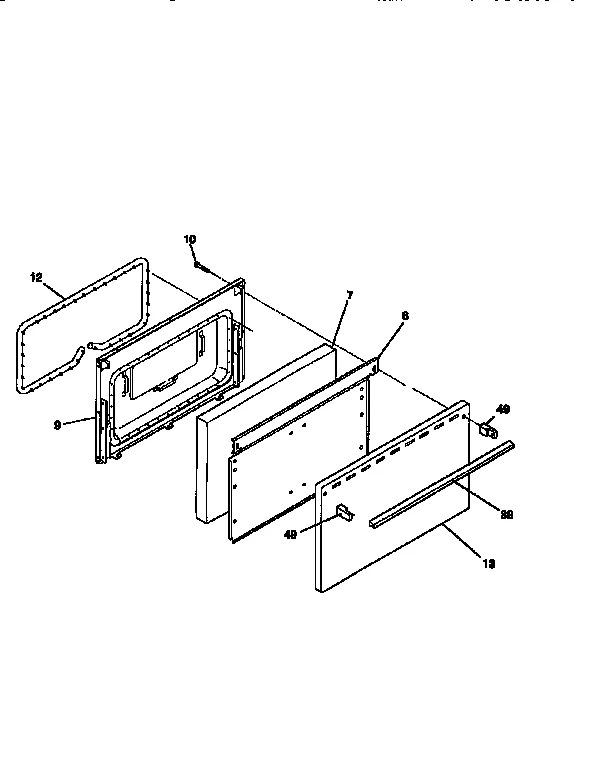

DOOR

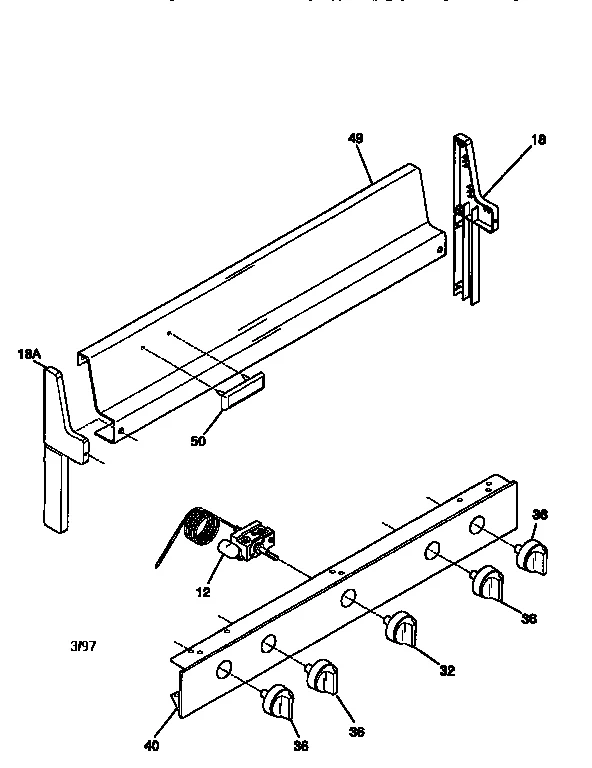

BACKGUARD

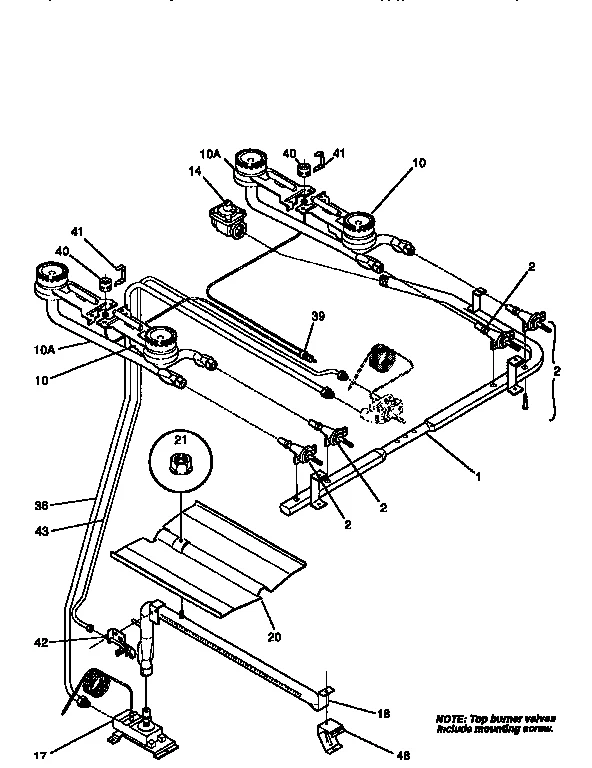

BURNER
Common parts from model Electrolux 790.61071790 Gas Range (Kenmore 79061071790)
1
Drawer WCI 3018608 Contact Us For Availability
1
Manifold Pipe WCI 5303280588 Contact Us For Availability
2
Liner WCI 3202803 Contact Us For Availability
2
Burner Valve WCI 316031700 Contact Us For Availability
2A
Range Surface Burner Valve Mounting Screw WCI 316048200 Contact Us For Availability
4
Wt Drwr Panl WCI 316056205 Contact Us For Availability
4A
Screw WCI 08067785 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5
Fastener WCI 3131387 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
6
Shield WCI 316091402 Contact Us For Availability
7
Range Drawer Glide WCI 3018610 Contact Us For Availability
7
Insulation WCI 316076401 Contact Us For Availability
8
Clip WCI 3131386 Contact Us For Availability
9
Pan WCI 5303013568 Contact Us For Availability
9
Liner-oven D WCI 316066611 Contact Us For Availability
10
Range Oven Door Handle Screw, #10-24 WCI 5303281378 Contact Us For Availability
10
Insert WCI 5303131356 Contact Us For Availability
11
Hinge Bracket WCI 316066301 Contact Us For Availability
11A
Hinge Bracket WCI 316066300 Contact Us For Availability
12
Spring WCI 3018619 Contact Us For Availability
12
Thermostat WCI 5303935014 Contact Us For Availability
12A
Spring WCI 3018618 Contact Us For Availability
12A
Thermostat Screw WCI 5303280590 Contact Us For Availability
13
Channel WCI 3131153 Contact Us For Availability
13
Dr Panl Whit WCI 3202315 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Regulator WCI 5303016997 Contact Us For Availability
16
Main Top Whi WCI 3206214 Contact Us For Availability
17
Range Main Top Support WCI 316066900 Contact Us For Availability
17
Safety Valve WCI 5303280593 Contact Us For Availability
18
End Cap WCI 3202802 Contact Us For Availability
18
Oven Burner WCI 5303280585 Contact Us For Availability
18
Bracket WCI 08067747 Contact Us For Availability
18A
End Cap WCI 3202801 Contact Us For Availability
18A
Range Main Top Hinge WCI 08067746 Contact Us For Availability
20
Oven Baffle WCI 5303288409 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
25
Vent Cover WCI 3131190 Contact Us For Availability
29
Hinge WCI 3018614 Contact Us For Availability
30
Insulation WCI 5303131258 Contact Us For Availability
32
Thermostat Knob WCI 5303296842 Contact Us For Availability
34
Cover WCI 3018607 Contact Us For Availability
36
Tubing/therm WCI 316060800 Contact Us For Availability
36
Knob WCI 5303288187 Contact Us For Availability
39
Tubing-top P WCI 5303211133 Contact Us For Availability
39
Handle WCI 3201268 Contact Us For Availability
39
Handle WCI 5303273127 Contact Us For Availability
40
Manifold Panel WCI 316086836 Contact Us For Availability
40
Range Surface Burner Pilot Cap WCI 5303211191 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
41
Pilot Shield WCI 3202798 Contact Us For Availability
42
Range Oven Burner Pilot Assembly WCI 5303280589 Contact Us For Availability
43
Range Oven Burner Pilot Tube WCI 3203398 Contact Us For Availability
48
Range Oven Burner Bracket WCI 3018603 Contact Us For Availability
49
Backguard Panel WCI 5303322631 Contact Us For Availability
50
Bezel Nameplate WCI 316067003 Contact Us For Availability
50A
Nameplate WCI 215220348 Contact Us For Availability
58A
Range Oven Insulation WCI 3017142 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
