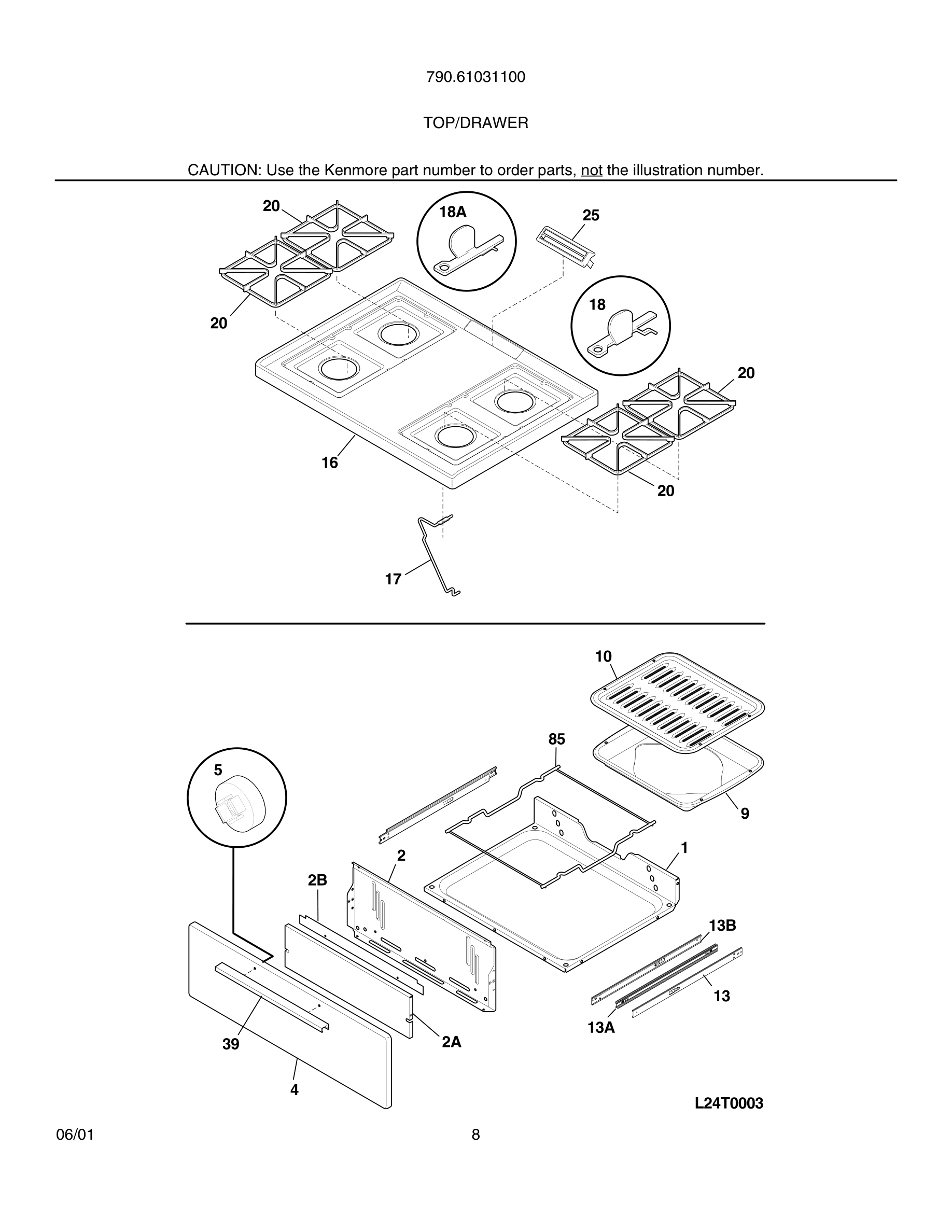

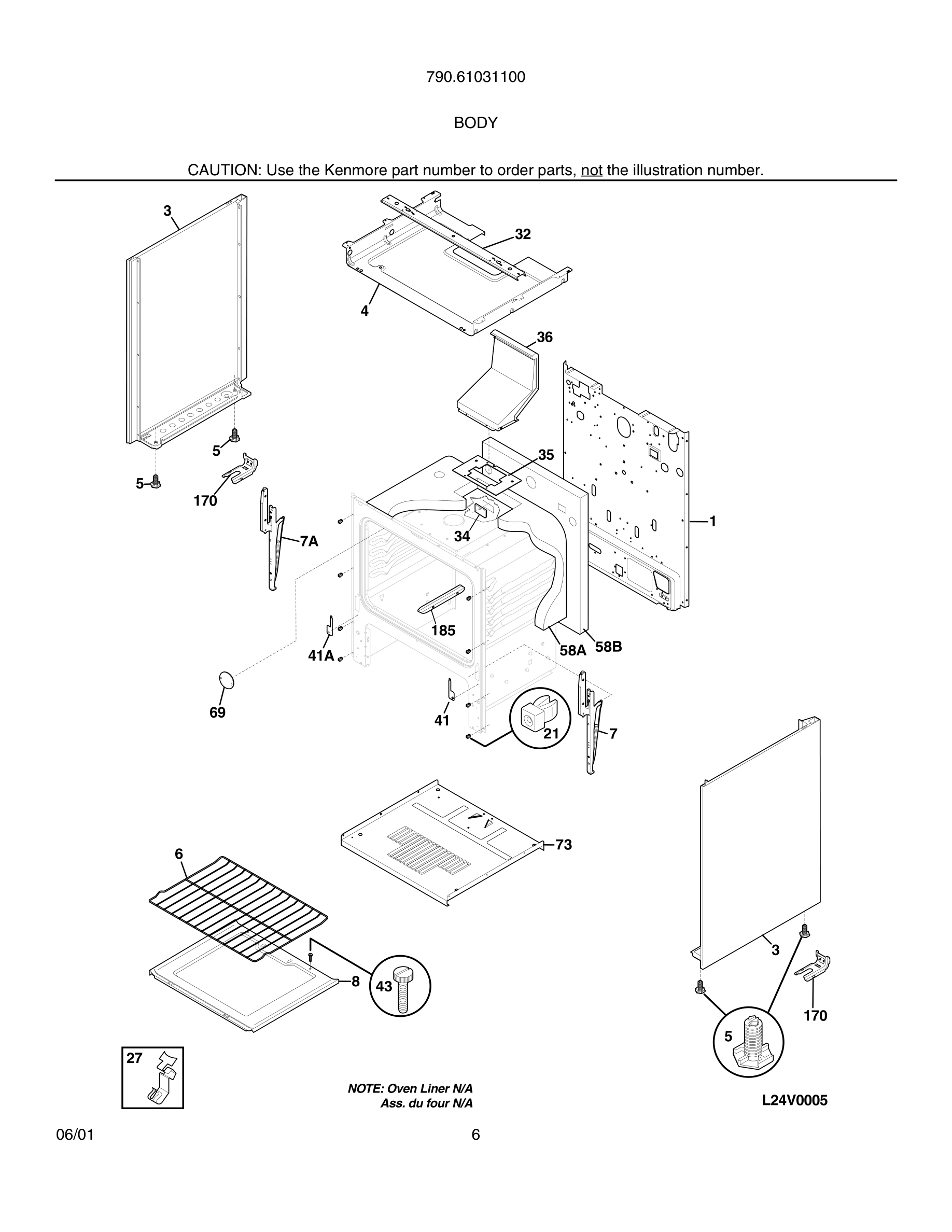

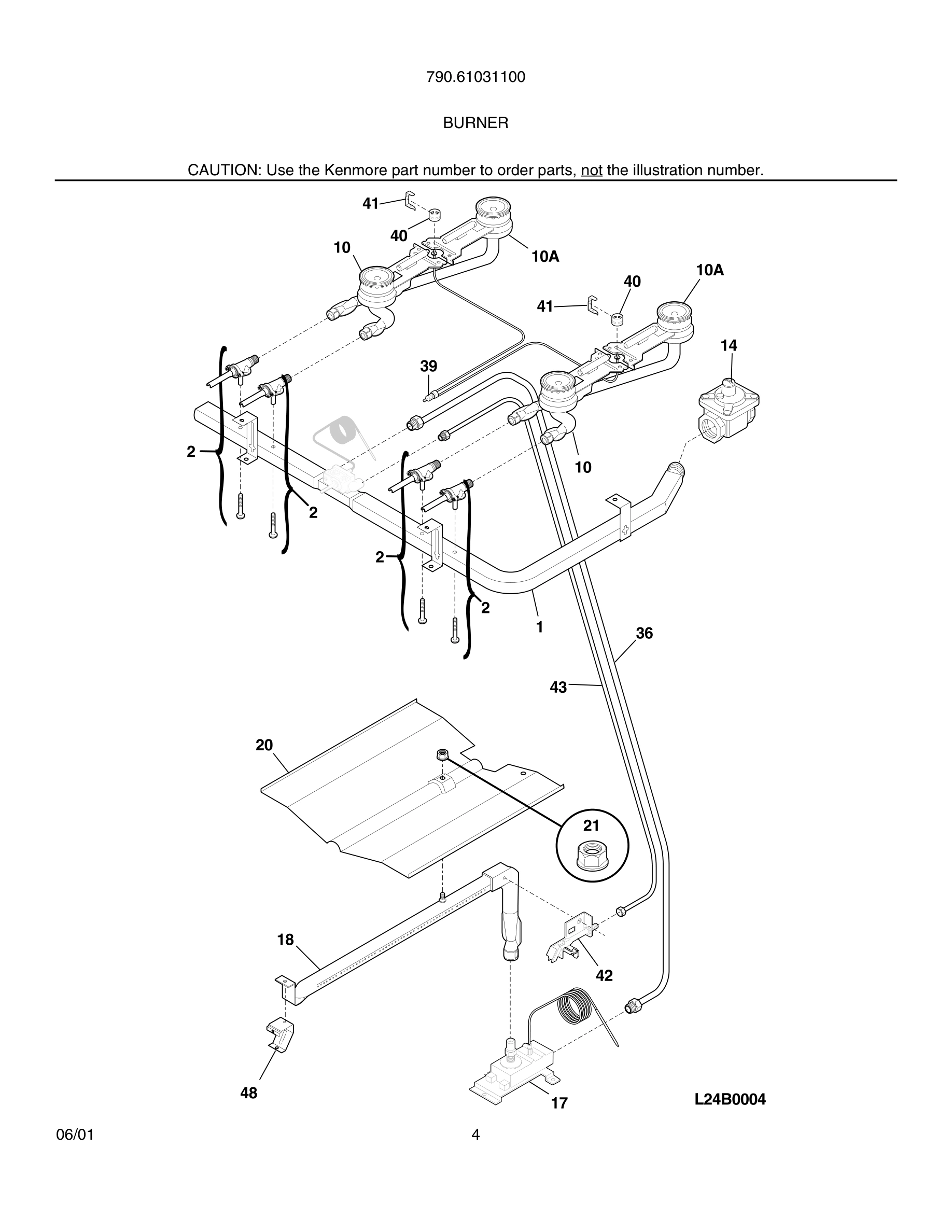

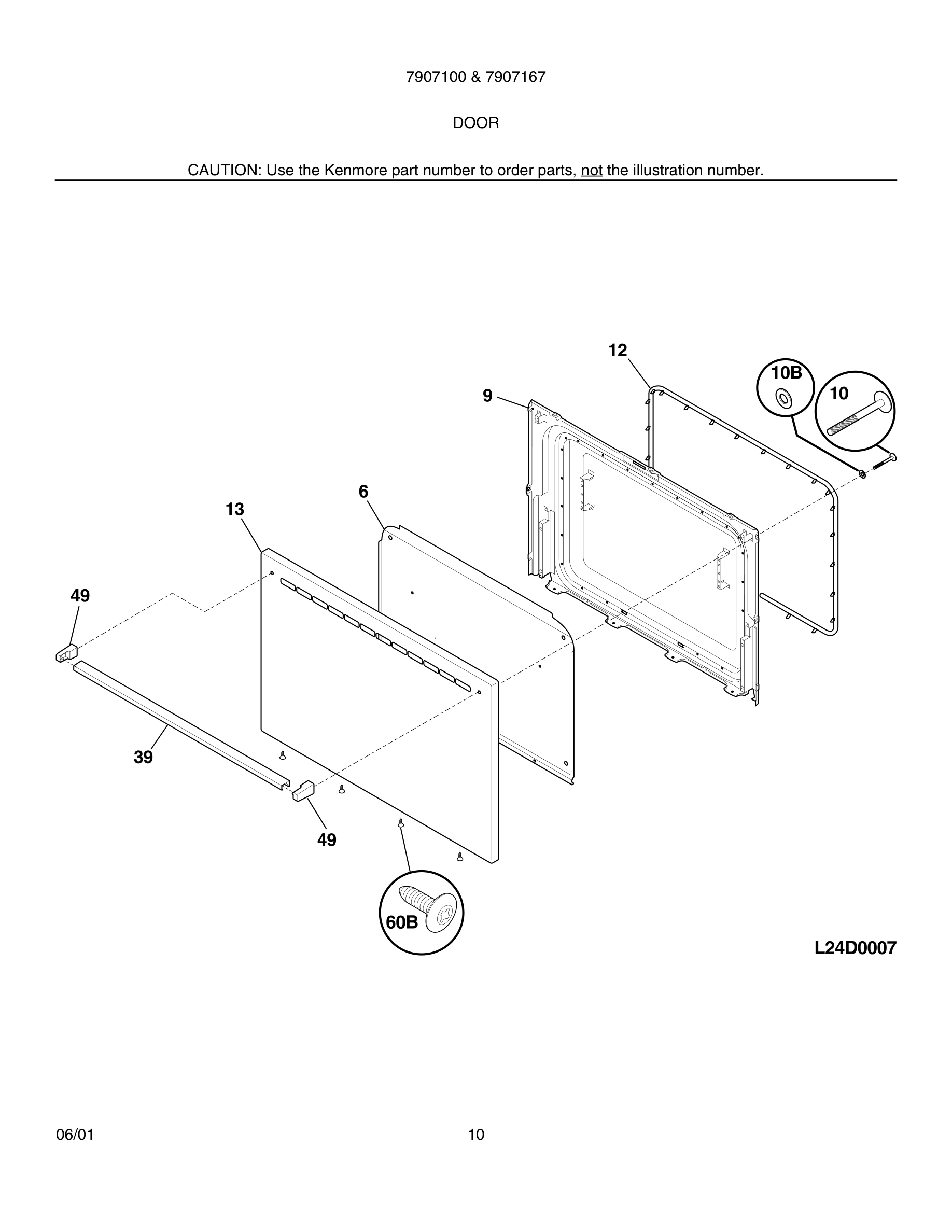

Model Kenmore 790.61031100 RANGE – Common Parts & Diagrams

*
Screw,cup pt ,8-18 x 0.375 ,chrome
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
View on Model
*
Plug-button,oven probe
Plug-button,oven probe WCI 316246400 Contact Us For Availability
View on Model
*
Screw,wafer hd sq dr ,10-32 x 0.312
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
View on Model
1
Carriage, broiler
Carriage, broiler WCI 316110201 Contact Us For Availability
View on Model
2
Liner-low broil
Liner-low broil WCI 316236401 Contact Us For Availability
View on Model
2#
Valve-top burner,2-position ,w/ mtg screw
Valve-top burner,2-position ,w/ mtg screw WCI 5303935189 Contact Us For Availability
View on Model
4
Panel-drawer,white
Panel-drawer,white WCI 316231211 Contact Us For Availability
View on Model
5
Screw-leveling,plastic ,with stop
Screw-leveling,plastic ,with stop WCI 316129200 Contact Us For Availability
View on Model
5
Fastener,push-in nut ,nylon ,spacer
Fastener,push-in nut ,nylon ,spacer WCI 316129100 Contact Us For Availability
View on Model
9
Pan-broiler
Pan-broiler WCI 316081900 Contact Us For Availability
View on Model
10
Insert-broiler pan
Insert-broiler pan WCI 316082000 Contact Us For Availability
View on Model
13
Panel-oven door,white
Panel-oven door,white WCI 316202603 Contact Us For Availability
View on Model
13B
Glide-low broil,outer
Glide-low broil,outer WCI 316111501 Contact Us For Availability
View on Model
16
Main Top,white
Main Top,white WCI 316104301 Contact Us For Availability
View on Model
17
Rod-maintop support
Rod-maintop support WCI 316066900 Contact Us For Availability
View on Model
17#
Valve-safety
Valve-safety WCI 5303280593 Contact Us For Availability
View on Model
18
End Cap,black ,RH
End Cap,black ,RH WCI 3202802 Contact Us For Availability
View on Model
18#
Burner-oven
Burner-oven WCI 5303280585 No Longer Available
View on Model
18A
End Cap,black ,LH
End Cap,black ,LH WCI 3202801 Contact Us For Availability
View on Model
18A
Bracket,hinge ,main top LH
Bracket,hinge ,main top LH WCI 08067746 Contact Us For Availability
View on Model
21
Spacer-bodyside
Spacer-bodyside WCI 3014099 Contact Us For Availability
View on Model
25
Cover,vent ,chrome
Cover,vent ,chrome WCI 316104500 Contact Us For Availability
View on Model
32
Knob thermostat,black
Knob thermostat,black WCI 316102304 Contact Us For Availability
View on Model
34
Cover Plate
Cover Plate WCI 3018607 Contact Us For Availability
View on Model
36
Knob-top valve,(4)
Knob-top valve,(4) WCI 316009008 No Longer Available
View on Model
36#
Tubing-thermo/safety,3/8 ,alum
Tubing-thermo/safety,3/8 ,alum WCI 316060800 Contact Us For Availability
View on Model
39
Handle-door,black ,oven
Handle-door,black ,oven WCI 316020204 Contact Us For Availability
View on Model
39#
Tubing-top pilot,dual
Tubing-top pilot,dual WCI 5303211133 Contact Us For Availability
View on Model
41
Cover-hinge,cutout ,RH
Cover-hinge,cutout ,RH WCI 316233400 Contact Us For Availability
View on Model
42#
Pilot-oven
Pilot-oven WCI 5303280589 Contact Us For Availability
View on Model
43#
Tubing-thermo/pilot,3/16 ,alum
Tubing-thermo/pilot,3/16 ,alum WCI 3203398 Contact Us For Availability
View on Model
58A
Insulation,oven wrapper
Insulation,oven wrapper WCI 3017142 Contact Us For Availability
View on Model
73
Base-low broil
Base-low broil WCI 316109902 Contact Us For Availability
View on Model
85
Rack-Low Broil
Rack-Low Broil WCI 316115600 Contact Us For Availability
View on Model
