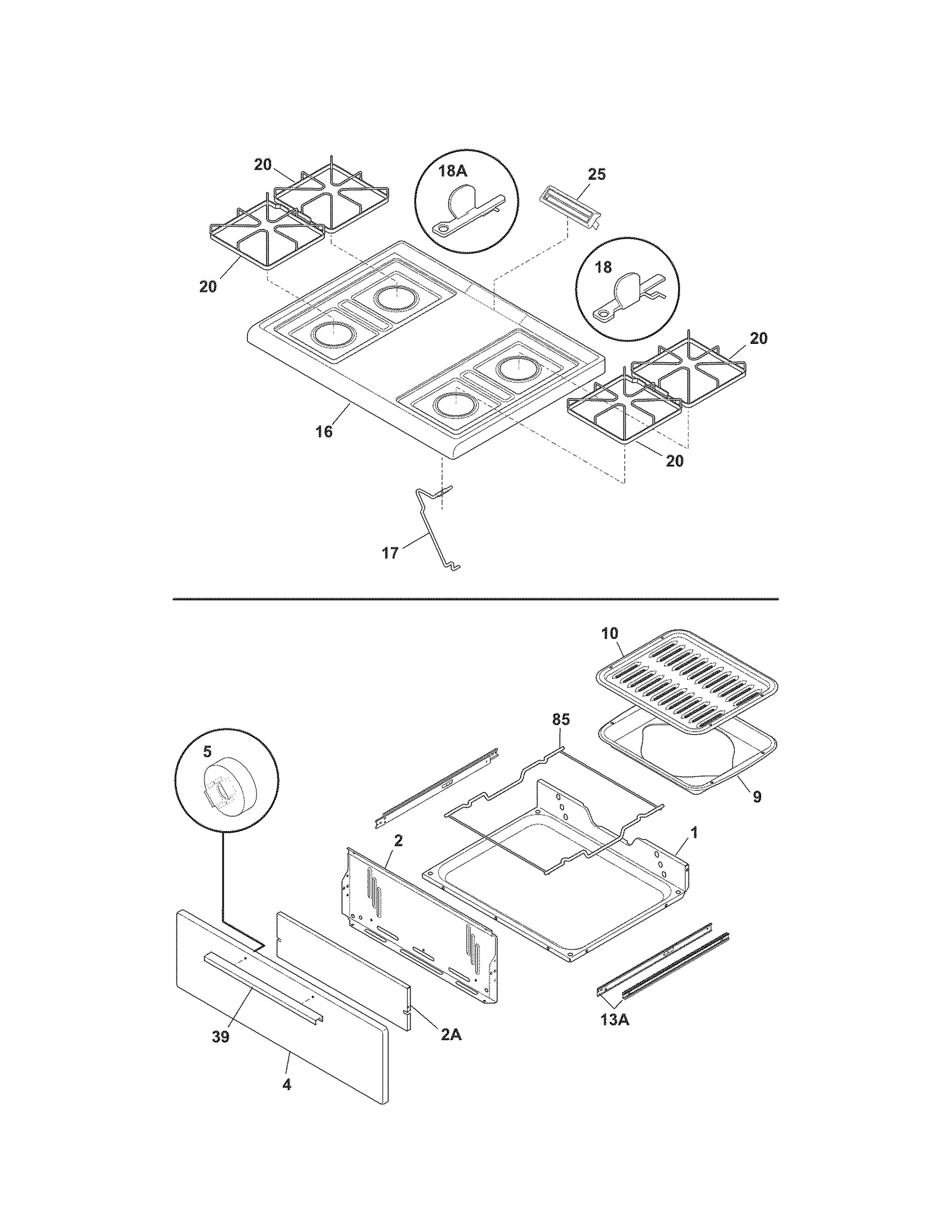

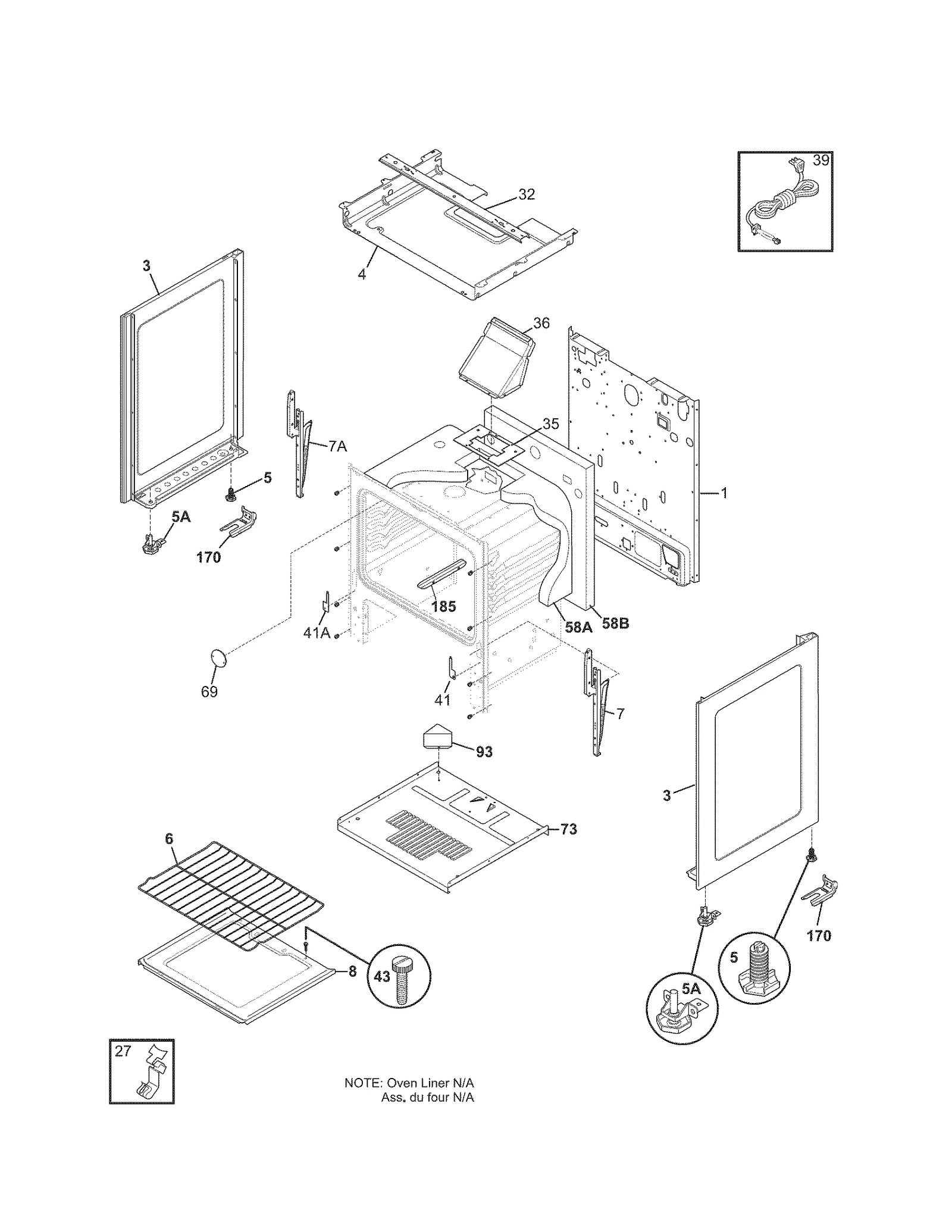

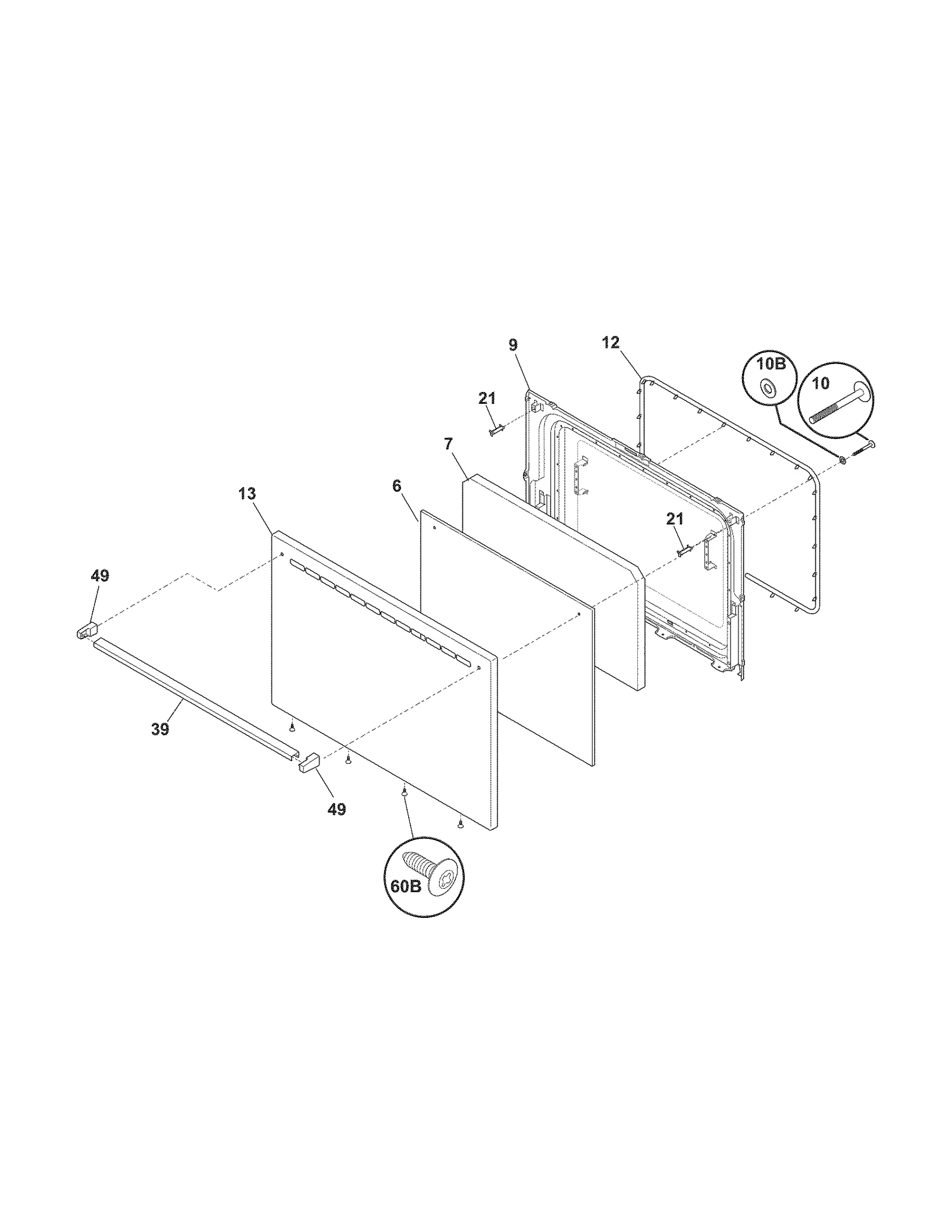

Model Electrolux 790.60721902 Gas Range (Kenmore 79060721902) – Common Parts & Diagrams

1
Range Rear Panel
Range Rear Panel WCI 316029419 Contact Us For Availability
View on Model
1
Range Broil Drawer Bottom Panel
Range Broil Drawer Bottom Panel WCI 316110201 Contact Us For Availability
View on Model
2
Range Broil Drawer Liner
Range Broil Drawer Liner WCI 316236401 Contact Us For Availability
View on Model
2A
Shield
Shield WCI 316541500 Contact Us For Availability
View on Model
3
Range Igniter Switch and Harness Assembly
Range Igniter Switch and Harness Assembly WCI 316580620 Contact Us For Availability
View on Model
4
Range Storage Drawer Front Panel
Range Storage Drawer Front Panel WCI 316231211 Contact Us For Availability
View on Model
4
Drawer Panel
Drawer Panel WCI 316231214 Contact Us For Availability
View on Model
5
Range Broil Drawer Handle Push-In Nut
Range Broil Drawer Handle Push-In Nut WCI 316129100 Contact Us For Availability
View on Model
7
Oven Hinge
Oven Hinge WCI 316566212 Contact Us For Availability
View on Model
7
Range Oven Door Insulation
Range Oven Door Insulation WCI 316236801 Contact Us For Availability
View on Model
7A
Range Oven Door Hinge
Range Oven Door Hinge WCI 316566213 Contact Us For Availability
View on Model
8
Range Oven Bottom Panel
Range Oven Bottom Panel WCI 316495901 Contact Us For Availability
View on Model
13
Range Oven Door Outer Panel (White)
Range Oven Door Outer Panel (White) WCI 316202609 Contact Us For Availability
View on Model
13A
Range Broil Drawer Slide Rail
Range Broil Drawer Slide Rail WCI 316534200 Contact Us For Availability
View on Model
16
Main
Main WCI 316273003 Contact Us For Availability
View on Model
17
Range Main Top Support
Range Main Top Support WCI 316066900 Contact Us For Availability
View on Model
18A
Range Main Top Hinge
Range Main Top Hinge WCI 08067746 Contact Us For Availability
View on Model
20
Range Bake Burner Baffle
Range Bake Burner Baffle WCI 316496001 Contact Us For Availability
View on Model
21
Range Spacer
Range Spacer WCI 316284101 Contact Us For Availability
View on Model
25
Range Oven Vent Cover (Chrome)
Range Oven Vent Cover (Chrome) WCI 316104500 Contact Us For Availability
View on Model
36
Range Surface Burner Knob
Range Surface Burner Knob WCI 316009044 Contact Us For Availability
View on Model
39
Range Oven Door Handle (Black)
Range Oven Door Handle (Black) WCI 316020204 Contact Us For Availability
View on Model
41
Range Oven Door Hinge Cover, Right
Range Oven Door Hinge Cover, Right WCI 316233400 Contact Us For Availability
View on Model
58A
Range Oven Insulation
Range Oven Insulation WCI 3017142 Contact Us For Availability
View on Model
73
Range Broil Drawer Base
Range Broil Drawer Base WCI 316109902 Contact Us For Availability
View on Model
85
Range Broil Drawer Rack
Range Broil Drawer Rack WCI 316115600 Contact Us For Availability
View on Model
NI
Range Screw
Range Screw WCI 316021108 Contact Us For Availability
View on Model
NI
Range Oven Meat Probe Hole Plug
Range Oven Meat Probe Hole Plug WCI 316246400 Contact Us For Availability
View on Model
NI
Label
Label WCI 316433601 Contact Us For Availability
View on Model
