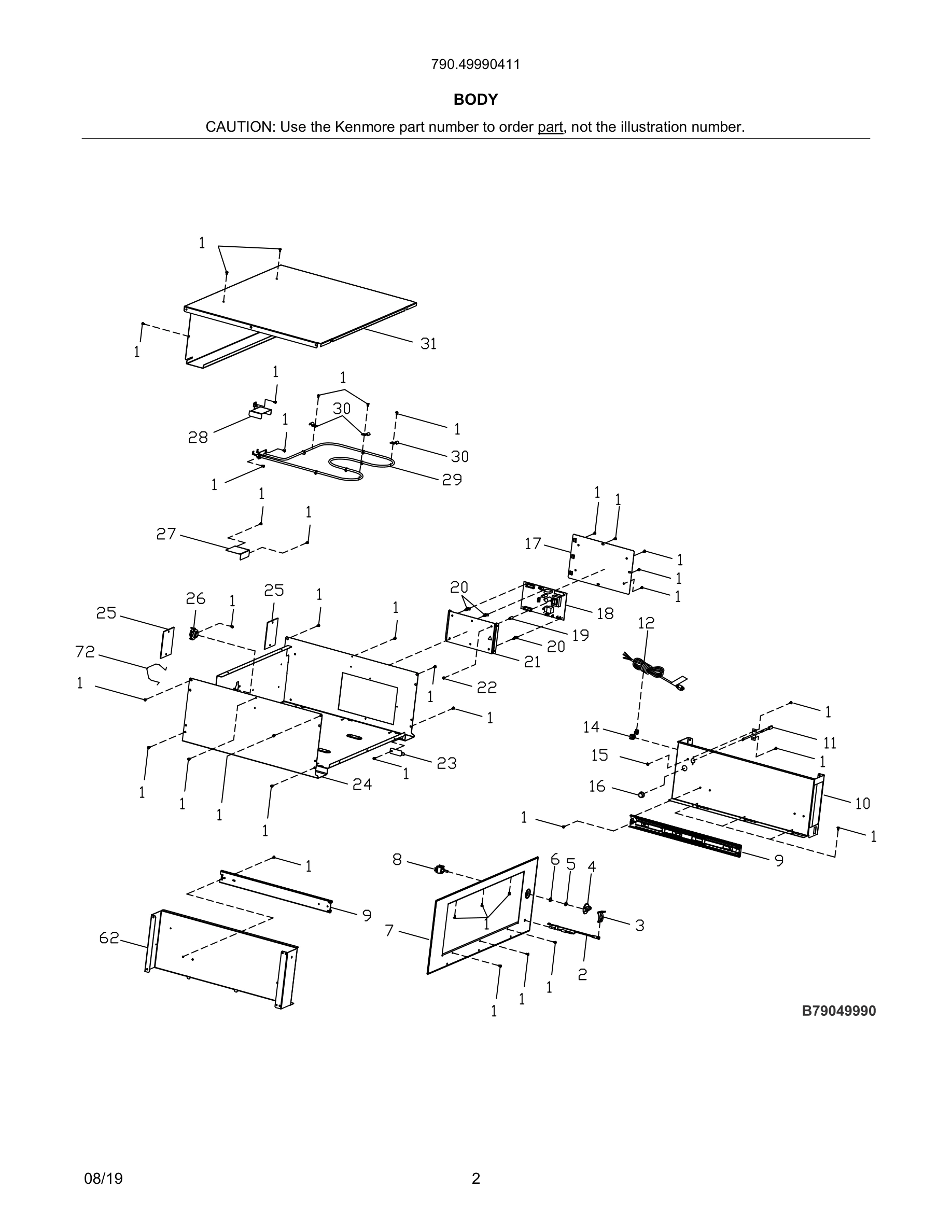

Model Kenmore 790.49990411 WARMER DRAWER – Common Parts & Diagrams

*

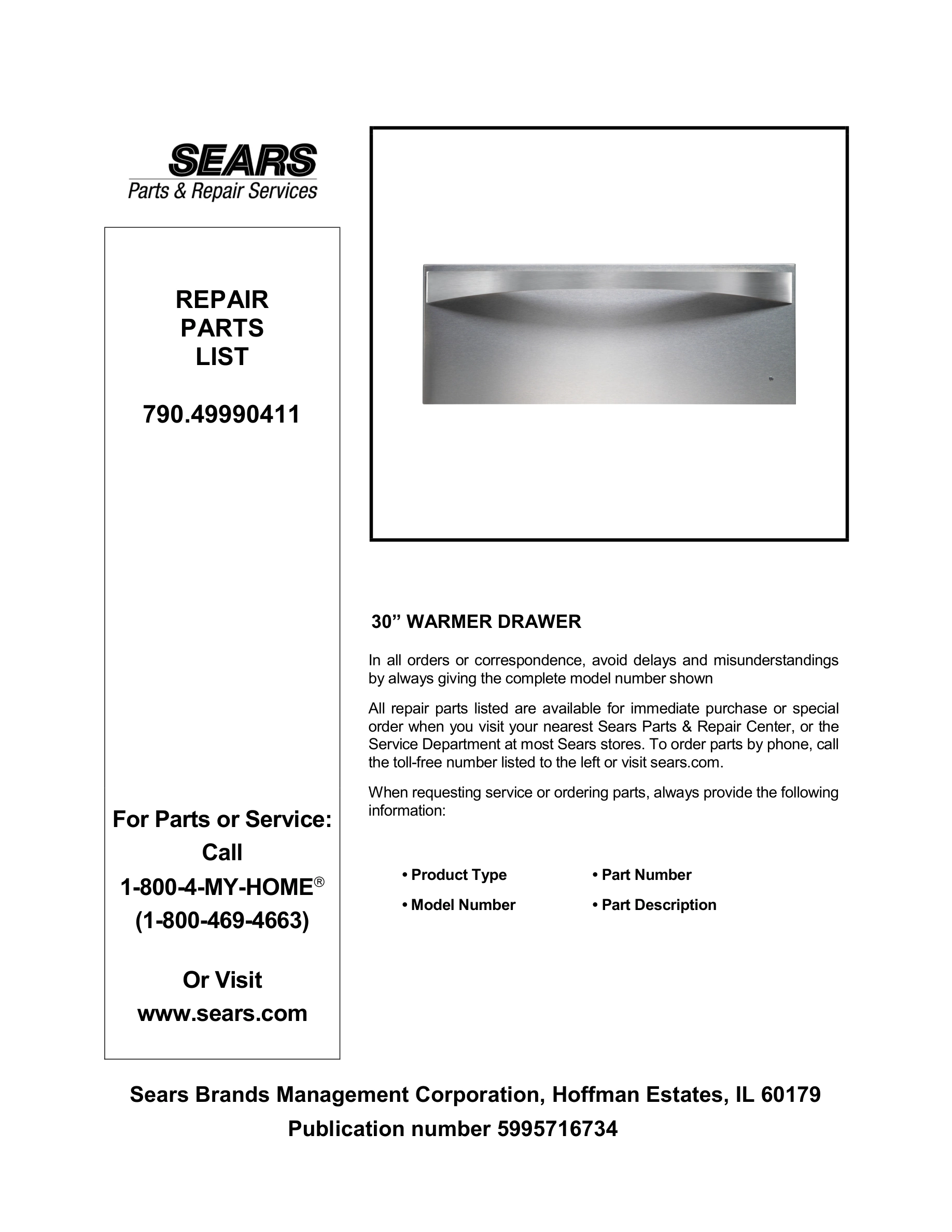

Owner's Manual
Owner's Manual WCI 318201030 Contact Us For Availability
View on Model
*
Cleaner, stainless steel
Cleaner, stainless steel WCI 318163602 Contact Us For Availability
View on Model
12#
Cord, service
Cord, service WCI 318144005 Contact Us For Availability
View on Model
14
Bushing, strain relief
Bushing, strain relief WCI 305532205 Contact Us For Availability
View on Model
16
Bushing, cable
Bushing, cable WCI 305494200 Contact Us For Availability
View on Model
17
Panel, service
Panel, service WCI 318310108 Contact Us For Availability
View on Model
18#
Board, timer, ES060
Board, timer, ES060 WCI 316518030 Contact Us For Availability
View on Model
19
Spacer, control
Spacer, control WCI 318293702 Contact Us For Availability
View on Model
23
Panel, cover
Panel, cover WCI 318310110 Contact Us For Availability
View on Model
25
Bumper, Absorber, felt, (2)
Bumper, Absorber, felt, (2) WCI 318388000 Contact Us For Availability
View on Model
26#
Thermostat, safety
Thermostat, safety WCI 318005114 Contact Us For Availability
View on Model
27
Shield, wire
Shield, wire WCI 318399000 Contact Us For Availability
View on Model
30
Clip, hold down, (3)
Clip, hold down, (3) WCI 316095800 Contact Us For Availability
View on Model
31
Wrapper, upper
Wrapper, upper WCI 318281508 Contact Us For Availability
View on Model
33
Screw, M4 x 5 mm, (6)
Screw, M4 x 5 mm, (6) WCI 305338504 Contact Us For Availability
View on Model
34

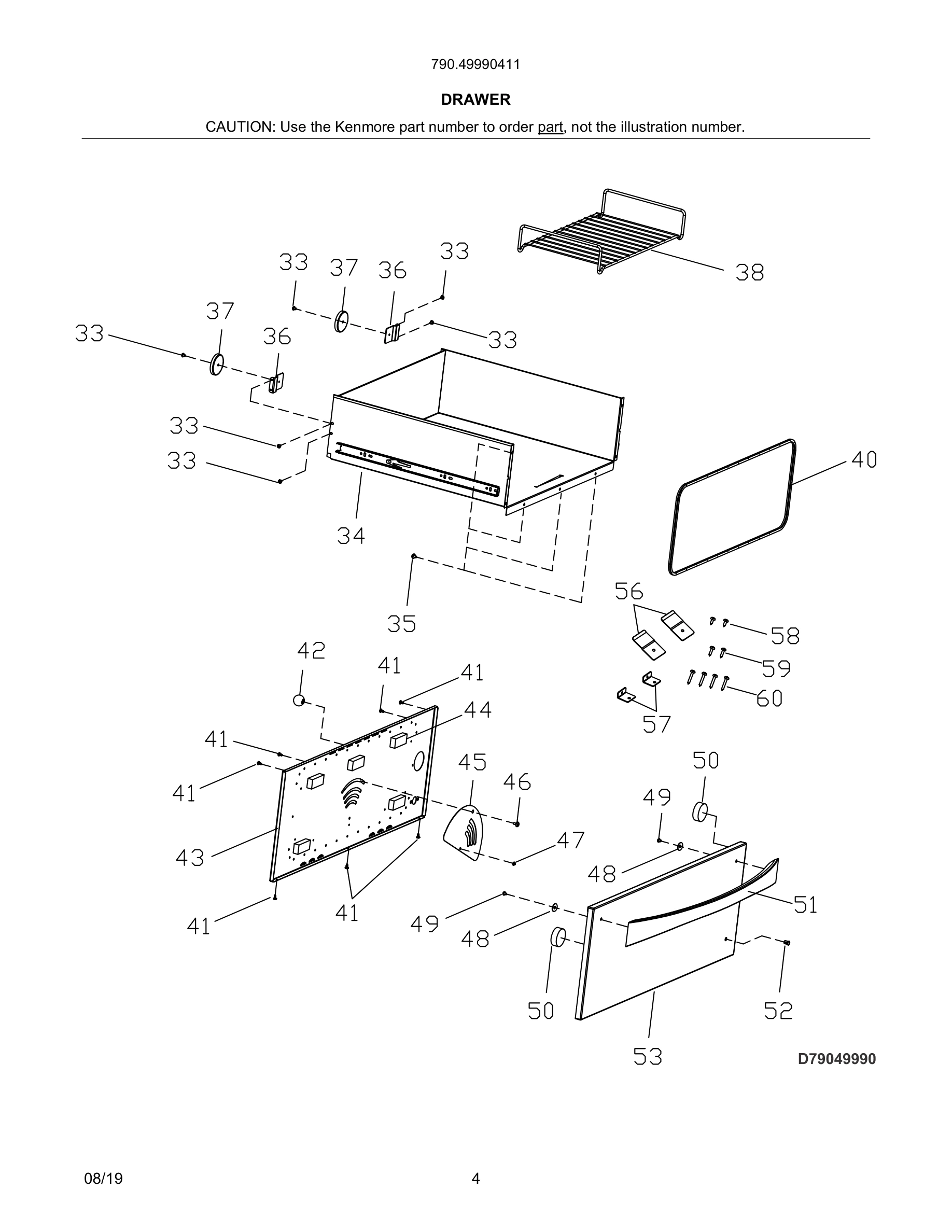

Drawer Assembly, w/glides
Drawer Assembly, w/glides WCI 808248901 Contact Us For Availability
View on Model
36
Bracket, magnet mtg., (2)
Bracket, magnet mtg., (2) WCI 808499901 Contact Us For Availability
View on Model
37
Magnet, drawer, (2)
Magnet, drawer, (2) WCI 318373201 Contact Us For Availability
View on Model
40
Gasket, warmer drawer
Gasket, warmer drawer WCI 318254408 Contact Us For Availability
View on Model
41
Screw, truss head, 8-18 x 3/8", (7)
Screw, truss head, 8-18 x 3/8", (7) WCI 08016432 Contact Us For Availability
View on Model
43
Liner, Drawer Panel, inner
Liner, Drawer Panel, inner WCI 807517201 Contact Us For Availability
View on Model
44
Spacer, door, foam, (5)
Spacer, door, foam, (5) WCI 807273501 Contact Us For Availability
View on Model
45
Panel, humidity cntl
Panel, humidity cntl WCI 807393601 Contact Us For Availability
View on Model
49
Screw, handle mtg., 10-24 x 3/8", (2)
Screw, handle mtg., 10-24 x 3/8", (2) WCI 305615800 Contact Us For Availability
View on Model
50
Bumper, base, (2)
Bumper, base, (2) WCI 318339700 Contact Us For Availability
View on Model
52
Lens, light
Lens, light WCI 318378201 Contact Us For Availability
View on Model
53
Panel, drawer front, stainless
Panel, drawer front, stainless WCI 318280726 Contact Us For Availability
View on Model
56
Bracket, wall, (2)
Bracket, wall, (2) WCI 318247403 Contact Us For Availability
View on Model
57
Bracket, front support, (2)
Bracket, front support, (2) WCI 318262300 Contact Us For Availability
View on Model
58
Screw, ST4.2 x 12.5, (2)
Screw, ST4.2 x 12.5, (2) WCI 305376108 Contact Us For Availability
View on Model
