Model Kenmore 790.49422311 OVEN – Common Parts & Diagrams

4

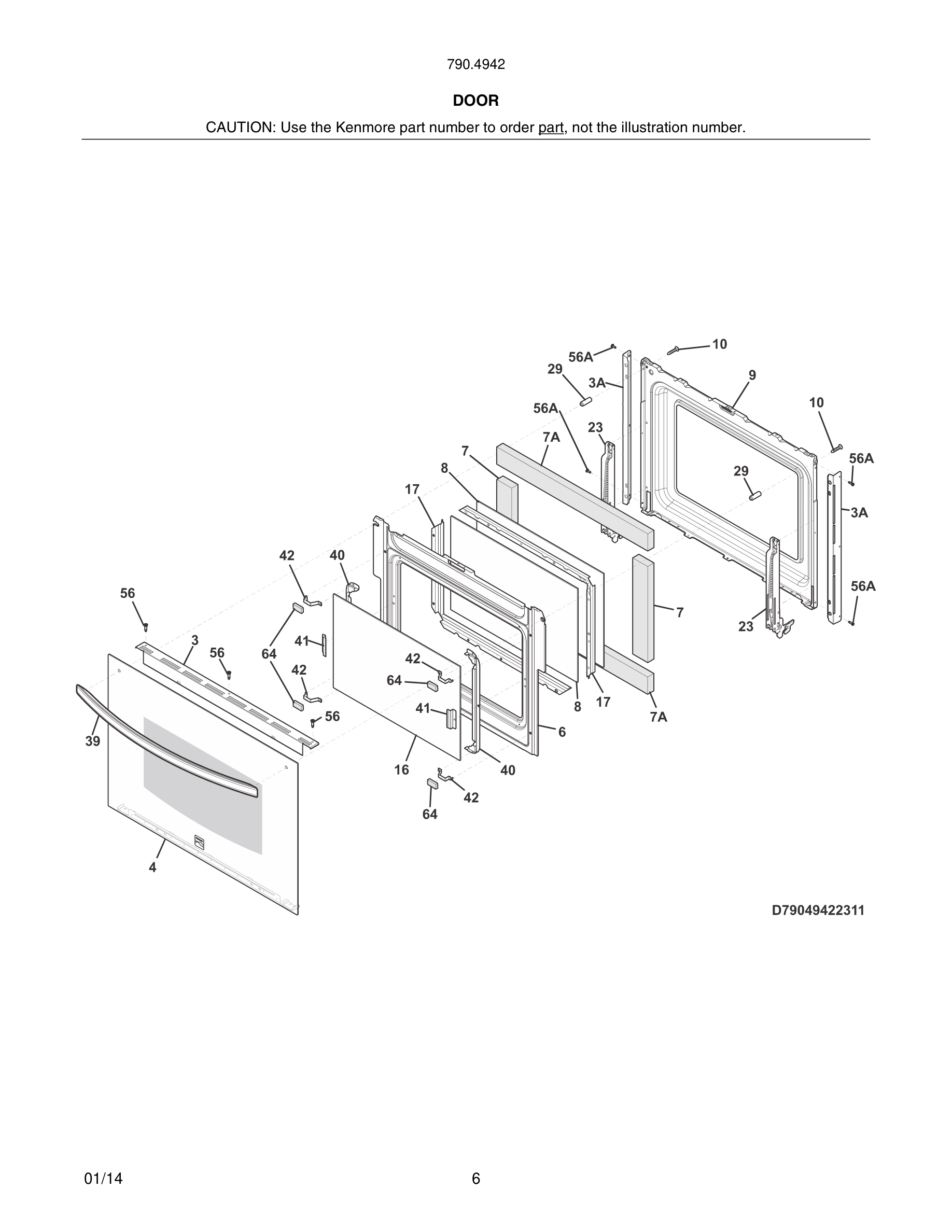

Door Assembly, outer, black, w/trim & badge
Door Assembly, outer, black, w/trim & badge WCI 808950014 Contact Us For Availability
View on Model
4
Door Assembly, outer, white, w/trim & badge
Door Assembly, outer, white, w/trim & badge WCI 808950013 Contact Us For Availability
View on Model
19#

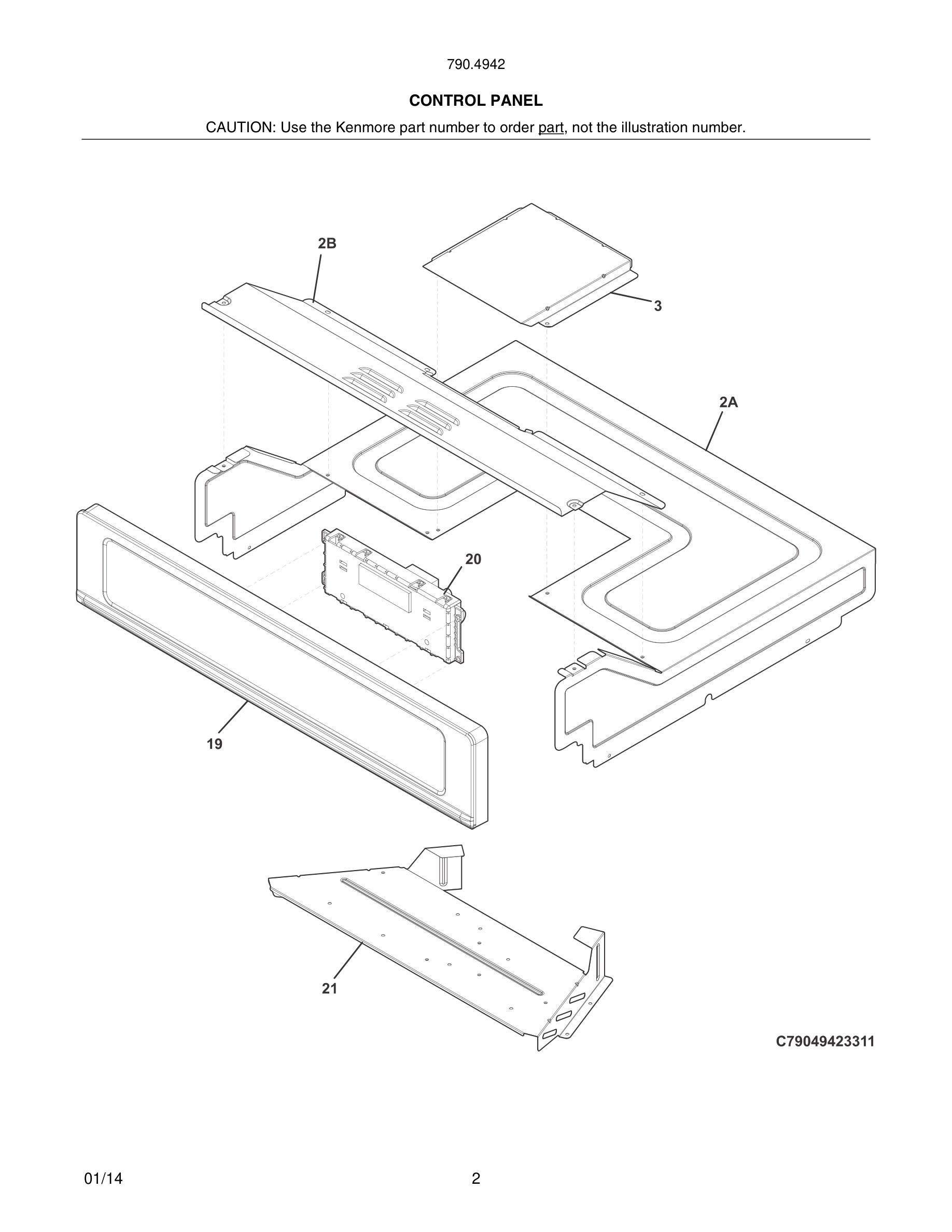

Control Panel Assembly, steel/glass, black, w
Control Panel Assembly, steel/glass, black, w WCI 139038835 Contact Us For Availability
View on Model
39
Handle, door, white, w/spacer
Handle, door, white, w/spacer WCI 318372416 Contact Us For Availability
View on Model
39
Handle, door, black, w/spacer
Handle, door, black, w/spacer WCI 318372417 Contact Us For Availability
View on Model
56
Trim, side, black, RH
Trim, side, black, RH WCI 318903747 Contact Us For Availability
View on Model
67*#

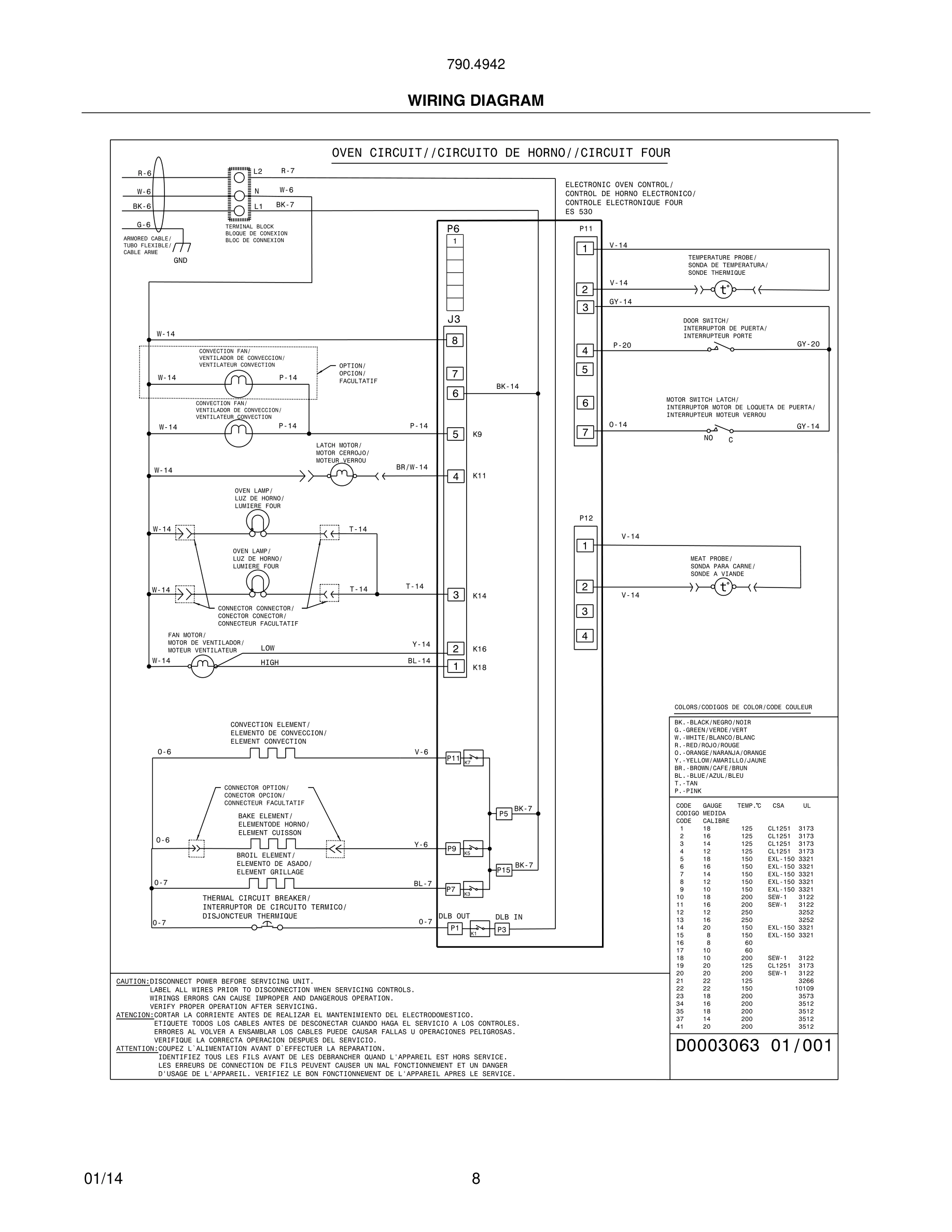

Wiring Harness, bake element
Wiring Harness, bake element WCI 318231870 Contact Us For Availability
View on Model
90
Trim, base, white
Trim, base, white WCI 139008708 Contact Us For Availability
View on Model
