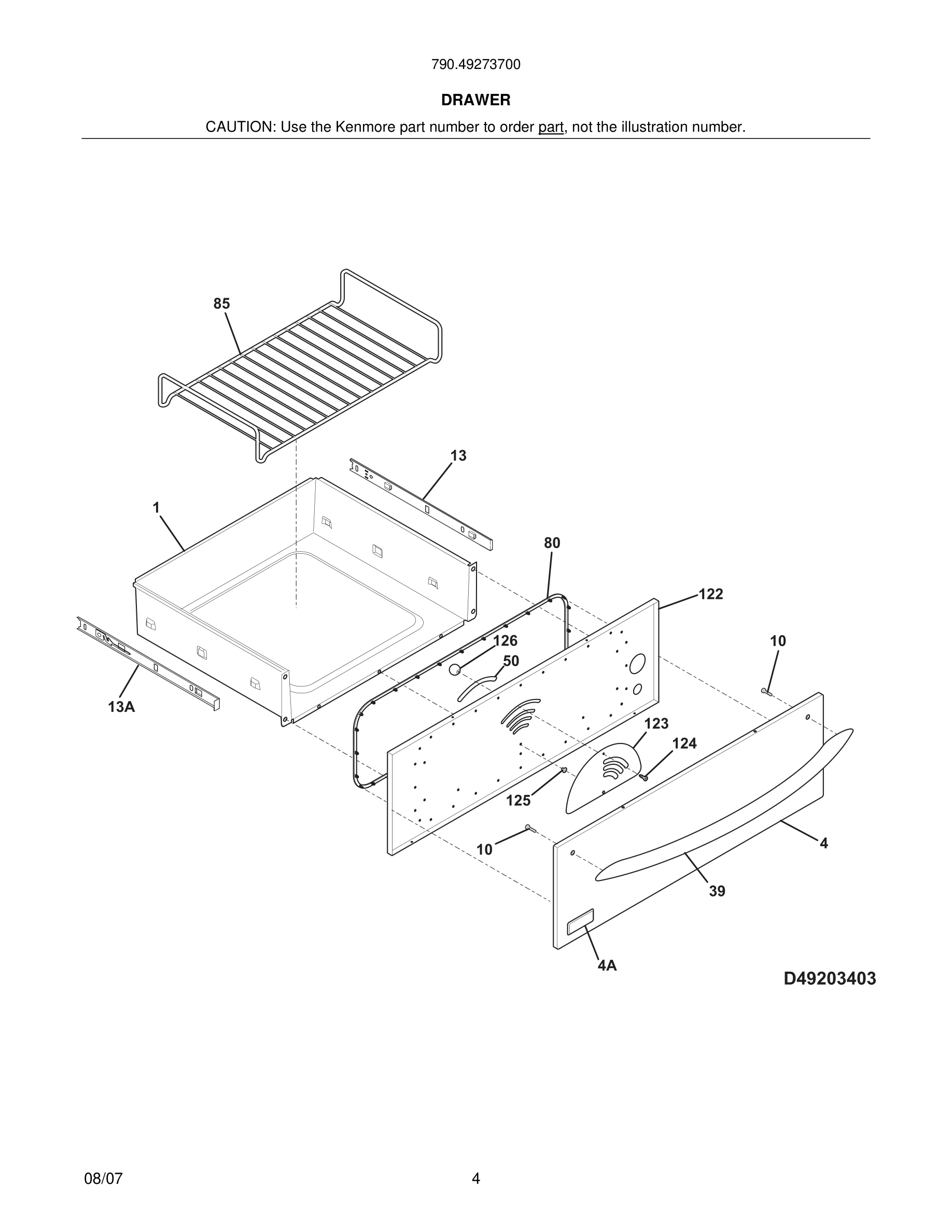

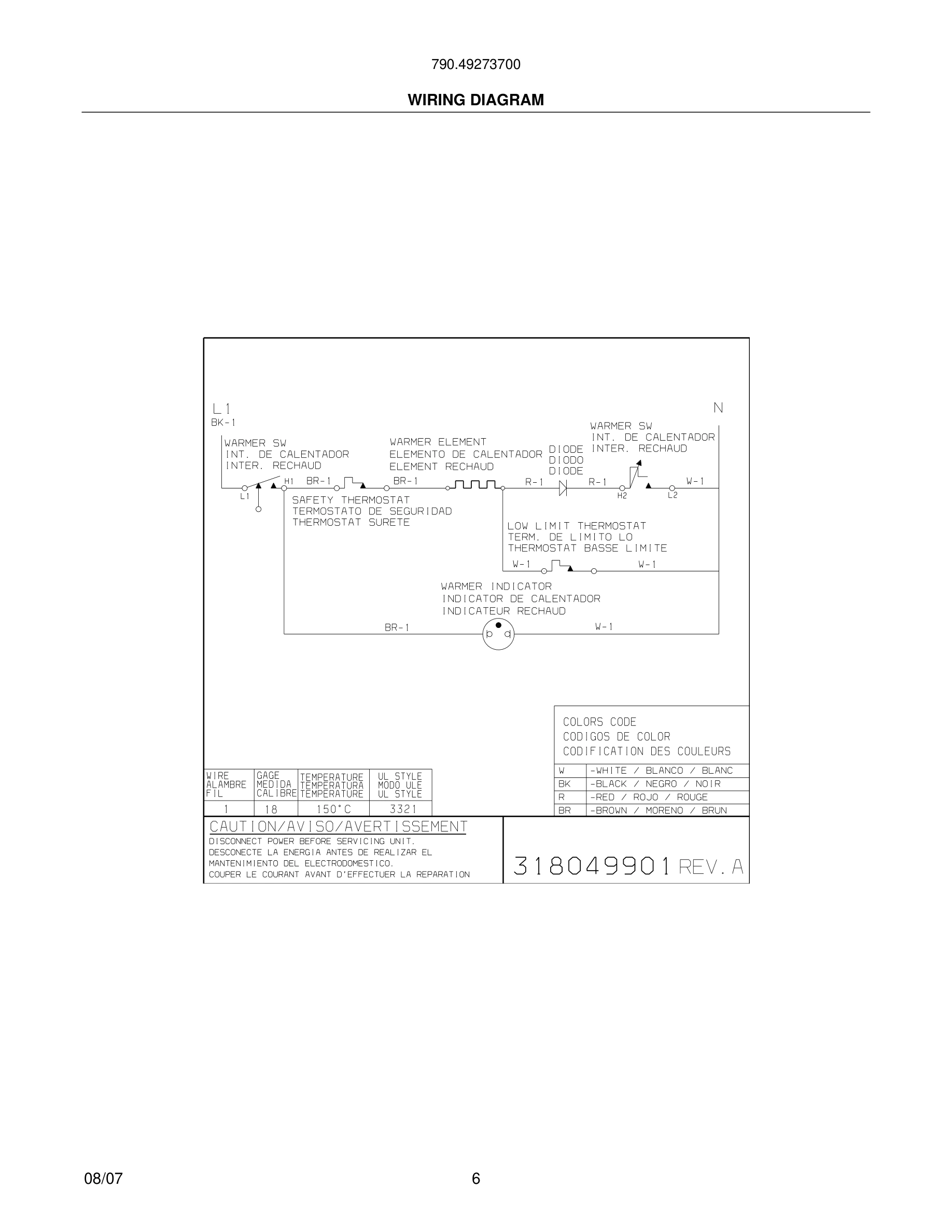

Model Kenmore 790.49273700 WARMER DRAWER – Common Parts & Diagrams

*
Screw, mounting, 8-18 x 0.25, chrome, (2)
Screw, mounting, 8-18 x 0.25, chrome, (2) WCI 5304437021 Contact Us For Availability
View on Model
1
Drawer, warmer
Drawer, warmer WCI 318314603 Contact Us For Availability
View on Model
4
Panel, drawer front, stainless, w/nameplate
Panel, drawer front, stainless, w/nameplate WCI 318284023 Contact Us For Availability
View on Model
4A
Nameplate, Sears
Nameplate, Sears WCI 318181000 Contact Us For Availability
View on Model
13
Channel, drawer, RH, inner
Channel, drawer, RH, inner WCI 318259400 Contact Us For Availability
View on Model
13A
Channel, drawer, LH, inner
Channel, drawer, LH, inner WCI 318259401 Contact Us For Availability
View on Model
14#
Lamp, indicator
Lamp, indicator WCI 318369502 Contact Us For Availability
View on Model
19
Panel, control, black
Panel, control, black WCI 318281403 Contact Us For Availability
View on Model
32
Strain relief
Strain relief WCI 318228100 Contact Us For Availability
View on Model
36
Knob, control, black
Knob, control, black WCI 318280900 Contact Us For Availability
View on Model
39
Cord, service
Cord, service WCI 318144005 Contact Us For Availability
View on Model
39
Handle, door, stainless
Handle, door, stainless WCI 318361204 Contact Us For Availability
View on Model
46
Lens, indicator lamp, red, (2)
Lens, indicator lamp, red, (2) WCI 5308006417 Contact Us For Availability
View on Model
50
Insert, control, humidity
Insert, control, humidity WCI 318284400 Contact Us For Availability
View on Model
80
Gasket, warmer drawer
Gasket, warmer drawer WCI 318254401 Contact Us For Availability
View on Model
84#
Thermostat, safety
Thermostat, safety WCI 318005103 Contact Us For Availability
View on Model
84A#
Thermostat, safety
Thermostat, safety WCI 318005104 Contact Us For Availability
View on Model
86
Clip, hold down, warmer element
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
View on Model
122
Panel, drawer, black, interior
Panel, drawer, black, interior WCI 318281613 Contact Us For Availability
View on Model
123
Panel, control, humidity
Panel, control, humidity WCI 318247102 Contact Us For Availability
View on Model
124
Channel, drawer, RH, outer
Channel, drawer, RH, outer WCI 318259300 Contact Us For Availability
View on Model
124A
Channel, drawer, LH, outer
Channel, drawer, LH, outer WCI 318259301 Contact Us For Availability
View on Model
196
Cover, access
Cover, access WCI 318100100 Contact Us For Availability
View on Model
198
Bushing, side panel, nylon, RH, snap
Bushing, side panel, nylon, RH, snap WCI 08008009 Contact Us For Availability
View on Model
201
Wrapper, upper
Wrapper, upper WCI 318281502 Contact Us For Availability
View on Model
202
Wrapper, lower
Wrapper, lower WCI 318281001 Contact Us For Availability
View on Model
204
Decorative plate, black
Decorative plate, black WCI 318021907 Contact Us For Availability
View on Model
205
Panel, side, black, RH
Panel, side, black, RH WCI 318281205 Contact Us For Availability
View on Model
205A
Panel, side, black, LH
Panel, side, black, LH WCI 318281305 Contact Us For Availability
View on Model
209
Bracket, wall
Bracket, wall WCI 318247401 Contact Us For Availability
View on Model
209*
Screw, 10-16x1-1/8, square drive
Screw, 10-16x1-1/8, square drive WCI 5303302745 Contact Us For Availability
View on Model
210
Bracket, front support, (2)
Bracket, front support, (2) WCI 318262300 Contact Us For Availability
View on Model
