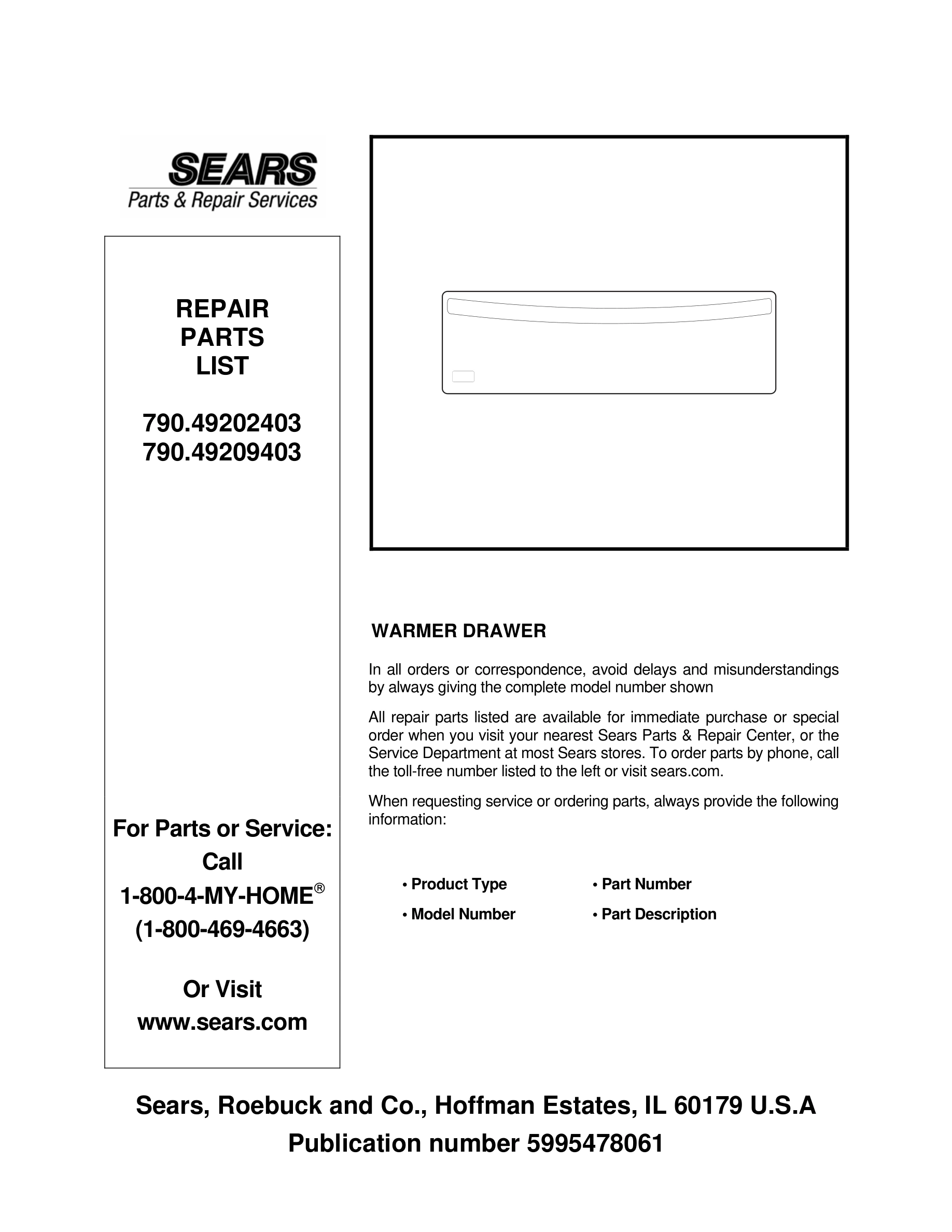

Model Kenmore 790.49202403 WARMER DRAWER – Common Parts & Diagrams
01 - COVER

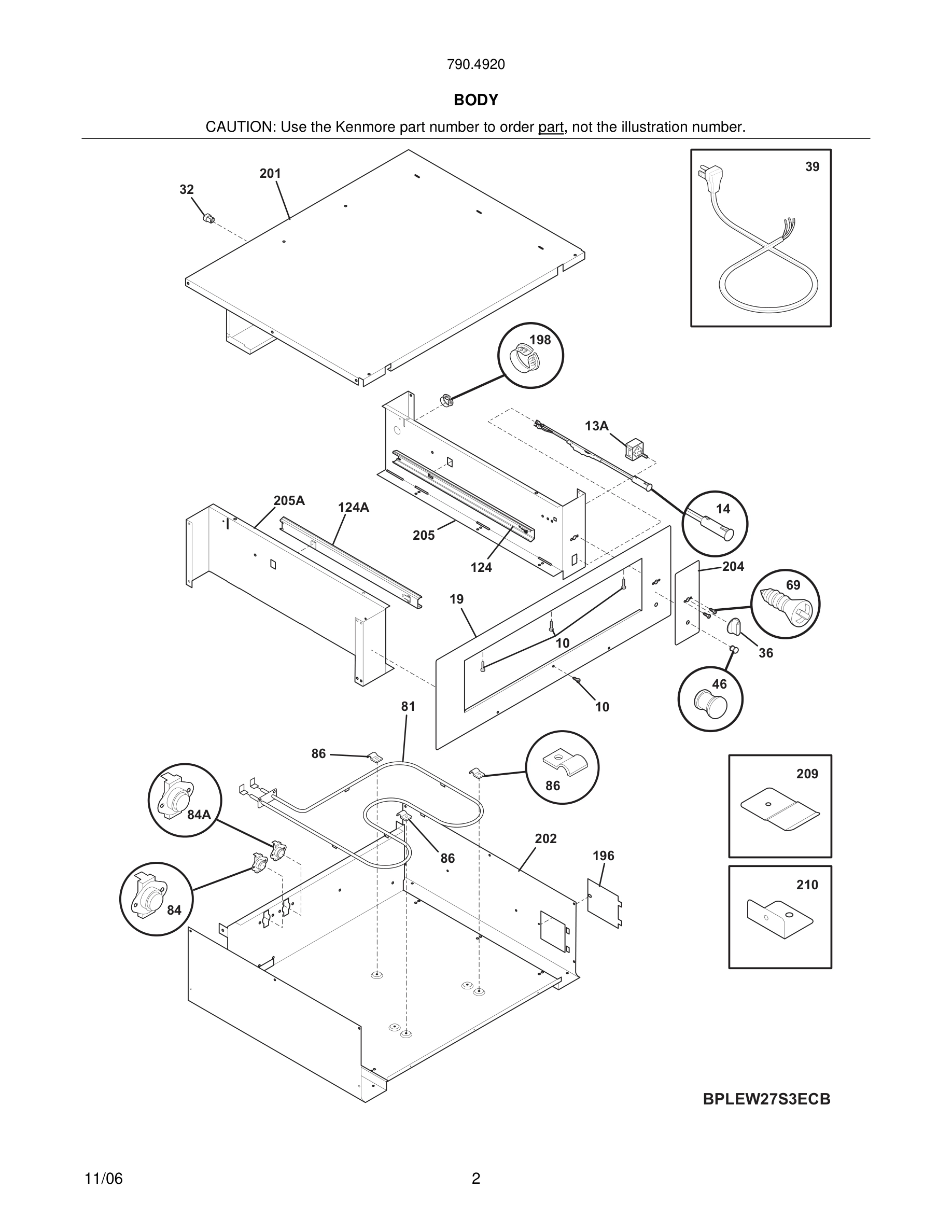

03 - BODY
05 - DRAWER
06 - WIRING DIAGRAM
Common parts from model Kenmore 790.49202403 WARMER DRAWER
1
Drawer, warmer WCI 318314611 Contact Us For Availability
4
Glass, drawer, white, front WCI 318280800 Contact Us For Availability
4
Glass, drawer, black, front WCI 318280801 Contact Us For Availability
5
Panel, drawer, white, front WCI 318280606 Contact Us For Availability
5
Panel, drawer, black, front WCI 318280605 Contact Us For Availability
6
Front Panel Assy., white, incl/4, 5 & 51 WCI 318285500 Contact Us For Availability
6
Front Panel Assy., black, incl/4, 5 & 51 WCI 318285502 Contact Us For Availability
13
Channel, drawer, RH, inner WCI 318259400 Contact Us For Availability
13A
Channel, drawer, LH, inner WCI 318259401 Contact Us For Availability
14
Light, indicator WCI 5303051533 Contact Us For Availability
19
Panel, control, black WCI 318281401 Contact Us For Availability
32
Strain relief WCI 318228100 Contact Us For Availability
36
Knob, control, black WCI 318280900 Contact Us For Availability
39
Cord, service WCI 318144005 Contact Us For Availability
39
Handle, door, white WCI 316268301 Contact Us For Availability
39
Handle, door, black WCI 316268300 Contact Us For Availability
46
Lens, indicator lamp, red, (2) WCI 5308006417 Contact Us For Availability
50
Insert, control, humidity WCI 318284400 Contact Us For Availability
51
Nameplate, Sears WCI 318181000 Contact Us For Availability
80
Gasket, warmer drawer WCI 318254400 Contact Us For Availability
84#
Thermostat, safety WCI 318005103 Contact Us For Availability
84A#
Thermostat, safety WCI 318005104 Contact Us For Availability
86
Clip, hold down, warmer element WCI 316095800 Contact Us For Availability
122
Panel, drawer, interior WCI 318281617 Contact Us For Availability
123
Panel, control, humidity WCI 318247102 Contact Us For Availability
124
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
124
Channel, drawer, RH, outer WCI 318259300 Contact Us For Availability
124A
Channel, drawer, LH, outer WCI 318259301 Contact Us For Availability
196
Cover, access WCI 318100100 Contact Us For Availability
198
Bushing, side panel, nylon, RH, snap WCI 08008009 Contact Us For Availability
201
Wrapper, upper WCI 318281505 Contact Us For Availability
202
Wrapper, lower WCI 318281005 Contact Us For Availability
204
Decorative plate, black WCI 318021907 Contact Us For Availability
205
Panel, side, black, RH WCI 318281205 Contact Us For Availability
205A
Panel, side, black, LH WCI 318281305 Contact Us For Availability
209
Bracket, wall WCI 318247401 Contact Us For Availability
209*
Screw, 10-16x1-1/8, square drive WCI 5303302745 Contact Us For Availability
210
Bracket, front support, (2) WCI 318262300 Contact Us For Availability
× ![]()
