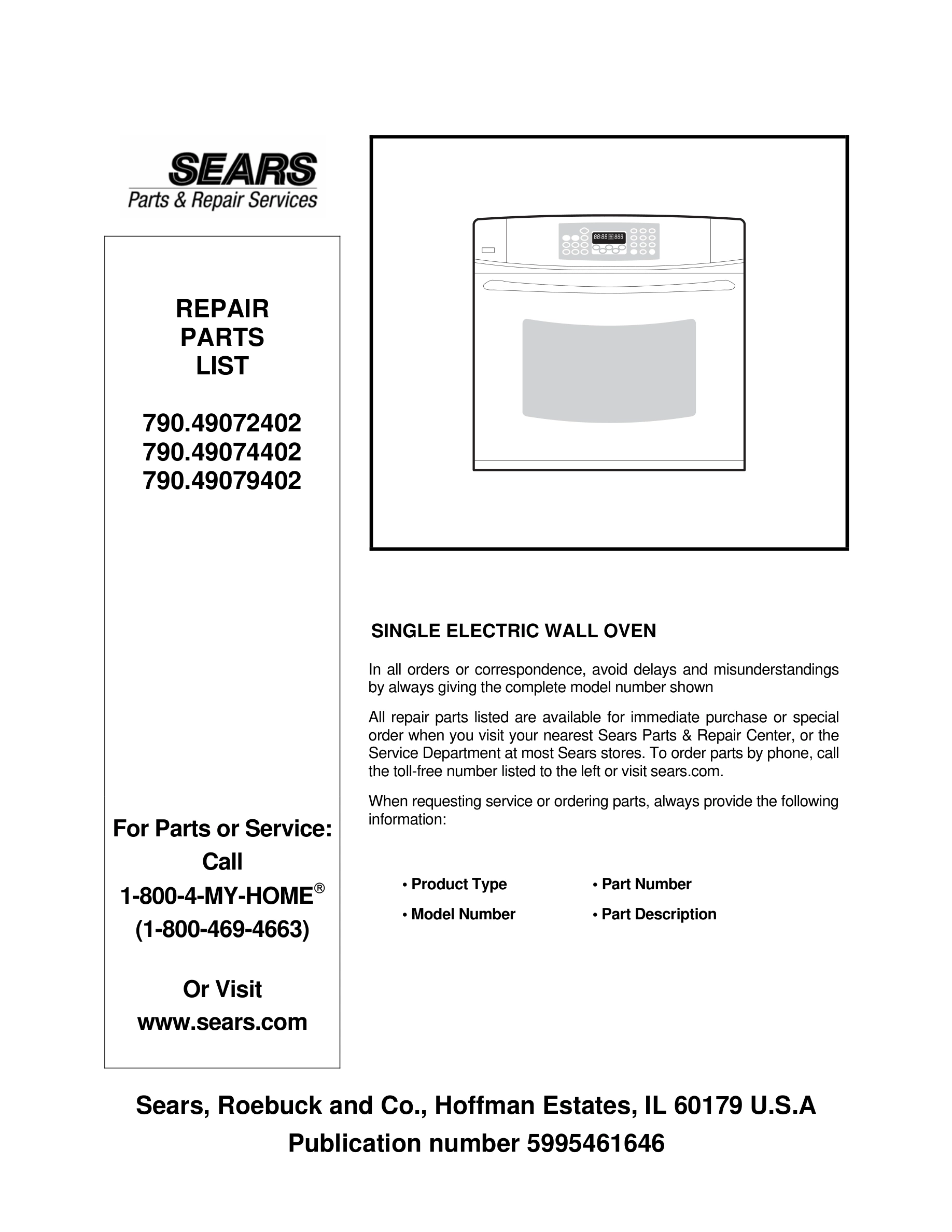

Model Kenmore 790.49072402 OVEN – Common Parts & Diagrams
01 - COVER

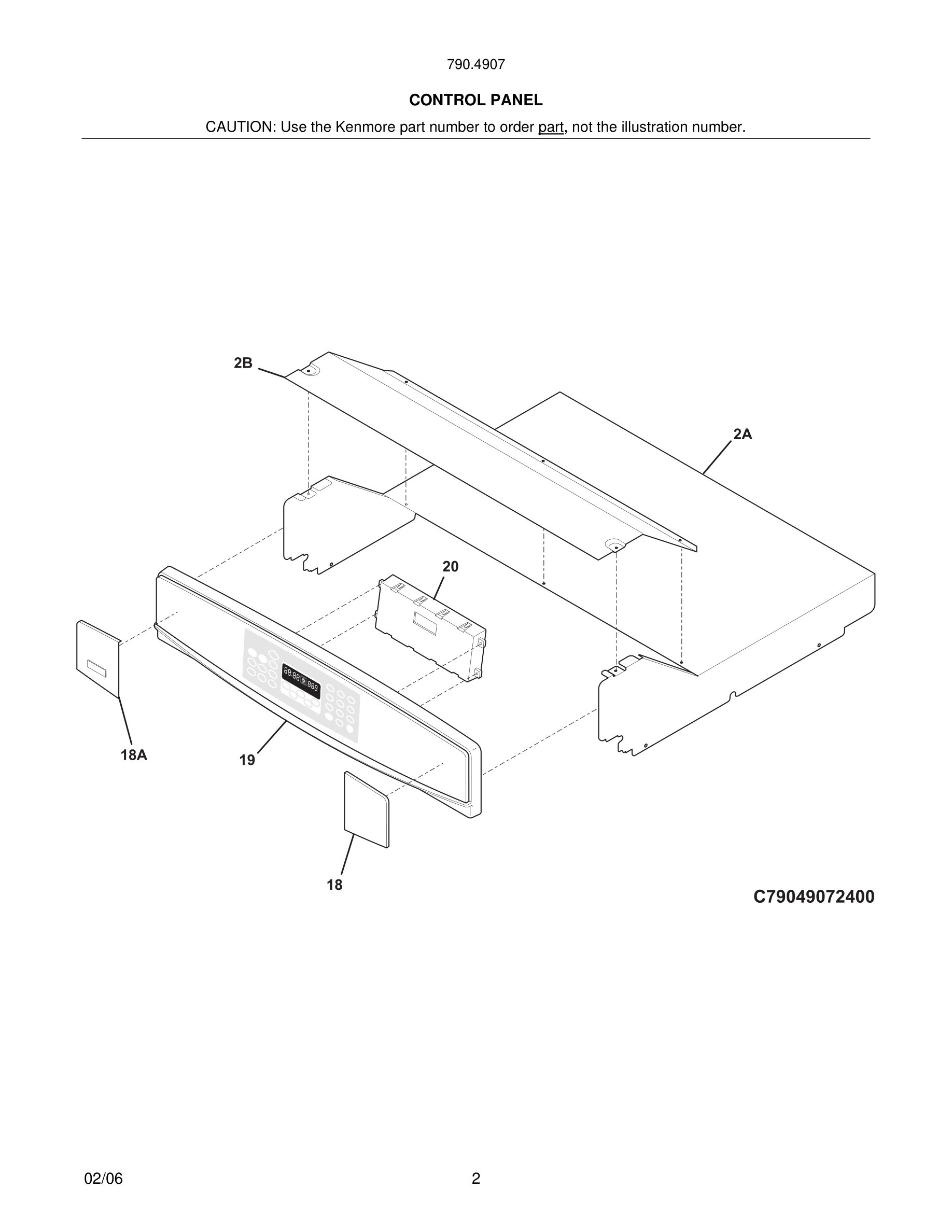

03 - CONTROL PANEL
05 - BODY
07 - BODY
09 - DOOR
10 - WIRING DIAGRAM
Common parts from model Kenmore 790.49072402 OVEN
*
Harness, wiring, main WCI 318231738 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
8
Cover, element WCI 318262001 Contact Us For Availability
9
Liner, oven door WCI 318259601 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
20#
Clock/Timer, electronic, ES565W1 WCI 316418770 Contact Us For Availability
23
Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
39
Handle, door, white WCI 316268301 Contact Us For Availability
39
Handle, door, bisque WCI 316268302 Contact Us For Availability
39
Handle, door, black WCI 316268300 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258707 Contact Us For Availability
83
Liner, oven assy WCI 318261401 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
90
Trim, oven front, bisque, bottom WCI 318259702 Contact Us For Availability
107
Cover, fan WCI 318219401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
131
Box, vent WCI 318272900 Contact Us For Availability
132
Plate, shield WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
272
Tube, protector WCI 318249401 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
